Eaton NZMN4-AE1000 1000A Circuit Breaker | Replacement, Equivalent & Selection Guide

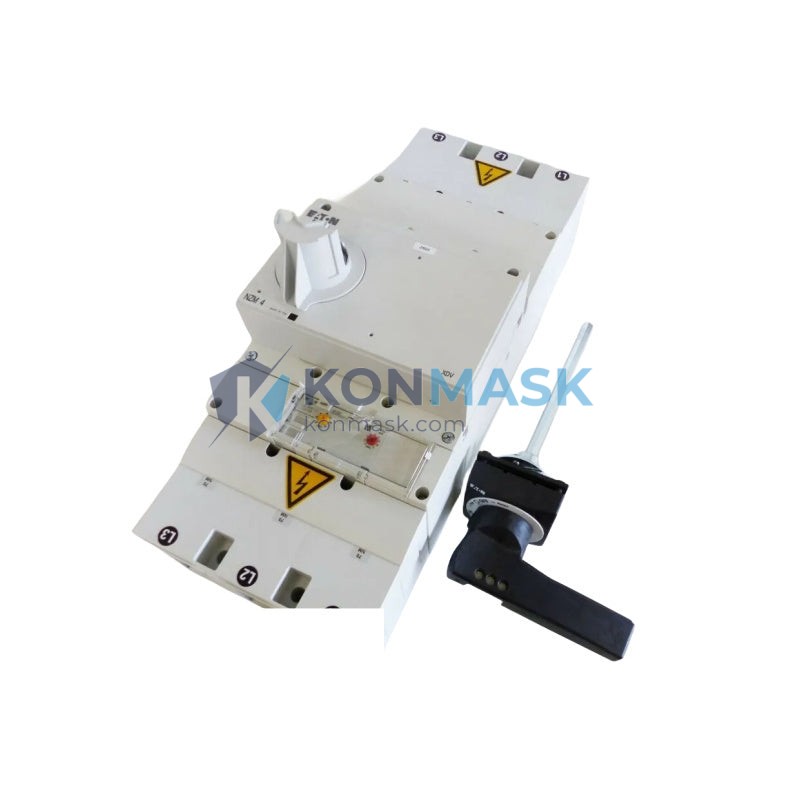

The Eaton NZMN4-AE1000 is a 4-pole molded case circuit breaker (MCCB) rated at 1000A, designed for industrial power distribution and motor protection applications. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
| Manufacturer | Eaton (formerly Moeller) |
| Part Number / SKU | NZMN4-AE1000 |
| Series | NZM4 (NZMN4) |
| Type | Molded Case Circuit Breaker (MCCB) |
| Rated Current (In) | 1000 A |
| Poles | 4P |
| Rated Voltage (Ue) | 690 V AC / 250 V DC |
| Rated Impulse Voltage (Uimp) | 8 kV |
| Breaking Capacity (Icu) | 50 kA @ 415 V AC |
| Trip Class | Thermal-magnetic (AE = adjustable electronic optional) |
| Mounting | Fixed / Plug-in |
| Standards | IEC 60947-2, EN 60947-2 |
| Degree of Protection | IP20 (open), IP40/54 with enclosure |
| Weight | ~540 g |
| Country of Origin | Germany / EU |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the Eaton NZMN4-AE1000. Always verify electrical parameters before substitution.
| Brand | Model | Rating | Compatibility Note |
|---|---|---|---|
| Eaton (OEM) | NZMN4-AE1000 | 1000A / 4P | Original — direct replacement |
| Eaton | NZMH4-AE1000 | 1000A / 4P | Higher breaking capacity variant |
| Siemens | 3VA2710-5HL42-0AA0 | 1000A / 4P | Functional equivalent; verify bus bar dimensions |
| ABB | SACE Tmax XT7 1000A | 1000A / 4P | Functional equivalent; different frame size |
| Schneider Electric | NSX1000N / NSX1000H | 1000A / 4P | Functional equivalent; check trip unit compatibility |
| Chint | NM8-1000S/4P | 1000A / 4P | Economy alternative; verify Icu rating |
| Delixi | CDM3-1000M/4300 | 1000A / 4P | Economy alternative; IEC compliant |
Note: Konmask.com recommends using OEM parts where possible. Replacement models are listed for reference only. Always consult the original equipment documentation.
Why Choose the Original Eaton NZMN4-AE1000
- Proven reliability in heavy industrial environments with decades of field deployment
- IEC 60947-2 certified — meets international safety and performance standards
- Adjustable trip settings (AE variant) for flexible protection coordination
- Wide accessory ecosystem: auxiliary contacts, shunt trips, undervoltage releases, motor operators
- Direct OEM support with full documentation, spare parts, and firmware compatibility
- Consistent breaking capacity of 50 kA @ 415 V AC for demanding applications
Typical Applications
- Main incoming circuit protection in MCC (Motor Control Centers)
- Industrial power distribution panels and switchgear
- Generator set protection and bus tie applications
- Large motor feeder protection (up to 1000A)
- Data center and critical infrastructure power distribution
- Marine and offshore power systems (with appropriate enclosure)
System Compatibility
The NZMN4-AE1000 is compatible with the following Eaton NZM4 series accessories and systems:
- Eaton NZM4 plug-in base (NZMN4-XA) for draw-out installation
- Eaton NZM4 motor operator (NZM4-XR) for remote switching
- Eaton NZM4 shunt trip release (NZM4-XSVA) for emergency tripping
- Eaton NZM4 undervoltage release (NZM4-XUVA) for voltage monitoring
- Eaton NZM4 auxiliary contact blocks (NZM4-XHI) for status signaling
- Compatible with standard IEC 60947-2 switchgear enclosures and bus bar systems
Selection Guide
Use the following criteria to confirm the NZMN4-AE1000 is the correct model for your application:
| Parameter | Your Requirement | NZMN4-AE1000 Value |
|---|---|---|
| Rated Current | ≤ 1000 A | 1000 A |
| Number of Poles | 4P (3P+N or 4P) | 4P |
| System Voltage | ≤ 690 V AC / ≤ 250 V DC | 690 V AC / 250 V DC |
| Required Icu | ≤ 50 kA @ 415 V | 50 kA @ 415 V |
| Trip Function | Thermal-magnetic or electronic | AE = adjustable electronic |
| Mounting Style | Fixed or plug-in | Both supported |
| Standards | IEC / EN | IEC 60947-2 ✓ |
If your application requires higher breaking capacity, consider the NZMH4-AE1000 (H-frame, higher Icu). For lower current ratings, refer to the NZM3 or NZM2 series.
Quality Assurance & Sourcing
- All products sourced through authorized distribution channels or verified secondary market suppliers
- Each unit undergoes visual inspection and documentation verification prior to shipment
- Original manufacturer packaging and labeling preserved where available
- Traceability documentation (COC, test reports) available upon request
- Konmask.com maintains a zero-tolerance policy on counterfeit components
How to Order
- Confirm your required specifications using the Selection Guide above
- Add Eaton NZMN4-AE1000 to your cart or contact us for bulk pricing
- Provide your project details for lead time and availability confirmation
- Request a formal quotation via support@konmask.com
- Payment, shipping, and export documentation arranged per your requirements
For urgent requirements or large quantity orders, please contact our technical sales team directly.
Replacement & Compatibility FAQ
Q: Can I replace NZMN4-AE1000 with NZMH4-AE1000?
A: Yes. The NZMH4-AE1000 is a higher breaking capacity variant in the same NZM4 frame. It is a direct mechanical and electrical upgrade, fully backward compatible.
Q: Is the Siemens 3VA2710 a direct drop-in replacement?
A: Functionally equivalent in rating, but bus bar hole patterns and terminal dimensions differ. Panel modifications may be required.
Q: What is the difference between NZMN4 and NZMH4?
A: NZMN4 = Standard breaking capacity (N-frame, ~50 kA). NZMH4 = High breaking capacity (H-frame, ~85 kA). Same current rating, different Icu.
Q: Does Konmask.com provide test reports or certificates of conformity?
A: Yes. COC and available test documentation can be provided upon request for qualified orders.
Q: What is the lead time for NZMN4-AE1000?
A: Typically 3–10 business days depending on stock availability. Contact us for real-time inventory status.
