Industrial Distribution Solution – Schneider Electric NSX160N | Compact NSX Series
Where This Product Is Used

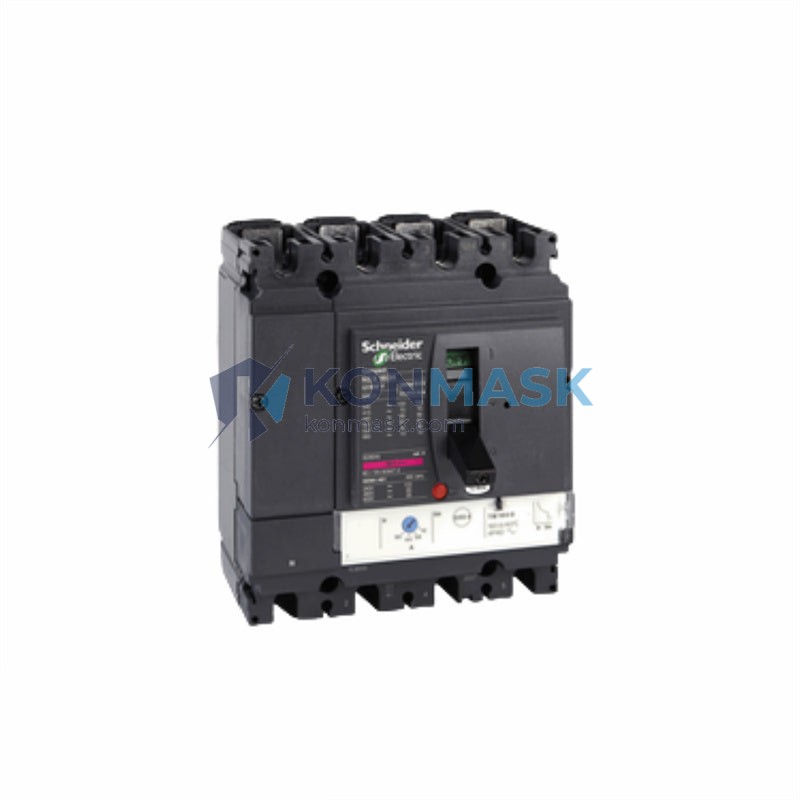

The Schneider Electric NSX160N is a fixed-mount molded case circuit breaker (MCCB) engineered for demanding industrial and commercial power distribution environments. Engineers and panel builders specify this model across a wide range of critical applications:
- Motor Control Centers (MCC): Provides reliable short-circuit and overload protection for motors up to 75kW at 400V AC.
- Industrial Distribution Panels: Used as a main or branch circuit breaker in factory switchboards, protecting downstream equipment from fault currents up to 50kA.
- Building Automation & HVAC Systems: Protects large HVAC compressors, chillers, and air handling units in commercial buildings.
- Machine Tool & CNC Equipment: Installed in machine tool control cabinets requiring compact, high-performance protection.
- Water Treatment & Pump Stations: Safeguards pump motors and control systems in municipal water infrastructure.
- Oil & Gas Auxiliary Panels: Deployed in upstream and downstream auxiliary distribution boards where robust fault interruption is mandatory.
- Data Center PDUs: Used in power distribution units requiring high breaking capacity in a compact footprint.
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | NSX160N / LV430800 |
| Series | Compact NSX |
| Rated Current (In) | 160 A |
| Rated Voltage (Ue) | 690 V AC / 500 V DC |
| Breaking Capacity (Icu) @ 415V | 50 kA |
| Breaking Capacity (Ics) | 100% Icu (50 kA) |
| Mounting Type | Fixed (non-withdrawable) |
| Poles | 3P / 4P (specify at order) |
| Trip Unit | TM-D (thermal-magnetic) or Micrologic (electronic) |
| Standards | IEC 60947-2, EN 60947-2 |
| Degree of Protection | IP40 (front face, door-mounted) |
| Operating Temperature | -25°C to +70°C |
| Weight | 1.43 kg |
| Country of Origin | France / China (per batch) |
Why Engineers Specify This Model
- High Breaking Capacity in Compact Form: 50kA Icu at 415V AC delivers superior fault protection without requiring oversized enclosures — critical for space-constrained panel designs.
- 100% Service Breaking Capacity (Ics = Icu): The NSX160N maintains full rated breaking capacity after a fault event, eliminating the need for immediate replacement and reducing downtime.
- Modular Accessory Ecosystem: Compatible with Schneider’s full range of NSX accessories — auxiliary contacts, shunt trips, undervoltage releases, and rotary handles — enabling flexible system integration.
- Fixed Design Reliability: The fixed (non-withdrawable) configuration eliminates contact wear from racking operations, ideal for installations where the breaker remains permanently in circuit.
- Wide Voltage Range: Rated to 690V AC, making it suitable for both standard 400V and higher-voltage European and Asian industrial networks.
- Proven Global Track Record: Part of Schneider Electric’s Compact NSX platform — one of the most widely deployed MCCB families in industrial automation globally.
Complete System Bill of Materials
For a complete motor protection or distribution assembly using the NSX160N, engineers typically specify:
- NSX160N Fixed Circuit Breaker (this unit) — LV430800
- TM-D Trip Unit (160A) — LV429385
- Auxiliary Contact Block (OF) — LV429385
- Shunt Trip Release (MX) 220–240V AC — LV429385
- Rotary Handle (IP54, extended) — LV432594
- NSX Terminal Shields — LV432490
- NSX Spreader Lugs (for cable connection) — LV432491
Contact Konmask.com for bundle pricing on complete BOM packages.
Compliance & Industry Standards
- IEC 60947-2 — Low-voltage switchgear and controlgear: Circuit breakers
- EN 60947-2 — European harmonized standard for MCCBs
- CE Marking — Compliant with EU Low Voltage Directive 2014/35/EU
- RoHS Compliant — Restriction of Hazardous Substances Directive
- REACH Compliant — EU chemical safety regulation
- UL Listed (select variants) — North American market compliance
Quality Assurance & Sourcing
Konmask.com sources Schneider Electric products exclusively through authorized distribution channels and verified industrial surplus networks. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and date codes
- Verification of original Schneider Electric packaging and holographic seals where applicable
- Cross-reference of serial numbers against Schneider Electric’s product authentication system
- Functional continuity check on all poles
- 30-day return policy for DOA (Dead on Arrival) units
We do not sell counterfeit, refurbished-as-new, or grey-market products. All items are traceable to original manufacturer documentation.
How to Source This Part
- In Stock: Order directly via this product page for immediate dispatch.
- Bulk / Project Quantity: Contact us for volume pricing on orders of 5+ units.
- Urgent Requirement: WhatsApp or call +0086 19859288691 for same-day quotation.
- Custom Configuration: Need a specific trip unit, pole count, or accessory combination? Email support@konmask.com with your BOM and we will configure and quote within 24 hours.
- International Shipping: We ship worldwide via DHL, FedEx, and UPS with full export documentation (commercial invoice, packing list, COO).
Application-Specific FAQ
Q: What is the difference between NSX160N, NSX160F, and NSX160H?
A: The suffix denotes breaking capacity. N = Normal (50kA), F = High (70kA), H = Very High (100kA) at 415V AC. Choose based on your prospective short-circuit current (PSCC) at the installation point.
Q: Can the NSX160N be used for motor protection?
A: Yes. When fitted with a TM-D trip unit, it provides both overload (thermal) and short-circuit (magnetic) protection suitable for direct-on-line (DOL) motor starters up to 75kW.
Q: Is the fixed version field-upgradeable to withdrawable?
A: No. Fixed and withdrawable (plug-in/drawout) versions use different chassis. Specify the correct mounting type at the time of order.
Q: What accessories are compatible with the NSX160N?
A: The full Compact NSX accessory range is compatible, including: OF/SD/SDE auxiliary contacts, MX shunt trip, MN undervoltage release, rotary handles, padlocking devices, and terminal shields.
Q: Does Konmask.com provide a certificate of conformity?
A: Yes. A Schneider Electric certificate of conformity (CoC) and test report can be provided upon request for project documentation purposes.
Q: What is the lead time for out-of-stock units?
A: Typical lead time from Schneider Electric authorized stock is 3–7 business days for standard variants. Contact us for expedited sourcing.
