Packaging Machine Motion Control Solution – ELAU MC-4/11/01/400 | VDM01U15AQ00 Series

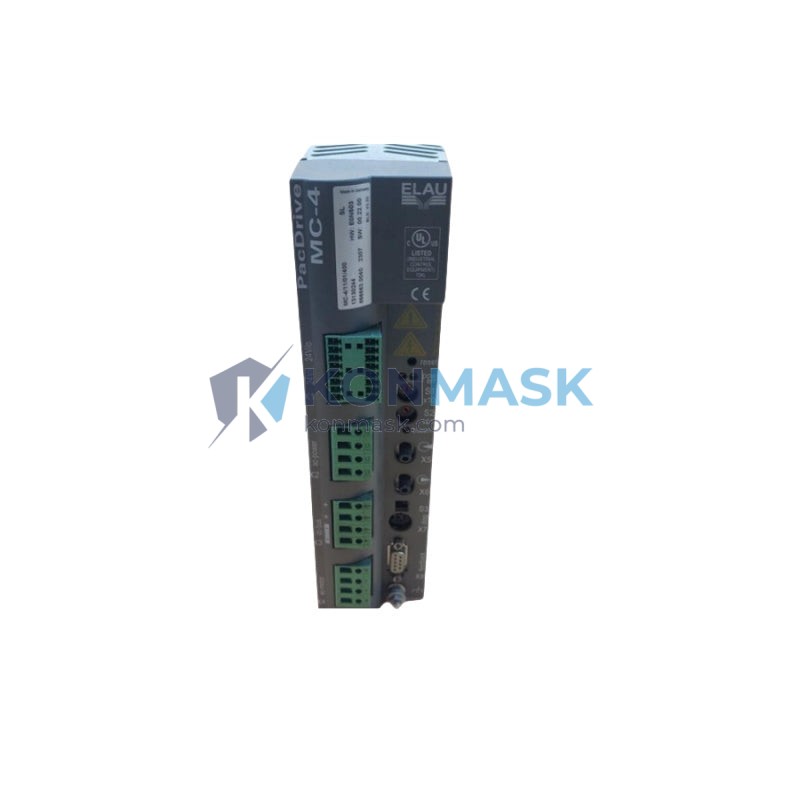

The ELAU MC-4/11/01/400 VDM01U15AQ00 is a high-performance servo drive engineered specifically for the demanding motion control requirements of modern packaging machinery and industrial automation systems. Trusted by OEMs and maintenance engineers worldwide, this drive delivers precise, synchronized multi-axis control in environments where uptime is non-negotiable.
Where This Product Is Used
This servo drive is a core motion control component found across a wide range of industrial applications:
- Packaging Machinery: Horizontal flow wrappers, vertical form-fill-seal (VFFS) machines, cartoners, case packers, and palletizers — the MC-4 series is the backbone of ELAU-driven packaging lines globally.
- Printing & Converting: Web tension control, register mark tracking, and cut-to-length operations in flexographic and gravure printing lines.
- Food & Beverage Processing: Filling, capping, labeling, and conveyor synchronization in hygienic production environments.
- Pharmaceutical Manufacturing: Blister packaging, tablet counting, and serialization lines requiring IEC 61131-3 compliant motion programs.
- Textile & Converting Machinery: Winding, unwinding, and tension control in continuous web processes.
- General Industrial Automation: Any multi-axis coordinated motion application previously designed around the ELAU PacDrive ecosystem.
Technical Specifications
- Manufacturer: ELAU (Schneider Electric)
- Part Number: MC-4/11/01/400
- Model Reference: VDM01U15AQ00
- Series: MC-4 / PacDrive
- Drive Type: Servo Drive / Axis Module
- Supply Voltage: 400 V AC (3-phase)
- Axis Count: Single axis module
- Communication Interface: SERCOS / CANopen (PacDrive system bus)
- Control Architecture: Integrated with ELAU PacDrive Controller (C200, C400, MC-4 master)
- Weight: 740 g
- Cooling: Forced air / panel-mount convection
- Standards Compliance: CE, UL, IEC 61800-5-1
Why Engineers Specify This Model
- PacDrive Ecosystem Native: Designed as a plug-and-play axis module within the ELAU PacDrive architecture — no third-party integration complexity.
- Deterministic Motion Synchronization: SERCOS-based real-time communication ensures sub-millisecond synchronization across all axes on the same controller.
- Compact Form Factor: At 740 g, the MC-4 module integrates cleanly into existing control cabinet layouts without requiring panel redesign.
- IEC 61131-3 Programming: Motion programs written in structured text or function block diagram are fully portable across the PacDrive platform.
- Proven Field Reliability: Widely deployed in Bosch, Schubert, Theegarten-Pactec, and other tier-1 OEM packaging lines.
- Direct Replacement Availability: Konmask maintains stock of MC-4 series modules to support emergency breakdown and planned maintenance scenarios.
Complete System Bill of Materials
The MC-4/11/01/400 operates as part of the ELAU PacDrive system. A complete motion control system typically includes:
- ELAU PacDrive Controller (C200 / C400 / MC-4 master unit)
- MC-4 Servo Drive Axis Modules (this product — one per servo axis)
- ELAU-compatible Servo Motors (SH series or equivalent)
- SERCOS fiber optic ring cable (axis-to-axis communication)
- 24 VDC logic power supply
- DC bus capacitor / braking resistor (application-dependent)
- ELAU PacDrive programming software (IEC 61131-3 environment)
Contact Konmask for complete system sourcing — we can supply multiple components from a single verified source.
Compliance & Industry Standards
- CE Marking: Compliant with EU Machinery Directive and Low Voltage Directive
- UL Listed: Recognized for North American market deployment
- IEC 61800-5-1: Adjustable speed electrical power drive systems — safety requirements
- IEC 61131-3: Programmable controller language standard compliance
- RoHS: Restriction of Hazardous Substances compliant
Quality Assurance & Sourcing
Every ELAU MC-4 servo drive supplied by Konmask undergoes a structured verification process before dispatch:
- Visual Inspection: Housing integrity, connector condition, label authenticity, and serial number verification against ELAU/Schneider Electric records.
- Functional Pre-check: Where test bench facilities permit, drives are powered and communication bus response is verified.
- Traceability Documentation: Each unit ships with sourcing documentation. Refurbished units are clearly identified and priced accordingly.
- Packaging: Anti-static ESD packaging with foam cushioning for safe international transit.
Konmask sources from decommissioned OEM lines, authorized distributors, and verified industrial surplus channels. We do not sell counterfeit or unmarked parts.
How to Source This Part
- Step 1 — Confirm Part Number: Verify your existing unit’s label reads MC-4/11/01/400 and VDM01U15AQ00. Both references must match for direct replacement.
- Step 2 — Request a Quote: Contact us at [email protected] or via the on-page enquiry form with your required quantity and delivery timeline.
- Step 3 — Receive Proforma Invoice: We issue a detailed proforma within 1 business day including unit price, shipping cost, and lead time.
- Step 4 — Confirm & Ship: Upon payment confirmation, units are dispatched with tracking. Express DHL/FedEx options available for urgent breakdown situations.
Application-Specific FAQ
Q: Is this drive compatible with my existing PacDrive C400 controller?
A: Yes. The MC-4/11/01/400 is a standard axis module for the PacDrive C400 and C200 platforms. Ensure your controller firmware version supports the module revision.
Q: Can I use this drive with a non-ELAU controller?
A: The MC-4 uses ELAU’s proprietary SERCOS implementation and is designed exclusively for the PacDrive ecosystem. It is not compatible with third-party servo controllers without significant engineering modification.
Q: Do you supply refurbished units?
A: Yes. Refurbished units are clearly labeled, tested, and offered at a reduced price point. New-old-stock (NOS) units are also available subject to inventory. Please specify your preference when requesting a quote.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock items, lead time is typically 2–4 weeks depending on sourcing channel. Emergency breakdown orders are prioritized.
Q: Can you supply multiple MC-4 axis modules for a full machine rebuild?
A: Yes. Konmask specializes in multi-unit sourcing for complete machine refurbishment projects. Contact us with your full BOM for a consolidated quote.
