ELCO EB100P38-P6PR-1024 Encoder | Replacement, Equivalent & Selection Guide

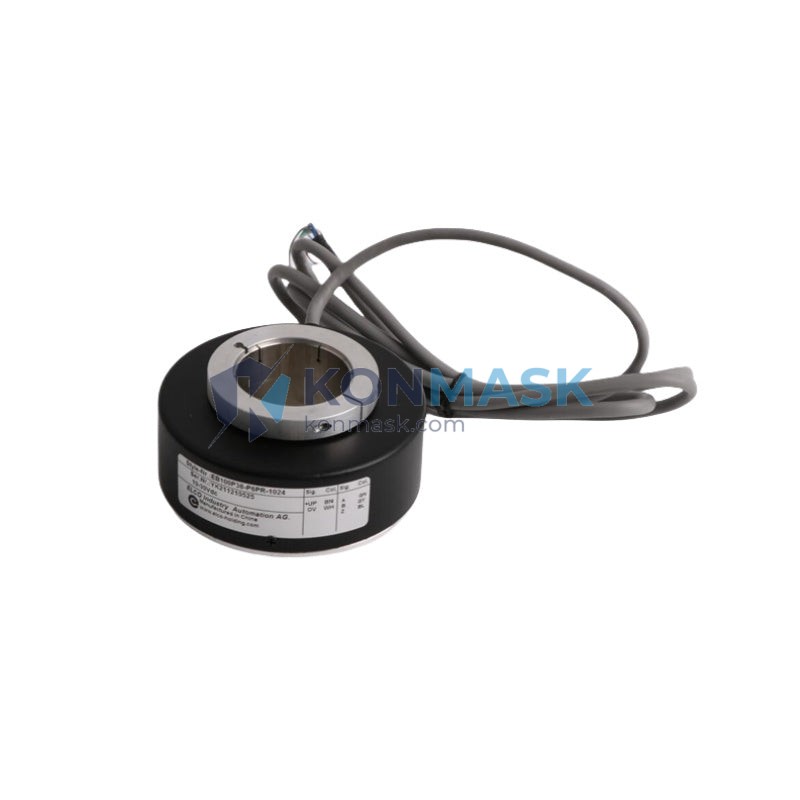

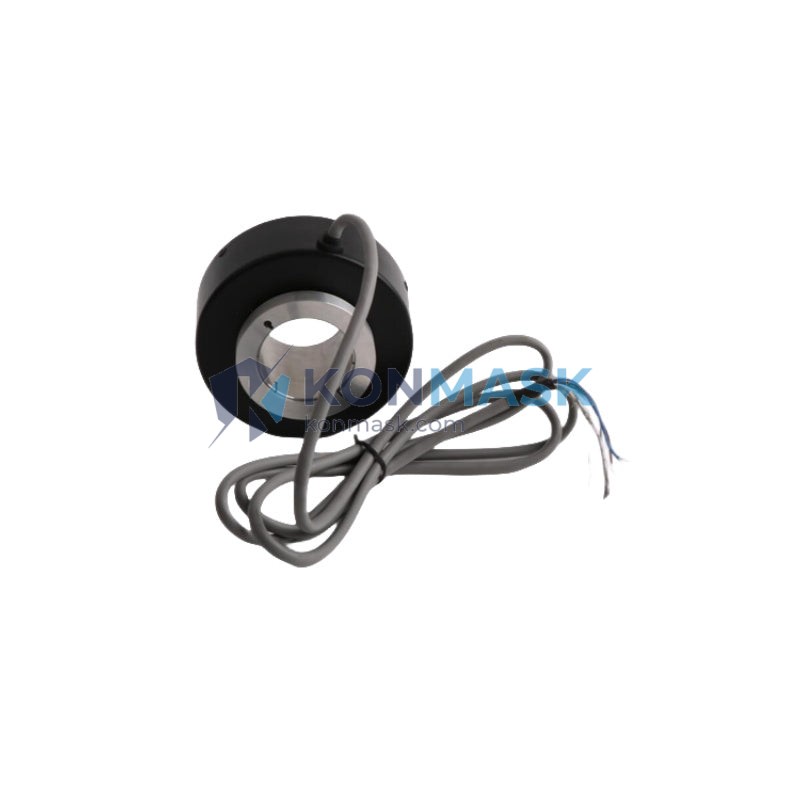

The ELCO EB100P38-P6PR-1024 is a high-resolution incremental rotary encoder from ELCO’s EB100 series, designed for demanding industrial motion-control and positioning applications. This page provides full technical specifications, verified compatible replacements, cross-reference equivalents, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand / Manufacturer | ELCO |
| Model / Part Number | EB100P38-P6PR-1024 |
| Series | EB100 |
| Encoder Type | Incremental Rotary Encoder |
| Resolution (PPR) | 1024 Pulses Per Revolution |
| Shaft Diameter | 38 mm (hollow shaft / solid shaft – confirm per suffix) |
| Output Type | Push-Pull (P6PR) |
| Supply Voltage | 10–30 V DC (typical for EB100 series) |
| Output Channels | A, B, Z (index) |
| Protection Rating | IP65 (standard EB100) |
| Operating Temperature | -10 °C to +70 °C |
| Connection | Cable / Connector (per suffix P6PR) |
| Housing Material | Aluminum alloy |
Note: Always verify the full datasheet for your specific application. Contact us if you need the official ELCO datasheet.
Compatible Replacement & Equivalent Models
The following models are commonly used as drop-in or near-equivalent replacements for the ELCO EB100P38-P6PR-1024. Verify electrical and mechanical compatibility before substitution.
| Brand | Model | PPR | Output | Notes |
|---|---|---|---|---|
| Heidenhain | ROD 426 1024 | 1024 | TTL / Push-Pull | High-precision alternative; verify shaft size |
| Omron | E6B2-CWZ6C 1024P/R | 1024 | NPN Open Collector | Output type differs; check controller compatibility |
| Sick | DFS60B-S4EK01024 | 1024 | Push-Pull | Close mechanical equivalent; IP67 rated |
| Autonics | E100H38-1024-3-T-24 | 1024 | Push-Pull | Direct series equivalent; widely available |
| Kübler | 8.5820.1222.1024 | 1024 | Push-Pull | European-grade alternative |
| Leine & Linde | 861004178 | 1024 | Push-Pull | Heavy-duty industrial replacement |
Need a confirmed cross-reference? Send us your existing part number and application parameters — we will verify compatibility before shipment.
Why Choose the Original Model
- Exact OEM fit: No mechanical or electrical adaptation required for existing installations.
- Proven reliability: ELCO EB100 series encoders are field-tested in high-cycle industrial environments.
- Warranty compliance: Using the original part preserves machine warranty and CE/UL certification integrity.
- Reduced commissioning risk: Eliminates parameter re-tuning on servo drives and PLCs.
- Long service life: Precision bearings and robust housing rated for millions of revolutions.
Typical Applications
- CNC machine tool spindle and axis feedback
- Servo motor position and speed control
- Conveyor and material-handling positioning systems
- Printing and packaging machinery
- Robotics joint angle measurement
- Elevator and hoist motion control
- Textile and winding machine tension control
System Compatibility
The ELCO EB100P38-P6PR-1024 push-pull output is compatible with the following control platforms (verify input voltage and signal level before wiring):
- PLCs: Siemens S7-1200 / S7-1500 (HSC input modules), Mitsubishi FX5U, Omron NX/NJ, Allen-Bradley CompactLogix
- Servo Drives: Siemens SINAMICS S120, Yaskawa Sigma-7, Panasonic MINAS A6, Delta ASDA-A3
- Motion Controllers: Beckhoff EtherCAT terminals (EL5101), Kollmorgen AKD
- CNC Controllers: Fanuc 0i-MF, Mitsubishi M80, Siemens SINUMERIK 828D
Push-pull output is directly compatible with 5–24 V logic inputs without additional signal conditioning in most cases.
Selection Guide
Use the following criteria to confirm the EB100P38-P6PR-1024 is the right encoder for your application, or to select the best alternative:
| Selection Criterion | Recommendation |
|---|---|
| Required resolution | 1024 PPR suits most servo and CNC applications; choose 2048+ PPR for ultra-fine positioning |
| Shaft interface | Confirm 38 mm bore / shaft diameter matches your motor or machine shaft |
| Output signal type | Push-Pull (P6PR) works with most PLC/drive inputs; specify NPN/PNP/TTL/RS422 if needed |
| Supply voltage | 10–30 V DC; confirm your controller’s encoder supply rail |
| Environmental rating | IP65 standard; request IP67/IP69K variants for washdown or outdoor environments |
| Connector type | Verify cable length and connector pinout match your existing harness |
| Operating temperature | Standard range -10 to +70 °C; extended-temp variants available on request |
Quality Assurance & Sourcing
- Authentic parts only: All ELCO encoders supplied by Konmask.com are sourced from authorized distributors or verified OEM channels.
- Inspection before shipment: Each unit undergoes visual and functional verification prior to dispatch.
- Traceability: Batch records and certificates of conformity available on request.
- Anti-counterfeit policy: We do not supply grey-market or refurbished units without explicit disclosure.
- Lead time: In-stock units ship within 1–3 business days; special orders within 7–15 business days.
How to Order
- Confirm the full part number: ELCO EB100P38-P6PR-1024
- Specify required quantity and delivery destination.
- Contact us via email or phone for a formal quotation (RFQ).
- Receive proforma invoice → confirm payment → shipment with tracking.
- For urgent requirements, call directly for same-day quotation.
📧 Email: support@konmask.com
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I replace the ELCO EB100P38-P6PR-1024 with an Omron E6B2-CWZ6C 1024P/R?
A: The Omron E6B2 uses NPN open-collector output, which differs from the ELCO’s push-pull output. A pull-up resistor or signal converter may be required. Verify your controller’s input specification before substitution.
Q: Is the 1024 PPR resolution sufficient for my servo system?
A: 1024 PPR is standard for general-purpose servo and CNC applications. For high-speed spindles or sub-micron positioning, consider 2048 or 4096 PPR variants.
Q: What does “P6PR” mean in the part number?
A: The suffix indicates the output circuit type (Push-Pull) and connector/cable configuration. Contact us to decode other suffix variants or to request a different output type.
Q: Do you supply ELCO encoders with CE certification?
A: Yes. CE-certified units are available. Please request the declaration of conformity when placing your order.
Q: Can Konmask.com source discontinued or obsolete ELCO models?
A: Yes. We specialize in sourcing hard-to-find industrial components. Submit your part number and we will advise on availability or recommend a verified equivalent.
