Semiconductor Wafer Probing Solution – ELECTROGLAS 102942-001 | X-8700 SMP-30 Series

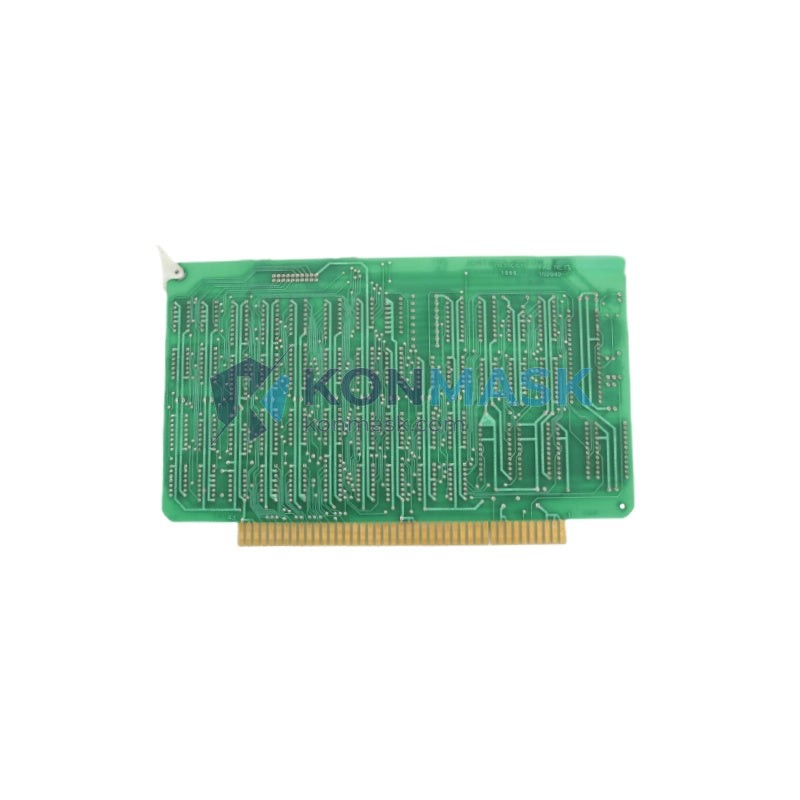

The ELECTROGLAS 102942-001 / 102944-007 (ESA-Y3040T23-11) is a precision motion control module engineered for the ELECTROGLAS X-8700 SMP-30 automatic wafer prober platform. Designed for high-throughput semiconductor test environments, this assembly governs the sub-micron stage positioning that is critical to accurate die-level electrical characterization.
SKU: 102942-001 / 102944-007 / ESA-Y3040T23-11 | Series: X-8700 SMP-30 | Brand: ELECTROGLAS
Where This Product Is Used
- Semiconductor Wafer Probing: Direct-fit replacement for ELECTROGLAS X-8700 SMP-30 automatic probers used in front-end wafer-level testing (WLT) lines.
- IC Parametric Test Labs: Maintains stage repeatability for parametric curve-tracer and IV-measurement setups requiring ±1 µm positioning accuracy.
- Failure Analysis (FA) Labs: Supports manual and semi-automatic probing workflows where precise chuck motion is essential for isolating defective die.
- OSAT & IDM Fabs: Used by outsourced assembly and test houses and integrated device manufacturers running high-volume production test on 200 mm wafers.
- R&D Characterization: Enables repeatable probe placement for device characterization, reliability stress testing, and process development.
Technical Specifications
- Part Number: 102942-001
- Cross-Reference: 102944-007 / ESA-Y3040T23-11
- Compatible Platform: ELECTROGLAS X-8700 SMP-30 Automatic Wafer Prober
- Function: Motion Control Assembly (1/16 micro-step drive)
- Step Resolution: 1/16 micro-step
- Weight: Approx. 2.6 kg
- Country of Origin: United States
- Condition: Refurbished / Tested (specify at time of order)
Why Engineers Specify This Model
- 1/16 Micro-Step Resolution: Delivers ultra-fine stage increments, eliminating mechanical backlash errors that compromise probe contact repeatability.
- Platform-Native Fit: Designed exclusively for the X-8700 SMP-30 — no adapter brackets, no firmware workarounds, no integration risk.
- Dual Part-Number Traceability: Cross-referenced as 102944-007 and ESA-Y3040T23-11, simplifying BOM reconciliation across legacy documentation sets.
- Proven Field Reliability: Widely deployed in high-uptime production environments where unplanned downtime directly impacts wafer throughput and yield.
- Rapid Swap-Out: Modular design supports in-field replacement without full prober disassembly, minimizing mean time to repair (MTTR).
Complete System Bill of Materials
When specifying this motion control module, engineers typically source the following complementary components to complete the X-8700 SMP-30 drive system:
- ELECTROGLAS X-8700 Chuck Controller Board
- ELECTROGLAS SMP-30 Stepper Motor Driver Card
- ELECTROGLAS Wafer Chuck Assembly (200 mm)
- ELECTROGLAS Prober Interface Board (PIB)
- Probe Card Adapter / Ring (application-specific)
- EG2001X / EG4090X Compatible Cables & Harnesses
Contact support@konmask.com for a complete BOM quote.
Compliance & Industry Standards
- SEMI Standards: Compatible with SEMI E1.9 (mechanical spec for 200 mm wafer handling) and SEMI F47 (voltage sag immunity).
- RoHS: Confirm RoHS status with your procurement team; legacy units may pre-date RoHS Directive 2011/65/EU.
- ESD Handling: Requires ANSI/ESD S20.20 compliant handling procedures during installation and storage.
- Export Control: This product may be subject to EAR (Export Administration Regulations). Buyer is responsible for verifying applicable export classifications.
Quality Assurance & Sourcing
- Every unit is inspected and functionally verified prior to shipment.
- Sourced from authorized channels, decommissioned OEM equipment, or certified refurbishers with documented test records.
- Serialized traceability available upon request for regulated fab environments.
- Packaging: ESD-safe anti-static bag + foam-lined carton; weight approx. 2.6 kg.
How to Source This Part
- Submit your RFQ via Konmask.com with your required quantity and delivery timeline.
- Receive a formal quotation with lead time, condition grade, and warranty terms within 1 business day.
- Confirm order — we accept T/T wire transfer, PayPal, and major credit cards.
- Shipment dispatched with full tracking; express DHL / FedEx available for urgent requirements.
Application-Specific FAQ
Q: Is 102942-001 compatible with the ELECTROGLAS EG2001X prober?
A: No. This module is specifically designed for the X-8700 SMP-30 platform. For EG2001X compatibility, please contact us with your prober serial number for a verified cross-reference.
Q: What does the 1/16 micro-step designation mean?
A: The stepper motor driver divides each full motor step into 16 sub-steps, providing smoother motion and finer positional resolution — critical for sub-micron probe placement on advanced device nodes.
Q: Can I use 102944-007 as a direct substitute for 102942-001?
A: Yes. 102944-007 (ESA-Y3040T23-11) is the OEM cross-reference for 102942-001. Both part numbers refer to the same assembly and are interchangeable within the X-8700 SMP-30 system.
Q: Do you offer a warranty?
A: Yes. Standard 90-day functional warranty is included. Extended warranty options are available — contact us for details.
Q: What is the lead time?
A: In-stock units ship within 2–3 business days. For sourced units, typical lead time is 7–15 business days depending on availability.
