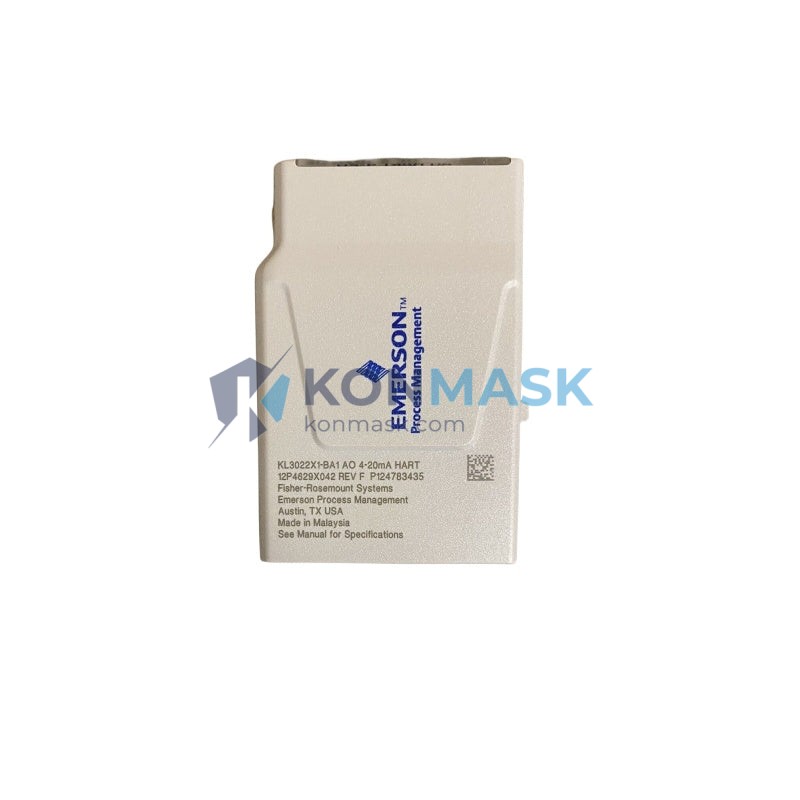

Emerson 12P4629X042 Analog Output 4-20mA HART – DeltaV CHARM Characterization Module
When a single analog output channel fails in a live process plant, the consequences cascade instantly — a control valve loses its command signal, a dosing pump runs blind, and operators scramble to switch to manual override while production halts and safety interlocks trip. In high-stakes environments such as oil & gas, chemical processing, and power generation, every field I/O point is a critical link in the chain. The Emerson 12P4629X042 Analog Output 4-20mA HART CHARM is engineered to be that link — reliable, intelligent, and field-replaceable without shutting down the controller.
The 12P4629X042 belongs to Emerson’s DeltaV CHARM (Characterization Module) I/O architecture — a revolutionary approach to distributed control that eliminates traditional I/O marshalling cabinets. Within the DeltaV CHARM ecosystem, this module occupies the analog output tier, delivering precision 4-20mA signals with superimposed HART communication to field devices. Its ability to carry HART digital data over the same two-wire loop makes it indispensable for smart valve positioners, variable-speed drives, and any HART-enabled actuator in modern process plants worldwide.
Technical Specifications
- Part Number: 12P4629X042
- Manufacturer: Emerson Electric / Fisher-Rosemount
- Module Type: CHARM – Characterization Module (Single-Channel)
- Signal Type: Analog Output, 4-20mA
- Communication Protocol: HART (Highway Addressable Remote Transducer)
- Compatible Platform: Emerson DeltaV Distributed Control System (DCS)
- Form Factor: Single-channel CHARM, plugs directly into CIOC or CPCI carrier
- Isolation: Channel-to-channel and channel-to-bus isolation (per DeltaV CHARM standard)
- Operating Temperature: Per DeltaV CHARM environmental specification
- Certifications: Designed for use in SIL-capable DeltaV architectures
- Mounting: CHARM I/O Card (CIOC) carrier — hot-swap capable
Note: All specifications are based on Emerson published documentation. Konmask.com does not fabricate or alter manufacturer specifications.
Key Features & Benefits
- Hot-Swap Field Replacement: Replace a faulty CHARM channel without powering down the CIOC carrier or interrupting adjacent channels — minimizing process downtime to near zero.
- Integrated HART Pass-Through: Full HART communication over the 4-20mA loop enables remote device diagnostics, valve signature testing, and predictive maintenance without additional wiring.
- Electronic Marshalling: Eliminates the need for physical cross-wiring in marshalling cabinets — field cables connect directly to the CHARM carrier, dramatically reducing engineering and installation costs.
- Single-Channel Granularity: Fault isolation at the individual channel level means a single failed output does not compromise an entire I/O card — improving overall system availability.
- Seamless DeltaV Integration: Auto-recognized by DeltaV software upon insertion; channel configuration is software-defined and stored in the DeltaV database, not on the hardware.
- Reduced Spare Parts Inventory: One CHARM type covers one function — simplifying spare parts management compared to traditional multi-channel I/O cards.
- SIL-Ready Architecture: Supports deployment in Safety Instrumented System (SIS) architectures when used with appropriate DeltaV SIS components.
Industry & Equipment Applications
- Oil & Gas: Control valve positioners on wellhead, separator, and pipeline pressure control loops
- Petrochemical & Refining: Analog setpoint output to flow control valves, heat exchanger bypass valves
- Power Generation: Turbine governor analog demand signals, boiler feedwater control
- Pharmaceutical & Biotech: Precise dosing pump speed control, bioreactor agitator speed output
- Pulp & Paper: Stock consistency control, headbox pressure regulation
- Water & Wastewater: Variable frequency drive (VFD) speed reference output for pumps and blowers
- Food & Beverage: CIP flow control, pasteurizer temperature setpoint output
System Integration & Compatible Parts
The 12P4629X042 CHARM is designed to operate within the Emerson DeltaV CHARM I/O ecosystem. Compatible and related components include:
- CIOC (CHARM I/O Card): The carrier card that hosts up to 96 CHARM modules — connects to DeltaV controllers via standard Ethernet
- DeltaV Controllers: MD, MD Plus, MQ, and M-series controllers that communicate with CIOC over the DeltaV control network
- HART-Enabled Field Devices: Fisher FIELDVUE digital valve controllers (e.g., DVC6200), Rosemount transmitters configured as HART masters, and third-party HART actuators
- DeltaV Operate / DeltaV Live: HMI software that provides loop monitoring, HART device dashboards, and alarm management for channels served by this CHARM
- AMS Device Manager: Emerson’s asset management software for HART device configuration and predictive diagnostics via the CHARM loop
Contact Konmask.com for cross-reference assistance if you are migrating from legacy Emerson I/O (e.g., Series 2 or MD-series cards) to CHARM architecture.
Our Quality Assurance Process
At Konmask.com, every industrial automation component undergoes a structured verification process before it is listed or shipped:
- Part Number Verification: The full manufacturer part number (12P4629X042) is cross-referenced against Emerson’s official product catalog and revision history to confirm authenticity and revision status.
- Visual & Physical Inspection: Modules are inspected for physical damage, connector integrity, label legibility, and correct firmware/revision markings.
- Traceability Documentation: Where available, we provide sourcing documentation including original packaging, date codes, and supplier chain records upon request.
- Functional Testing: Select units undergo bench-level power-on and signal verification testing prior to dispatch.
- Secure Packaging: All CHARM modules are shipped in ESD-safe packaging with appropriate cushioning to prevent transit damage to sensitive electronics.
How to Order
- Submit an Inquiry: Use the contact form on this page or email [email protected] with your required quantity and delivery timeline.
- Receive a Quotation: Our team will respond within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: Approve the proforma invoice and complete payment via your preferred method (T/T, PayPal, or other agreed terms).
- Shipment & Tracking: We arrange export packaging, shipping documentation, and provide a tracking number upon dispatch.
- After-Sales Support: Our technical team remains available post-delivery for installation guidance and compatibility questions.
📞 Phone/WhatsApp: +0086 19859288691
📧 Email: [email protected]
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on DCS, PLC, and process control components — not a general electronics marketplace.
- Global Export Experience: We ship to customers in Southeast Asia, the Middle East, Europe, and the Americas with full export documentation.
- Hard-to-Find Parts: We stock and source obsolete, discontinued, and long-lead-time Emerson DeltaV components that are difficult to obtain through standard channels.
- Technical Pre-Sales Support: Our team can verify compatibility, advise on revision differences, and assist with system integration questions before you commit to a purchase.
- Transparent Sourcing: We provide honest condition grading (new, surplus-new, refurbished) and documentation upon request.
- Responsive Communication: Inquiries are answered within 24 hours — we understand that plant downtime cannot wait.
Frequently Asked Questions
Q: Is the Emerson 12P4629X042 a new or refurbished part?
A: Konmask.com carries both new/surplus-new and professionally refurbished units. The condition is clearly stated in your quotation. Contact us to specify your requirement.
Q: Can this CHARM be used in a Safety Instrumented System (SIS)?
A: The DeltaV CHARM architecture supports SIS applications when combined with appropriate DeltaV SIS controllers and safety-rated carriers. Please consult your Emerson system integrator or contact us for SIL application guidance.
Q: What is the difference between 12P4629X042 and other Emerson analog output CHARMs?
A: The 12P4629X042 is a specific revision of the Emerson AO HART CHARM. Revision differences may affect firmware compatibility or hardware features. Always verify the revision required by your DeltaV system version before ordering.
Q: Does this module support HART multi-drop mode?
A: The 4-20mA AO HART CHARM is designed for point-to-point HART communication in standard analog output mode. For multi-drop HART configurations, consult Emerson’s CHARM I/O documentation or contact our technical team.
Q: What is the lead time for the Emerson 12P4629X042?
A: Lead time depends on current stock levels. In-stock units ship within 3-5 business days. For out-of-stock items, typical sourcing lead time is 2-6 weeks. Submit an inquiry for real-time availability.
Q: Can Konmask.com provide a certificate of conformance or test report?
A: Yes. We can provide available documentation including certificates of conformance, inspection reports, and sourcing records upon request at the time of quotation.
