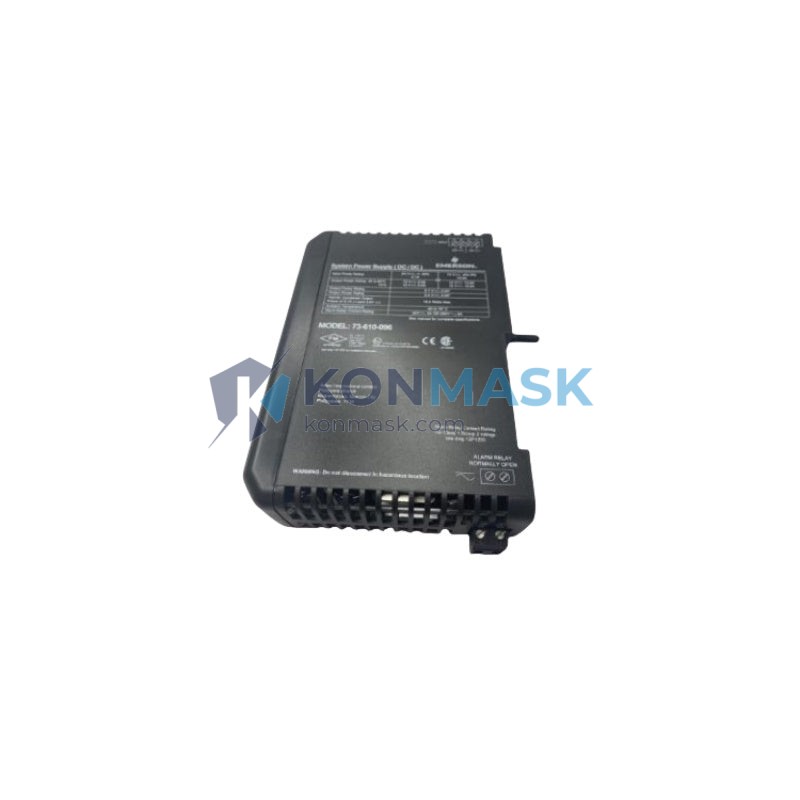

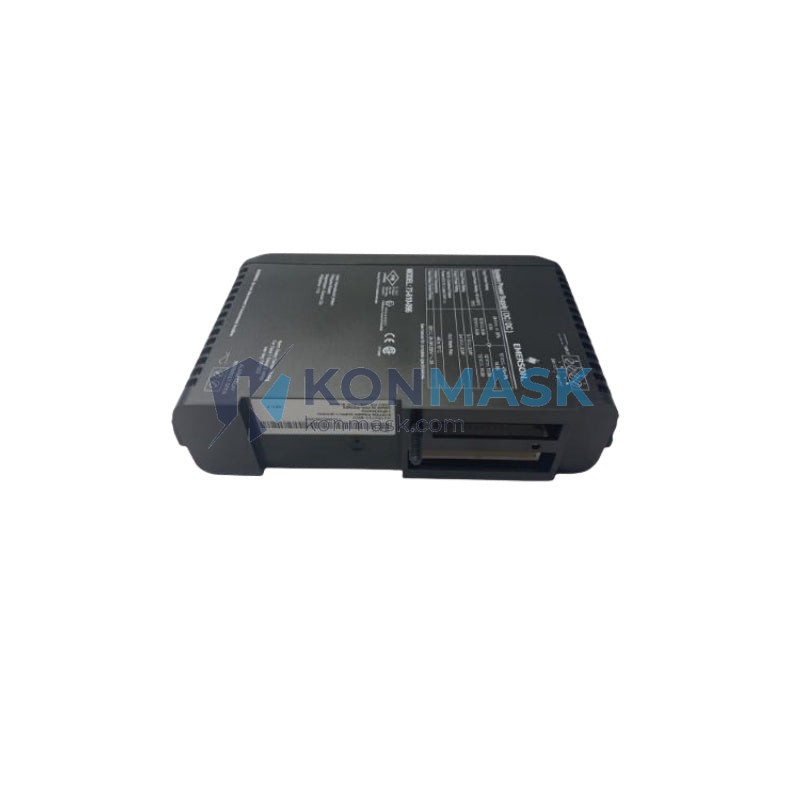

EMERSON KJ1501X1-BC3 – System Power Supply Module | DeltaV DCS Platform
Engineering Background
The EMERSON KJ1501X1-BC3 (alternate part number: 12P3935X032) is a dedicated system power supply module engineered for the Emerson DeltaV Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, pharmaceutical, and power generation industries worldwide. This module provides stable, regulated DC power to DeltaV controller nodes and I/O subsystems, ensuring uninterrupted process control under demanding industrial conditions.
Product Positioning
Designed as a direct OEM-equivalent replacement for aging or failed power supply units within existing DeltaV installations, the KJ1501X1-BC3 eliminates the need for costly system redesign or platform migration. Procurement engineers sourcing this module for MRO (Maintenance, Repair & Operations) or capital spares programs will find it fully interchangeable with the original factory-installed unit, with no firmware reconfiguration required.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Electric / Fisher-Rosemount |
| Part Number | KJ1501X1-BC3 |
| Alternate Part Number | 12P3935X032 |
| Module Type | System Power Supply |
| Platform Compatibility | Emerson DeltaV DCS Series |
| Output Voltage | 24 VDC (regulated) |
| Input Voltage Range | 100–240 VAC, 50/60 Hz (universal input) |
| Power Rating | Refer to OEM datasheet for full load specifications |
| Mounting | DeltaV carrier / backplane slot-mount |
| Cooling | Convection / forced air (carrier-dependent) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 470 g (approx.) |
| Certifications | CE, UL (per OEM documentation) |
| Condition | Surplus / Refurbished (tested functional) |
Proven Application Environments
- Oil & Gas Refining — Continuous process control for distillation, cracking, and blending units requiring 24/7 uptime
- Petrochemical Plants — DeltaV DCS power infrastructure for reactor control and safety instrumented systems (SIS)
- Pharmaceutical Manufacturing — FDA-regulated batch process environments demanding validated, traceable hardware replacements
- Power Generation — Turbine and boiler control systems where power supply reliability is mission-critical
- Pulp & Paper / Mining — Harsh industrial environments with wide temperature and humidity variation
- Water Treatment — Municipal and industrial SCADA/DCS hybrid architectures
Engineering Advantages
- Drop-in Replacement — Identical form, fit, and function to OEM original; no re-engineering or reconfiguration required
- Regulated DC Output — Stable 24 VDC supply protects downstream I/O modules and controller cards from voltage transients
- Universal AC Input — Compatible with global power infrastructure (100–240 VAC), simplifying international deployments
- Redundancy-Ready — Supports DeltaV redundant power configurations when paired with a second KJ1501X1-BC3 unit
- Proven Field Reliability — Thousands of units deployed globally across Emerson DeltaV installations since platform launch
- Immediate Availability — Surplus stock on hand; ships within 1–3 business days of order confirmation
System Architecture & Signal Flow
Within the DeltaV DCS architecture, the KJ1501X1-BC3 occupies the power supply slot on the DeltaV carrier assembly. AC mains input is converted to regulated 24 VDC, which is distributed via the carrier backplane to all installed I/O modules and the DeltaV controller card. The module incorporates internal protection circuitry for over-voltage, over-current, and short-circuit conditions, isolating faults to prevent cascade failures across the control node. In redundant configurations, two power supply modules operate in load-sharing mode; if one fails, the second assumes full load without interruption to the control process.
Sourcing & Quality Verification
- Source: Decommissioned plant equipment, authorized surplus channels, and verified distributor networks
- Inspection Protocol: Each unit undergoes visual inspection, board-level cleaning, and functional power-on testing prior to listing
- Traceability: OEM part number and date code verified against Emerson documentation
- Packaging: Anti-static ESD packaging with foam cushioning; export carton rated for international freight
- Warranty: 90-day functional warranty against DOA (Dead on Arrival); extended warranty available upon request
- Documentation: Certificate of conformance and test report available upon request for regulated industries
Procurement Process
- Submit Inquiry — Contact us via email at [email protected] or WhatsApp/phone at +0086 19859288691 with your required quantity and delivery timeline
- Receive Quotation — We respond within 4 business hours with pricing (HKD/USD), lead time, and shipping options (DHL / FedEx / sea freight)
- Order Confirmation — Submit PO or confirm via email; proforma invoice issued for payment processing
- Quality Check & Dispatch — Unit re-inspected, photographed, and dispatched with tracking number within 1–3 business days
- After-Sales Support — Technical support available post-delivery; warranty claims processed within 5 business days
Technical FAQ
Q: Is the KJ1501X1-BC3 compatible with all DeltaV controller generations?
A: This module is designed for the DeltaV MD/MD Plus/SD/SD Plus controller series. Compatibility with newer DeltaV v14+ hardware should be confirmed against your system’s BOM. Contact us for compatibility verification.
Q: Can this module be used in a redundant power supply configuration?
A: Yes. Two KJ1501X1-BC3 units can be installed in the same carrier for N+1 redundancy. Both units must be the same revision for proper load-sharing operation.
Q: What is the difference between KJ1501X1-BC3 and 12P3935X032?
A: These are the same physical module. KJ1501X1-BC3 is the Emerson catalog part number; 12P3935X032 is the manufacturing/assembly part number stamped on the unit label. Both reference the identical hardware.
Q: Do you provide a test report or certificate of conformance?
A: Yes. A functional test report and certificate of conformance are available upon request, suitable for regulated industries including pharmaceutical and nuclear applications.
Q: What are the shipping options for international orders?
A: We ship globally via DHL Express, FedEx International Priority, and sea freight for bulk orders. Export documentation (commercial invoice, packing list, HS code declaration) is provided for all international shipments.
