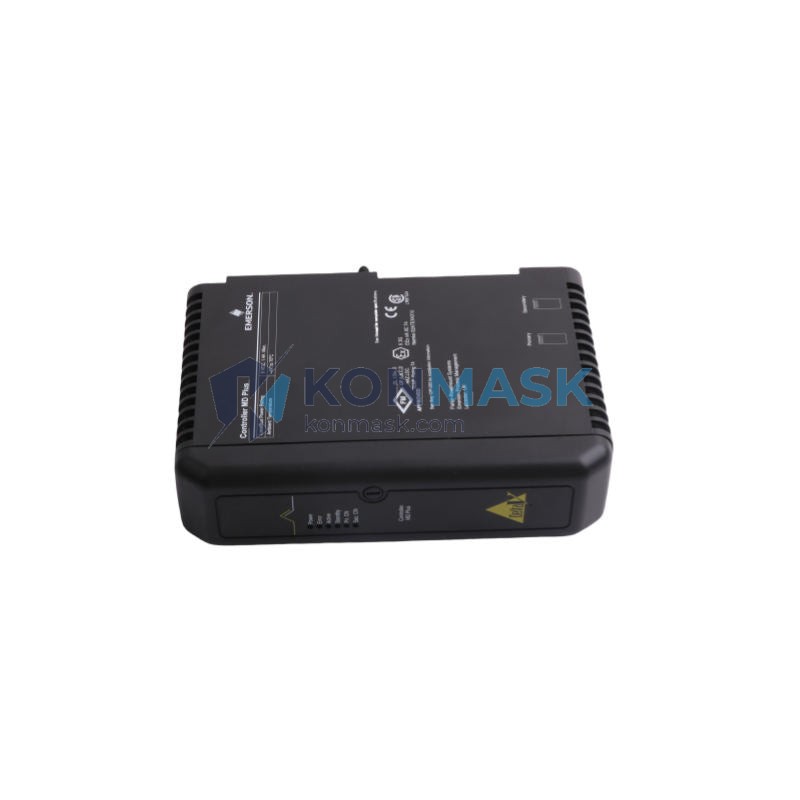

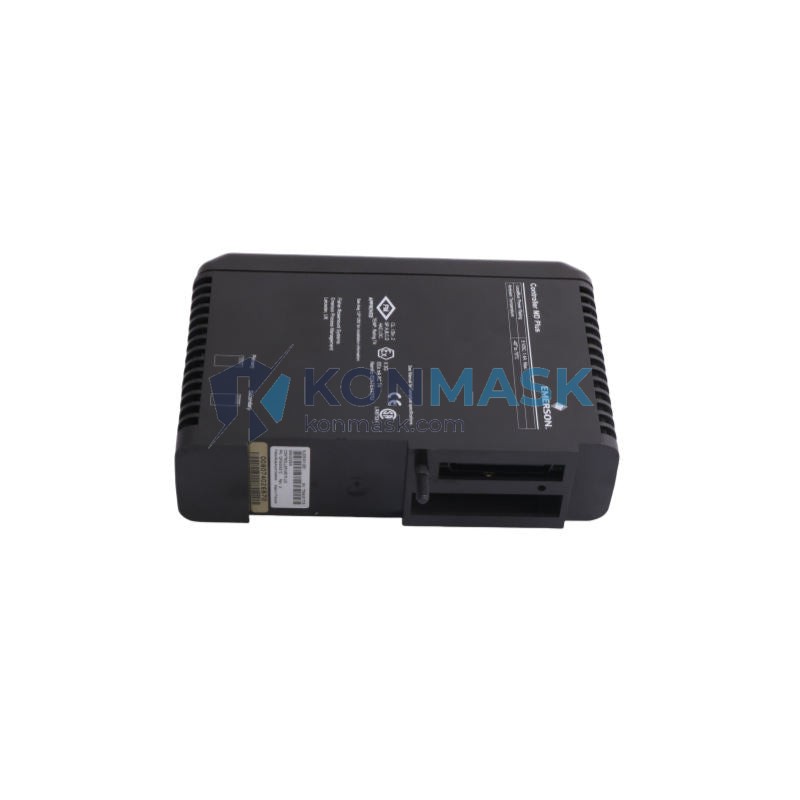

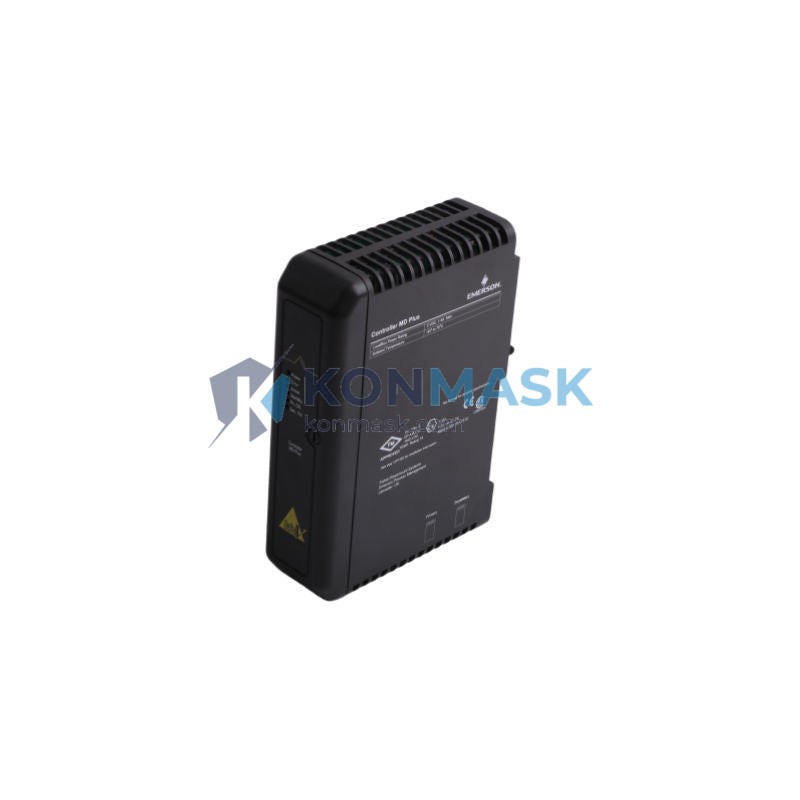

Emerson KJ2003X1-BB1 12P3439X012 – DeltaV MD Plus Controller Module | DeltaV Series Platform
Engineering Background
The Emerson DeltaV MD Plus Controller (KJ2003X1-BB1 / 12P3439X012) is a high-performance process controller designed for Emerson’s DeltaV distributed control system (DCS) platform. It serves as the central processing unit within a DeltaV node, executing control strategies, managing I/O subsystems, and maintaining real-time communication across the control network.
Product Positioning
Engineered for mission-critical continuous process industries — including oil & gas, refining, chemicals, power generation, and pharmaceuticals — the MD Plus Controller delivers enhanced processing throughput and expanded I/O capacity over its predecessor MD series. It is the preferred upgrade path for facilities modernizing legacy DeltaV nodes without full system replacement.
Complete Technical Specifications
- Part Number: KJ2003X1-BB1
- Reference Number: 12P3439X012
- Series / Platform: Emerson DeltaV MD Plus
- Module Type: DCS Process Controller
- Processor: Enhanced RISC-based real-time processor
- Memory: Expanded RAM for larger control databases vs. MD series
- I/O Capacity: Supports up to 750 I/O channels per controller node
- Communication: DeltaV Control Network (redundant Ethernet-based)
- Redundancy: Supports controller redundancy (paired with redundant module)
- Scan Rate: Configurable; minimum 100 ms for standard loops
- Power Supply: 24 VDC via DeltaV carrier/backplane
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% non-condensing
- Weight: 360 g
- Form Factor: DeltaV standard module, mounts on DeltaV carrier
- Certifications: CE, UL, FM (Class I Div 2 capable with appropriate barriers)
- Country of Origin: USA
Proven Application Environments
- Oil & Gas upstream/midstream/downstream process control
- Petrochemical and refinery DCS upgrades
- Pharmaceutical batch and continuous manufacturing (21 CFR Part 11 compatible environments)
- Power generation plant automation
- Chemical processing with SIL-rated safety instrumented systems
- Water/wastewater treatment facilities
- Pulp & paper and food & beverage process control
Engineering Advantages
- Drop-in Compatibility: Direct replacement for DeltaV MD controllers — no re-engineering of control strategies required
- Expanded Throughput: MD Plus delivers higher loop execution capacity, reducing controller loading in complex applications
- Redundancy Ready: Supports bumpless switchover with redundant controller pairing for zero-downtime operation
- Integrated Diagnostics: Built-in self-diagnostics with DeltaV Operate alarm integration
- Scalable Architecture: Easily scales I/O by adding carriers and I/O modules without controller replacement
- Long Service Life: Designed for 10+ year operational cycles in harsh industrial environments
System Architecture & Signal Flow
The KJ2003X1-BB1 mounts on a DeltaV controller carrier and communicates upstream to the DeltaV workstation network via the DeltaV Control Network (redundant 100 Mbps Ethernet). Downstream, it manages up to 750 I/O points distributed across I/O subsystem carriers connected via the DeltaV I/O bus. Control strategies (function blocks, sequential function charts, cause & effect matrices) are downloaded from DeltaV Explorer and executed locally on the controller, ensuring deterministic real-time control independent of workstation availability.
Sourcing & Quality Verification
- All units sourced from verified industrial surplus channels and authorized distributors
- Each module undergoes visual inspection, firmware version verification, and functional bench testing prior to shipment
- Original Emerson firmware — no third-party modifications
- Serialized traceability records maintained for each unit
- Packaging: ESD-safe anti-static bag + foam-lined carton for international transit
Procurement Process
- Step 1: Submit RFQ via Konmask.com or email support@konmask.com with quantity and delivery requirements
- Step 2: Receive formal quotation with lead time, warranty terms, and shipping options within 24 hours
- Step 3: Confirm purchase order — T/T wire transfer, PayPal, or credit terms for qualified accounts
- Step 4: Shipment via DHL / FedEx / UPS with full tracking; export documentation (commercial invoice, packing list, COO) provided
- Step 5: Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is KJ2003X1-BB1 compatible with all DeltaV versions?
A: It is compatible with DeltaV v7.x through v14.x. Compatibility with v15+ should be verified against your specific system configuration.
Q: Can this module operate without a redundant pair?
A: Yes. The MD Plus can operate in simplex (non-redundant) mode. Redundancy requires a second KJ2003X1-BB1 and a redundancy module.
Q: What is the warranty?
A: Konmask provides a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.
Q: Do you provide a Certificate of Conformance?
A: Yes. A CoC and test report are available upon request for all units.
Q: What is the lead time?
A: In-stock units ship within 3–5 business days. Contact us for current availability.
