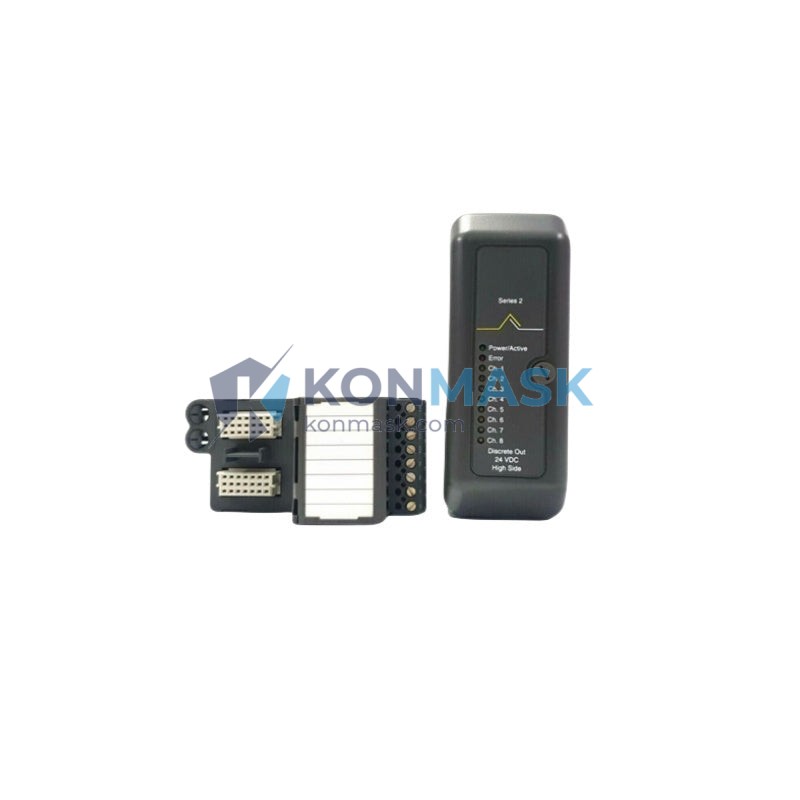

EMERSON KJ3202X1-BA1 – Digital Output Module | DeltaV Series Platform
Engineering Background
The EMERSON KJ3202X1-BA1 (Part No. 12P2536X082) is a Digital Output (DO) module engineered for the EMERSON DeltaV distributed control system platform. Designed to interface directly with field-level actuators, solenoids, and discrete control devices, this module delivers deterministic, high-reliability output switching in demanding process automation environments including oil & gas, chemical, power generation, and pharmaceutical manufacturing.
Product Positioning
As a core I/O component within the DeltaV architecture, the KJ3202X1-BA1 enables seamless integration into existing DeltaV controller nodes without requiring additional signal conditioning hardware. Procurement engineers sourcing replacement or expansion modules will find this unit fully compatible with standard DeltaV I/O subsystem wiring and configuration workflows.
Complete Technical Specifications
| Manufacturer | EMERSON Electric / Fisher-Rosemount |
| Model / Part Number | KJ3202X1-BA1 |
| Reference Part No. | 12P2536X082 |
| SKU | KJ3202X1-BA1-12P2536X082 |
| Module Type | Digital Output (DO) Module |
| Platform | EMERSON DeltaV DCS |
| Output Channels | 8-channel discrete output (typical for KJ32xx series) |
| Output Signal Type | 24 VDC discrete / NAMUR-compatible |
| Communication Bus | DeltaV I/O Bus (proprietary backplane) |
| Isolation | Channel-to-channel and channel-to-bus optical isolation |
| Power Supply | Supplied via DeltaV I/O carrier / backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Approvals / Certifications | CE, UL, FM (refer to EMERSON datasheet for full listing) |
| Form Factor | DeltaV I/O module card, standard carrier-mount |
| Weight | Approx. 200 g |
| Country of Origin | USA |
| HS Code | 853710 |
Proven Application Environments
- Oil & Gas: Wellhead control panels, compressor station automation, pipeline SCADA integration
- Chemical & Petrochemical: Reactor interlock systems, valve sequencing, emergency shutdown (ESD) output control
- Power Generation: Turbine control auxiliary outputs, boiler management system DO expansion
- Pharmaceutical / Life Sciences: Batch process control, clean-room HVAC discrete output control
- Pulp & Paper / Mining: Conveyor control, motor starter discrete output interfacing
Engineering Advantages
- Hot-swap capable: Supports online module replacement within DeltaV I/O subsystem without process shutdown
- Deterministic scan cycle: Synchronized with DeltaV controller execution for precise output timing
- Optical isolation: Protects controller backplane from field-side transients and ground loops
- Diagnostics: Built-in channel-level fault detection reported to DeltaV operator workstation
- Scalable architecture: Plug-and-play expansion within existing DeltaV I/O carrier assemblies
- Proven field reliability: Deployed globally across thousands of DeltaV installations in SIL-rated and non-SIL applications
System Architecture & Signal Flow
The KJ3202X1-BA1 mounts onto a standard DeltaV I/O carrier card, which connects to the DeltaV controller node via the proprietary I/O bus. Field wiring terminates at the carrier’s marshalling terminals. The module receives digital output commands from the DeltaV controller, converts them to isolated 24 VDC discrete signals, and drives field devices such as solenoid valves, motor starters, and indicator lamps. Fault status is continuously reported upstream to the DeltaV operator workstation via the I/O bus diagnostics layer.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels
- Pre-shipment inspection: visual, label authenticity, and functional continuity check
- Original EMERSON part number and revision markings verified against manufacturer documentation
- Packaging: anti-static ESD bag + foam-padded carton for international transit
- Certificate of conformance (CoC) available upon request for regulated procurement
- Lead time: typically in-stock; expedited shipping available for urgent MRO requirements
Procurement Process
- Confirm part number KJ3202X1-BA1 and reference 12P2536X082 against your DeltaV BOM or spare parts list
- Submit RFQ or place order directly via Konmask.com
- Receive proforma invoice with lead time and shipping options (DHL / FedEx / sea freight)
- Payment: T/T, PayPal, or as agreed for established accounts
- Shipment with tracking number and packing list provided within 24–48 hours of payment confirmation
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is this module compatible with all DeltaV controller versions?
A: The KJ3202X1-BA1 is designed for the DeltaV I/O subsystem and is compatible with DeltaV MD, MD Plus, SD, and PK controllers using standard I/O carriers. Verify your DeltaV system version against EMERSON’s compatibility matrix before ordering.
Q: Can this module be used in SIL-rated safety loops?
A: The KJ32xx series includes SIL-capable variants. Confirm the specific SIL rating and proof-test requirements with EMERSON’s safety documentation (SIS manual) for your application.
Q: What is the warranty on this unit?
A: Konmask.com provides a 90-day functional warranty on all modules. Extended warranty and exchange programs available for volume procurement.
Q: Do you provide EMERSON factory documentation?
A: Datasheets and installation guides are available from EMERSON’s public documentation library. Konmask.com can assist in locating the correct document revision upon request.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing available for orders of 5+ units.
