EMERSON KJ4001X1-CA1 12P0623X082 – DeltaV S-Series I/O Terminal Block | Precision Field Wiring Interface
Engineering Background
The EMERSON DeltaV S-Series platform is one of the most widely deployed distributed control systems in the process automation industry, trusted across oil & gas, refining, chemical, pharmaceutical, and power generation sectors. The I/O terminal block is the critical field-side interface that bridges field instrument wiring to the DeltaV I/O subsystem, ensuring signal integrity and system reliability.
Product Positioning

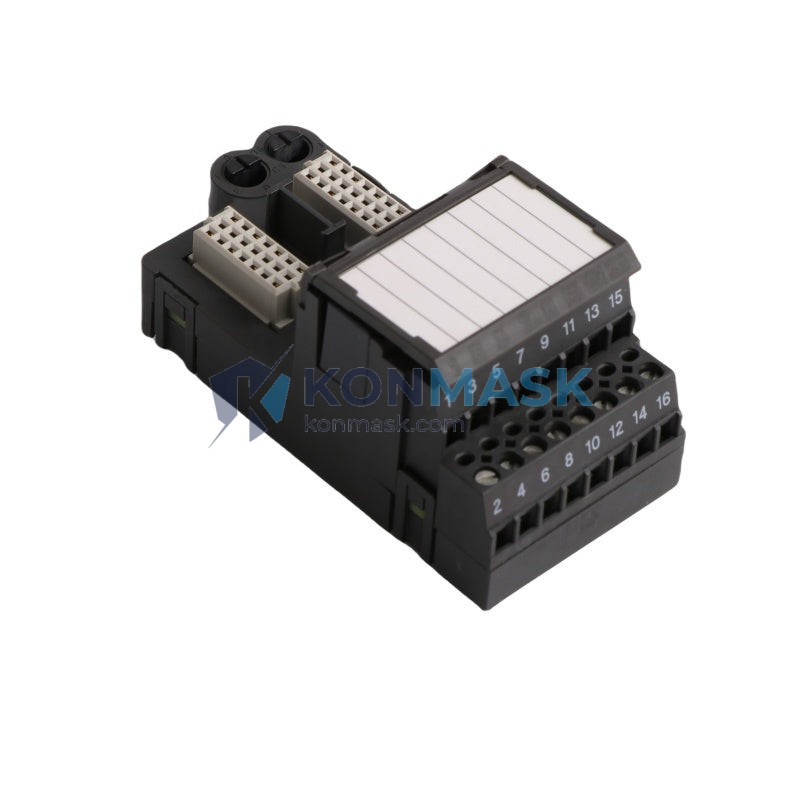

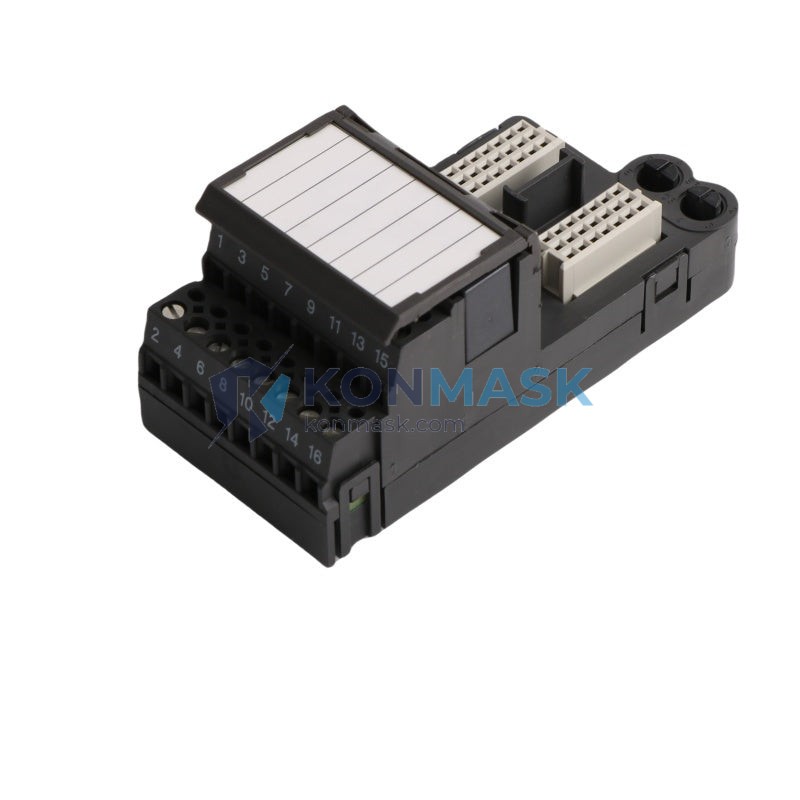

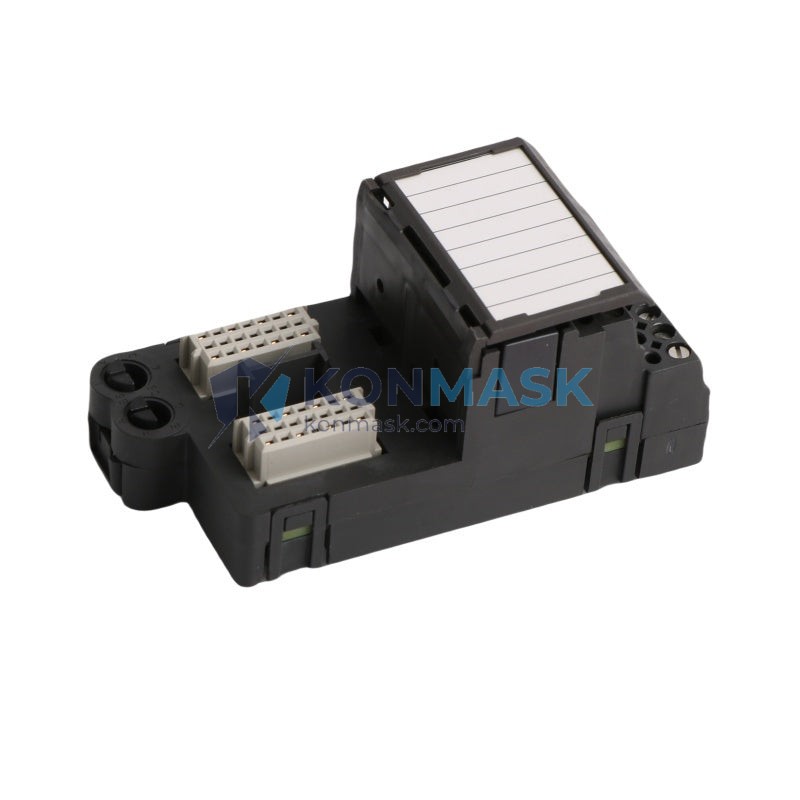

The KJ4001X1-CA1 (12P0623X082) is an OEM-grade I/O terminal block designed for DeltaV S-Series I/O cards. It provides a secure, vibration-resistant screw-terminal connection point for field wiring, enabling fast commissioning, safe maintenance, and long-term operational stability in demanding industrial environments. Sourced from verified channels and inspected prior to shipment by Konmask.com.
Complete Technical Specifications
- Manufacturer: Emerson Electric / Fisher-Rosemount
- Part Number: KJ4001X1-CA1
- Reference Number: 12P0623X082
- Series: DeltaV S-Series I/O
- Module Type: I/O Terminal Block (Field Wiring Interface)
- Compatible I/O Cards: DeltaV S-Series AI, AO, DI, DO I/O modules (verify card compatibility with your DeltaV BOM)
- Terminal Type: Screw-clamp field wiring terminals
- Mounting: Direct plug-in to DeltaV I/O card carrier/marshalling panel
- Operating Temperature: 0°C to +60°C (standard DeltaV S-Series environmental rating)
- Weight: Approx. 80 g
- Condition: New / Surplus New / Tested Used (specify at inquiry)
- Country of Origin: USA
- RoHS Compliance: Per Emerson product documentation
Proven Application Environments
- Oil & Gas upstream/downstream DCS field wiring panels
- Refinery process control marshalling cabinets
- Chemical plant DeltaV S-Series I/O subsystems
- Pharmaceutical batch control systems (FDA 21 CFR Part 11 environments)
- Power generation plant instrumentation loops
- LNG terminal and pipeline SCADA integration panels
Engineering Advantages
- Drop-in Replacement: Direct OEM-compatible fit — no rewiring or reconfiguration required for like-for-like swap
- Signal Integrity: Screw-clamp terminals maintain low-resistance, vibration-proof connections critical for 4–20 mA and discrete signal loops
- Fast Commissioning: Pre-wired terminal blocks reduce field installation time versus custom fabrication
- Maintenance-Friendly: Hot-swap capable (verify with your DeltaV system configuration) for minimal process downtime
- Long Service Life: Rated for the full DeltaV S-Series lifecycle — compatible with legacy and current-generation I/O cards
System Architecture & Signal Flow
In a DeltaV S-Series architecture, field instruments connect via multi-pair cables to marshalling panels. The KJ4001X1-CA1 terminal block plugs directly into the I/O card, providing the physical and electrical interface between field wiring and the DeltaV I/O subsystem. Signal flow: Field Instrument → Cable → Terminal Block (KJ4001X1-CA1) → DeltaV I/O Card → DeltaV Controller → DCS Network. This block eliminates the need for intermediate junction boxes in many panel configurations, reducing wiring complexity and potential failure points.
Sourcing & Quality Verification
- All units sourced from authorized distributors, OEM surplus, or verified industrial decommissions
- Visual inspection and functional verification performed prior to listing
- Part numbers and reference codes cross-checked against Emerson DeltaV documentation
- Packaging: Anti-static bag + foam-protected carton for safe international transit
- Traceability documentation available upon request for regulated industries
Procurement Process
- Confirm Compatibility: Verify your DeltaV I/O card model against KJ4001X1-CA1 compatibility list (contact us if unsure)
- Request Quote: Contact support@konmask.com with quantity and delivery requirements
- Order & Payment: Secure checkout via Konmask.com — T/T, PayPal, and major cards accepted
- Shipping: DHL / FedEx / UPS express worldwide; lead time 1–5 business days from stock
- After-Sales: 90-day warranty on all verified units; technical support included
Technical FAQ
Q: Is KJ4001X1-CA1 compatible with DeltaV M-Series I/O cards?
A: No. This terminal block is designed for DeltaV S-Series I/O. M-Series uses a different connector form factor. Please confirm your I/O card series before ordering.
Q: Can I use this terminal block for HART-enabled I/O cards?
A: Yes, provided the mating I/O card supports HART. The terminal block itself is passive and does not affect HART signal transmission.
Q: What is the wire gauge range for the screw terminals?
A: Standard DeltaV S-Series terminal blocks accept 14–22 AWG (2.5–0.34 mm²) field wiring. Confirm with your panel design specification.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes, CoC and inspection reports are available for orders requiring documentation for regulated industries. Request at time of order.
Q: What is your minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing available for orders of 5+ units — contact us for a quote.
