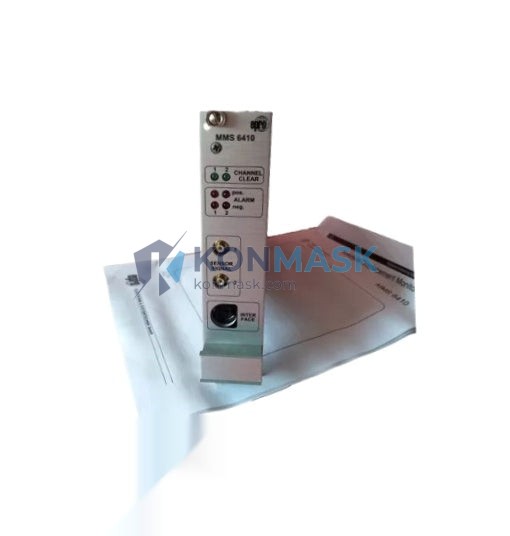

EMERSON MMS6410 – Dual Channel Measuring Amplifier | MMS Series Machinery Protection Platform
Engineering Background: Rotating machinery — turbines, compressors, pumps, and motors — generates complex vibration signatures that must be continuously monitored to prevent catastrophic failure. The EMERSON MMS6410 is a dual-channel measuring amplifier purpose-built for this task, providing precision signal conditioning of raw vibration sensor inputs (eddy-current probes, accelerometers, velocity transducers) into standardized, relay-ready outputs for DCS, PLC, and dedicated machinery protection systems.
Product Positioning: The MMS6410 occupies the signal conditioning layer of Emerson’s Machine Monitoring System (MMS) architecture — sitting between field-mounted sensors and the protection/control logic layer. It is the preferred choice for engineers specifying API 670-compliant machinery protection on critical rotating assets in oil & gas, power generation, and heavy process industries.
Complete Technical Specifications
| Manufacturer | Emerson (formerly Bently Nevada / GE Energy) |
| Part Number | MMS6410 |
| Module Type | Dual Channel Measuring Amplifier |
| Platform | MMS (Machine Monitoring System) Series |
| Input Channels | 2 independent measurement channels |
| Sensor Compatibility | Eddy-current displacement probes, velocity transducers, accelerometers |
| Signal Conditioning | Amplification, filtering, integration (velocity/displacement conversion) |
| Output Signal | 4–20 mA analog / voltage output per channel |
| Relay Outputs | Alert and Danger relay per channel (configurable thresholds) |
| Power Supply | 24 VDC (loop-powered / rack-powered) |
| Mounting | DIN rail / MMS rack-mount chassis |
| Operating Temperature | -20°C to +70°C |
| Protection Class | IP20 (panel/rack installation) |
| Weight | Approx. 600 g |
| Compliance | API 670, CE, IEC 61508 (functional safety reference) |
Proven Application Environments
- Oil & Gas — Upstream & Midstream: Compressor trains, gas turbine packages, pipeline booster stations. The MMS6410 provides continuous shaft displacement and bearing vibration monitoring, feeding trip logic to ESD systems.
- Power Generation: Steam turbine and gas turbine generator sets. Dual-channel architecture allows simultaneous X-Y shaft orbit monitoring on a single module, reducing rack space and wiring cost.
- Petrochemical & Refining: Centrifugal pumps, agitators, and reactor drives where unplanned downtime carries significant safety and production cost. MMS6410 alert/danger relays integrate directly with DCS interlock logic.
- Marine & Offshore: Propulsion machinery and auxiliary rotating equipment on FPSO vessels and offshore platforms, where compact DIN-rail form factor and wide temperature tolerance are essential.
- Heavy Industry — Cement, Mining, Pulp & Paper: Large fan and mill drives where vibration trending enables predictive maintenance scheduling and avoids unplanned shutdowns.
Engineering Advantages
- Dual-Channel Efficiency: Two fully independent measurement channels in a single module halve the rack space and I/O wiring compared to single-channel alternatives — critical in space-constrained control rooms and offshore panels.
- Universal Sensor Input: Compatible with eddy-current, velocity, and accelerometer inputs without hardware changes — one module covers displacement, velocity, and acceleration measurement modes.
- Configurable Alert/Danger Thresholds: Per-channel relay setpoints are field-adjustable, allowing engineers to tune protection levels to machine-specific vibration baselines without replacing hardware.
- 4–20 mA Output Integration: Standard analog output connects directly to any DCS, SCADA, or PLC analog input card — no proprietary communication protocol required.
- API 670 Alignment: Designed to meet the intent of API Standard 670 (Machinery Protection Systems), the industry benchmark for critical rotating equipment protection in hydrocarbon processing.
- Proven MMS Ecosystem: Fully compatible with Emerson MMS rack infrastructure, power supplies, and display modules — enabling modular system expansion without redesign.
System Architecture & Signal Flow
A typical MMS6410 installation follows this signal chain:
- Field Sensor (eddy-current probe / accelerometer / velocity transducer) mounted on rotating machinery bearing housing or shaft.
- Extension Cable routed from hazardous area to control room junction box (with appropriate barrier if in Zone 1/2).
- MMS6410 Input Terminal receives raw sensor signal; internal amplifier conditions and filters the signal.
- 4–20 mA Analog Output wired to DCS/PLC analog input card for continuous trending and historian logging.
- Alert Relay activates at configurable threshold — triggers DCS alarm and operator notification.
- Danger Relay activates at trip threshold — initiates ESD/interlock sequence for machine shutdown.
- MMS Display Module (optional, same rack) provides local bar-graph indication for field technician reference.
Sourcing & Quality Verification
- Authorized Supply Chain: Konmask.com sources MMS6410 units through verified industrial automation distributors and OEM-authorized channels. Each unit is traceable to its supply origin.
- Pre-Shipment Inspection: Every module undergoes visual inspection, label verification (part number, revision, serial number), and connector integrity check before dispatch.
- Packaging Integrity: Units are shipped in anti-static ESD packaging with foam cushioning. Original manufacturer packaging is preserved where available.
- Documentation: Datasheet, declaration of conformity, and calibration records available on request for critical installation projects.
- Counterfeit Prevention: We do not source from grey-market brokers. All units are inspected against known-good reference markings and firmware/hardware revision records.
Procurement Process
- Submit Inquiry: Email [email protected] with your required quantity, delivery timeline, and project site details.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 1 business day.
- Order Confirmation: Purchase order accepted via email. Pro-forma invoice issued for prepayment or net-terms accounts.
- Quality Check & Dispatch: Pre-shipment inspection completed; tracking number and packing list provided.
- Delivery & Support: Post-delivery technical support available for installation and commissioning questions.
Technical FAQ
Q: Is the MMS6410 compatible with Bently Nevada 3500 series sensors?
A: The MMS6410 is an Emerson MMS platform module and is not a direct plug-in replacement for Bently Nevada 3500 rack cards. However, it accepts the same eddy-current probe signal types (e.g., 3300 XL series probes) at the input terminal level. Consult your system integrator for cross-platform wiring compatibility.
Q: Can the MMS6410 be used in SIL-rated safety loops?
A: The MMS6410 is referenced against IEC 61508 functional safety principles. For formal SIL certification requirements, request the Safety Manual and FMEDA data from Emerson or your authorized distributor. Konmask can facilitate document requests for project-critical applications.
Q: What is the difference between the MMS6410 and MMS6420?
A: The MMS6410 is a dual-channel measuring amplifier focused on standard vibration amplitude measurement. The MMS6420 typically adds phase reference and speed measurement capability. Confirm your application requirements before selecting between models — contact us for a comparison datasheet.
Q: Do you supply the full MMS rack system or individual modules only?
A: Konmask supplies both individual MMS6410 modules and complete MMS rack assemblies including power supplies, display modules, and relay output cards. Specify your system requirements in your inquiry for a complete BOM quotation.
Q: What is the lead time for MMS6410?
A: Standard in-stock units ship within 3–5 business days. For larger quantities or project-specific requirements, lead time is confirmed at quotation stage — typically 1–3 weeks.
