Rotating Machinery Vibration Monitoring Solution – Emerson PR6423/015-030 | EPRO Series
Where This Product Is Used

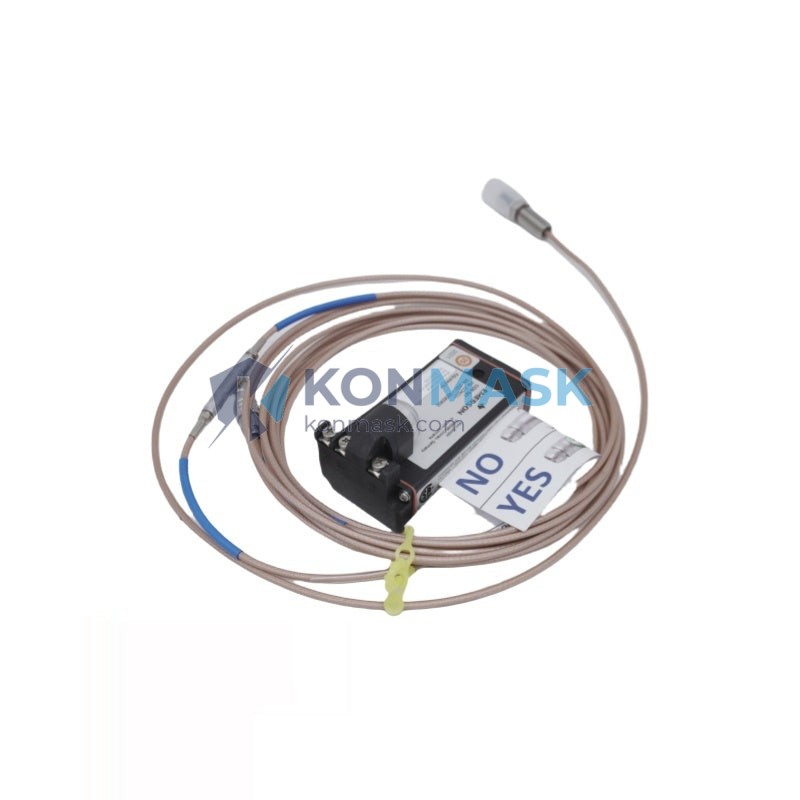

The Emerson PR6423/015-030 eddy current sensor is engineered for continuous, non-contact displacement and vibration measurement in high-speed rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – shaft radial vibration and eccentricity monitoring per API 670
- Centrifugal Compressors – rotor dynamic displacement in petrochemical and LNG plants
- Pumps & Fans – bearing journal orbit analysis in power generation facilities
- Gearboxes – gear mesh frequency and shaft position tracking
- Marine Propulsion Systems – shaft alignment verification under load
Engineers in oil & gas, power generation, pulp & paper, and heavy manufacturing rely on the PR6423 series for its proven signal linearity and robust construction in harsh industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | PR6423/015-030 |
| Series | Emerson EPRO PR6423 |
| Sensor Type | Eddy Current (Non-contact Proximity) |
| Probe Tip Diameter | 15 mm |
| Cable Length | 30 mm (extension cable) |
| Measuring Range | 0 – 2 mm (nominal) |
| Sensitivity | 8 mV/µm (typical) |
| Frequency Response | DC – 10 kHz |
| Supply Voltage | -24 VDC (via driver/oscillator) |
| Output Signal | -2 VDC to -18 VDC (linear range) |
| Operating Temperature | -40°C to +120°C (probe) |
| Protection Rating | IP67 |
| Target Material | Steel / Stainless Steel (AISI 4140 reference) |
| Connector | Coaxial, per EPRO standard |
| Weight | ~150 g |
Specifications are nominal. Always verify against the official Emerson EPRO datasheet for your application.
Why Engineers Specify This Model
- API 670 Compliant – meets the machinery protection standard required by most EPC contractors and end-users in oil & gas
- Proven EPRO Platform – direct drop-in replacement within existing Emerson machinery protection systems (MPS)
- Non-contact Measurement – zero mechanical wear, ideal for continuous 24/7 monitoring without scheduled sensor replacement
- High Linearity – <±1% full-scale error ensures accurate alarm and trip setpoint calibration
- Wide Temperature Range – suitable for both cryogenic and high-temperature process environments
- EMI Resistance – shielded coaxial cable design minimizes interference in electrically noisy plant environments
Complete System Bill of Materials
The PR6423/015-030 probe operates as part of a three-component eddy current measurement chain. A complete system requires:
- Probe: PR6423/015-030 (this item)
- Extension Cable: PR6422/xxx-xxx (length to suit installation)
- Driver / Oscillator: PR6426/xxx-xxx or CON021/916-120 (mounted in junction box or rack)
- Signal Conditioner / Monitor: Emerson 3500/42M or equivalent EPRO rack module
- Mounting Hardware: Stainless steel bracket, locknut, and jam nut (application-specific)
Contact support@konmask.com to source the complete measurement chain as a kit.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems
- IEC 60079 – Equipment for Explosive Atmospheres (consult Emerson for ATEX/IECEx variant)
- ISO 10816 / ISO 20816 – Mechanical Vibration Evaluation
- CE Marking – applicable to EPRO product family
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components sourced through verified supply channels. Every unit offered is:
- Inspected for physical integrity and original manufacturer packaging upon receipt
- Cross-referenced against Emerson EPRO part number databases
- Stored in ESD-safe, climate-controlled warehousing
- Shipped with full traceability documentation upon request
We supply MRO buyers, system integrators, and EPC contractors globally. Bulk pricing and expedited sourcing available for project requirements.
How to Source This Part
- Request a Quote: Email support@konmask.com with your required quantity and delivery timeline
- Phone / WhatsApp: +0086 19859288691
- Online Order: Add to cart and proceed to checkout — we accept T/T, PayPal, and major credit cards
- Lead Time: In-stock units ship within 3–5 business days; sourced units typically 2–4 weeks
Application-Specific FAQ
Q: Is the PR6423/015-030 compatible with the Emerson 3500 rack system?
A: Yes. When paired with the correct extension cable and CON021 or PR6426 driver, it integrates directly with the Emerson 3500 Series machinery protection rack.
Q: Can this sensor be used on non-ferrous targets such as aluminum or titanium?
A: Eddy current sensors are sensitive to target material conductivity and permeability. A calibration correction factor is required for non-standard target materials. Contact us for application guidance.
Q: What is the difference between PR6423/015-030 and PR6423/010-030?
A: The /015 designates a 15 mm probe tip diameter versus 10 mm for the /010 variant. The larger tip provides a wider linear measurement range and is preferred for larger shaft diameters.
Q: Do you supply ATEX-certified versions?
A: Emerson offers ATEX/IECEx variants of the PR6423 series. Please specify your hazardous area classification when requesting a quote.
Q: Can Konmask provide calibration certificates?
A: Calibration certificates from accredited labs can be arranged upon request. Please indicate this requirement at time of order.
