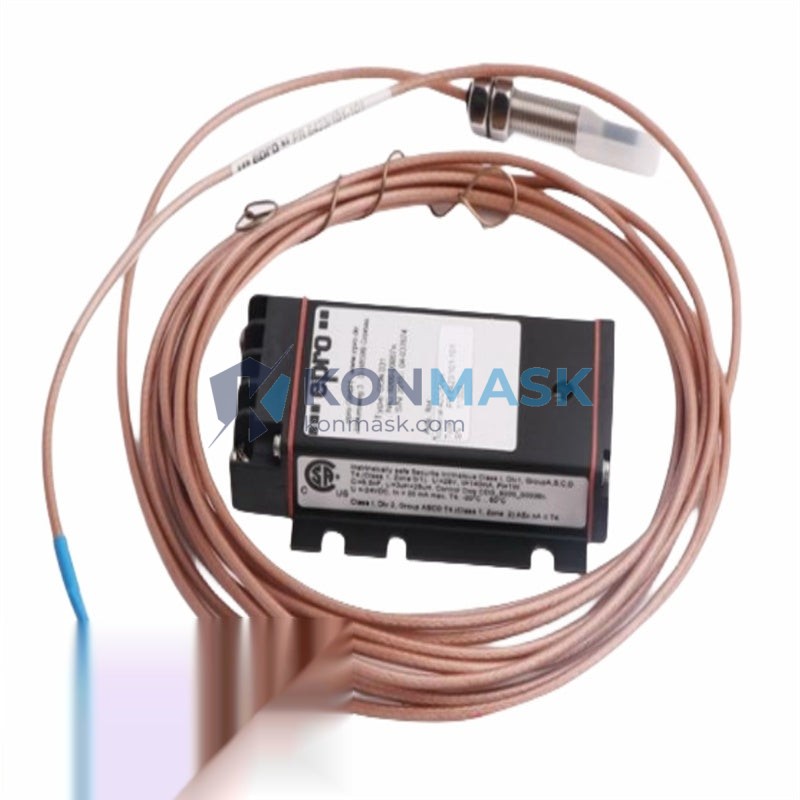

EMERSON PR6423/10R-040 CON021 – Eddy Current Proximity Sensor | Epro Condition Monitoring Series
Engineering Background
In high-speed rotating machinery — turbines, compressors, pumps, and generators — the difference between a scheduled maintenance window and a catastrophic unplanned shutdown often comes down to a single sensor. When a proximity sensor fails or delivers inaccurate shaft displacement data, the entire condition monitoring chain collapses: vibration alarms go silent, axial position protection loses its reference, and machinery protection systems operate blind. The EMERSON PR6423/10R-040 CON021 is the precision eddy current proximity sensor engineered to prevent exactly that scenario.
Product Positioning
The PR6423/10R-040 CON021 is part of EMERSON’s Epro series — one of the most widely deployed machinery protection sensor families in global heavy industry. This specific variant features a 10 mm diameter probe tip with a 40 mm cable extension and is paired with the CON021 extension cable connector, making it a complete, field-ready sensing assembly. It is fully compatible with EMERSON’s 3300 and 3500 series machinery protection systems and is the OEM-specified sensor for countless turbomachinery installations worldwide.
Complete Technical Specifications
- Brand: EMERSON (Epro)
- Part Number: PR6423/10R-040
- Connector / Extension: CON021
- Probe Diameter: 10 mm
- Cable Length: 40 mm (probe-to-connector)
- Sensing Technology: Eddy Current (non-contact)
- Measurement Type: Radial shaft vibration, axial position, differential expansion
- Output Signal: Voltage (compatible with Epro driver/conditioner modules)
- Operating Temperature: Refer to EMERSON Epro datasheet for rated range
- Weight: Approx. 300 g (assembled)
- Compatible Systems: EMERSON 3300 XL, 3500 Series Machinery Protection
- SKU: PR6423/10R-040-CON021
Note: All specifications are sourced from EMERSON Epro official documentation. Konmask does not fabricate or modify OEM specifications.
Proven Application Environments
- Steam & Gas Turbines: Shaft radial vibration monitoring on HP/LP rotor stages
- Centrifugal Compressors: Axial position and differential expansion measurement
- Boiler Feed Pumps: Continuous non-contact displacement sensing in wet environments
- Industrial Generators: Rotor eccentricity and bearing journal orbit analysis
- Gearboxes & Expanders: High-frequency vibration capture on gear mesh frequencies
- Petrochemical & Refinery Plants: API 670-compliant machinery protection installations
- Power Generation (Nuclear, Thermal, Hydro): Safety-critical shaft monitoring per IEC standards
Engineering Advantages
- Non-Contact Measurement: Zero mechanical wear — sensor life is independent of shaft speed or surface condition
- High Frequency Response: Captures sub-synchronous, synchronous, and super-synchronous vibration components
- Immune to Contamination: Eddy current technology is unaffected by oil mist, steam, dust, or condensation
- Direct OEM Replacement: Plug-and-play compatibility with existing Epro wiring and conditioner modules — no recalibration of the protection system required
- Robust Construction: Stainless steel probe body rated for high-pressure, high-temperature industrial environments
- CON021 Connector: Secure, vibration-resistant locking connector ensures signal integrity in high-vibration installations
System Architecture & Signal Flow
The PR6423/10R-040 CON021 operates as the field-sensing element in a three-component Epro proximity system:
- Probe (PR6423/10R-040): Generates the eddy current field and detects shaft gap changes → outputs raw impedance variation
- Extension Cable (CON021): Transmits the high-frequency signal from the probe to the driver with minimal loss; the CON021 connector provides a secure, shielded interface
- Driver / Signal Conditioner (e.g., PR9268 series): Converts the probe impedance signal into a calibrated DC voltage proportional to gap distance, feeding the 3300/3500 monitor
This architecture ensures that the total cable length (probe cable + extension cable) is matched to the driver’s calibrated range — a critical installation parameter that Konmask’s technical team can assist with during procurement.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels
- Pre-shipment inspection includes visual examination, connector integrity check, and part number label verification
- Original manufacturer packaging preserved where available
- Traceability documentation available upon request for critical installations
- Konmask does not sell counterfeit, refurbished-as-new, or specification-modified parts
Procurement Process
- Submit Inquiry: Contact us via the form below or email support@konmask.com with your required quantity and delivery timeline
- Technical Confirmation: Our engineering team verifies part number compatibility with your existing system (driver model, cable length budget, monitor type)
- Quotation: Receive a formal quotation within 1 business day
- Order & Dispatch: Secure payment → order confirmation → dispatch with tracking
- After-Sales Support: Installation guidance and system integration support available post-delivery
Technical FAQ
Q1: Is the PR6423/10R-040 CON021 compatible with EMERSON 3500 series monitors?
A: Yes. The PR6423 series probes are designed for use with EMERSON Epro driver modules and are fully compatible with 3300 XL and 3500 series machinery protection monitors when used with the correct driver and total cable length.
Q2: What is the difference between PR6423/10R-040 and PR6423/10R-030?
A: The suffix denotes the probe cable length — 040 indicates a 40 mm cable, while 030 indicates 30 mm. The total system cable length (probe + extension) must match the driver’s calibration. Contact us if you need assistance selecting the correct variant.
Q3: Can I use a different extension cable instead of CON021?
A: The CON021 is the specified extension connector for this probe assembly. Substituting a non-OEM or incompatible extension cable may alter the system’s electrical characteristics and invalidate calibration. We recommend using the OEM-specified assembly.
Q4: Do you provide calibration certificates?
A: Calibration is performed at the system level (probe + extension + driver as a matched set). We can provide documentation of the part’s provenance and condition. For site-specific calibration, we recommend using EMERSON’s calibration procedures with your installed driver module.
Q5: What is the lead time for this part?
A: Lead time varies by stock availability. Submit an inquiry for a real-time availability check and confirmed delivery estimate.
