Bently Nevada 3500/42M 140734-02 Vibration Monitor Module | Replacement, Equivalent & Selection Guide

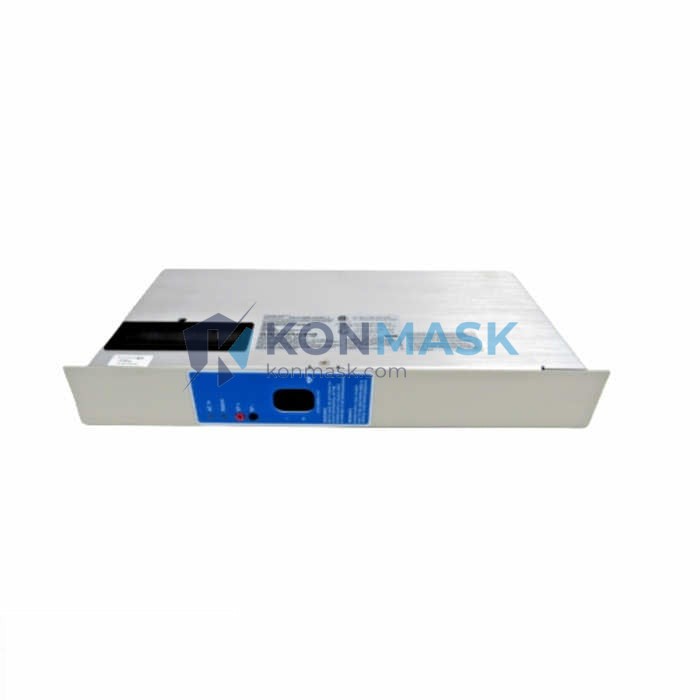

The Bently Nevada 3500/42M 140734-02 is a dual-channel vibration monitor module designed for the 3500 Series machinery protection system. It provides continuous, real-time monitoring of radial vibration, axial position, and other dynamic measurements critical to rotating machinery health. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Part Number: 3500/42M 140734-02
- Manufacturer: Bently Nevada (Baker Hughes)
- Module Type: Dual-Channel Vibration Monitor
- Series: 3500 Machinery Protection System
- Input Channels: 2 (configurable per channel)
- Measurement Types: Radial vibration, axial position, thrust position
- Transducer Compatibility: Proximitor / eddy-current probes (3300 XL, 7200 series)
- Output: 4–20 mA analog, relay outputs (OK, Alert, Danger)
- Communication: Rack-level backplane; optional Modbus/TCP via gateway
- Power Supply: Supplied via 3500 rack backplane (28 VDC)
- Operating Temperature: 0°C to +65°C
- Certifications: CE, SIL 1 capable (system-level)
- Form Factor: Single-slot 3500 rack module
- Weight: ~200 g
Compatible Replacement & Equivalent Models
The following modules are functionally equivalent or drop-in replacements for the 3500/42M 140734-02. Always verify firmware revision and rack configuration before substitution.
- Bently Nevada 3500/42M 140734-01 — Earlier revision; same hardware platform, minor firmware differences. Verify compatibility with System 1 software version.
- Bently Nevada 3500/42M 140734-03 — Later revision with enhanced diagnostics. Backward-compatible in most rack configurations.
- Bently Nevada 3500/40M — Single-channel equivalent; use when only one measurement point is required per slot.
- Bently Nevada 3500/42 (non-M variant) — Standard version without enhanced memory; suitable for legacy installations not requiring extended buffering.
- Emerson CSI 6500 ATG — Next-generation platform for new installations; not a direct rack-swap but functionally equivalent for new projects.
Note: All replacements must be validated against the existing rack firmware, System 1 configuration file, and transducer wiring before commissioning.
Why Choose the Original Model
- Proven reliability in critical rotating machinery protection (turbines, compressors, pumps)
- Seamless integration with existing 3500 Series racks — no re-engineering required
- Full System 1 software compatibility for configuration, trending, and alarm management
- SIL-capable architecture supporting functional safety requirements
- Factory-calibrated — ready for installation with minimal commissioning time
- Long service life with Bently Nevada’s global support and spare parts ecosystem
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial protection
- Large pump and motor bearing condition monitoring
- Gearbox and expander vibration surveillance
- Petrochemical, LNG, and power generation plant machinery protection
- Offshore platform rotating equipment safety systems
System Compatibility
- Rack: Bently Nevada 3500 Series (3500/05, 3500/15, 3500/20, 3500/25 power supplies)
- Transducers: 3300 XL 8mm, 3300 XL 11mm, 7200 series Proximitor sensors
- Software: System 1 Evolution (v6.x and above recommended); System 1 Classic (v5.x)
- I/O Modules: Compatible with 3500/92 and 3500/93 communication gateway modules
- DCS Integration: Modbus RTU/TCP, FOUNDATION Fieldbus (via gateway), OPC-DA/UA
Selection Guide
Use the following criteria to confirm the 3500/42M 140734-02 is the correct module for your application:
- Channel count: Need 2 measurement channels per rack slot? → 3500/42M ✓ | Need 1 channel? → Consider 3500/40M
- Measurement type: Radial vibration or axial position? → 3500/42M ✓ | Speed/phase? → Consider 3500/25
- Transducer type: Eddy-current / Proximitor? → 3500/42M ✓ | Accelerometer? → Consider 3500/44M
- Revision requirement: Confirm -02 suffix matches your System 1 configuration file to avoid firmware mismatch
- New vs. replacement: For new installations, evaluate Emerson CSI 6500 ATG for future-proofing; for like-for-like replacement, 140734-02 is the direct match
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each module undergoes functional inspection and power-on verification prior to shipment
- Original manufacturer packaging and documentation preserved where available
- Traceability records maintained for serial number, revision, and test date
- Warranty: 12 months from shipment date (defects in materials and workmanship)
How to Order
- Step 1: Confirm part number: 3500/42M 140734-02
- Step 2: Verify quantity and required delivery timeline
- Step 3: Contact us via email or phone for stock availability and pricing
- Step 4: Submit purchase order — we accept T/T, L/C, and major payment platforms
- Step 5: Receive shipping confirmation with tracking and documentation package
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace a 140734-01 with a 140734-02 without reconfiguring System 1?
A: In most cases yes, but you should reload the configuration file after swapping to ensure alarm setpoints and channel assignments are correctly applied.
Q: Is the 3500/42M compatible with older 3500 racks manufactured before 2005?
A: Yes, the 3500 backplane is backward-compatible. However, verify the rack power supply (3500/15 or 3500/20) meets the current draw requirements.
Q: Can this module be used as a standalone unit outside a 3500 rack?
A: No. The 3500/42M requires the 3500 rack backplane for power and communication. It cannot operate independently.
Q: What is the lead time for the 3500/42M 140734-02?
A: Stock items typically ship within 3–5 business days. For urgent requirements, contact us directly for expedited options.
Q: Do you provide calibration certificates?
A: Factory calibration documentation is included where available. Third-party calibration can be arranged upon request.
