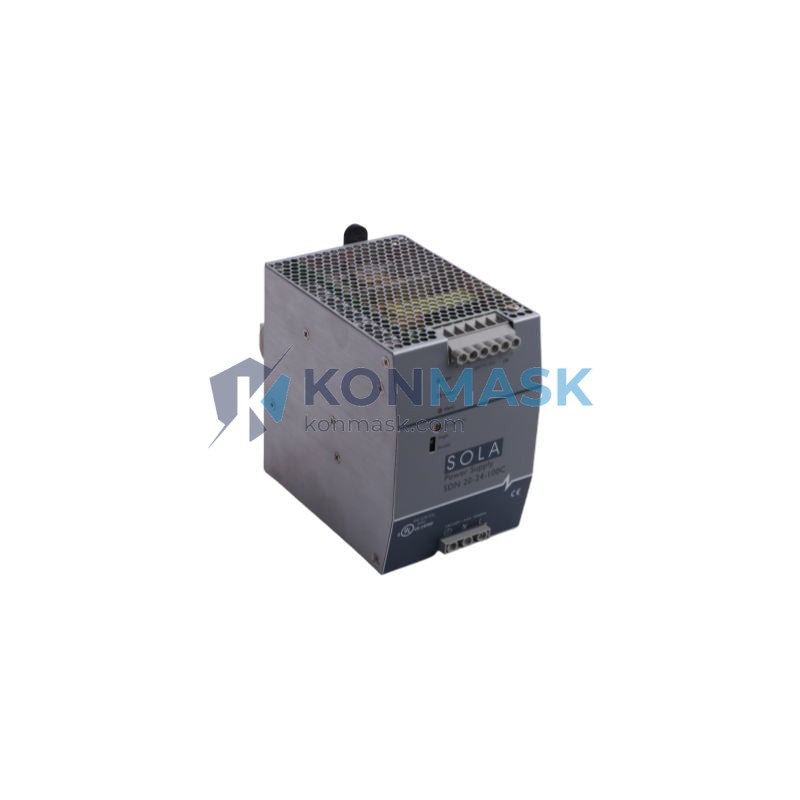

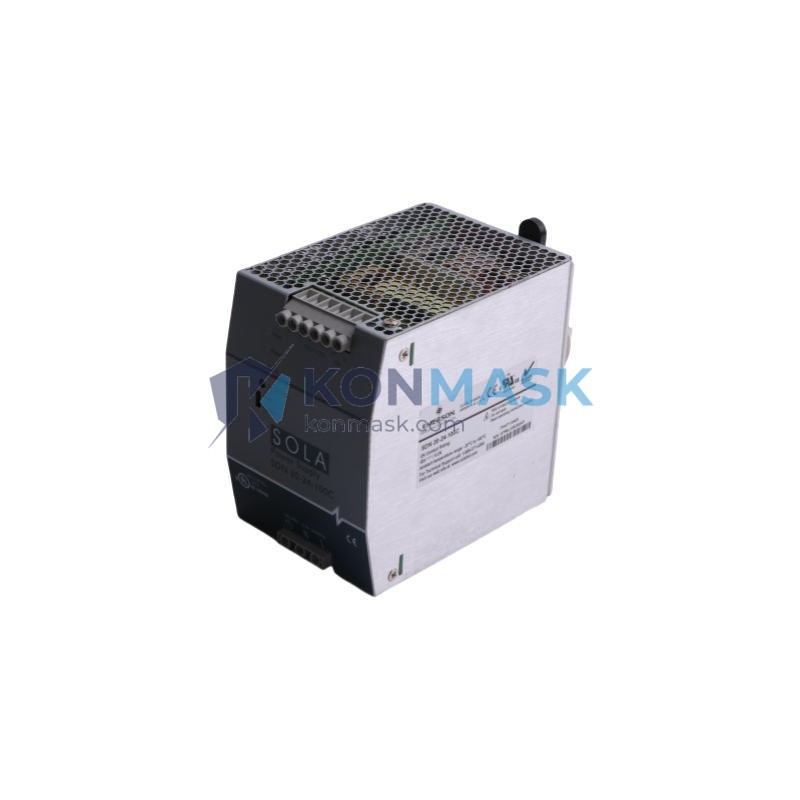

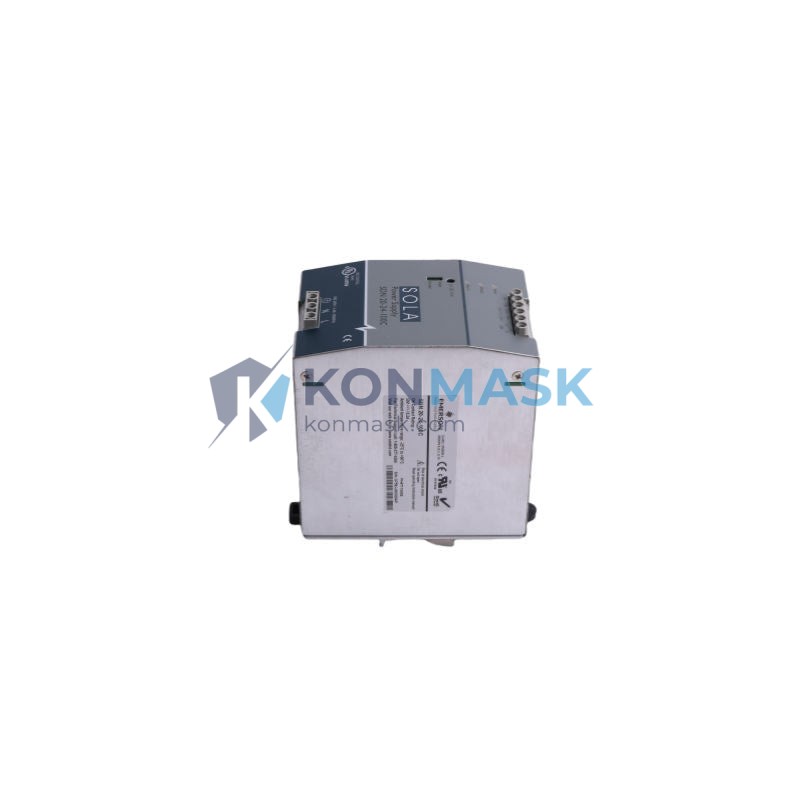

EMERSON SDN 20-24-100C 24VDC 20A Industrial DIN Rail Power Supply – Sola/Hevi-Duty SDN Series
When a DIN rail power supply fails on the production floor, the consequences are immediate and costly: PLCs lose power, control panels go dark, safety interlocks drop out, and entire lines halt within seconds. For facilities running 24/7 operations — automotive assembly, food processing, water treatment, or discrete manufacturing — an unplanned shutdown can cost thousands of dollars per minute. The EMERSON SDN 20-24-100C is engineered to eliminate that risk, delivering stable, regulated 24VDC power to your most critical control circuits with the reliability that industrial environments demand.
The SDN 20-24-100C sits at the high-current end of Emerson’s Sola/Hevi-Duty SDN Series — a globally recognized family of DIN rail power supplies trusted by OEMs and system integrators across more than 80 countries. With a 20A continuous output rating at 24VDC, this unit is purpose-built for demanding panel applications where load stability, wide input voltage tolerance, and compact footprint are non-negotiable. It is a direct replacement and upgrade path for legacy Sola and Hevi-Duty units, making it a preferred choice for MRO procurement teams worldwide.
Technical Specifications
- Model / SKU: SDN 20-24-100C
- Brand: EMERSON / Sola/Hevi-Duty
- Series: SDN Series
- Output Voltage: 24VDC (adjustable)
- Output Current: 20A continuous
- Output Power: 480W
- Input Voltage: 85–264VAC, 47–63Hz (universal input)
- Input Current: Refer to official datasheet
- Efficiency: High-efficiency switch-mode design
- Mounting: DIN rail (EN 60715 / TS 35)
- Operating Temperature: -25°C to +60°C
- Protection: Overload, overvoltage, short-circuit protection
- Certifications: CE, UL, cUL listed
- Weight: Approx. 1,440 g
- Housing: Metal enclosure, DIN rail clip integrated
Note: All specifications are based on manufacturer documentation. Konmask.com does not modify or fabricate technical data. Always verify against the official EMERSON/Sola datasheet for your application.
Key Features & Benefits
- Universal AC Input (85–264VAC): Operates on any global mains voltage without manual switching — ideal for export machinery and multi-region deployments.
- 20A High-Current Output: Supports large PLC racks, distributed I/O systems, solenoid banks, and multiple 24VDC loads simultaneously.
- Compact DIN Rail Form Factor: Minimizes panel space while delivering maximum power density — critical for retrofit and upgrade projects.
- Triple Protection Circuit: Built-in overload, overvoltage, and short-circuit protection safeguard downstream devices and reduce maintenance costs.
- Adjustable Output Voltage: Fine-tune output to compensate for cable voltage drop in large panels or extended wiring runs.
- Wide Operating Temperature Range: Performs reliably from -25°C to +60°C, covering outdoor enclosures, cold storage facilities, and high-ambient industrial environments.
- UL/CE Certified: Meets international safety standards for North American and European market compliance.
- Long Service Life: Industrial-grade components rated for continuous duty cycles in harsh environments.
Industry & Equipment Applications
- Automotive Manufacturing: Powering PLC control panels, robotic cell controllers, and conveyor drive systems.
- Food & Beverage Processing: 24VDC supply for washdown-rated sensors, actuators, and HMI panels in hygienic zones.
- Water & Wastewater Treatment: Reliable power for SCADA RTUs, pump control panels, and remote I/O stations.
- Oil & Gas / Petrochemical: Control panel power supply in classified and non-classified areas.
- Packaging Machinery: Powering servo drives, vision systems, and safety relay modules.
- Building Automation & HVAC: BMS controllers, VAV boxes, and field device power distribution.
- Machine Tool & CNC: Auxiliary 24VDC supply for control electronics and operator panels.
- Railway & Transportation Infrastructure: Trackside control cabinets and signaling equipment.
System Integration & Compatible Parts
The SDN 20-24-100C is designed for seamless integration into standard IEC/EN control panel architectures. It is compatible with:
- Siemens SIMATIC S7-300/400/1200/1500 PLC systems (24VDC supply rail)
- Allen-Bradley / Rockwell Automation ControlLogix and CompactLogix platforms
- Schneider Electric Modicon M340/M580 I/O power buses
- Phoenix Contact, Weidmüller, and Wago DIN rail terminal block systems
- Pilz, Sick, and Schmersal safety relay modules
- Standard EN 60715 TS 35 DIN rail mounting systems
For redundant power configurations, the SDN 20-24-100C can be paralleled with a diode ORing module (e.g., Sola/Hevi-Duty SDN-D series) to achieve N+1 redundancy in critical applications.
Our Quality Assurance Process
At Konmask.com, every unit of the EMERSON SDN 20-24-100C is subject to a rigorous multi-stage verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors, certified resellers, or verified OEM surplus channels with full traceability documentation.
- Visual & Physical Inspection: Each unit is inspected for label integrity, housing condition, connector quality, and DIN rail clip function.
- Functional Power-On Test: Output voltage, current regulation, and protection circuit activation are verified under load prior to packaging.
- Packaging & ESD Protection: Units are packed in anti-static bags with foam cushioning to prevent transit damage.
- Documentation: Certificate of conformity and inspection report available upon request.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quotation: Our technical sales team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Confirm your purchase order via email or our online checkout. Proforma invoice issued for wire transfer or credit card payment.
- Shipment & Tracking: Orders are dispatched via DHL, FedEx, or UPS Express with full tracking. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- After-Sales Support: Our engineering team is available post-delivery for installation guidance and technical questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — PLCs, DCS, drives, power supplies, and HMIs — from leading global brands.
- Global Shipping: We ship to 150+ countries with full export documentation and customs support.
- Fast Response: Quotations within 24 hours. Emergency orders accommodated for critical downtime situations.
- Competitive Pricing: Direct sourcing relationships allow us to offer market-competitive pricing on both new and surplus stock.
- Technical Expertise: Our team includes qualified automation engineers who can advise on compatibility, alternatives, and system integration.
- Trusted by Engineers Worldwide: Serving procurement teams, maintenance engineers, and system integrators across manufacturing, energy, and infrastructure sectors.
Frequently Asked Questions
Q: Is the EMERSON SDN 20-24-100C still in production?
A: The SDN Series has been a long-running product line under the Sola/Hevi-Duty brand (now part of Emerson). Availability may vary between new production stock and certified surplus. Contact us to confirm current stock status.
Q: Can the SDN 20-24-100C replace my existing Sola or Hevi-Duty power supply?
A: Yes. The SDN 20-24-100C is form-factor and electrically compatible with previous Sola and Hevi-Duty SDN series units of the same rating. It is a direct drop-in replacement in most panel configurations.
Q: What is the output voltage adjustment range?
A: The output voltage is adjustable via a front-panel potentiometer. Refer to the official EMERSON/Sola datasheet for the exact adjustment range for this model.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a standard warranty on all units sold. Warranty terms are confirmed at the time of quotation based on stock type (new vs. surplus). Contact us for details.
Q: Can I order a single unit, or is there a minimum order quantity?
A: We supply both single units and bulk orders. There is no minimum order quantity for standard stock items.
Q: What payment methods do you accept?
A: We accept T/T (bank wire transfer), credit card (Visa/Mastercard), and PayPal for qualified orders. Contact us for payment terms on large orders.
