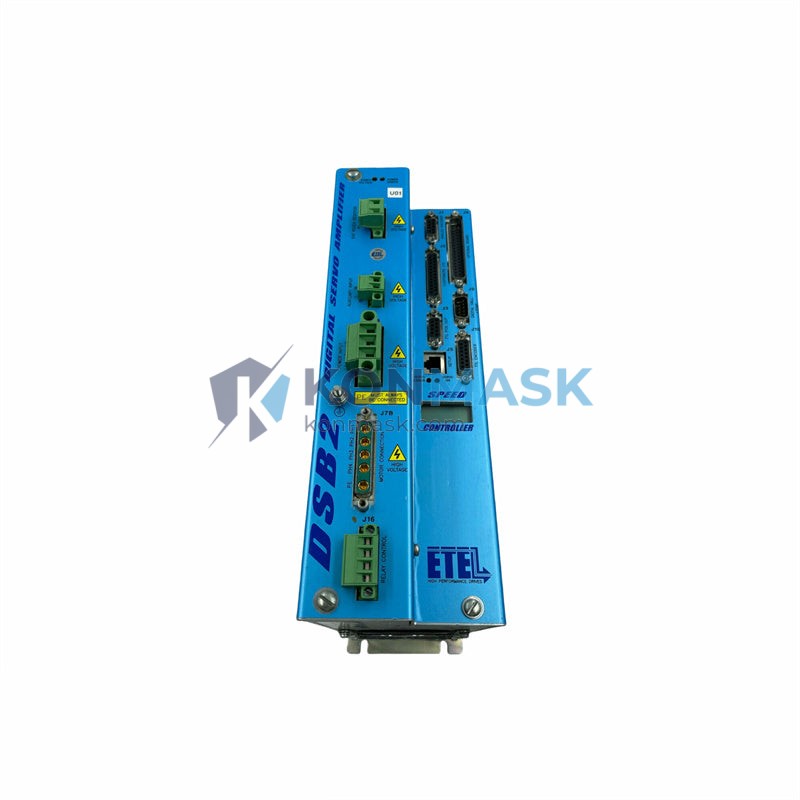

ETEL DSB2S154-211E-000H – High-Precision Digital Servo Driver | DSB2 Series Platform
Engineering Background: ETEL SA, headquartered in Môtiers, Switzerland, is a world-leading manufacturer of direct-drive motors and high-precision servo systems. The DSB2 series represents ETEL’s flagship digital servo driver platform, engineered for applications where nanometer-level positioning accuracy and deterministic real-time control are non-negotiable requirements. These drivers are the backbone of semiconductor lithography, precision metrology, and advanced medical robotics worldwide.
Product Positioning: The ETEL DSB2S154-211E-000H is a compact, high-performance digital servo driver within the DSB2S sub-family, designed to drive ETEL’s linear and torque direct-drive motors with exceptional dynamic response. It is the preferred choice for OEM machine builders and system integrators who require Swiss-engineered reliability in demanding production environments. Konmask.com supplies this unit through verified sourcing channels with full traceability documentation available on request.
Complete Technical Specifications
- Manufacturer: ETEL SA (Switzerland)
- Model / Part Number: DSB2S154-211E-000H
- Series: DSB2S – Digital Servo Driver Series
- Driver Type: Digital Servo Driver (DSP-based)
- Motor Compatibility: ETEL Direct-Drive Linear Motors (LMD, ILF series) and Torque Motors (TMB, TMA series)
- Control Architecture: Fully digital, real-time DSP control loop
- Feedback Interface: High-resolution encoder input (SinCos / EnDat / BiSS compatible)
- Communication Interface: EtherCAT / proprietary ETEL MACRO bus (model-dependent)
- Supply Voltage: 3-phase AC input (refer to DSB2S154 datasheet for exact voltage range)
- Continuous Output Current: 15 A (154 designation)
- Peak Output Current: Per DSB2S154 specification sheet
- Switching Frequency: High-frequency PWM for low ripple and minimal heat
- Protection Class: Over-current, over-temperature, under-voltage, short-circuit
- Form Factor: Compact DIN-rail / panel-mount module
- Weight: 1,480 g
- Country of Origin: Switzerland
- Condition: New / Surplus New (stated at order confirmation)
Proven Application Environments
- Semiconductor wafer handling and lithography stage control
- Precision coordinate measuring machines (CMM)
- Laser cutting and micro-machining systems
- Medical imaging and surgical robotics platforms
- Flat panel display (FPD) manufacturing equipment
- High-speed pick-and-place automation cells
- Aerospace component inspection and test rigs
- Advanced R&D motion platforms requiring sub-micron repeatability
Engineering Advantages
- ✅ Swiss Precision Engineering: ETEL’s DSB2 platform delivers positioning repeatability at the nanometer scale – unmatched in its class
- ✅ Deterministic Real-Time Control: DSP-based digital control loop with microsecond cycle times for predictable servo behavior
- ✅ Direct-Drive Optimized: Specifically tuned for ETEL’s ironless linear and torque motors – eliminates backlash and mechanical compliance
- ✅ High Bandwidth Current Loop: Enables aggressive tuning for fast settling and minimal following error
- ✅ Compact Footprint: High power density design reduces cabinet space requirements in multi-axis configurations
- ✅ Robust Protection Suite: Comprehensive fault detection protects both driver and motor investment
- ✅ Verified Genuine Unit: Sourced through traceable channels – no grey-market risk
System Architecture & Signal Flow
The DSB2S154-211E-000H operates within ETEL’s closed-loop servo architecture:
- Command Input: Motion controller (e.g., ETEL DPMAC or third-party EtherCAT master) sends position/velocity/torque commands via digital fieldbus
- DSP Processing: Onboard DSP executes position, velocity, and current control loops in real time
- Power Stage: PWM-controlled IGBT/MOSFET bridge converts DC bus to 3-phase motor drive current
- Feedback Path: High-resolution encoder signals (SinCos or digital) are processed for closed-loop correction at each control cycle
- I/O Interface: Digital I/O for enable, fault, and status signals; analog monitor outputs for diagnostics
- Safety: STO (Safe Torque Off) function for IEC 62061 / ISO 13849 compliance (verify with specific variant documentation)
Sourcing & Quality Verification
- Step 1 – Verified Procurement: Units sourced exclusively from authorized distributors, OEM surplus, or decommissioned production lines with full chain-of-custody records
- Step 2 – Physical Authentication: Label verification (part number DSB2S154-211E-000H), serial number logging, housing integrity check, and connector inspection
- Step 3 – Functional Validation: Power-on self-test and communication handshake verification where test infrastructure permits
- Step 4 – ESD-Safe Packaging: Anti-static bag, moisture barrier, and foam-lined export carton for safe international transit
- Documentation: Certificate of conformity, packing list, and commercial invoice provided; authenticity documentation available on request
Procurement Process
- Click Add to Cart or Buy Now to place your order directly online.
- For bulk orders (3+ units) or project-based procurement, email [email protected] for a dedicated quote with lead time confirmation.
- Specify any required export documentation (CO, EUR.1, Form A) in your order notes.
- Payment: major credit cards, PayPal, and T/T bank transfer (B2B orders ≥ USD 500).
- Dispatch within 1–3 business days of payment confirmation; tracking number provided within 24 hours of shipment.
- Express delivery via DHL / FedEx / UPS: estimated 3–7 business days to most destinations worldwide.
Technical FAQ
Q: Is the DSB2S154-211E-000H compatible with third-party motion controllers?
A: The DSB2S series primarily integrates with ETEL’s own DPMAC motion controller via the proprietary MACRO bus. EtherCAT variants exist within the DSB2 family – confirm your communication requirement before ordering. Our technical team can assist with compatibility verification.
Q: What motors can this driver control?
A: It is optimized for ETEL direct-drive linear motors (LMD, ILF series) and torque motors (TMB, TMA series). Use with non-ETEL motors requires careful parameter matching and is not recommended without engineering review.
Q: Is this a new or refurbished unit?
A: Condition is clearly stated at order confirmation. We do not sell refurbished units as new. Surplus-new units are unused but may have been stored; all pass our 4-step verification before dispatch.
Q: Can you provide the full datasheet?
A: Yes. Contact [email protected] with your inquiry and we will provide available technical documentation.
Q: What warranty applies?
A: 90-day DOA (Dead on Arrival) warranty. Failed units on first use are replaced or refunded. Extended warranty options available for volume orders.
Q: Do you ship to my country?
A: We ship to 150+ countries from our warehouse in China. Contact us for specific export compliance or customs documentation requirements.
