Precision Motion Control Solution – ETEL EU-LCP-0-0-1000-00 | ULTIMET Series
Where This Product Is Used

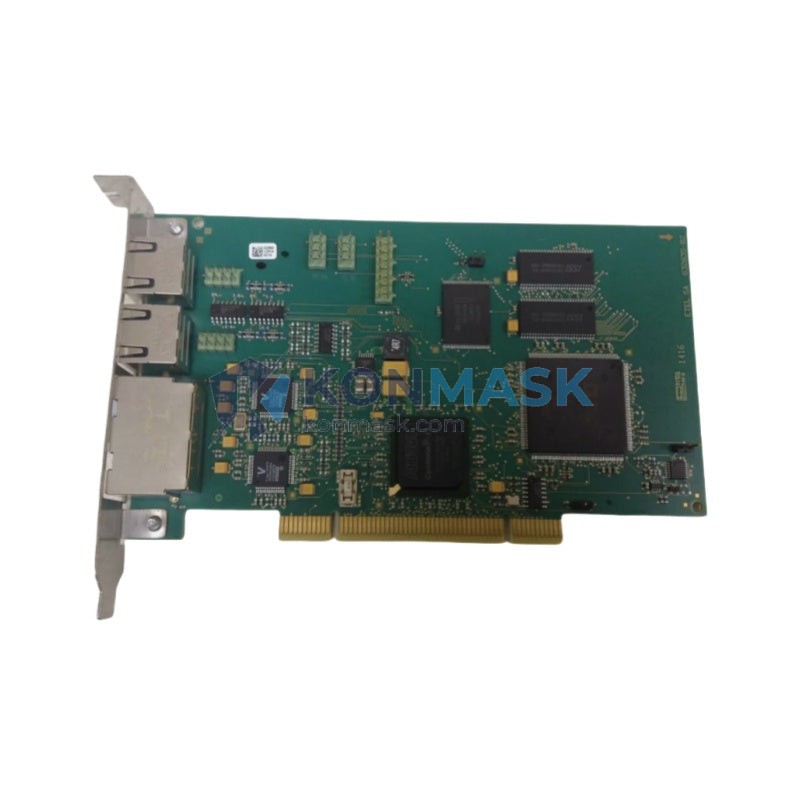

The ETEL EU-LCP-0-0-1000-00 Light PCI Motion Controller Card (P/N 60014500) is deployed in high-precision, multi-axis motion control applications across demanding industrial environments. Typical deployment scenarios include:
- Semiconductor Wafer Handling & Lithography – Ultra-precise stage positioning in photolithography and wafer inspection systems where sub-micron accuracy is mandatory.
- Medical & Laboratory Automation – Robotic pipetting, diagnostic imaging gantries, and surgical robot joint control requiring smooth, jerk-free trajectories.
- Laser Cutting & Engraving Machines – Coordinated XY/XYZ axis control for high-speed laser beam positioning with real-time interpolation.
- PCB Assembly & SMT Pick-and-Place – High-throughput component placement requiring deterministic cycle times and synchronized multi-axis motion.
- Metrology & CMM Systems – Coordinate measuring machines demanding nanometer-level repeatability and low-latency feedback loops.
- Linear Motor Test Benches – ETEL’s own ULTIMET ecosystem integration for direct-drive linear and torque motor characterization.
Technical Specifications
| Manufacturer | ETEL S.A. (Switzerland) |
| Part Number | EU-LCP-0-0-1000-00 |
| Reference Number | 60014500 |
| Series | ULTIMET |
| Form Factor | Light PCI (LPCI) Card |
| Function | Multi-Axis Motion Controller |
| Bus Interface | PCI (32-bit, 33 MHz) |
| Axis Count | Up to 4 axes (configuration-dependent) |
| Feedback Interface | Encoder / Resolver (ETEL ULTIMET compatible) |
| Communication | ETEL proprietary high-speed serial link |
| Operating Voltage | +3.3 V / +5 V via PCI slot |
| Operating Temperature | 0 °C to +55 °C |
| Weight | ~5 kg (packaged) |
| Country of Origin | Switzerland |
Why Engineers Specify This Model
- ULTIMET Ecosystem Native – Designed as the host controller card within ETEL’s ULTIMET architecture, ensuring seamless firmware compatibility with ETEL drives and linear motors.
- Deterministic Real-Time Control – PCI bus implementation delivers low-latency command execution critical for closed-loop servo performance.
- Compact Light PCI Format – Fits standard industrial PC chassis without requiring full-size PCI slots, reducing system footprint.
- Multi-Axis Synchronization – Hardware-level axis synchronization enables complex interpolated motion profiles (linear, circular, helical).
- Proven Field Reliability – Widely deployed in semiconductor OEM equipment with documented MTBF in high-uptime production environments.
- Software SDK Support – Compatible with ETEL’s ULTIMET API and LabVIEW / C++ / .NET motion libraries for rapid application development.
Complete System Bill of Materials
For a complete ETEL ULTIMET motion control system, the following components are typically required alongside the EU-LCP-0-0-1000-00:
- ETEL ULTIMET Servo Drive (e.g., UDN or UDB series) – one per axis
- ETEL Linear or Torque Motor (ILF / TMA series) – matched to load requirements
- ETEL Encoder / Feedback Cable Assembly – axis-specific length
- ETEL ULTIMET Communication Cable (host card to drive)
- Industrial PC with PCI slot running Windows / Linux RTOS
- 24 VDC Logic Power Supply for drive I/O
- Safety relay module (STO / SS1 compliant)
Compliance & Industry Standards
- CE Marking – Compliant with EU Machinery Directive and EMC Directive when installed per ETEL system guidelines.
- RoHS – Manufactured in compliance with RoHS 2 (2011/65/EU) restrictions on hazardous substances.
- ISO 9001 – ETEL S.A. operates under ISO 9001 certified quality management systems.
- SEMI Standards – Suitable for semiconductor equipment integration per SEMI E10 / E79 equipment reliability frameworks.
Quality Assurance & Sourcing
At Konmask.com, every ETEL module undergoes a structured inspection process before shipment:
- Visual inspection for physical damage, corrosion, and connector integrity
- Part number and revision label verification against manufacturer documentation
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceable sourcing from decommissioned OEM systems or authorized surplus channels
All units are shipped with a 90-day warranty against defects in materials and workmanship.
How to Source This Part
- In Stock: Contact us to confirm current availability before ordering.
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 7–21 days.
- Shipping: DHL Express / FedEx International Priority worldwide.
- Payment: T/T (Wire Transfer), PayPal, and major credit cards accepted.
- Export: We handle export documentation, commercial invoices, and customs declarations for international buyers.
- Contact: support@konmask.com | +0086 19859288691
Application-Specific FAQ
Q: Is the EU-LCP-0-0-1000-00 compatible with non-ETEL drives?
A: No. This card uses ETEL’s proprietary high-speed serial communication protocol and is designed exclusively for use within the ETEL ULTIMET drive ecosystem.
Q: What operating systems are supported?
A: ETEL’s ULTIMET SDK supports Windows XP/7/10 (32/64-bit) and select Linux distributions with real-time kernel patches. Confirm your OS version with ETEL’s software release notes.
Q: Can this card control rotary servo motors?
A: Yes, when paired with a compatible ETEL ULTIMET rotary servo drive and appropriate feedback device (encoder/resolver).
Q: Do you provide the ETEL ULTIMET software/firmware?
A: We supply the hardware only. Software licenses and firmware must be obtained directly from ETEL S.A. or their authorized distributors.
Q: What is the return policy?
A: We accept returns within 30 days of delivery for unused, uninstalled units in original packaging. Tested/installed units are covered under the 90-day warranty.
