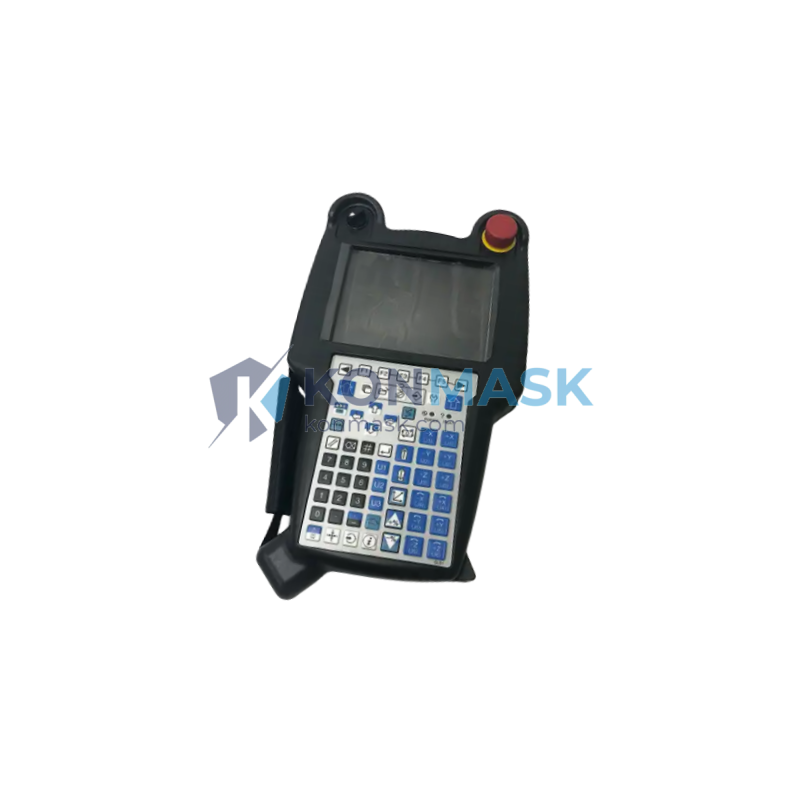

FANUC A05B-2518-C200 I-Pendant – Full-Function CNC Teaching Pendant | Series 30i/31i/32i Platform
The FANUC A05B-2518-C200 is a full-function intelligent teaching pendant (I-Pendant) engineered for FANUC’s high-performance Series 30i / 31i / 32i CNC control platform. Designed for precision machine tool operation, this pendant delivers an intuitive operator interface with a high-resolution color LCD, integrated soft-key navigation, and robust industrial-grade construction — enabling reliable machine control in demanding production environments.
At Konmask.com, we source this unit through verified supply channels, with each piece subject to functional inspection prior to dispatch. This is the preferred choice for OEM integrators, machine tool builders, and MRO procurement teams requiring a drop-in replacement or new-build pendant for FANUC 30i-series systems.
Complete Technical Specifications
- Part Number: A05B-2518-C200
- Manufacturer: FANUC Corporation (Japan)
- Product Type: I-Pendant (Intelligent Teaching Pendant)
- Compatible Platform: FANUC Series 30i / 31i / 32i CNC
- Display: High-resolution color LCD with backlight
- Interface: Soft-key panel, MDI keyboard, jog/feed override dial
- Emergency Stop: Integrated E-Stop button (IEC 60947-5-5 compliant)
- Enable Switch: 3-position deadman enable device
- Cable Connection: Dedicated FANUC pendant cable interface
- Enclosure Rating: Industrial-grade, dust and splash resistant
- Weight: Approx. 1.5 kg
- Country of Origin: Japan
- HS Code: 8537.10 (Boards, panels, consoles for electric control)
Proven Application Environments
- CNC machining centers (vertical & horizontal)
- CNC turning centers and multi-axis lathes
- 5-axis high-speed milling machines
- Grinding and EDM machines with FANUC 30i-series control
- OEM machine tool integration and retrofit projects
- MRO replacement for failed or damaged I-Pendant units
Engineering Advantages
- Full MDI Capability: Direct program entry and editing at the machine without a separate PC
- Color LCD Display: Enhanced operator visibility for program monitoring, alarm diagnostics, and parameter review
- Ergonomic Design: Balanced weight distribution and contoured grip reduce operator fatigue during extended use
- Integrated Safety Devices: E-Stop and 3-position enable switch meet ISO 10218 and IEC 60204-1 safety requirements
- Plug-and-Play Compatibility: Direct replacement for existing A05B-2518-C200 units — no firmware modification required
- Durable Construction: Rated for continuous industrial use in environments with coolant mist, metal chips, and vibration
System Architecture & Signal Flow
The A05B-2518-C200 I-Pendant connects to the FANUC 30i/31i/32i CNC unit via a dedicated pendant interface cable. Operator inputs (MDI keystrokes, jog commands, feed override, E-Stop) are transmitted to the CNC control unit in real time. The CNC processes these signals and returns display data (program status, axis positions, alarms) to the pendant’s LCD. The 3-position enable switch gates all motion commands — motion is only permitted when the switch is held in the intermediate position, providing a critical safety interlock layer.
Sourcing & Quality Verification
- Source: Authorized distribution channels and verified industrial surplus
- Inspection: Each unit undergoes visual inspection and functional connectivity check prior to shipment
- Condition: New or refurbished-to-spec units available — specify requirement at inquiry
- Traceability: Serial number and manufacturing date recorded for each shipment
- Packaging: Anti-static bag + foam-lined carton for safe international transit
Procurement Process
- Submit your inquiry via support@konmask.com or WhatsApp +0086 19859288691
- Provide your machine model, CNC control version, and required quantity
- Receive a formal quotation with lead time and shipping options within 24 hours
- Confirm order — payment via T/T, PayPal, or other agreed terms
- Unit ships with tracking; documentation (invoice, packing list, COO) provided
Technical FAQ
Q: Is the A05B-2518-C200 compatible with FANUC 0i-series controls?
A: No. This pendant is designed specifically for the Series 30i/31i/32i platform. For 0i-series, please inquire about the appropriate pendant model.
Q: Can this pendant be used with a FANUC robot controller?
A: No. Robot teach pendants use a different interface and software. This unit is for CNC machine tool controls only.
Q: What is the warranty?
A: We offer a 90-day functional warranty on all units. Extended warranty options are available — contact us for details.
Q: Do you provide installation support?
A: Yes. Our technical team can provide remote guidance for pendant replacement and cable connection verification.
