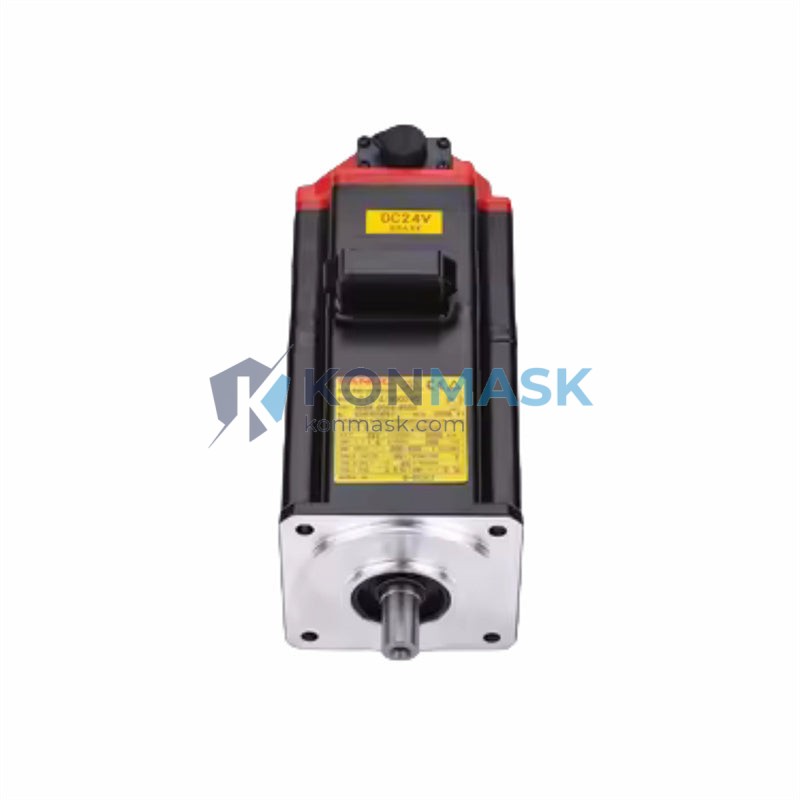

FANUC A06B-0830-B293 – High-Performance AC Spindle Motor | αi Series CNC Platform
Engineering Background
The FANUC A06B-0830-B293 is a precision AC spindle motor engineered for high-speed, high-torque CNC machining applications. Developed under FANUC’s renowned αi (Alpha-i) Series platform, this unit delivers the reliability and dynamic response demanded by aerospace, automotive, and precision manufacturing environments. As a direct FANUC OEM component, it integrates seamlessly with FANUC CNC controllers including the 0i, 16i, 18i, 21i, 30i, 31i, and 32i series.
Product Positioning
Designed for procurement engineers and maintenance teams sourcing verified replacement or new-build spindle drive components, the A06B-0830-B293 eliminates compatibility risk and reduces machine downtime. Konmask.com supplies this unit with full traceability documentation, supporting both OEM integrators and end-user MRO programs.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | A06B-0830-B293 |
| Series / Platform | FANUC αi (Alpha-i) Series |
| Motor Type | AC Spindle Motor |
| Manufacturer | FANUC Corporation (Japan) |
| Country of Origin | Japan |
| Weight | Approx. 4.46 kg |
| Compatible Controllers | FANUC 0i / 16i / 18i / 21i / 30i / 31i / 32i Series |
| Drive Interface | FANUC αi Spindle Amplifier (SPM) |
| Encoder Type | Built-in Pulse Coder (αi Sensor) |
| Cooling Method | Forced Air Cooling (Fan-Cooled) |
| Mounting | Flange Mount |
| Protection Class | IP54 (standard) |
| Insulation Class | Class F |
| RoHS Compliance | Yes |
Proven Application Environments
- CNC Machining Centers – Vertical and horizontal milling, boring, and drilling operations requiring precise spindle speed control
- CNC Lathes & Turning Centers – High-speed turning with C-axis positioning capability
- Grinding Machines – Surface and cylindrical grinding requiring ultra-smooth spindle rotation
- Aerospace Manufacturing – Tight-tolerance machining of titanium, Inconel, and aluminum alloys
- Automotive Production Lines – High-duty-cycle spindle applications in transfer lines and flexible manufacturing systems
- Die & Mold Machining – High-speed spindle for complex 3D contour cutting
Engineering Advantages
- Direct FANUC αi Platform Integration – Plug-and-play compatibility with FANUC SPM amplifiers; no parameter re-mapping required
- High Dynamic Response – Fast torque rise time enables aggressive cutting cycles without spindle lag
- Thermal Stability – Class F insulation and forced-air cooling sustain rated output across extended duty cycles
- Precision Encoder Feedback – Built-in αi pulse coder provides closed-loop speed and position accuracy for rigid tapping and C-axis operations
- Robust Mechanical Construction – Flange-mount design with IP54 protection resists coolant mist and swarf ingress in production environments
- Long Service Life – FANUC OEM build quality ensures MTBF performance consistent with new-machine specifications
System Architecture & Signal Flow
The A06B-0830-B293 operates within the FANUC αi drive architecture as follows:
- CNC Controller (e.g., FANUC 30i-B) → issues spindle speed/position commands via FSSB (FANUC Serial Servo Bus) or analog interface
- αi Spindle Amplifier Module (SPM) → converts digital commands to 3-phase AC power output; manages current loop and speed regulation
- A06B-0830-B293 Spindle Motor → converts electrical energy to mechanical rotation; encoder feeds back actual speed/position to SPM
- Machine Spindle Mechanism → belt, gear, or direct-drive coupling transmits torque to cutting tool or workpiece
This closed-loop architecture ensures sub-millisecond speed correction, enabling rigid tapping, thread cutting, and Cs-axis contouring without auxiliary encoders.
Sourcing & Quality Verification
- OEM Traceability – Units sourced through verified FANUC authorized distribution channels with original packaging where available
- Pre-Shipment Inspection – Each unit undergoes visual inspection, label verification, and connector integrity check before dispatch
- Authenticity Guarantee – Konmask.com does not supply counterfeit or remanufactured units without explicit disclosure; all listings specify condition (New / Surplus / Refurbished)
- Documentation Package – Certificate of conformance, packing list, and commercial invoice provided with every shipment
- Export Compliance – Shipments comply with applicable export control regulations; HS Code classification available upon request
Procurement Process
- Inquiry Submission – Contact Konmask.com via email or phone with your part number, required quantity, and delivery timeline
- Quotation & Lead Time Confirmation – Receive a formal quotation within 1 business day including unit price, freight options, and estimated delivery
- Purchase Order Placement – Submit PO via email; proforma invoice issued for payment processing
- Payment & Export Documentation – T/T bank transfer or agreed payment terms; commercial invoice and packing list prepared
- Shipment & Tracking – Units shipped via DHL / FedEx / UPS Express or sea freight for bulk orders; tracking number provided within 24 hours of dispatch
- After-Sales Support – Technical support available post-delivery for installation verification and parameter configuration guidance
Technical FAQ
Q: Is the A06B-0830-B293 compatible with FANUC 0i-MF controllers?
A: Yes. The αi Series spindle motor is fully compatible with FANUC 0i-MF, 0i-TF, and 0i-D/F Plus controllers when paired with the appropriate αi SPM amplifier module.
Q: Can this motor be used for C-axis (Cs-axis) contouring?
A: Yes, provided the matched SPM amplifier supports Cs-axis function and the CNC controller has the Cs-axis option enabled. The built-in αi encoder supports position feedback for this function.
Q: What is the lead time for this part?
A: Standard lead time is 3–7 business days for in-stock units. For out-of-stock items, lead time is confirmed at quotation stage, typically 2–4 weeks.
Q: Do you provide a warranty?
A: Yes. New OEM units carry the standard FANUC warranty. Surplus and refurbished units carry a Konmask.com 90-day functional warranty. Terms are specified on the quotation.
Q: Can you supply the matching SPM amplifier module?
A: Yes. Konmask.com stocks a wide range of FANUC αi SPM amplifier modules. Please contact us with your drive cabinet specifications for a matched set quotation.
