FUJI 2MBI100NC-120 IGBT Module 100A 1200V | Replacement, Equivalent & Selection Guide

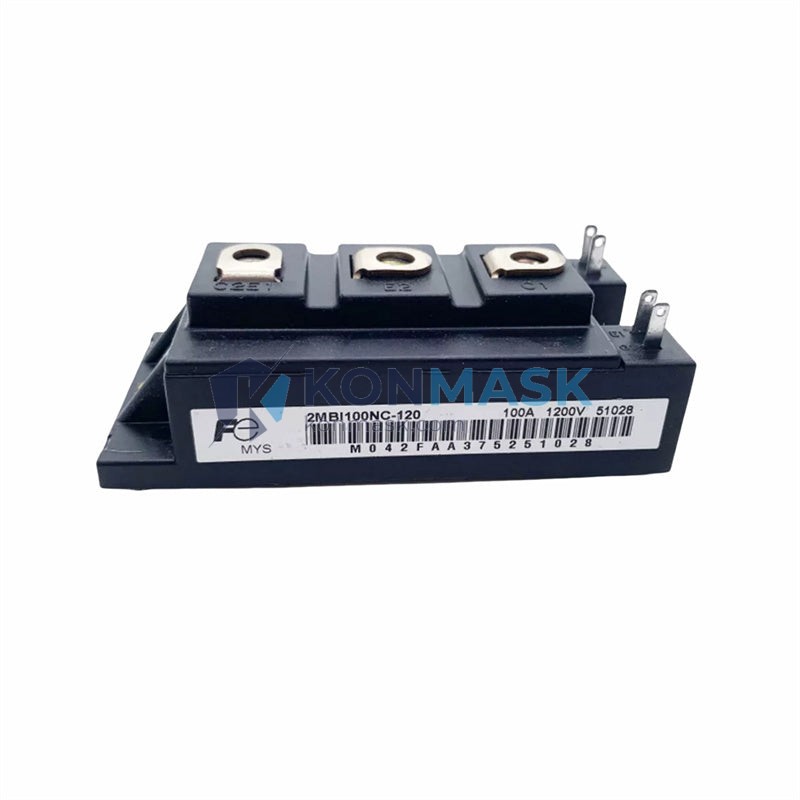

The Fuji Electric 2MBI100NC-120 is a 100A / 1200V dual-pack IGBT module from the 2MBI-NC series, designed for high-efficiency NPC (Neutral Point Clamped) three-level inverter topologies. It is widely deployed in industrial variable-frequency drives (VFDs), UPS systems, and medium-voltage converters. Konmask.com supplies genuine and compatible units with full traceability.
Technical Specifications
- Part Number: 2MBI100NC-120
- Manufacturer: Fuji Electric
- Series: 2MBI-NC (Dual-Pack NPC IGBT)
- Collector Current (IC): 100 A
- Collector-Emitter Voltage (VCES): 1200 V
- Gate-Emitter Voltage (VGES): ±20 V
- Topology: Dual-Pack (2-in-1), NPC Clamp
- Switching Frequency: Up to 20 kHz (application-dependent)
- Package: Fuji NPC module package (screw terminal)
- Operating Temperature (Tj): −40°C to +150°C
- Isolation Voltage: 2500 V AC (1 min)
- Weight: approx. 6.28 kg (module + heatsink assembly)
- RoHS Compliant: Yes
Compatible Replacement & Equivalent Models
When the 2MBI100NC-120 is unavailable or end-of-life, the following models are commonly evaluated as replacements. Always verify electrical parameters and mechanical footprint before substitution.
- Fuji Electric 2MBI100NC-120-01 — Updated revision; pin-compatible, improved switching loss
- Fuji Electric 2MBI100VB-120 — Same current/voltage class, different package; verify mounting
- Infineon FZ100R12KE3 — 100A / 1200V IGBT, comparable switching performance; different footprint
- Mitsubishi CM100DY-24NF — 100A / 1200V dual IGBT; verify gate drive compatibility
- Semikron SKM100GB12T4 — 100A / 1200V IGBT module; different package, requires adapter
- ABB 5SNA0100N120300 — NPC IGBT stack; system-level replacement for high-power drives
⚠ Note: Cross-brand substitution requires full datasheet comparison. Contact Konmask engineering support for application-specific guidance.
Why Choose the Original 2MBI100NC-120
- ✅ Drop-in fit — Identical footprint and terminal layout; no PCB modification required
- ✅ Validated gate drive — Optimized for Fuji-standard ±15 V gate drive circuits
- ✅ Proven reliability — Millions of field hours in Fuji FRENIC and third-party VFD platforms
- ✅ NPC-optimized switching — Low tail current and tight parameter matching for three-level topologies
- ✅ Full traceability — Date code, lot number, and factory COC available on request
Typical Applications
- Fuji FRENIC-VG, FRENIC-Ace, and FRENIC-Multi series VFDs
- Three-level NPC inverters for industrial motor drives (11 kW – 75 kW range)
- Online UPS and active front-end (AFE) rectifiers
- Solar inverters and energy storage converters
- Elevator and crane drive systems
- CNC spindle drives and servo amplifiers
System Compatibility
- Fuji FRENIC-VG Series: FRN□G1S-4J / FRN□G1S-2J (11–55 kW)
- Fuji FRENIC-Ace Series: FRN□E2S-4 (15–45 kW)
- Third-party NPC drives: Compatible with any NPC topology using 1200 V / 100 A IGBT positions — confirm gate resistor values
- Gate driver ICs: Compatible with Concept 2SD315A, Infineon 1ED020I12-F2, and equivalent isolated gate drivers
Selection Guide
Use the table below to select the correct 2MBI-NC variant for your application:
- 2MBI50NC-120 — 50 A / 1200 V | Up to ~22 kW NPC drive
- 2MBI75NC-120 — 75 A / 1200 V | Up to ~37 kW NPC drive
- 2MBI100NC-120 — 100 A / 1200 V | Up to ~55 kW NPC drive ← This model
- 2MBI150NC-120 — 150 A / 1200 V | Up to ~75 kW NPC drive
- 2MBI200NC-120 — 200 A / 1200 V | Up to ~110 kW NPC drive
Selection tip: Derate IC by 20–30% for continuous duty at high ambient temperature (>40°C).
Quality Assurance & Sourcing
- 🔬 Incoming inspection: Every unit tested for VCE(sat), IGES, and gate threshold before shipment
- 📦 Original packaging: Shipped in anti-static tray with desiccant; moisture sensitivity level (MSL) maintained
- 📄 Documentation: Datasheet, COC, and test report available on request
- 🌐 Global sourcing: Authorized distributor channels and factory-direct stock; no grey-market units
- 🔄 Warranty: 12-month warranty against manufacturing defects
How to Order
- Confirm part number: 2MBI100NC-120 (or specify revision -01 if required)
- State required quantity and delivery timeline
- Request a quote via [email protected] or call +0086 19859288691
- Receive proforma invoice → confirm payment → dispatch within 1–3 business days
- Tracking number provided upon shipment; DHL / FedEx / UPS available
Replacement & Compatibility FAQ
Q: Can I replace 2MBI100NC-120 with 2MBI100NC-120-01?
A: Yes. The -01 revision is a direct drop-in replacement with improved switching characteristics. No circuit changes required.
Q: Is the Infineon FZ100R12KE3 a direct replacement?
A: Electrically equivalent in ratings, but the package footprint differs. A custom heatsink adapter is required. Not recommended for field repair without engineering review.
Q: How do I identify a counterfeit 2MBI100NC-120?
A: Check the laser-etched date code and lot number on the module top. Genuine units have consistent font depth and no ink printing. Request a COC from your supplier. Konmask provides full traceability documentation.
Q: What gate drive voltage does this module require?
A: ±15 V gate drive is standard. Gate resistor (Rg) values per Fuji application note AN-2MBI-NC: 10–22 Ω for turn-on, 10–22 Ω for turn-off.
Q: Can this module be used in a two-level inverter?
A: The 2MBI100NC-120 is optimized for NPC three-level topologies. While electrically usable in two-level circuits, the NPC clamp diode structure adds unnecessary complexity. Use 2MBI100U4B-120 for standard two-level applications.
