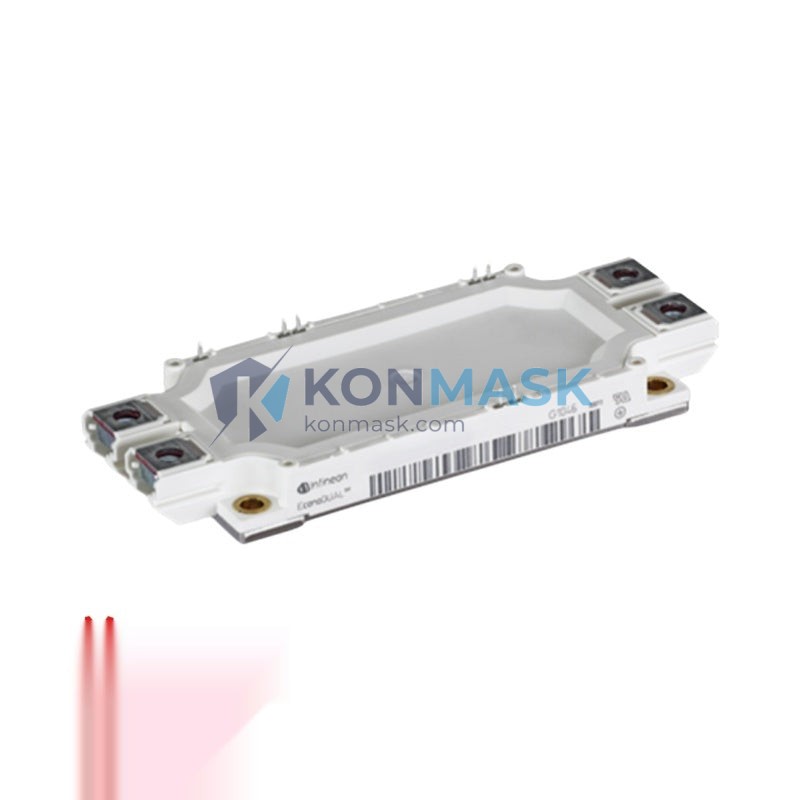

SIEMENS FF450R12ME4_B11 – High-Power IGBT Half-Bridge Module | Eupec IGBT Platform
Engineering Background: The FF450R12ME4_B11 is a high-current IGBT power module developed under the SIEMENS/Eupec platform, engineered for demanding industrial power conversion applications. Carrying the SIEMENS internal part number A5E03932844, this module represents the fourth-generation ME4 series optimized for low switching losses and enhanced thermal cycling endurance.
Product Positioning: Designed for procurement engineers and system integrators sourcing reliable power semiconductors for medium-voltage drive systems, regenerative inverters, and industrial UPS platforms. The FF450R12ME4_B11 delivers a proven balance of high current density, robust short-circuit withstand capability, and long-term field reliability in 24/7 industrial environments.
Complete Technical Specifications
| Part Number | FF450R12ME4_B11 |
| SIEMENS Internal P/N | A5E03932844 |
| Manufacturer | SIEMENS / Eupec |
| Module Type | Half-Bridge (2-in-1) IGBT Module |
| Collector Current (IC) | 450 A (DC) |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Gate-Emitter Voltage (VGES) | ±20 V |
| Saturation Voltage (VCEsat) | ≤ 2.5 V @ IC = 450 A, Tj = 125°C |
| Switching Frequency | Up to 3 kHz (recommended) |
| Junction Temperature (Tj) | -40°C to +150°C |
| Case Temperature (Tc) | -40°C to +125°C |
| Thermal Resistance (Rth(j-c)) | ≤ 0.065 K/W per IGBT |
| Isolation Voltage (Visol) | 6000 V AC (1 min) |
| Package / Footprint | 62mm Standard Module (IHM-B) |
| Mounting Torque | 3 N·m (terminal screws) |
| Weight | Approx. 500 g |
| Country of Origin | Germany |
| RoHS Compliance | Yes |
Proven Application Environments
- AC Motor Drives (VFD): Medium-voltage variable frequency drives for pumps, fans, compressors, and conveyors in process industries
- Regenerative Inverters: Four-quadrant drive systems with active front-end rectification for energy recovery
- Industrial UPS & Power Conditioning: Online double-conversion UPS systems requiring high-reliability switching stages
- Traction & Rail Auxiliary Converters: Auxiliary power supply inverters in rail rolling stock
- Renewable Energy Inverters: Grid-tied solar and wind inverter output stages
- Induction Heating Systems: Medium-frequency power supplies for industrial heating and hardening
- SINAMICS / SIMOVERT Drive Platforms: Direct replacement in SIEMENS drive system power stacks
Engineering Advantages
- ME4 Trench-Gate Technology: Fourth-generation trench-gate IGBT cell structure delivers lower conduction losses vs. planar-gate predecessors, reducing heat dissipation at rated load
- Soft-Recovery Freewheeling Diode: Co-packaged CAL (Controlled Axial Lifetime) diode minimizes reverse-recovery current spikes, reducing EMI and switching stress on gate drivers
- High Short-Circuit Withstand: Rated for 10 µs short-circuit withstand time (SCSOA), providing protection margin in fault conditions
- Pressure-Contact Base Plate: Copper base plate with controlled flatness ensures low thermal interface resistance to heatsink, critical for 450 A continuous operation
- 62mm Standard Footprint: Drop-in compatible with IHM-B standard mounting pattern — simplifies retrofit and spare-parts standardization across drive platforms
- Isolated Gate Drive Interface: Standard gate threshold (VGE(th) ≈ 5.8 V) compatible with common IGBT gate driver ICs (e.g., CONCEPT, Infineon EiceDRIVER)
System Architecture & Signal Flow
The FF450R12ME4_B11 implements a half-bridge topology integrating one high-side IGBT + freewheeling diode and one low-side IGBT + freewheeling diode in a single 62mm package. Typical system integration:
- DC Bus Input: 600–800 V DC bus (from rectifier or active front-end) connected to module DC+ and DC− terminals
- AC Output: Phase output (AC terminal) connects to motor winding or filter inductor
- Gate Drive: Isolated ±15 V gate drive signals applied to G1/E1 (high-side) and G2/E2 (low-side) terminals via isolated gate driver board
- Thermal Management: Module base plate mounted to liquid-cooled or forced-air heatsink; thermal interface material (TIM) applied per manufacturer specification
- Three-phase inverter: Three FF450R12ME4_B11 modules configured in parallel half-bridge arrangement form a complete 3-phase inverter bridge
Sourcing & Quality Verification
- Authenticity: All units sourced from authorized distribution channels or verified OEM surplus; SIEMENS holographic label and date code inspected upon receipt
- Incoming Inspection: Visual inspection (package integrity, terminal condition, base plate flatness) + static parameter verification (VCEsat, IGES leakage) performed on each unit
- Storage Conditions: Stored at 15–25°C, 40–60% RH in ESD-protected, anti-static packaging per IEC 61340-5-1
- Traceability: Lot number and date code documented; available upon request for quality records
- Warranty: 12-month warranty against manufacturing defects under normal operating conditions
Procurement Process
- Confirm Part Number: Verify FF450R12ME4_B11 / A5E03932844 matches your BOM or drive service manual specification
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing and lead time
- Order Confirmation: Purchase order issued; inspection report and shipping documentation provided
- Shipping: DHL / FedEx express worldwide; ESD-safe packaging with foam insert; export documentation included
- Technical Support: Pre-installation application engineering support available via email
Technical FAQ
Q: Is FF450R12ME4_B11 a direct replacement for FF450R12ME4?
A: The _B11 suffix denotes a revised gate threshold and improved short-circuit ruggedness vs. the base ME4 variant. Electrically compatible in most drive platforms; verify gate drive voltage and timing with your drive OEM documentation before substitution.
Q: What gate resistor value is recommended?
A: SIEMENS application notes recommend Rg(on) = 2.2–4.7 Ω and Rg(off) = 2.2–3.3 Ω at fsw ≤ 3 kHz. Consult the FF450R12ME4_B11 datasheet for full gate drive recommendations.
Q: Can this module operate at higher switching frequencies?
A: The module is rated for continuous operation up to 3 kHz. Operation at higher frequencies is possible but requires derating of collector current and careful thermal management. Contact our engineering team for application-specific guidance.
Q: What thermal interface material should be used?
A: SIEMENS recommends Wacker P12 or equivalent silicone-based TIM with thermal conductivity ≥ 1.0 W/m·K, applied in a thin, uniform layer (50–100 µm) to the base plate contact area.
Q: Is this module available in quantity?
A: Yes. Contact us for stock availability and lead time. Volume orders (5+ units) qualify for preferential pricing.
