FUJI FTM100B Transistor Output Module | Replacement, Equivalent & Selection Guide

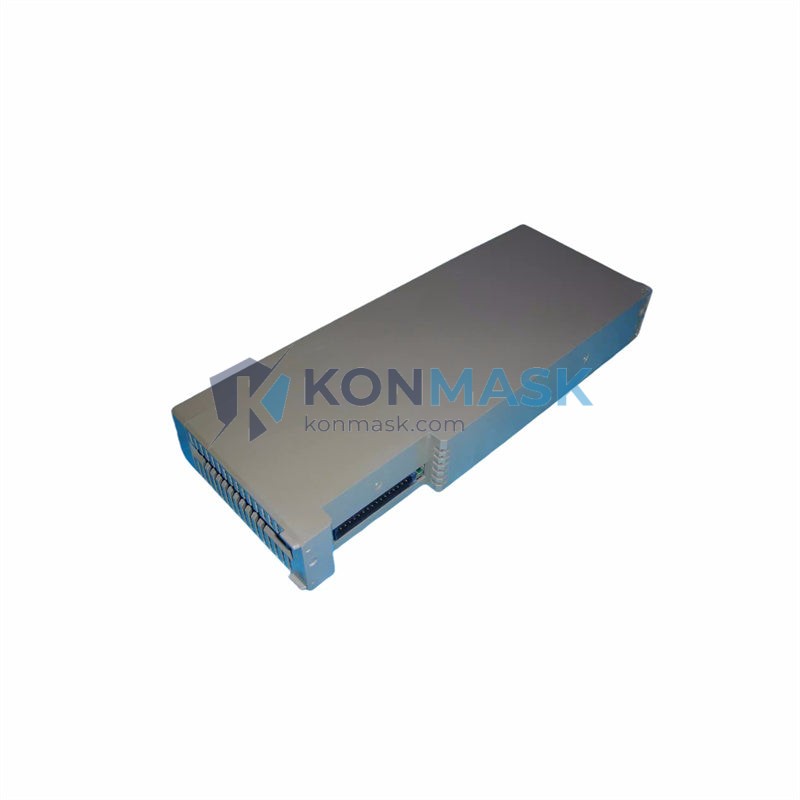

The FUJI FTM100B is a transistor output module designed for use in FUJI MICREX-F series programmable logic controller (PLC) systems. With a unit weight of approximately 4.46 kg, this robust I/O module is engineered for demanding industrial environments where reliable digital output control is critical. Whether you are maintaining an existing FUJI PLC installation or sourcing a replacement for a discontinued unit, this page provides the complete technical reference, compatible alternatives, and selection guidance you need.
As part of FUJI Electric’s MICREX-F PLC platform — one of Japan’s most established industrial automation architectures — the FTM100B occupies a key position in mid-to-large scale control system configurations. Its transistor output design ensures fast switching response and long service life compared to relay-based alternatives, making it a preferred choice for high-cycle applications in manufacturing, process control, and motion coordination.
Technical Specifications
- Manufacturer: FUJI Electric
- Model / SKU: FTM100B
- Series: MICREX-F
- Module Type: Transistor Output Module
- Output Type: Transistor (NPN/PNP — confirm with datasheet)
- Unit Weight: 4,460 g (4.46 kg)
- Mounting: Rack / Backplane mount (MICREX-F chassis)
- Operating Environment: Industrial-grade, suitable for panel installation
- Note: Additional electrical specifications (voltage range, current rating, channel count) should be verified against the official FUJI FTM100B datasheet or nameplate. Konmask does not fabricate parameter values.
Compatible Replacement & Equivalent Models
When the FTM100B is unavailable or discontinued, the following models may serve as functional replacements depending on your system configuration. Always verify electrical and mechanical compatibility before substitution:
- FUJI FTM100A — Earlier revision of the same series; check firmware and backplane compatibility
- FUJI FTM200B — Higher-density output variant; may require configuration changes
- FUJI NP1L-MD16 / NP1L-TD16 — MICREX-SX series equivalents for system migration scenarios
- Third-party compatible modules — Some automation suppliers offer drop-in replacements; confirm I/O mapping and bus protocol before installation
Konmask.com stocks both original FUJI modules and verified compatible alternatives. Contact us for cross-reference assistance.
Why Choose the Original Model
- Guaranteed compatibility: Native backplane communication with MICREX-F CPU modules — no firmware workarounds required
- Proven reliability: FUJI Electric’s industrial-grade components are rated for millions of switching cycles
- Simplified maintenance: Original part numbers ensure seamless spare parts management and documentation alignment
- Warranty & traceability: Genuine modules come with manufacturer traceability, critical for ISO-certified production lines
- Reduced commissioning risk: Eliminates integration testing overhead associated with third-party substitutes
Typical Applications
- Automotive assembly line control and robotic cell coordination
- Food & beverage packaging machinery with high-speed conveyor control
- Textile and printing machine sequencing
- Chemical and pharmaceutical process automation
- HVAC and building management systems using FUJI PLC infrastructure
- Machine tool and CNC auxiliary control circuits
System Compatibility
The FTM100B is designed for integration within the FUJI MICREX-F PLC platform. Confirm compatibility with the following system components before ordering:
- CPU Modules: MICREX-F series CPU units (F70, F80, F120, F140 and variants)
- Base Units / Racks: MICREX-F expansion racks and main base units
- Power Supply Modules: FUJI MICREX-F series PSU (e.g., FPU series)
- Programming Software: FUJI SX-Programmer or equivalent MICREX-F configuration tools
- Field Devices: Compatible with standard 24VDC sensors, solenoid valves, and relay coils (verify load specifications)
Selection Guide
Use the following criteria to confirm the FTM100B is the right module for your application:
- Step 1 — Identify your PLC platform: Confirm your system uses FUJI MICREX-F series hardware
- Step 2 — Verify output type requirement: Transistor output is ideal for high-frequency switching; if relay output is needed, consider the FRM series
- Step 3 — Check channel count: Match the number of output points required by your application to the FTM100B specification
- Step 4 — Confirm load voltage & current: Ensure field device electrical requirements fall within the module’s rated output parameters
- Step 5 — Review slot availability: Verify available I/O slots on your MICREX-F base unit or expansion rack
- Step 6 — Consider lifecycle status: If the FTM100B is end-of-life in your region, discuss migration options with Konmask’s technical team
Quality Assurance & Sourcing
At Konmask.com, every FUJI FTM100B module undergoes a structured quality verification process before dispatch:
- Visual inspection: PCB, connectors, and housing checked for physical damage or counterfeit indicators
- Functional verification: Output channel continuity and basic switching tests where applicable
- Authenticity check: Label, serial number, and date code cross-referenced against known genuine FUJI product characteristics
- Secure packaging: Anti-static packaging with moisture barrier for safe international shipping
- Documentation: Certificate of conformity and inspection report available on request
How to Order
- Confirm your required quantity and any specific revision or date code requirements
- Send your inquiry to support@konmask.com or use the contact form on this page
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 hours
- Upon order confirmation, we arrange secure packaging and international shipping with full tracking
- Post-delivery support available for installation queries and compatibility verification
Replacement & Compatibility FAQ
Q: Is the FUJI FTM100B still in production?
A: FUJI MICREX-F series modules may be at end-of-life or limited availability in some markets. Konmask.com maintains stock of both new and refurbished units. Contact us for current availability.
Q: Can I replace the FTM100B with a module from a different PLC brand?
A: Cross-brand substitution is generally not recommended without a full system migration. The FTM100B uses FUJI’s proprietary backplane bus. Third-party replacements must support the same bus protocol and I/O addressing.
Q: What is the difference between FTM100A and FTM100B?
A: The “B” revision typically indicates a hardware or firmware update from the “A” version. Specific differences should be confirmed via FUJI Electric’s revision history documentation. In many cases they are functionally interchangeable, but verify before substitution.
Q: Do you provide a warranty on the FTM100B?
A: Yes. Konmask.com provides a quality guarantee on all shipped modules. Warranty terms are confirmed at the time of quotation based on module condition (new, refurbished, or tested used).
Q: Can Konmask help with MICREX-F to MICREX-SX migration?
A: Yes. Our technical team can assist with platform migration planning, including I/O module mapping and compatible SX-series equivalents.
