GE Multilin 269PLUS-D/O-216-100P-HI Motor Management Relay | Multilin 269 Plus Series
Engineering Background

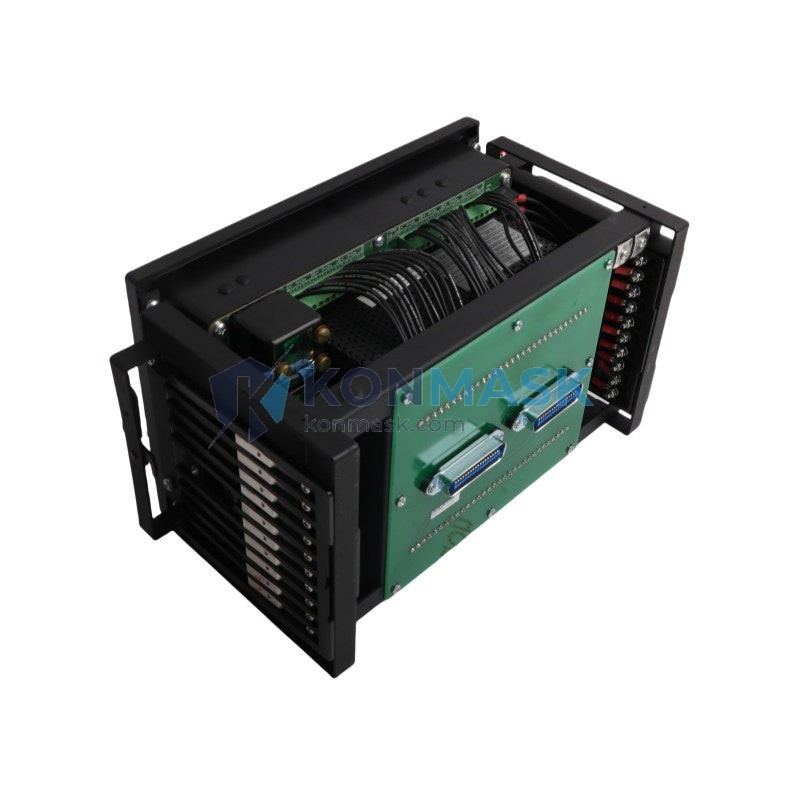

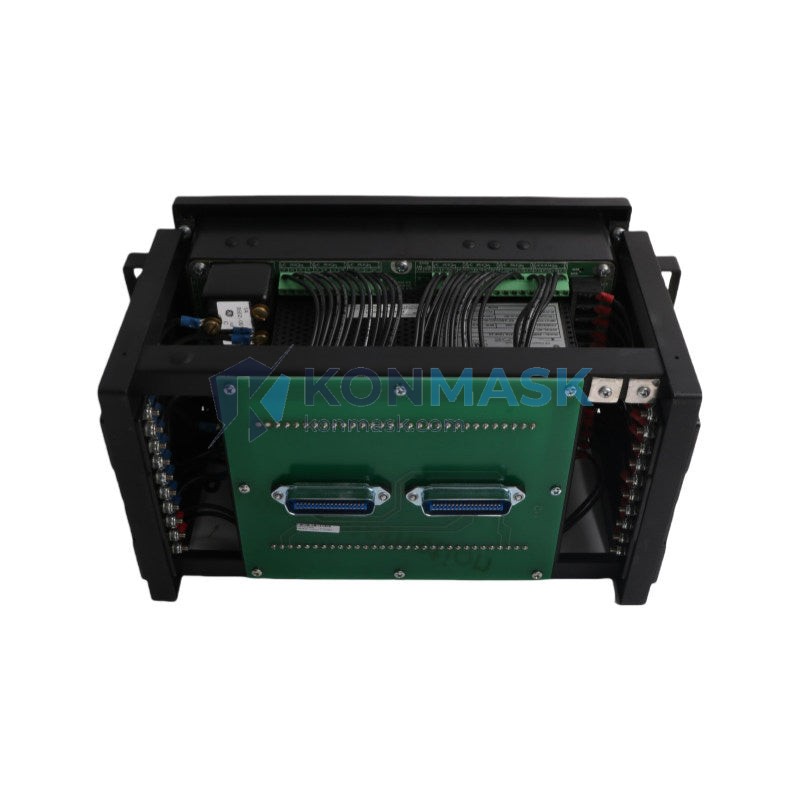

The GE Multilin 269 Plus series represents GE’s flagship digital motor management platform, engineered for demanding industrial environments where motor protection, monitoring, and control must operate with zero-compromise reliability. The 269PLUS-D/O-216-100P-HI variant integrates discrete I/O expansion, a 216 VAC auxiliary power supply, 100:5 A CT ratio compatibility, and high-interrupting-capacity output relays — making it the preferred specification for heavy-duty motor control centers (MCCs), pump stations, compressor drives, and process-critical applications.
Product Positioning
Designed for procurement engineers and plant reliability teams sourcing verified OEM protection relays for AC induction motors from 0.5 HP to multi-megawatt ratings. The 269PLUS-D/O-216-100P-HI is a direct replacement and upgrade path for legacy electromechanical overload relays, offering integrated SCADA connectivity, event logging, and predictive diagnostics in a single 19-inch rack-mount or panel-mount chassis.
Complete Technical Specifications
- Manufacturer: GE Multilin (General Electric Grid Solutions)
- Model / Part Number: 269PLUS-D/O-216-100P-HI
- Series: Multilin 269 Plus
- Device Type: Digital Motor Management Relay
- Auxiliary Supply Voltage: 216 VAC (nominal), 85–265 VAC wide-range input
- CT Ratio: 100:5 A (primary: 100 A, secondary: 5 A)
- I/O Configuration: D/O — Discrete Input / Output expansion module
- Output Relay Rating: HI (High Interrupting Capacity) — rated for high-inrush motor loads
- Protection Functions: Overload (ANSI 49), Phase Unbalance (46), Undercurrent (37), Ground Fault (50G/51G), Thermistor (49T), Jam/Stall (48/51LR), Underpower, Power Factor
- Monitoring: RMS current (3-phase), voltage (optional VT), power, energy, power factor, thermal capacity used (%TCU)
- Communication: RS-485 Modbus RTU (standard); optional DeviceNet / Profibus DP

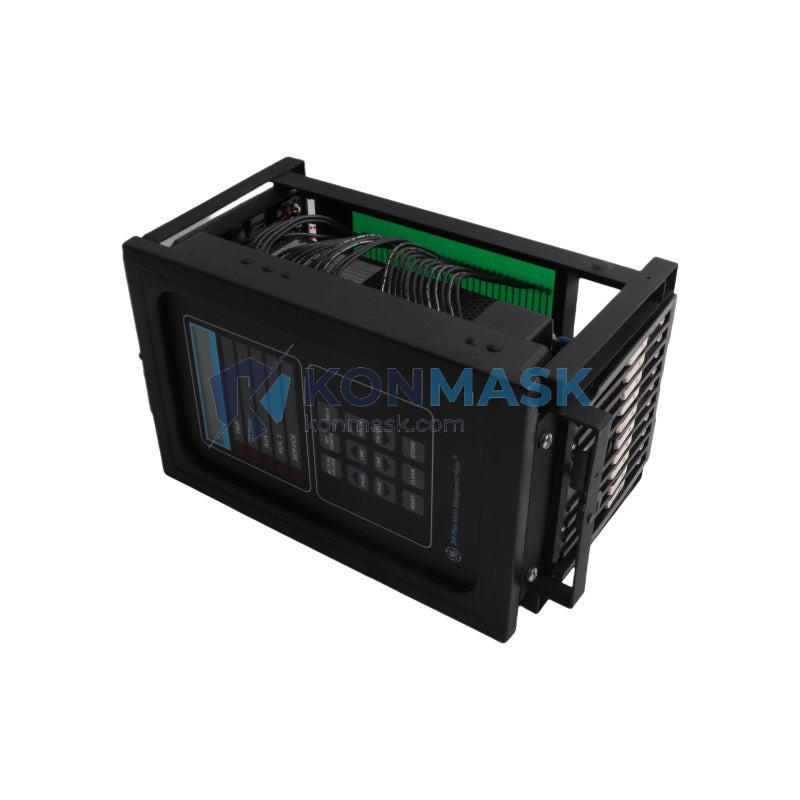

- Display: 2×20 character backlit LCD with 6-button keypad
- Mounting: Panel-mount / 19-inch rack-mount (flush)
- Operating Temperature: −20°C to +60°C
- Storage Temperature: −40°C to +85°C
- Humidity: 5–95% RH, non-condensing
- Enclosure Rating: IP54 (front panel)
- Standards Compliance: IEC 60255, UL 508, CSA C22.2 No. 14, CE
- Weight: Approx. 4.96 kg
- SKU / Catalog Number: 269PLUS-D/O-216-100P-HI
Proven Application Environments
- Oil & Gas: Pump motor protection in upstream/midstream facilities; compressor drive management
- Water & Wastewater: Submersible pump stations, lift stations, WWTP blower motors
- Mining & Minerals: Conveyor drives, crusher motors, ventilation fan control
- Pulp & Paper / Chemical: Process pump and agitator motor protection with SCADA integration
- Power Generation: Auxiliary motor protection in thermal and hydro plants
- Marine & Offshore: Deck machinery and HVAC motor management (with appropriate enclosure)
Engineering Advantages
- True RMS Measurement: Accurate protection even with VFD-driven motors and non-sinusoidal current waveforms
- Thermal Model Memory: Retains thermal state through power cycles — prevents nuisance trips and protects motor insulation
- Integrated Event Log: 64-event FIFO with time-stamp — eliminates need for external fault recorder
- Wide Auxiliary Supply Range: 85–265 VAC accepts both 120 V and 240 V control power without rewiring
- HI Output Relays: Rated for direct switching of high-inrush contactors — no interposing relay required
- Modbus RTU Native: Direct integration with DCS, SCADA, and PLC systems without protocol converters
- Plug-in Terminal Blocks: Reduces commissioning time and simplifies relay replacement in live panels
System Architecture & Signal Flow
The 269PLUS-D/O-216-100P-HI operates as a standalone intelligent electronic device (IED) within the motor control circuit. Three-phase current signals are acquired via 100:5 A CTs on the motor feeder cables. The relay’s DSP core computes true RMS values, thermal capacity used, and protection element states on a continuous 4 ms scan cycle. Trip and alarm outputs are routed through the HI-rated output relays to the motor contactor coil and annunciator circuits. RS-485 Modbus RTU port connects to the plant DCS or SCADA host for real-time data acquisition and remote setpoint management. Discrete inputs accept status signals from motor starter auxiliary contacts, thermistor probes, and external interlock circuits.
Sourcing & Quality Verification
- Origin: Genuine GE Multilin OEM hardware — not aftermarket or remanufactured
- Traceability: Each unit ships with original GE factory documentation and serial number traceability
- Inspection: Pre-shipment functional test performed by Konmask technical team; test report available on request
- Warranty: 12-month Konmask operational warranty; GE factory warranty terms honored where applicable
- Counterfeit Prevention: All units verified against GE Multilin authorized distributor records prior to listing
Procurement Process
- Step 1 — Inquiry: Submit your PO number, required quantity, and delivery timeline via the contact form or email below
- Step 2 — Quotation: Konmask issues a formal quotation within 1 business day including lead time, freight options, and payment terms
- Step 3 — Order Confirmation: Confirm PO; Konmask reserves stock and initiates pre-shipment inspection
- Step 4 — Shipment: Units dispatched via DHL / FedEx / sea freight with full tracking; export documentation (commercial invoice, packing list, COO) provided
- Step 5 — After-Sales: Technical support available post-delivery for commissioning assistance and parameter configuration
Technical FAQ
Q: What does the “D/O” suffix indicate?
A: D/O denotes the Discrete Input/Output expansion option, adding additional digital I/O points beyond the base relay for interlock and status monitoring applications.
Q: Is the 269PLUS-D/O-216-100P-HI compatible with 50 Hz and 60 Hz systems?
A: Yes. The relay auto-detects system frequency and adjusts protection algorithms accordingly. It is fully rated for both 50 Hz and 60 Hz motor applications.
Q: Can this relay protect motors driven by variable frequency drives (VFDs)?
A: Yes. True RMS current measurement ensures accurate thermal modeling even with the harmonic-rich output of VFDs. Consult GE Multilin application note AG-2006 for VFD-specific settings.
Q: What CT ratio is required?
A: This model is factory-configured for 100:5 A CTs (100 A primary, 5 A secondary). For different motor FLA ratings, select the appropriate 269 Plus variant with matching CT ratio.
Q: Is Modbus TCP/IP available?
A: The base unit supports Modbus RTU over RS-485. Modbus TCP/IP requires an optional Ethernet gateway module or the 269 Plus Ethernet variant.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing is available for orders of 3 units or more — contact Konmask for a tiered quotation.
