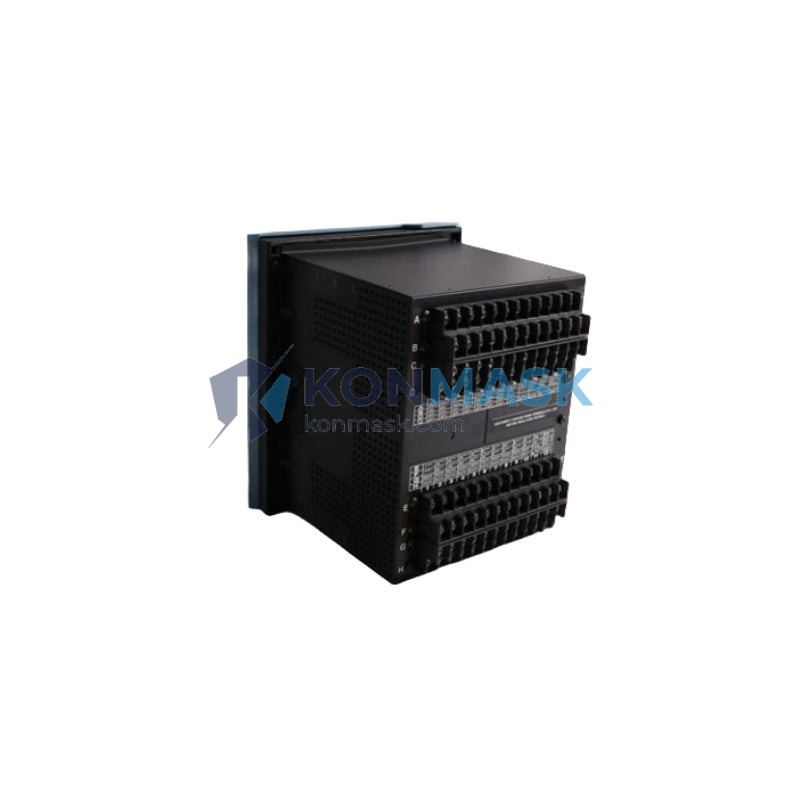

GE 745-W3-P511-G51-HI-R-E-H Thermocouple Input Module | GE 745 Transformer Protection Relay Platform
Engineering Background: The GE 745 Transformer Management Relay is a comprehensive protection and monitoring system engineered for power transformers in utility and industrial applications. The 745-W3-P511-G51-HI-R-E-H is a fully configured variant of the GE 745 platform, integrating thermocouple input capability for real-time thermal monitoring of transformer windings and oil temperatures — a critical parameter for predictive maintenance and protection coordination.
Product Positioning: Designed for procurement engineers and system integrators sourcing OEM-grade replacement or expansion modules for existing GE 745 protection relay installations. This module is suitable for new panel builds, relay upgrades, and spare-parts inventory in substations, industrial power distribution, and renewable energy facilities.
Complete Technical Specifications
- Part Number / SKU: 745-W3-P511-G51-HI-R-E-H
- Manufacturer: GE Grid Solutions (General Electric)
- Product Series: GE 745 Transformer Management Relay
- Module Function: Thermocouple Input Module
- Input Type: Thermocouple (TC) — compatible with standard J, K, T, E, R, S, B type thermocouples (per GE 745 platform specification)
- Protection Functions: Thermal overload protection, winding temperature monitoring, hot-spot temperature calculation
- Communication: Integrated per 745 platform (RS-485 Modbus, DNP3, IEC 60870-5-103 options per order code)
- Power Supply: Per 745 platform standard (24–250 VDC / 120–240 VAC universal input)
- Operating Temperature: –40°C to +60°C
- Humidity: 5–95% RH, non-condensing
- Mounting: 19-inch rack / panel mount per GE 745 chassis standard
- Approvals / Standards: IEC 60255, IEEE C37.90, UL, CE
- Country of Origin: Canada / USA (GE Grid Solutions manufacturing)
- Weight: Approx. 7.54 kg (complete relay unit with module)
Proven Application Environments
- Utility substation transformer protection panels (115 kV – 500 kV class)
- Industrial power distribution centers (petrochemical, mining, steel)
- Renewable energy step-up transformer protection (wind farm, solar PV)
- Data center and critical facility UPS transformer monitoring
- Railway traction transformer protection systems
- OEM panel builders integrating GE 745 relay platforms
Engineering Advantages
- Thermal Precision: Direct thermocouple input eliminates RTD conversion errors, providing accurate winding hot-spot data for IEC 60076-7 thermal modeling.
- Platform Compatibility: Drop-in compatible with existing GE 745 relay chassis — no firmware changes required for standard thermocouple input expansion.
- Redundancy Ready: Supports dual-redundant thermocouple input configurations for critical transformer assets.
- Wide TC Type Support: Accepts multiple thermocouple types, enabling standardization across mixed-sensor installations.
- Integrated Alarming: Configurable high/high-high temperature alarm and trip thresholds via GE EnerVista 745 PC software.
System Architecture & Signal Flow
The 745-W3-P511-G51-HI-R-E-H integrates within the GE 745 relay backplane. Thermocouple signals are routed to the dedicated TC input terminals, processed by the onboard analog-to-digital converter, and fed into the 745’s thermal model engine. Temperature values are available via front-panel display, SCADA communications (Modbus/DNP3), and local relay output contacts for alarm and trip functions. The order code suffix HI-R-E-H denotes: High-speed I/O option (HI), Redundant power supply (R), Ethernet communications (E), and Hot-standby configuration (H) — confirm exact option mapping against your GE 745 order guide revision.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with full traceability documentation.
- Pre-shipment inspection includes visual check, label verification, and functional power-on test where applicable.
- Original OEM packaging preserved; serial numbers recorded for warranty and authenticity verification.
- Certificate of conformance (CoC) available upon request for regulated procurement processes.
- Lead time: In-stock units ship within 2–5 business days; ex-stock lead time quoted on inquiry.
Procurement Process
- Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with your required quantity and delivery timeline.
- Receive a formal quotation with unit price, lead time, and shipping options within 24 hours.
- Confirm purchase order — we accept T/T bank transfer, PayPal, and major credit cards.
- Shipment dispatched with tracking number, commercial invoice, and packing list.
- Post-delivery technical support available for installation and commissioning queries.
Technical FAQ
Q: Is this module compatible with GE 745 firmware versions prior to 7.x?
A: The 745 platform maintains backward compatibility across major firmware revisions. Confirm your relay firmware version with GE EnerVista software before installation; contact us for compatibility guidance.
Q: Can this unit replace a failed thermocouple input card in an existing 745 installation?
A: Yes, provided the order code suffix matches your existing configuration. We recommend cross-referencing the full order code from your relay nameplate before ordering.
Q: Do you provide a warranty?
A: All units carry a 12-month warranty against manufacturing defects. Warranty claims are processed via our technical support team.
Q: What documentation is available?
A: GE 745 Instruction Manual (GEK-106310), wiring diagrams, and application notes are available upon request. We can also assist with EnerVista 745 software configuration guidance.
