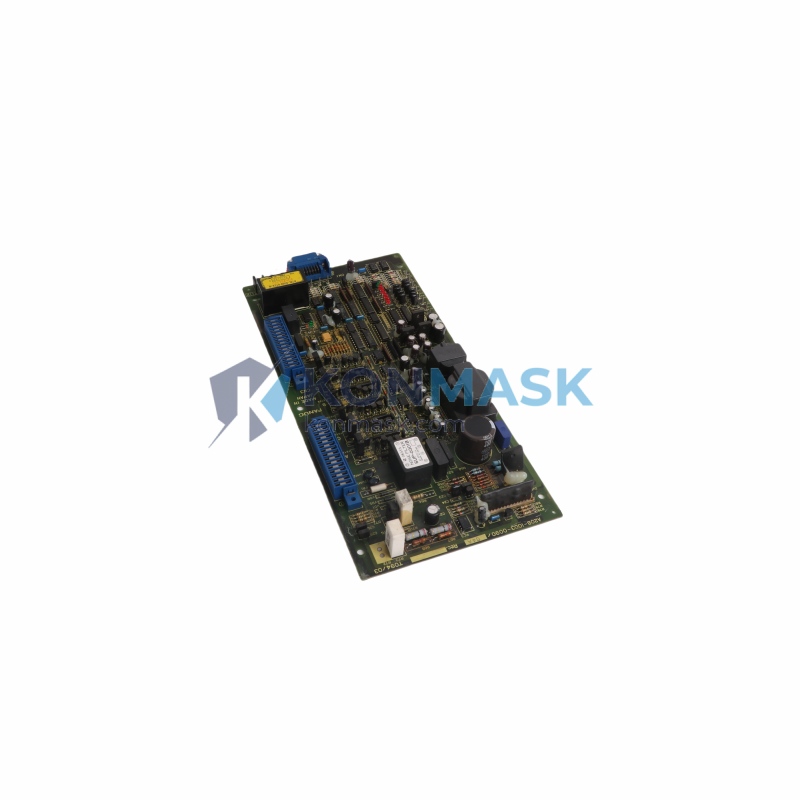

GE Fanuc A20B-1003-0090/05A Servo Drive Board | CNC Servo Control Module | Series 0 / 15 / 16 Platform
Engineering Background
The A20B-1003-0090/05A is a servo drive control board manufactured under the GE Fanuc joint venture, designed for integration into FANUC CNC systems operating on the Series 0, Series 15, and Series 16 platforms. This board governs closed-loop servo axis control, interfacing directly with the servo amplifier and feedback encoder to deliver precise motion commands in demanding industrial environments.
Product Positioning
Targeted at procurement engineers and MRO specialists managing CNC machine tool fleets, this board serves as a direct OEM-equivalent replacement for failed or degraded servo control circuits. Konmask.com supplies this unit from verified industrial surplus and refurbished channels, with full functional testing prior to dispatch.
Complete Technical Specifications
- Part Number: A20B-1003-0090/05A
- Manufacturer: GE Fanuc (GE Fanuc Automation)
- Function: Servo Drive Control Board
- Compatible Platforms: FANUC Series 0, Series 15, Series 16 CNC
- Board Type: PCB Servo Axis Control Module
- Revision: /05A
- Mounting: Rack / Backplane integrated
- Operating Voltage: Per host CNC cabinet specification (typically 24 VDC logic)
- Weight: 540 g (approx.)
- Condition: Refurbished / Tested Surplus
- Warranty: 90-day functional warranty (Konmask standard)
Proven Application Environments
- CNC machining centers (vertical and horizontal)
- CNC turning centers and lathes
- Multi-axis milling machines with FANUC Series 0/15/16 controllers
- Injection molding machines with FANUC CNC integration
- Robotic welding cells using GE Fanuc motion control
- Aerospace and automotive precision machining lines
Engineering Advantages
- Direct OEM Replacement: Exact part number match eliminates compatibility risk and re-parameterization overhead
- Tested Before Dispatch: Each board undergoes power-on and functional verification prior to shipment
- Reduced Downtime: Ready-to-install unit minimizes machine downtime versus waiting for OEM lead times
- Cost Efficiency: Refurbished surplus pricing delivers significant savings vs. new OEM procurement
- Traceability: Full inspection record and revision documentation provided on request
System Architecture & Signal Flow
The A20B-1003-0090/05A resides within the CNC control cabinet, receiving axis motion commands from the CNC CPU board via the backplane bus. It translates these commands into analog or digital velocity/torque references for the servo amplifier (e.g., FANUC α-series or β-series amplifiers). Encoder feedback from the servo motor is routed back through this board to close the position loop, enabling sub-micron positioning accuracy characteristic of FANUC servo systems.
Signal path: CNC CPU → Backplane Bus → A20B-1003-0090/05A → Servo Amplifier → Servo Motor → Encoder Feedback → A20B-1003-0090/05A (closed loop)
Sourcing & Quality Verification
- Sourced from decommissioned industrial equipment and certified surplus dealers
- Visual inspection: PCB traces, capacitors, connectors, and solder joints
- Power-on test: logic voltage rails verified within OEM tolerance
- Functional test: servo command/feedback signal integrity confirmed
- Anti-static packaging with humidity indicator card
- Revision label and serial number photographed and archived
Procurement Process
- Confirm part number A20B-1003-0090/05A matches your CNC cabinet label or FANUC BOM
- Submit inquiry via Konmask.com or email support@konmask.com with machine model and controller series
- Receive quotation with stock confirmation and lead time (typically 1–3 business days)
- Place order — secure checkout with DHL / FedEx international shipping available
- Receive shipment with test report and installation reference
Technical FAQ
Q: Is A20B-1003-0090/05A compatible with FANUC Series 16i?
A: The /05A revision is designed for Series 0/15/16. Compatibility with 16i variants depends on the specific machine configuration — contact us with your controller model for confirmation.
Q: Can this board be repaired if it fails again?
A: Yes. Konmask.com offers board-level repair services. Contact support for evaluation.
Q: What is the lead time?
A: In-stock units ship within 1–2 business days. International delivery via DHL Express typically 3–7 business days.
Q: Do you provide a test report?
A: Yes. A functional test summary is included with every shipment on request.
