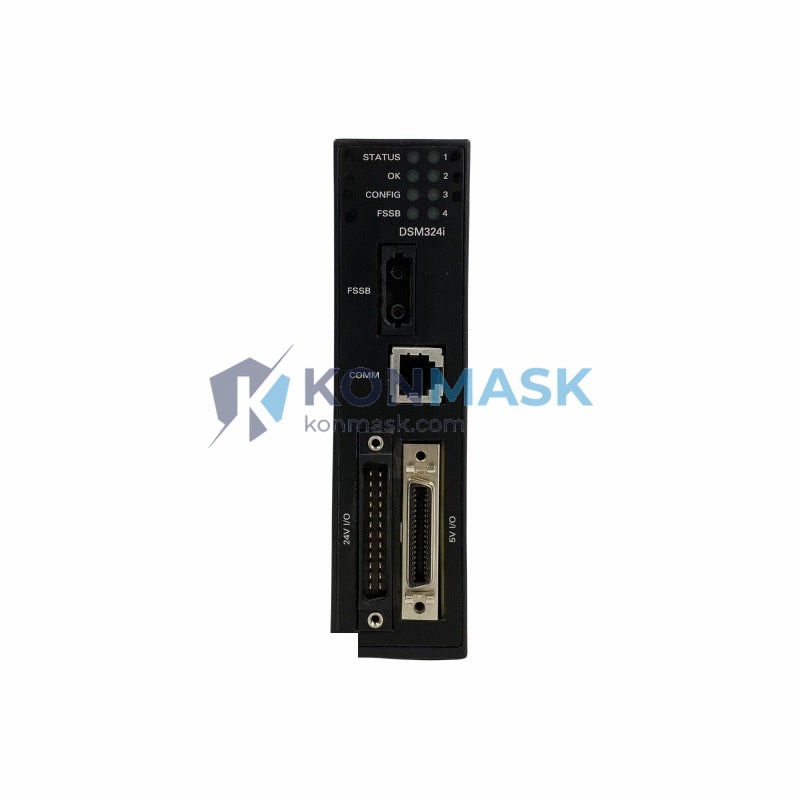

GE Fanuc IC693DSM324-BE – High-Speed Motion Controller Module | Series 90-30 Platform
Engineering Background
The IC693DSM324-BE is a dedicated motion controller module engineered for GE Fanuc’s Series 90-30 programmable logic controller platform. Designed to meet the demanding requirements of industrial motion control, this module delivers deterministic multi-axis coordination within the Series 90-30 backplane architecture — eliminating the need for a standalone motion controller and reducing system footprint in space-constrained control panels.
Product Positioning
Targeted at OEM machine builders, system integrators, and MRO procurement teams, the IC693DSM324-BE provides a cost-effective path to precise servo and stepper axis management without migrating to a newer PLC platform. Its native integration with the IC693 CPU family makes it the preferred choice for retrofit, expansion, and spare-parts sourcing projects across discrete manufacturing, packaging, and material handling sectors.
Complete Technical Specifications
- Part Number: IC693DSM324-BE
- Manufacturer: GE Fanuc Automation (now GE Vernova / Emerson)
- Platform: Series 90-30 (IC693 family)
- Module Type: DSM324 Motion Controller – Special Function Module
- Axes Supported: Up to 4 axes of coordinated motion
- Encoder Interface: Quadrature incremental encoder inputs
- Output Type: Analog ±10 VDC velocity/torque command output
- Backplane Interface: Series 90-30 standard I/O bus
- Power Consumption: Supplied via Series 90-30 backplane (5 VDC bus)
- Operating Temperature: 0 °C to 60 °C
- Storage Temperature: –40 °C to 85 °C
- Humidity: 5% to 95% non-condensing
- Weight: Approx. 160 g
- Firmware Suffix: -BE (specific firmware/hardware revision)
- Certifications: UL Listed, CE Marked
- Country of Origin: United States
Proven Application Environments
- Packaging machinery: multi-axis pick-and-place and form-fill-seal lines
- Material handling: conveyor indexing, palletizing, and gantry systems
- Discrete manufacturing: CNC-adjacent servo positioning on assembly lines
- Printing and converting: web tension control and register correction
- Retrofit projects: upgrading legacy Series 90-30 systems without CPU replacement
- MRO / spare-parts inventory: direct drop-in replacement for failed DSM324 modules
Engineering Advantages
- Native backplane integration: Communicates directly over the Series 90-30 I/O bus — no gateway or external communication card required.
- Deterministic scan-cycle coordination: Motion commands are synchronized with the PLC scan cycle, ensuring repeatable positioning accuracy.
- Multi-axis coordination: Supports electronic gearing and cam profiling across up to 4 axes from a single module slot.
- Analog command output: ±10 VDC interface is compatible with virtually all industrial servo drives (Fanuc, Yaskawa, Siemens, Allen-Bradley, etc.).
- Compact form factor: Single-slot Series 90-30 module — preserves rack space for I/O expansion.
- Proven field reliability: Thousands of units deployed globally across 20+ years of industrial service.
System Architecture & Signal Flow
The IC693DSM324-BE occupies one slot in any Series 90-30 base (IC693CHS391, IC693CHS392, IC693CHS393, etc.). The host CPU (e.g., IC693CPU374, IC693CPU375) exchanges motion command blocks and status data with the DSM324 over the backplane bus each scan cycle. The module reads quadrature encoder feedback from each axis, computes position error, and outputs an analog velocity/torque command to the connected servo amplifier. Limit switch and home sensor inputs are wired directly to the module’s field connector, keeping motion-critical I/O latency independent of the main I/O scan.
Sourcing & Quality Verification
- All units sourced from authorized distributors, OEM decommissions, or certified MRO channels.
- Each module undergoes visual inspection, firmware revision verification, and functional bench testing prior to shipment.
- Original GE Fanuc labels, revision markings, and date codes are preserved and documented.
- Anti-static packaging with humidity indicator card included on every shipment.
- Certificate of conformance available upon request for regulated industries.
Procurement Process
- Confirm part number and revision: Verify IC693DSM324-BE matches your existing system’s firmware requirements.
- Request a quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing and lead time.
- Place order: Purchase directly via this listing or via B2B invoice — wire transfer, PayPal, and major credit cards accepted.
- Shipping: DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF available for bulk orders.
- After-sales support: 30-day return window; technical support available for integration questions.
Technical FAQ
- Q: Is the IC693DSM324-BE compatible with all Series 90-30 CPUs?
- A: It is compatible with all IC693-series CPUs that support special function modules (IC693CPU331 and above). Verify your CPU firmware version supports DSM324 configuration blocks in Proficy Machine Edition.
- Q: What programming software is required?
- A: GE Fanuc Proficy Machine Edition (formerly Logicmaster 90) with the Motion Developer toolkit. Legacy Logicmaster 90-30 software also supports basic DSM324 configuration.
- Q: Can this module control stepper motors?
- A: Yes, via a step/direction interface adapter connected to the analog output — or directly if your stepper drive accepts ±10 VDC analog velocity commands.
- Q: What is the difference between IC693DSM324 and IC693DSM324-BE?
- A: The -BE suffix denotes a specific hardware/firmware revision. Always match the suffix to your existing system configuration to ensure compatibility and avoid re-commissioning.
- Q: Do you provide a warranty?
- A: Yes — 90-day functional warranty on all tested units. Extended warranty options available for volume orders.
