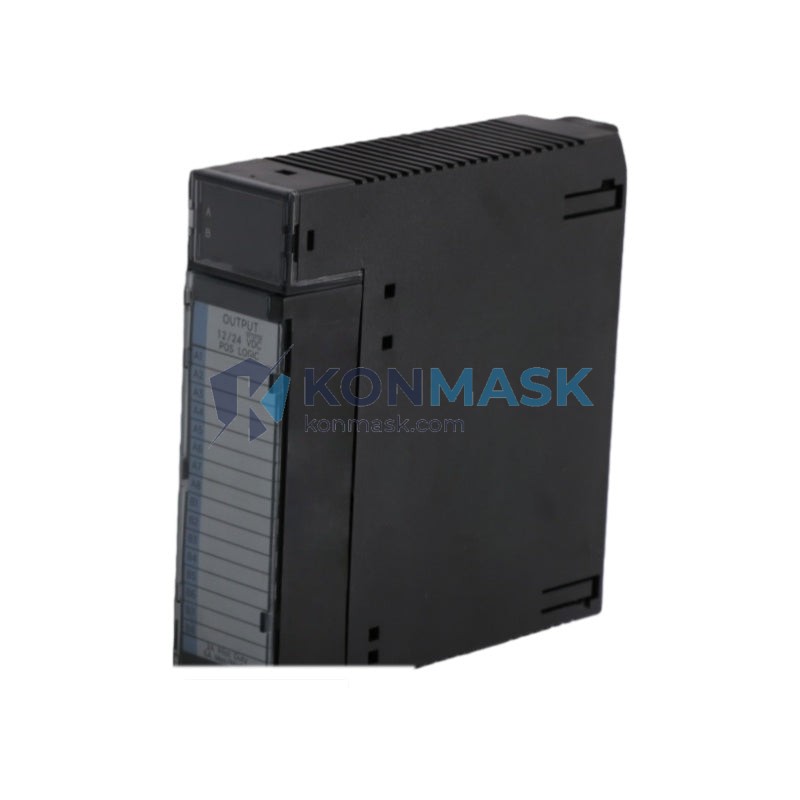

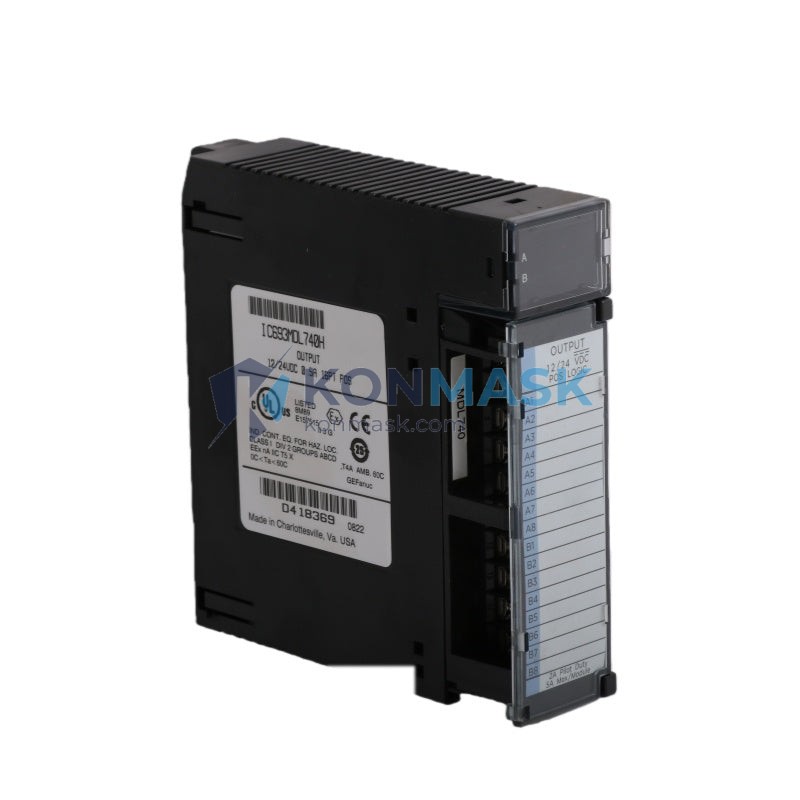

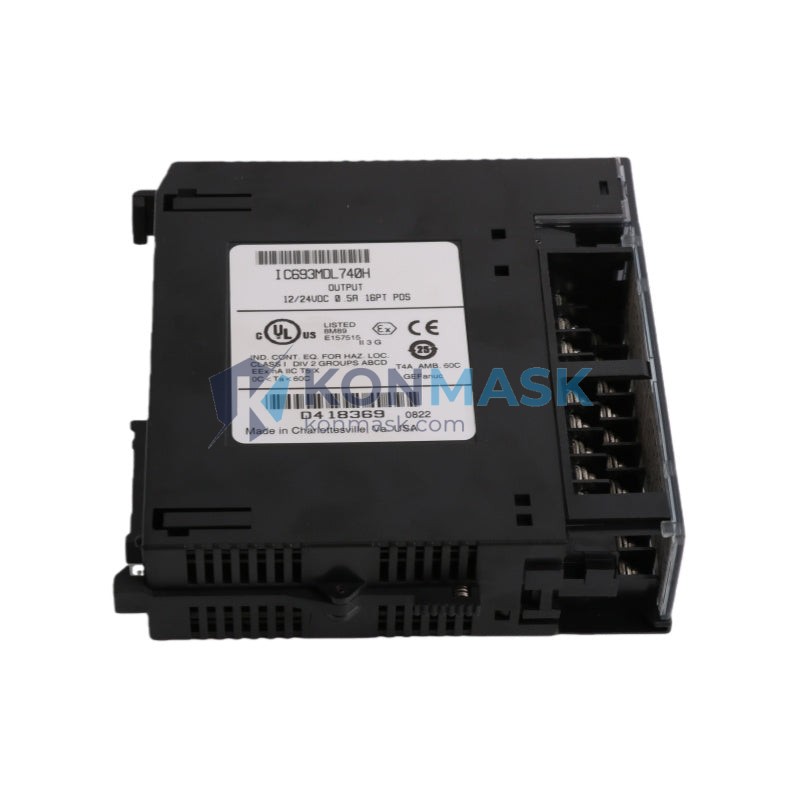

GE Fanuc IC693MDL740 – 16-Point DC Positive Logic Output Module | Series 90-30 PLC Platform
Engineering Background
The IC693MDL740 is a factory-hardened discrete output module engineered for GE Fanuc’s Series 90-30 programmable logic controller platform — one of the most widely deployed mid-range PLC families in North American and global industrial automation. Designed to interface directly with 12/24 VDC positive-logic field devices, this module delivers deterministic, high-reliability switching for demanding process and machine control environments.
Product Positioning
Targeted at OEM machine builders, system integrators, and MRO procurement teams, the IC693MDL740 serves as the standard discrete output workhorse in Series 90-30 racks. Its 16-point density, positive-logic architecture, and robust field wiring design make it the preferred choice for conveyor control, packaging machinery, motor starter interfaces, and valve actuation across automotive, food & beverage, and discrete manufacturing sectors.
Complete Technical Specifications
- Part Number / SKU: IC693MDL740
- Manufacturer: GE Fanuc (General Electric Fanuc Automation)
- Series / Platform: Series 90-30 (90-30 PLC)
- Module Type: Discrete DC Output – Positive Logic
- Number of Output Points: 16 points
- Output Voltage Range: 12 VDC / 24 VDC
- Logic Type: Positive (sourcing) logic
- Output Current per Point: 0.5 A (typical)
- Total Module Current: Refer to GE Fanuc IC693MDL740 datasheet for derating curves
- Isolation: Optical isolation between field and backplane
- Backplane Interface: Series 90-30 5-slot / 10-slot rack compatible
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions (H × W × D): Standard Series 90-30 single-slot form factor
- Weight: Approx. 280 g
- Certifications: UL Listed, CE Marked
- Country of Origin: United States
Proven Application Environments
- Conveyor and material handling systems requiring high-cycle discrete switching
- Packaging and labeling machinery with multi-axis solenoid valve control
- Automotive assembly line motor starter and contactor interfaces
- Food & beverage processing with washdown-adjacent panel installations
- Water/wastewater pump station control panels
- HVAC and building automation retrofit projects on existing 90-30 infrastructure
- Oil & gas wellhead and pipeline valve actuation systems
Engineering Advantages
- Positive-Logic (Sourcing) Architecture: Simplifies wiring to NPN-type field devices and reduces common-mode noise susceptibility in industrial environments.
- 16-Point Density: Maximizes rack slot utilization, reducing total hardware cost per I/O point versus lower-density alternatives.
- Optical Isolation: Protects the CPU backplane from field-side voltage transients, ground loops, and inductive kickback from solenoids and relays.
- Hot-Swap Compatible: Supports module replacement under power in Series 90-30 racks with appropriate rack configuration, minimizing planned downtime.
- Proven Field Longevity: Manufactured to GE Fanuc’s industrial-grade component selection standards with MTBF ratings suitable for 24/7 continuous operation.
- Direct Replacement Availability: Drop-in compatible with existing IC693MDL740 installations — no firmware or configuration changes required.
System Architecture & Signal Flow
The IC693MDL740 occupies a single slot in any Series 90-30 5-slot (IC693CHS391) or 10-slot (IC693CHS392/397) rack. The CPU (e.g., IC693CPU374, IC693CPU364) writes output data to the module via the Series 90-30 backplane bus. Each of the 16 output channels drives a dedicated optocoupler stage, which in turn controls a solid-state output transistor. Field-side power (12/24 VDC) is supplied externally through the module’s field wiring connector. Output status LEDs on the module faceplate provide real-time per-point diagnostics without requiring a programmer connection.
Signal path: CPU Output Image Table → Backplane Bus → IC693MDL740 Logic Circuit → Optocoupler → Output Transistor → Field Device (solenoid / relay coil / indicator)
Sourcing & Quality Verification
- Inventory Status: In-stock, available for immediate shipment
- Condition: New surplus / tested refurbished (clearly stated per order confirmation)
- Inspection Protocol: Each unit undergoes visual inspection, label verification, and functional power-on test prior to shipment
- Packaging: Anti-static bag + foam-lined carton; original GE Fanuc packaging where available
- Traceability: Lot and date code documentation available upon request for critical applications
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and functional failure
Procurement Process
- Confirm Part Number: Verify IC693MDL740 against your BOM or existing rack configuration.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation (if applicable).
- Place Order: Add to cart and complete checkout, or submit a purchase order via email for NET terms.
- Receive & Inspect: All shipments include packing list and test report. Inspect upon receipt and report discrepancies within 5 business days.
- Technical Support: Post-installation commissioning support available via email or WhatsApp at +0086 19859288691.
Technical FAQ
Q: Is the IC693MDL740 compatible with all Series 90-30 CPUs?
A: Yes. The IC693MDL740 is compatible with all Series 90-30 CPU modules and rack configurations. No special firmware version is required.
Q: What is the difference between IC693MDL740 and IC693MDL741?
A: The IC693MDL740 uses positive (sourcing) logic, while the IC693MDL741 uses negative (sinking) logic. Selection depends on your field device wiring convention.
Q: Can this module replace a failed IC693MDL740 without reprogramming?
A: Yes. It is a direct drop-in replacement. The CPU automatically recognizes the module upon rack power-up; no configuration download is required if the rack configuration is already stored in the CPU.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoice, packing list, and ECCN/HTS classification documentation. Contact us for specific country requirements.
Q: What is the lead time for bulk orders (>10 units)?
A: Typically 3–7 business days for stock quantities. Contact us for confirmed availability on larger volumes.
