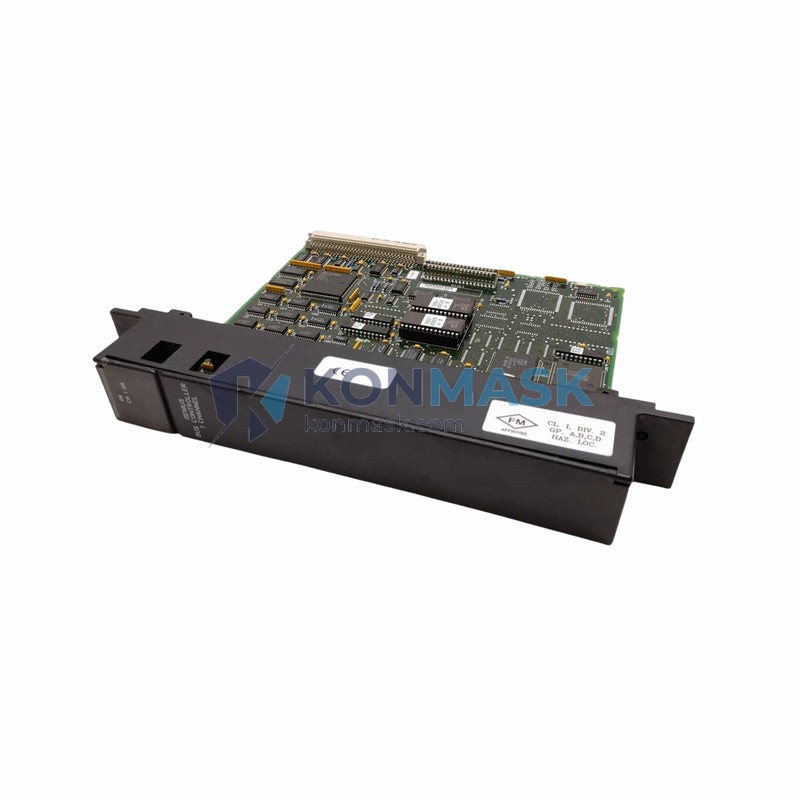

GE Fanuc IC697BEM733 Bus Expansion Module | Series 90-70 PLC Platform
Engineering Background
The GE Fanuc Series 90-70 remains one of the most widely deployed rack-based PLC platforms in heavy industrial environments worldwide. Designed for high-density I/O expansion and distributed control architectures, the Series 90-70 system relies on a robust backplane bus to maintain deterministic communication between CPU racks and remote I/O racks. The IC697BEM733 Bus Expansion Module is the critical hardware interface that enables this multi-rack topology, allowing engineers to extend system capacity without replacing the core CPU infrastructure.
Product Positioning
The IC697BEM733 is a bus expansion transmitter/receiver module engineered for procurement engineers and system integrators who require a verified, drop-in replacement or spare for existing Series 90-70 installations. Konmask.com supplies this module with full traceability, functional testing documentation, and rapid global dispatch — minimizing unplanned downtime in critical production environments.
Complete Technical Specifications
- Part Number: IC697BEM733
- Manufacturer: GE Fanuc Automation (GE Intelligent Platforms)
- Series / Platform: Series 90-70 PLC
- Module Function: Bus Expansion Module (Transmitter/Receiver)
- Rack Compatibility: IC697CHS750, IC697CHS782, IC697CHS790 (Series 90-70 racks)
- Bus Type: VMEbus-based Series 90-70 backplane
- Slot Requirement: 1 slot (standard Series 90-70 rack slot)
- Power Consumption: Supplied via rack backplane
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Weight: Approx. 400 g
- Certifications: UL Listed, CE Marked
- Country of Origin: USA (OEM)
- Firmware: Factory-configured; no field firmware update required
Proven Application Environments
- Automotive assembly lines requiring multi-rack Series 90-70 PLC expansion
- Oil & gas processing facilities with distributed I/O architectures
- Power generation and utilities using legacy GE Fanuc control systems
- Pulp, paper, and chemical plants with high-channel-count I/O requirements
- Water treatment and municipal infrastructure automation
- Aerospace and defense manufacturing with long-lifecycle PLC platforms
Engineering Advantages
- Seamless Rack Expansion: Extends Series 90-70 system from a single CPU rack to multiple remote I/O racks without CPU replacement
- Deterministic Bus Communication: Maintains real-time I/O scan integrity across expanded rack configurations
- Hot-Standby Compatible: Supports redundant CPU configurations when paired with appropriate redundancy modules
- Plug-and-Play Installation: No additional configuration software required for standard expansion topologies
- Long Service Life: Ruggedized PCB design rated for industrial EMI/RFI environments
System Architecture & Signal Flow
In a Series 90-70 multi-rack system, the IC697BEM733 is installed in both the CPU rack (as a bus transmitter) and each remote I/O rack (as a bus receiver). The module bridges the VMEbus backplane signals across the inter-rack cable (IC697CBL500 or equivalent), maintaining synchronous I/O data exchange between the CPU and all remote modules. Signal integrity is preserved over distances up to the rated cable specification, enabling flexible physical plant layouts.
Typical topology: CPU Rack [IC697BEM733 TX] → Expansion Cable → Remote Rack [IC697BEM733 RX] → I/O Modules
Sourcing & Quality Verification
- Inventory Status: In-stock; ships within 1–3 business days
- Condition: New surplus / Refurbished (tested to OEM specification)
- Testing Protocol: Each unit undergoes power-on functional verification and backplane communication test prior to dispatch
- Packaging: Anti-static ESD bag + foam-lined carton; compliant with IPC/JEDEC J-STD-033
- Warranty: 12-month Konmask warranty covering functional defects
- Traceability: Serial number and test record provided with each shipment
Procurement Process
- Submit your RFQ via support@konmask.com or the on-page inquiry form
- Receive a formal quotation with lead time and shipping options within 24 hours
- Confirm purchase order; payment via T/T, PayPal, or credit card accepted
- Module dispatched with tracking number and test documentation
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is the IC697BEM733 compatible with all Series 90-70 CPU models?
A: Yes. It is compatible with all standard Series 90-70 CPUs including IC697CPU731, IC697CPU771, IC697CPU781, and IC697CPU782 when used with supported rack configurations.
Q: Can I use IC697BEM733 to connect more than two racks?
A: Yes. Multiple remote racks can be daisy-chained using additional BEM733 pairs, subject to the maximum expansion distance and rack count defined in GE Fanuc Series 90-70 Hardware Reference Manual (GFK-0262).
Q: What cable is required between racks?
A: GE Fanuc IC697CBL500 (or equivalent shielded expansion cable). Cable length must comply with the system’s rated maximum inter-rack distance.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC and functional test report are available upon request at no additional charge.
Q: What is the lead time for bulk orders?
A: Standard orders (1–5 units) ship within 1–3 business days. Bulk orders (6+ units) are subject to availability; contact us for a dedicated lead time assessment.
