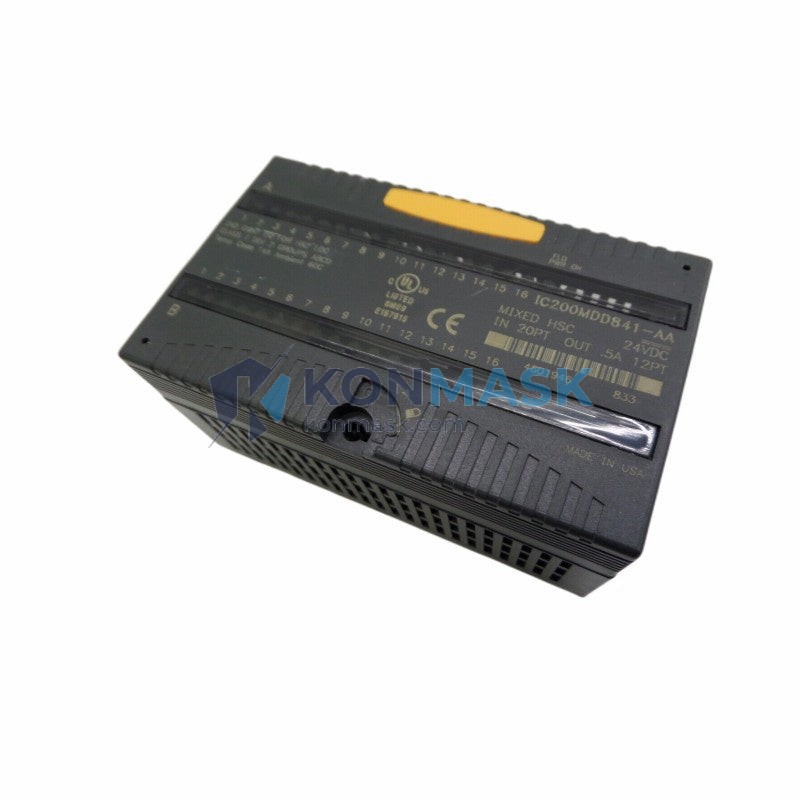

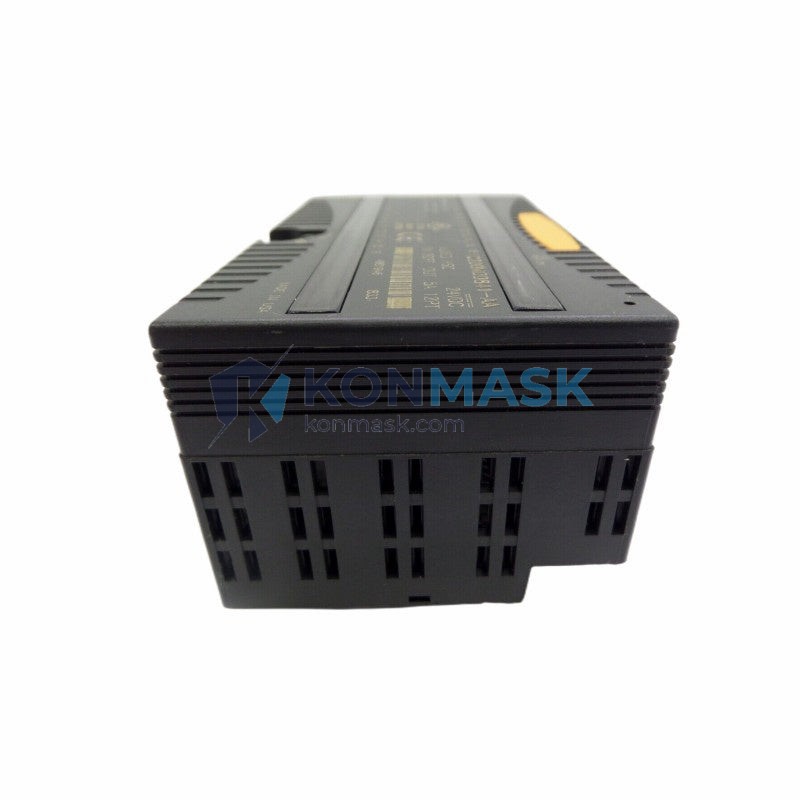

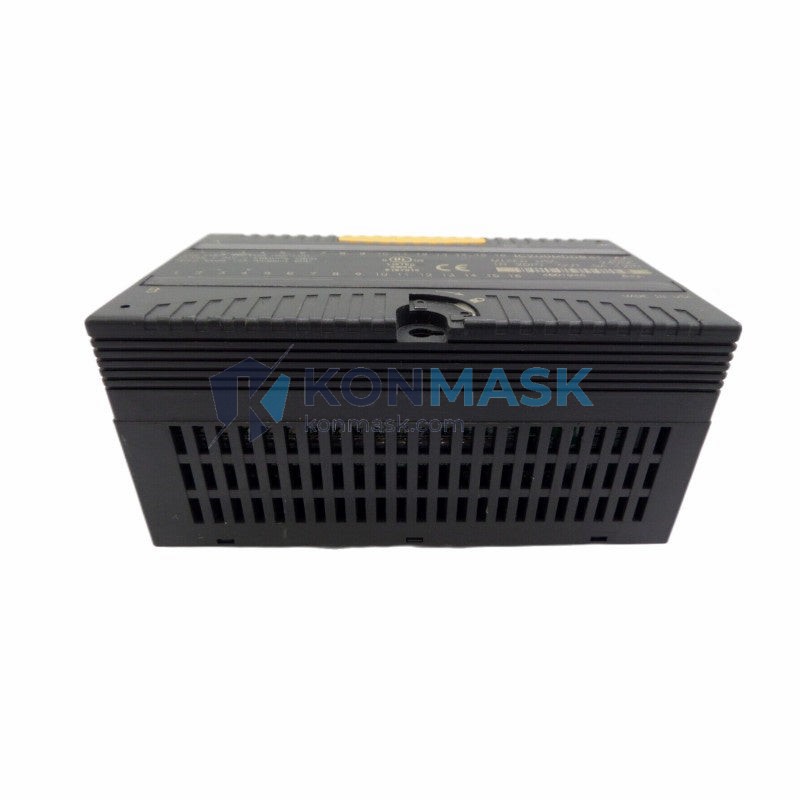

GE IC200MDD841 — High Speed Counter Module | VersaMax Nano/Micro PLC Platform
Engineering Background
The IC200MDD841 is a dedicated high-speed counter (HSC) expansion module designed for GE Fanuc’s VersaMax Nano and Micro PLC families. Engineered for deterministic pulse counting in motion-critical applications, it offloads high-frequency encoder and pulse-train processing from the CPU, ensuring scan-cycle independence and zero missed counts at rated frequency.
Product Positioning
Targeted at OEM machine builders, system integrators, and MRO procurement teams requiring a drop-in, firmware-compatible replacement or capacity expansion for existing VersaMax installations. Konmask supplies this module as verified OEM hardware — not refurbished, not clone — with full traceability documentation available on request.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IC200MDD841 |
| Platform | GE Fanuc VersaMax Nano / Micro PLC |
| Module Type | High Speed Counter (HSC) Expansion |
| Counter Channels | 4 independent channels |
| Maximum Count Frequency | 100 kHz per channel |
| Input Voltage | 24 VDC (sourcing/sinking compatible) |
| Input Points | 8 × 24 VDC digital inputs (shared with HSC function) |
| Output Points | 4 × 24 VDC digital outputs (transistor, sourcing) |
| Counter Modes | Up, Down, Up/Down, Quadrature (×1, ×2, ×4) |
| Preset / Reset | Hardware and software selectable |
| Isolation | Optical isolation, I/O to logic bus |
| Bus Interface | VersaMax local expansion bus |
| Power Consumption | ≤ 1.5 W from expansion bus |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| Dimensions (W × H × D) | Approx. 40 × 90 × 60 mm (standard VersaMax module form factor) |
| Weight | ~200 g |
| Certifications | CE, UL 508, cUL |
| GE Fanuc Reference Manual | GFK-1504 (VersaMax Micro/Nano User Manual) |
Proven Application Environments
- Rotary encoder feedback — quadrature decoding for servo and stepper positioning systems
- Flow metering — pulse-output flow meters in water treatment, chemical dosing, and oil & gas
- Conveyor speed monitoring — tachometer pulse counting for line-speed control and synchronization
- Packaging machinery — product counting, batch control, and registration mark detection
- CNC auxiliary axes — position feedback for auxiliary axes not managed by the motion controller
- Press and stamping lines — stroke counting and die-protection pulse monitoring
- Textile and printing — web tension and register control via encoder pulse trains
Engineering Advantages
- Scan-independent counting — hardware counters accumulate pulses asynchronously; no counts lost regardless of PLC scan time
- Quadrature ×4 resolution — 4× interpolation of A/B encoder signals for sub-increment position resolution
- Integrated output control — onboard transistor outputs allow immediate hardware-triggered responses (e.g., stop, gate) without CPU latency
- Compact VersaMax form factor — snaps directly onto VersaMax Nano/Micro base; no additional power supply or rack required
- Software-configurable modes — all counter modes and presets configured via Proficy Machine Edition (PME) without hardware jumpers
- Optical isolation — protects CPU bus from field-side transients and ground loops common in motor-drive environments
System Architecture & Signal Flow
The IC200MDD841 connects to the VersaMax Nano/Micro CPU via the local expansion bus connector. Pulse inputs arrive at the 24 VDC optically isolated input stage, where the HSC ASIC performs hardware counting independent of the PLC scan cycle. Accumulated count values, status flags (overflow, underflow, preset reached), and output control words are mapped to the CPU’s %I / %Q / %AI / %AQ reference tables and updated each scan. The four onboard transistor outputs can be configured for immediate hardware-triggered response or software-controlled operation via the %Q table.
Signal path summary: Field encoder/pulse source → 24 VDC input filter → optical isolator → HSC ASIC counter → expansion bus register map → CPU reference table → application logic → %Q output → onboard transistor output → field actuator.
Sourcing & Quality Verification
- OEM origin — sourced from authorized GE Fanuc / Emerson distribution channels; not refurbished or remanufactured
- Visual inspection — every unit inspected for label integrity, connector condition, and housing damage prior to dispatch
- Functional test available — bench-test reports available for volume orders (≥ 5 units); contact sales to arrange
- Traceability — date code and lot documentation available on request for regulated industries (pharma, food & beverage, nuclear auxiliary)
- Packaging — shipped in anti-static bag with foam-lined carton; humidity indicator card included for long-haul freight
Procurement Process
- Confirm compatibility — verify your VersaMax Nano/Micro CPU firmware version supports IC200MDD841 (refer to GFK-1504 compatibility matrix)
- Place order — add to cart and complete checkout; net-30 terms available for approved B2B accounts (contact us to apply)
- Lead time — in-stock units ship within 1–2 business days; ETA confirmation sent with tracking number
- Customs & export — ECCN EAR99; no export license required for most destinations; commercial invoice with HS code 8537.10 provided
- Returns — 30-day return window for unused, uninstalled units in original packaging; RMA required
Technical FAQ
Q: Is IC200MDD841 compatible with VersaMax standard (rack-based) systems?
A: No. This module is designed exclusively for the VersaMax Nano and Micro compact PLC families. For rack-based VersaMax systems, refer to IC200MDL650 or IC200MDL740 series HSC modules.
Q: What programming software is required?
A: Proficy Machine Edition (PME) v8.0 or later. The module is configured via the hardware configuration tree in PME; no separate configuration tool is needed.
Q: Can I use all 4 channels simultaneously at 100 kHz?
A: Yes. Each channel has an independent hardware counter; all four can operate concurrently at full rated frequency without mutual interference.
Q: What encoder types are supported?
A: Single-ended (A only), differential (A/B), and quadrature (A/B with Z index) encoders with 24 VDC output levels. TTL-level encoders require a signal-level converter.
Q: Is a firmware update required after installation?
A: No firmware resides on the module itself. Ensure the VersaMax Micro/Nano CPU firmware is at the version specified in GFK-1504 for full HSC feature support.
Q: Do you offer volume pricing?
A: Yes. Contact support@konmask.com for quantity breaks on orders of 3+ units.
