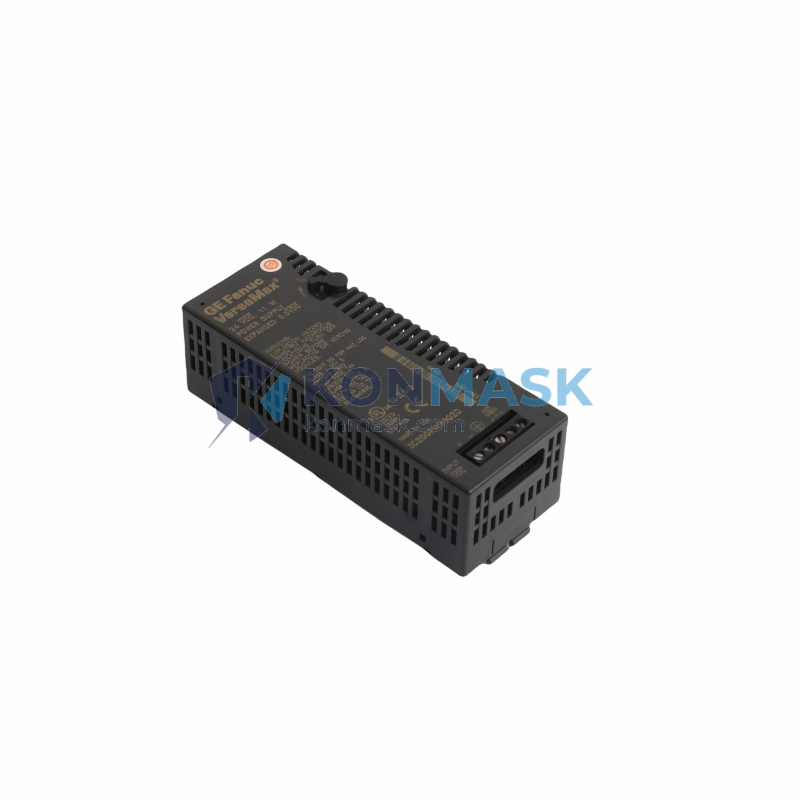

GE IC200PWR002 Power Supply Module | Replacement, Equivalent & Selection Guide
The GE IC200PWR002 is a 24VDC input power supply module designed for the GE VersaMax Micro PLC series. It provides stable, regulated power to the CPU and I/O modules within the VersaMax Micro system. This page serves as a comprehensive selection guide, covering technical specifications, compatible replacements, equivalent models, and application scenarios to help engineers and procurement teams make informed decisions.
Technical Specifications
- Part Number: IC200PWR002
- Manufacturer: GE (General Electric) / GE Fanuc Automation
- Series: VersaMax Micro
- Module Type: Power Supply Module
- Input Voltage: 24VDC
- Input Voltage Range: 20.4–28.8 VDC
- Output Power: Supplies internal bus power to VersaMax Micro CPU and I/O
- Isolation: Electrically isolated input/output
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5–95% non-condensing
- Weight: Approx. 120 g
- Mounting: DIN rail or panel mount (integrated with VersaMax Micro base)
- Certifications: UL, CE, cUL
- Form Factor: Compact module, integrated into VersaMax Micro system
Compatible Replacement & Equivalent Models
When the IC200PWR002 is discontinued, hard to source, or requires a cost-effective alternative, the following models are commonly evaluated as replacements or equivalents. Always verify electrical and mechanical compatibility before substitution.
- IC200PWR001 – GE VersaMax Micro Power Supply, 120/240VAC input variant; different input voltage, verify system requirements
- IC200PWR002E – Enhanced/export variant of IC200PWR002; functionally equivalent in most applications
- IC200PWR003 – Higher-capacity GE VersaMax power supply; compatible in systems requiring additional headroom
- Mitsubishi Q61P / Q62P – Third-party equivalent class for MELSEC Q-series; not a direct drop-in, requires engineering evaluation
- Siemens 6ES7 307-1BA01-0AA0 – SIMATIC S7-300 24VDC PSU; comparable power class, different form factor
- Phoenix Contact QUINT-PS – Industrial DIN-rail 24VDC PSU; suitable as external power source if internal module is unavailable
Note: Third-party replacements require full engineering validation. Konmask.com recommends using genuine GE parts for safety-critical applications.
Why Choose the Original IC200PWR002
- ✅ Guaranteed Compatibility: Factory-designed for VersaMax Micro CPU modules (IC200UDR002, IC200UDR005, IC200UEX011, etc.)
- ✅ Stable Bus Power: Provides clean, regulated internal bus voltage — critical for reliable I/O operation
- ✅ Compact Integration: Eliminates need for external PSU, reducing panel footprint
- ✅ Certified & Compliant: UL/CE certified for industrial environments
- ✅ Long Service Life: Designed for 24/7 continuous industrial operation
- ✅ OEM Warranty Support: Eligible for GE Automation warranty and technical support
Typical Applications
- Small-scale machine automation and OEM equipment
- Building automation and HVAC control panels
- Conveyor and material handling systems
- Pump and motor control stations
- Water treatment and utility monitoring
- Food & beverage packaging lines
- Agricultural and environmental control systems
System Compatibility
The IC200PWR002 is designed exclusively for the GE VersaMax Micro PLC platform. Confirmed compatible CPU and expansion modules include:
- IC200UDR002 – VersaMax Micro 14-point CPU, 24VDC
- IC200UDR005 – VersaMax Micro 28-point CPU, 24VDC
- IC200UEX011 – VersaMax Micro Expansion Module
- IC200UEX016 – VersaMax Micro Analog Expansion
- IC200MDL640 – 16-point 24VDC Input Module
- IC200MDL740 – 16-point 24VDC Output Module
Not compatible with VersaMax Standard (IC200) rack-based systems or PACSystems RX3i/RX7i platforms.
Selection Guide
Use the following criteria to confirm the IC200PWR002 is the correct power supply for your application:
- Step 1 – Confirm PLC Platform: Verify your system uses VersaMax Micro (not VersaMax Standard or PACSystems)
- Step 2 – Check Input Voltage: Your control panel must supply 24VDC (20.4–28.8V range). If 120/240VAC, select IC200PWR001 instead
- Step 3 – Count I/O Load: IC200PWR002 supports standard VersaMax Micro I/O loads; for high-density expansion, verify total current draw
- Step 4 – Environment Rating: Confirm operating temperature and humidity are within spec (0–55°C, 5–95% RH)
- Step 5 – Certifications: For UL-listed panels, confirm IC200PWR002 UL listing meets local code requirements
Quality Assurance & Sourcing
At Konmask.com, all GE IC200PWR002 units are:
- Sourced from authorized distributors or verified surplus channels
- Inspected for physical integrity, label authenticity, and functional condition
- Stored in ESD-safe, climate-controlled warehousing
- Shipped with anti-static packaging and traceable documentation
- Backed by our 30-day return policy and technical pre-sales support
How to Order
- Click Add to Cart or Contact Us for bulk/OEM pricing
- Provide your PO number, required quantity, and delivery timeline
- Our team will confirm availability, lead time, and issue a proforma invoice within 24 hours
- Payment via T/T, PayPal, or trade credit (approved accounts)
- Worldwide shipping via DHL, FedEx, or sea freight for large orders
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can IC200PWR001 replace IC200PWR002?
A: No — IC200PWR001 uses 120/240VAC input while IC200PWR002 uses 24VDC. They are not interchangeable without panel rewiring.
Q: Is IC200PWR002 compatible with PACSystems RX3i?
A: No. IC200PWR002 is exclusively for VersaMax Micro. PACSystems RX3i uses a different power supply family (IC695PSA040, etc.).
Q: Can I use an external 24VDC DIN-rail PSU instead?
A: The IC200PWR002 is an internal module that integrates with the VersaMax Micro base. An external PSU alone cannot replace it — the internal module is required for bus power distribution.
Q: What is the lead time for IC200PWR002?
A: In-stock orders typically ship within 1–3 business days. Contact us for current availability.
Q: Do you offer a warranty on surplus/refurbished units?
A: Yes — all units carry a 30-day functional warranty. New-in-box units carry full OEM warranty where applicable.
