Discrete I/O Expansion Solution – GE IC200UEX211-C | VersaMax Micro Series

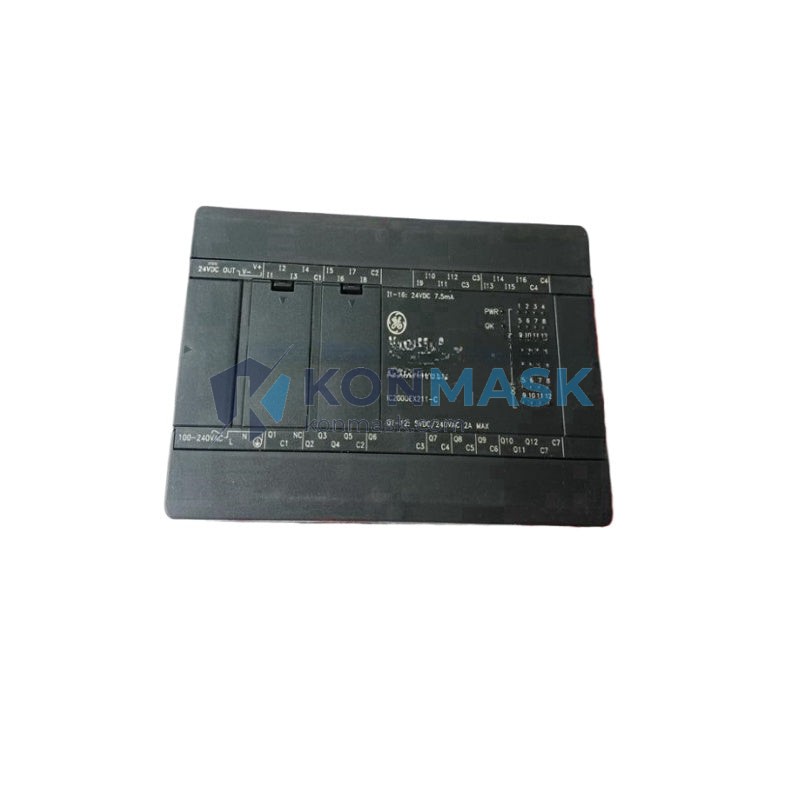

The GE IC200UEX211-C is a 28-point mixed AC/DC relay expansion module engineered for the VersaMax Micro PLC platform. Designed for applications demanding robust discrete I/O expansion with relay-isolated outputs, this module is the go-to choice for machine builders and system integrators who need to extend control reach without sacrificing signal integrity or panel space.
Where This Product Is Used
The IC200UEX211-C is deployed across a broad range of industrial discrete control environments:
- Packaging Machinery — Conveyor sequencing, reject gate control, and end-of-line actuator switching
- Material Handling — Sortation systems, lift table control, and zone-based accumulation logic
- HVAC & Building Automation — Fan/pump relay switching, damper actuator control, and alarm annunciation
- Water & Wastewater Treatment — Pump station control, valve sequencing, and level-based relay logic
- Food & Beverage Processing — Filling line control, agitator switching, and CIP relay interlocks
- Light Manufacturing & Assembly — Fixture clamping, part-present sensing, and reject/accept routing
- OEM Machine Control — Compact panel builds requiring relay-isolated discrete expansion on VersaMax Micro CPUs
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IC200UEX211-C |
| Series / Platform | GE VersaMax Micro Expansion |
| Total I/O Points | 28 Points (Mixed) |
| Input Points | 16 DC Inputs (24 VDC, sink/source) |
| Output Points | 12 Relay Outputs |
| Output Type | Relay (Form A / SPST-NO) |
| Output Voltage Range | AC: 12–240 VAC; DC: 12–30 VDC |
| Output Current Rating | 2 A per point (resistive load) |
| Input Voltage | 24 VDC nominal |
| Input Current | ~7 mA per point |
| Backplane Connection | Direct-mount to VersaMax Micro CPU or expansion bus |
| Isolation | Relay coil-to-contact isolation |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | Compact DIN-rail compatible form factor |
| Weight | TBD (update after physical measurement) |
| Certifications | UL Listed, CE Marked |
| Manufacturer | GE Automation (now Emerson / Movicon) |
Why Engineers Specify This Model
- Relay-Isolated Outputs — Galvanic isolation between PLC logic and field devices eliminates ground loop interference and protects the CPU from inductive load transients
- Mixed AC/DC Flexibility — A single module handles both 24 VDC sensors and 120/240 VAC actuators, reducing panel wiring complexity and BOM count
- 28-Point Density — High I/O count in a compact footprint minimizes panel real estate while maximizing control capacity
- Plug-and-Play Expansion — Direct backplane connection to VersaMax Micro CPUs (IC200UDR series) requires no additional interface hardware
- Proven Reliability — Relay contact life rated for millions of operations under resistive load; field-proven in 24/7 industrial environments
- Simplified Commissioning — LED status indicators per output point enable rapid fault isolation during startup and maintenance
Complete System Bill of Materials
Typical VersaMax Micro system with IC200UEX211-C expansion:
- IC200UDR060 — VersaMax Micro CPU, 60-point DC I/O (base unit)
- IC200UEX211-C — 28-Point Expansion AC/DC Relay Module (this item)
- IC200PWR002 — 24 VDC Power Supply Module (if external supply required)
- IC200CBL001 — Expansion Bus Cable (CPU to expansion module)
- IC200ACC001 — DIN Rail Mounting Kit
- IC200USB001 — USB Programming Cable (for Proficy Machine Edition)
- Proficy Machine Edition (PME) — Programming software (GE / Emerson)
Contact Konmask for complete system quotations and compatibility verification.
Compliance & Industry Standards
- UL 508 — Industrial Control Equipment (UL Listed)
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- IEC 61131-2 — Programmable Controllers: Equipment Requirements and Tests
- RoHS Compliant — Restriction of Hazardous Substances Directive
- ATEX / Class I Div 2 — Verify specific revision suffix for hazardous location ratings
Quality Assurance & Sourcing
- Authentic GE / Emerson Origin — All units sourced from authorized distribution channels or verified surplus with full traceability documentation
- Pre-Shipment Inspection — Each module undergoes visual inspection, label verification, and functional continuity check before dispatch
- Revision Suffix Matching — The “-C” revision is confirmed; contact us if your application requires a specific earlier or later revision
- Packaging Integrity — Shipped in anti-static ESD bags with foam cushioning; original GE packaging preserved where available
- Warranty — 12-month operational warranty against manufacturing defects; DOA replacement within 7 business days
How to Source This Part
- Confirm Compatibility — Verify your VersaMax Micro CPU model and existing expansion slot count before ordering
- Request a Quote — Email support@konmask.com with quantity, required delivery date, and any revision preferences
- Lead Time — In-stock units ship within 1–3 business days; sourced units typically 5–10 business days
- Payment — T/T (wire transfer), PayPal, and trade credit available for qualified accounts
- Export Compliance — EAR99 classification; no export license required for most destinations. Contact us for restricted-country inquiries
- Volume Pricing — Tiered discounts available for orders of 5+ units; OEM/integrator accounts welcome
Application-Specific FAQ
Q: Can the IC200UEX211-C be used with VersaMax Nano CPUs?
A: No. The IC200UEX211-C is designed exclusively for the VersaMax Micro expansion bus. VersaMax Nano CPUs (IC200UDD series) do not support external expansion modules.
Q: How many IC200UEX211-C modules can be connected to a single CPU?
A: VersaMax Micro CPUs support up to 4 expansion modules, subject to power budget constraints. Verify total I/O count and power draw against your CPU’s expansion capacity.
Q: Are the relay outputs rated for inductive loads (motors, solenoids)?
A: Yes, with derating. For inductive AC loads, apply a suppression snubber (RC network) across the load. For DC inductive loads, use a flyback diode. Consult GE datasheet GFK-1504 for derating curves.
Q: What programming software is required?
A: Proficy Machine Edition (PME) by GE/Emerson is the standard programming environment. The IC200UEX211-C is auto-configured by the CPU upon power-up; no separate module configuration is required in most applications.
Q: Is the “-C” suffix a hardware revision or a configuration variant?
A: The suffix denotes a hardware revision. The “-C” revision includes updated relay contact materials for improved longevity. It is backward-compatible with earlier “-A” and “-B” revisions in the same slot.
Q: Can Konmask provide a Certificate of Conformance (CoC)?
A: Yes. CoC documentation is available upon request for all units. For critical applications, third-party inspection reports can be arranged at additional cost.
