GE IC670GBI102 Genius Bus Interface Unit | Replacement, Equivalent & Selection Guide

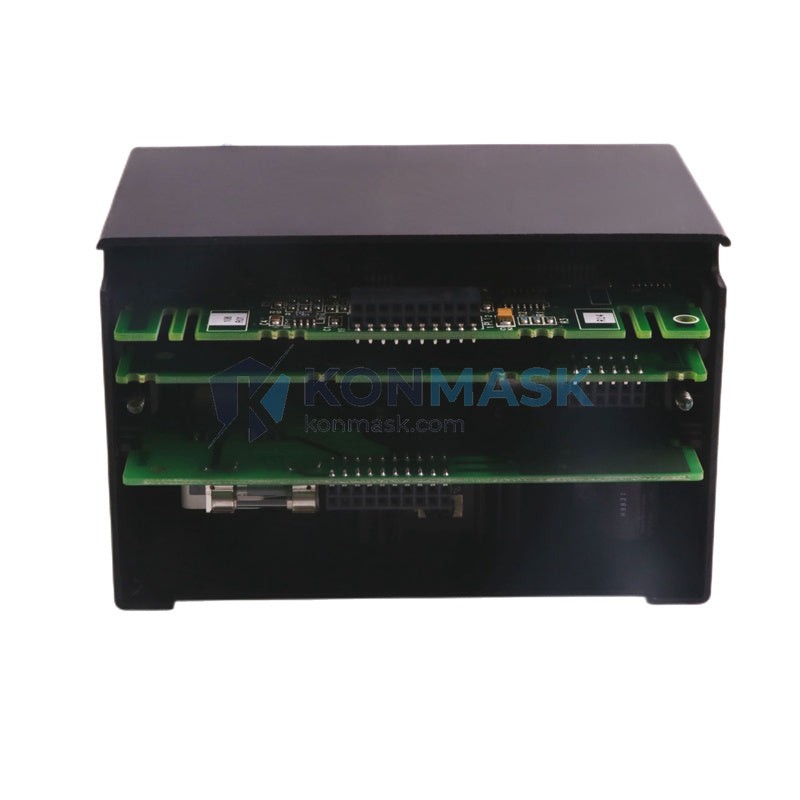

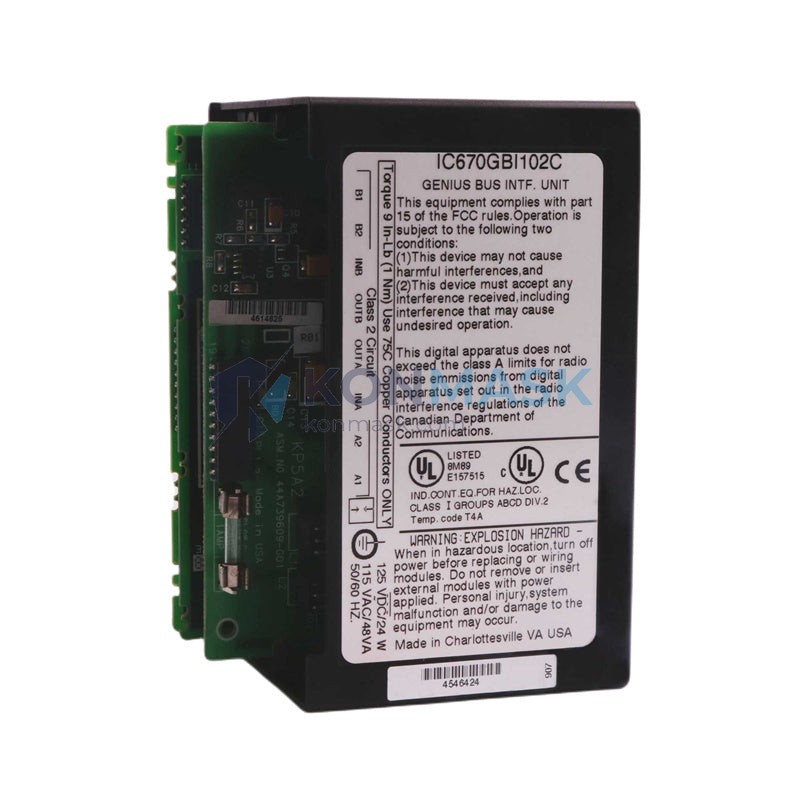

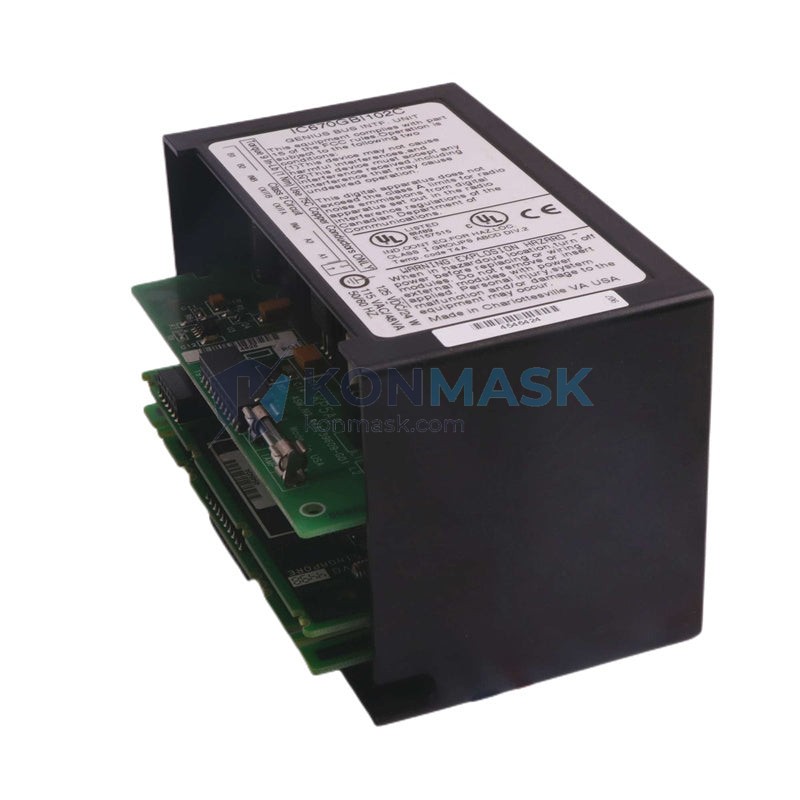

The GE IC670GBI102 is a Genius Bus Interface Unit (BIU) designed for GE’s Series 90 Micro PLC platform. It serves as the communication bridge between the Genius Bus network and the local I/O modules, enabling distributed I/O architectures in industrial automation systems. Konmask.com supplies both new and tested-surplus IC670GBI102 units with full quality verification.
Technical Specifications
- Part Number: IC670GBI102
- Manufacturer: General Electric (GE Fanuc / GE Automation)
- Series: Series 90 Micro / GeniusI/O
- Function: Genius Bus Interface Unit (BIU)
- Bus Type: Genius Bus (serial, token-passing)
- Bus Speed: 153.6 Kbaud (standard Genius Bus rate)
- Max Devices per Bus: Up to 32 devices per Genius Bus segment
- Power Supply: 24 VDC (from backplane or external)
- Operating Temperature: 0°C to 60°C
- Weight: Approx. 460 g
- Mounting: DIN rail / panel mount compatible with Series 90 Micro rack
- Communication Protocol: GE Genius Bus proprietary protocol
- Status Indicators: LED indicators for bus activity, fault, and power
Compatible Replacement & Equivalent Models
If the IC670GBI102 is unavailable or end-of-life in your region, the following models may serve as functional replacements or equivalents depending on your system configuration:
- IC670GBI101 – Earlier revision of the same BIU; functionally equivalent in most applications
- IC670GBI002 – Alternative BIU variant; verify firmware compatibility before substitution
- IC693BEM331 – Series 90-30 Genius Bus Controller; suitable for migration to a larger PLC platform
- IC693BEM340 – Enhanced Genius Bus Controller for Series 90-30; supports additional bus features
- IC694BEM331 – PACSystems RX3i Genius Bus Controller; recommended for system modernization
Note: Always verify hardware revision, firmware version, and bus address settings before substituting any BIU. Contact Konmask.com for pre-sales compatibility consultation.
Why Choose the Original Model
- Proven Compatibility: IC670GBI102 is factory-validated for Series 90 Micro systems — no firmware patching or configuration workarounds required.
- Minimal Downtime Risk: Drop-in replacement for existing IC670GBI102 installations without re-engineering the bus topology.
- Long Service Life: GE Genius Bus architecture is robust and widely deployed; original modules maintain full protocol fidelity.
- Spare Parts Availability: Konmask.com maintains stock of tested-surplus and new-old-stock (NOS) units to support legacy system maintenance.
Typical Applications
- Distributed I/O expansion for GE Series 90 Micro PLC systems
- Factory automation and machine control in automotive, food & beverage, and packaging industries
- Process control panels requiring remote I/O over Genius Bus
- Legacy system maintenance and spare parts replenishment
- System migration projects bridging Genius Bus to PACSystems platforms
System Compatibility
- PLC Platform: GE Series 90 Micro (IC670 family)
- Bus Network: GE Genius Bus (IC660 / IC670 I/O blocks)
- Programming Software: GE Logicmaster 90 Micro, Proficy Machine Edition (ME)
- I/O Blocks Supported: IC660 and IC670 series Genius I/O blocks (analog, discrete, specialty)
- Not Compatible With: PROFIBUS, DeviceNet, EtherNet/IP — Genius Bus is a proprietary GE protocol
Selection Guide
Use the following criteria to confirm IC670GBI102 is the right module for your application:
- Step 1 – Confirm PLC Family: Verify your controller is a GE Series 90 Micro (IC670 CPU). If using Series 90-30 or PACSystems, select IC693BEM331 or IC694BEM331 instead.
- Step 2 – Check Bus Address: Each BIU requires a unique Genius Bus address (0–31). Confirm no address conflicts exist on your bus segment.
- Step 3 – Count I/O Blocks: One IC670GBI102 supports up to 32 Genius devices per segment. Add additional BIUs or bus segments if your I/O count exceeds this limit.
- Step 4 – Verify Power Budget: Confirm 24 VDC supply capacity for the BIU and connected I/O blocks.
- Step 5 – Firmware Revision: For replacement units, match the hardware revision (REV A/B/C) to your existing installation where possible. Contact us if unsure.
Quality Assurance & Sourcing
- All IC670GBI102 units supplied by Konmask.com undergo visual inspection, power-on testing, and functional verification prior to shipment.
- Units are sourced from authorized distributors, OEM surplus, and verified industrial decommissions — no counterfeit or refurbished-without-disclosure stock.
- Each unit ships with an anti-static bag, inspection report, and 90-day warranty against defects.
- Traceability documentation available upon request for regulated industries.
How to Order
- Online: Add to cart directly from this page. Secure checkout with multiple payment options.
- Email RFQ: Send your BOM or part list to support@konmask.com for bulk pricing and lead time confirmation.
- Phone / WhatsApp: +0086 19859288691 — available for urgent inquiries and technical pre-sales support.
- Lead Time: In-stock orders typically ship within 1–3 business days. Contact us for expedited options.
Replacement & Compatibility FAQ
Q: Can IC670GBI101 replace IC670GBI102 directly?
A: In most cases yes — both are Genius BIUs for the Series 90 Micro. Verify the hardware revision and bus address configuration match your existing setup.
Q: Is IC670GBI102 compatible with PACSystems RX3i?
A: Not directly. PACSystems uses IC694BEM331 as its Genius Bus Controller. IC670GBI102 is specific to the Series 90 Micro platform.
Q: Can I use multiple IC670GBI102 units on one Genius Bus?
A: Yes, up to 32 devices (including BIUs and I/O blocks) can share one Genius Bus segment. Each BIU must have a unique bus address.
Q: What is the difference between IC670GBI102 and IC670GBI002?
A: The IC670GBI002 is an earlier variant. Functional differences are minor but firmware and revision compatibility should be confirmed before substitution.
Q: Do you provide a warranty?
A: Yes. All units carry a 90-day warranty against manufacturing and functional defects. Extended warranty options are available — contact us for details.
