GE IC693ALG223 Analog Voltage Input Module | Replacement, Equivalent & Selection Guide

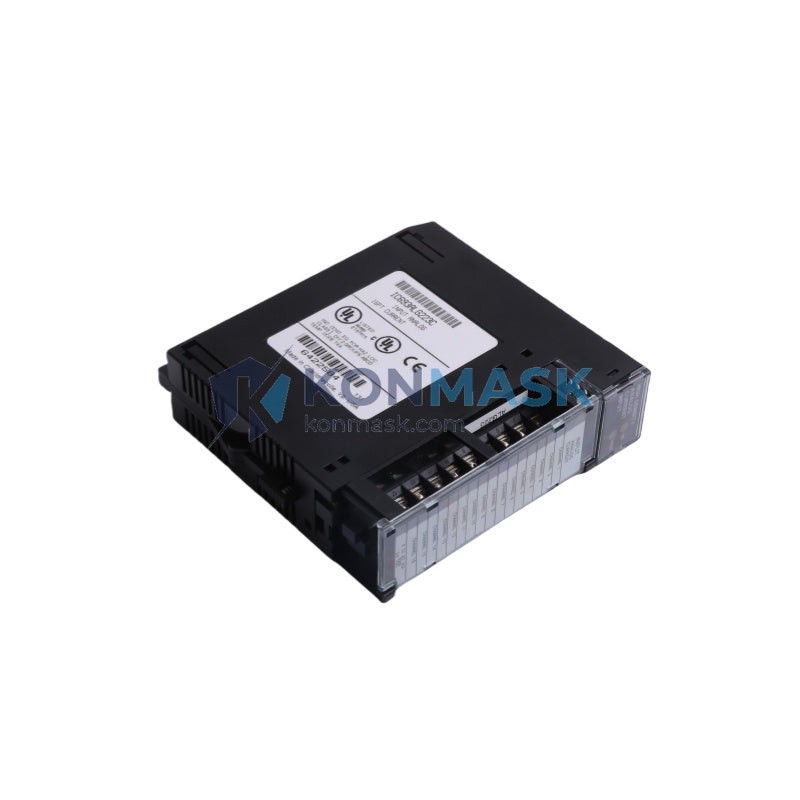

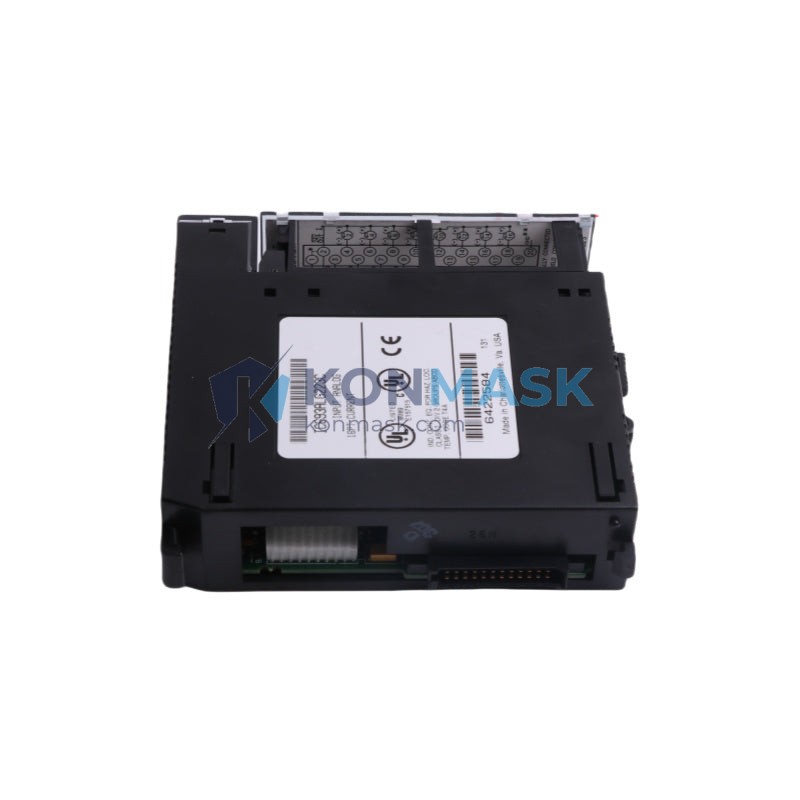

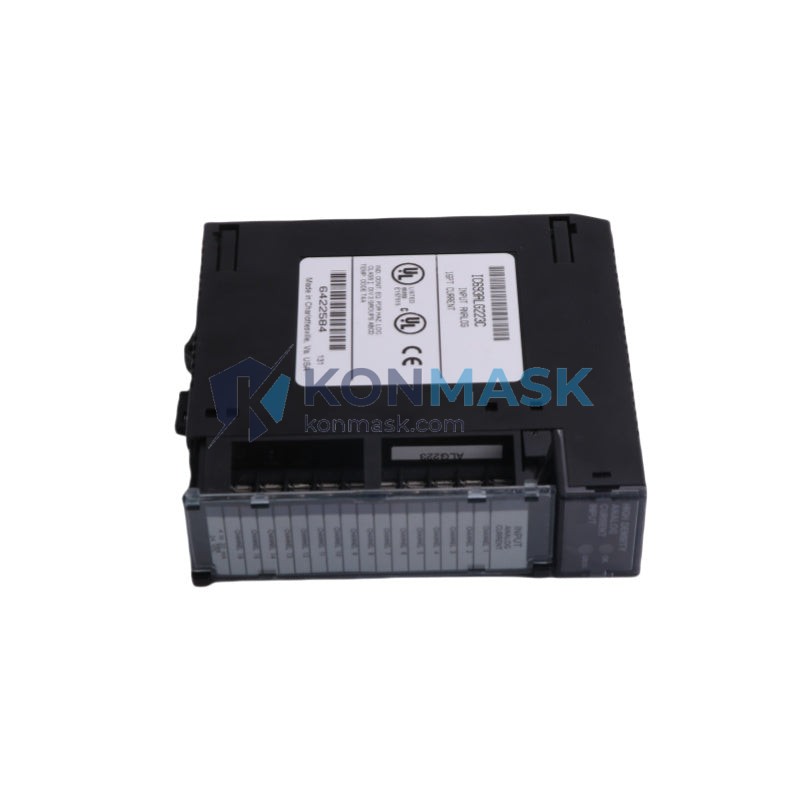

The GE IC693ALG223 is a 16-channel analog voltage input module designed for the GE Series 90-30 PLC platform. It accepts ±10 V and 0–10 V unipolar/bipolar voltage signals, delivering 12-bit resolution for precise process monitoring in industrial automation systems. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers source the right module — whether original or equivalent.
Technical Specifications
- Part Number: IC693ALG223
- Manufacturer: GE Fanuc / GE Intelligent Platforms
- Series: Series 90-30
- Module Type: Analog Voltage Input
- Number of Channels: 16 (single-ended)
- Input Range: ±10 V (bipolar) / 0–10 V (unipolar)
- Resolution: 12-bit (1 in 4,096)
- Input Impedance: ≥ 10 MΩ
- Conversion Time: ~1 ms per channel (typical)
- Isolation: Non-isolated (common reference)
- Backplane Bus: Series 90-30 I/O bus
- Power Consumption: 5 V DC from backplane
- Weight: ~340 g
- Operating Temperature: 0 °C to 60 °C
- Certifications: UL, CE
Compatible Replacement & Equivalent Models
When the IC693ALG223 is discontinued, obsolete, or unavailable, the following models are commonly evaluated as replacements. Always verify firmware compatibility and I/O mapping before substitution.
- IC693ALG221 — GE Series 90-30, 8-ch analog voltage input; half the channel count, same bus interface. Suitable when fewer channels are needed.
- IC693ALG222 — GE Series 90-30, 16-ch analog current input (4–20 mA); use when field devices output current signals instead of voltage.
- IC693ALG390 — GE Series 90-30, 4-ch analog combo (input/output); suitable for mixed I/O applications with reduced channel requirements.
- IC694ALG223 — GE Series 90-30E (enhanced backplane); functionally equivalent with improved diagnostics. Drop-in replacement for upgraded racks.
- Third-party equivalents — Modules from Horner, Spectrum Controls, or ProSoft may offer Series 90-30 bus compatibility; confirm via vendor datasheets.
Why Choose the Original IC693ALG223
- Guaranteed firmware and ladder logic compatibility with GE Series 90-30 CPUs (IC693CPU3xx series)
- Native integration with Proficy Machine Edition and Logicmaster 90 programming environments
- Factory-calibrated for ±10 V / 0–10 V ranges — no field recalibration required
- Proven reliability in continuous 24/7 industrial environments
- Full GE Fanuc documentation and hardware revision traceability
Typical Applications
- Process temperature and pressure monitoring via voltage transmitters
- Speed and position feedback from analog sensors in motion control
- Level measurement in tanks and vessels
- Flow rate monitoring in water treatment and chemical plants
- HVAC control systems requiring multi-zone analog sensing
- Power generation and utilities automation
System Compatibility
- PLC Platform: GE Series 90-30 (IC693 backplane)
- Compatible CPUs: IC693CPU311, IC693CPU313, IC693CPU323, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374
- Rack Compatibility: IC693CHS391 (5-slot), IC693CHS392 (10-slot), IC693CHS393 (5-slot expansion), IC693CHS398 (10-slot expansion)
- Programming Software: Proficy Machine Edition 8.x+, Logicmaster 90-30
- Not compatible with: Series 90-70 (IC697), PACSystems RX3i (IC695), or VersaMax (IC200) platforms
Selection Guide
Use the decision criteria below to confirm IC693ALG223 is the correct module for your application:
- ✅ Platform: Your rack is Series 90-30 (IC693 backplane) — confirmed compatible
- ✅ Signal type: Field devices output voltage (±10 V or 0–10 V) — confirmed compatible. If 4–20 mA current, select IC693ALG222 instead.
- ✅ Channel count: You need up to 16 analog voltage inputs on a single module — confirmed compatible. For 8 channels, IC693ALG221 is more cost-effective.
- ✅ Resolution: 12-bit (4,096 counts) is sufficient for your process — confirmed compatible. For 16-bit resolution, consider PACSystems RX3i platform migration.
- ⚠️ Isolation requirement: IC693ALG223 is non-isolated. If galvanic isolation is required between channels, evaluate isolated analog modules or external signal conditioners.
Quality Assurance & Sourcing
- All modules sourced through Konmask.com are inspected for physical integrity and label authenticity prior to shipment
- Serialized traceability available on request for MRO and OEM procurement
- New, refurbished, and tested-used conditions available — specify at time of inquiry
- Export compliance: ECCN classification and country-of-origin documentation provided
- Lead time: typically 3–10 business days depending on stock status
How to Order
To place an order or request a quote for the GE IC693ALG223:
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🛒 Add to cart directly on this page (in-stock units ship within 3 business days)
- For bulk orders (>5 units) or urgent requirements, contact us directly for priority sourcing
Replacement & Compatibility FAQ
Q: Can IC693ALG223 replace IC693ALG221?
A: Yes, with caveats. The ALG223 has 16 channels vs. 8 on the ALG221. The I/O reference table addresses will differ — update your CPU configuration and ladder logic accordingly.
Q: Is IC693ALG223 compatible with PACSystems RX3i?
A: No. The IC693 series uses a different backplane bus than the IC695 (RX3i) platform. They are not interchangeable.
Q: Can I use IC694ALG223 as a drop-in replacement?
A: Generally yes, if your rack supports the IC694 (enhanced Series 90-30) backplane. Verify rack revision compatibility before installation.
Q: What is the difference between IC693ALG223 and IC693ALG222?
A: The ALG223 accepts voltage inputs (±10 V / 0–10 V); the ALG222 accepts current inputs (4–20 mA / 0–20 mA). They are not interchangeable without changing field wiring.
Q: Do you provide a certificate of conformance?
A: Yes, available upon request for all new and refurbished units.
