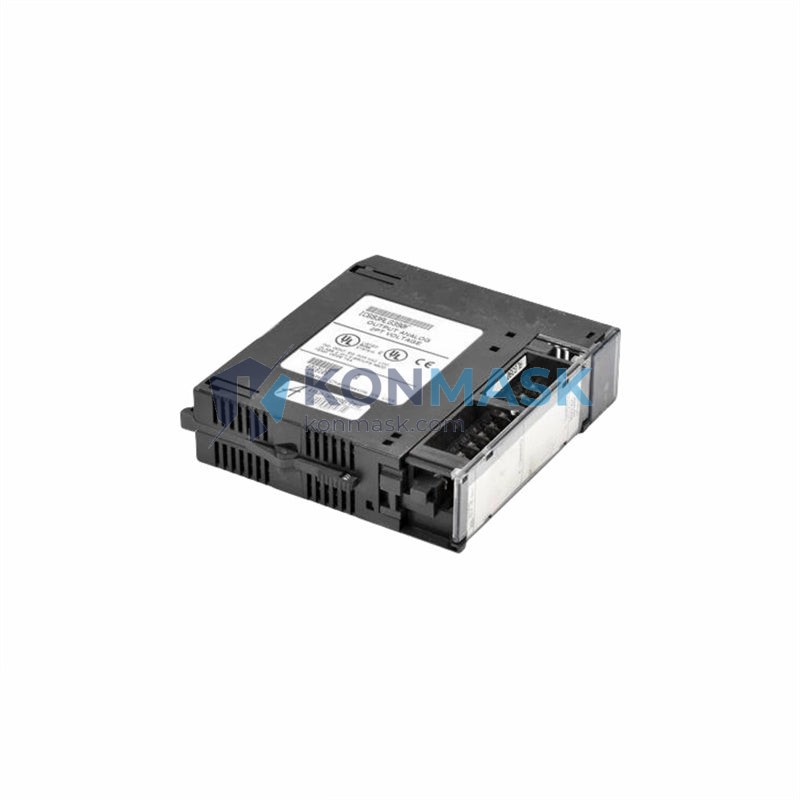

GE IC693ALG390 Analog Output Voltage Module – Series 90-30 PLC
When an analog output module fails on the plant floor, the consequences are immediate and costly: actuators freeze at their last commanded position, control valves lose their setpoint signal, and variable-speed drives revert to manual override. Production lines halt, process engineers scramble, and every minute of downtime translates directly into lost revenue. The GE IC693ALG390 is the precision analog output voltage module engineered to prevent exactly this scenario — delivering stable, accurate voltage signals that keep your process control loops running without interruption.
Within GE’s iconic Series 90-30 PLC platform, the IC693ALG390 occupies a critical role as the primary 8-channel analog voltage output module. The Series 90-30 system has been deployed across tens of thousands of industrial facilities worldwide — from petrochemical refineries in the Middle East to automotive assembly plants in Europe and Asia — and the IC693ALG390 remains one of its most specified analog output solutions. Its combination of multi-channel density, dual voltage range support, and seamless integration with the Series 90-30 backplane makes it an enduring choice for both new installations and legacy system maintenance.
Technical Specifications
- Part Number: IC693ALG390
- Manufacturer: GE (General Electric Automation)
- Platform: Series 90-30 PLC
- Module Type: Analog Output — Voltage
- Output Channels: 8 channels
- Output Voltage Ranges: 0 to +10 VDC / −10 to +10 VDC (selectable per channel)
- Resolution: 12-bit (1 in 4,096)
- Output Load: Minimum 2 kΩ
- Update Rate: All 8 channels updated each PLC scan
- Isolation: Field-side isolation from logic bus
- Backplane Compatibility: Series 90-30 5-slot, 10-slot, and expansion racks
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: −40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Weight: 1,670 g (module with connector)
- Certifications: UL Listed, CE Marked
Key Features & Benefits
- 8 Independent Voltage Output Channels — High channel density reduces rack slot consumption and lowers total system cost per control loop.
- Dual Voltage Range Selection — Supports both unipolar (0–10 V) and bipolar (±10 V) output modes, accommodating a wide variety of field devices including proportional valves, VFDs, and positioners.
- 12-Bit Resolution — Provides fine-grained control resolution of 0.0024 V per count in unipolar mode, ensuring smooth and precise actuator positioning.
- Scan-Synchronous Updates — All channels update every PLC scan cycle, eliminating output lag and ensuring deterministic control response.
- Field-Side Isolation — Protects the PLC logic bus from field-side transients and ground loops, improving system reliability in electrically noisy environments.
- Hot-Swap Compatible Rack Design — Supports module replacement in Series 90-30 racks with minimal process disruption (subject to system configuration).
- Compact Form Factor — Single-slot module maximizes rack density in space-constrained control panels.
Industry & Equipment Applications
- Oil & Gas: Control valve positioners, pressure regulators, flow control loops in upstream and downstream processing.
- Chemical & Petrochemical: Reactor temperature setpoint output, feed rate control, distillation column management.
- Automotive Manufacturing: Paint line conveyor speed control, robotic welding current setpoint, press force regulation.
- Water & Wastewater Treatment: Pump speed control via VFD analog input, chemical dosing pump setpoint, valve positioning.
- Power Generation: Turbine governor analog setpoint, excitation control, load dispatch signaling.
- Food & Beverage: Mixing speed control, temperature setpoint for heat exchangers, filling line rate control.
- Pulp & Paper: Web tension control, dryer temperature setpoint, stock flow regulation.
System Integration & Compatible Parts
The IC693ALG390 is designed for seamless integration within the GE Series 90-30 ecosystem. Compatible and commonly paired components include:
- CPUs: IC693CPU311, IC693CPU313, IC693CPU321, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374
- Power Supplies: IC693PWR321, IC693PWR322, IC693PWR330, IC693PWR331
- Rack Bases: IC693CHS391 (5-slot), IC693CHS392 (10-slot), IC693CHS393 (5-slot wall-mount)
- Analog Input Modules: IC693ALG220, IC693ALG221, IC693ALG222 (for closed-loop PID pairing)
- Programming Software: Proficy Machine Edition (ME) Logic Developer — PLC
- Field Wiring: IC693ACC300 series terminal blocks and cables
If you are building or restoring a Series 90-30 system, our technical team can assist with full BOM verification to ensure module compatibility across your rack configuration.
Our Quality Assurance Process
Every IC693ALG390 unit sourced and shipped by Konmask.com undergoes a rigorous multi-stage quality verification process before dispatch:
- Visual Inspection: Physical examination for board damage, corrosion, bent pins, and component integrity.
- Functional Power-On Test: Module is powered and initialized to verify backplane communication and self-diagnostic pass status.
- Analog Output Channel Verification: Each of the 8 output channels is tested across the full voltage range using calibrated measurement equipment.
- Firmware Version Check: Firmware revision is documented and disclosed to the buyer prior to shipment.
- Anti-Static Packaging: All modules are packed in ESD-safe bags with foam cushioning and double-boxed for international freight.
- Traceability Documentation: Test records and inspection reports available upon request for quality-critical procurement.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quotation: Our team will respond within 24 hours with pricing, lead time, and stock availability confirmation.
- Order Confirmation: Upon agreement, we issue a proforma invoice. Payment terms are discussed based on order volume and customer history.
- Quality Inspection & Dispatch: Module passes QA process, is packed, and shipped with full tracking information provided.
- After-Sales Support: Our engineering team remains available post-delivery for integration questions and warranty claims.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Components — We focus exclusively on PLC, DCS, HMI, and drive components from leading global brands.
- ✅ Genuine Parts, Verified Stock — We do not list what we cannot supply. Every inquiry receives an honest stock status response.
- ✅ Global Export Experience — Serving buyers in Southeast Asia, the Middle East, Europe, and the Americas with compliant export documentation.
- ✅ Technical Pre-Sales Support — Our engineers can assist with cross-referencing, compatibility checks, and system BOM review.
- ✅ Responsive Communication — Inquiries answered within 24 hours. Urgent requests handled with priority processing.
- ✅ Flexible Minimum Order — Single-unit orders accepted. Volume pricing available for project and MRO procurement.
Frequently Asked Questions
- Q: Is the IC693ALG390 compatible with all Series 90-30 CPUs?
- A: Yes. The IC693ALG390 is compatible with all Series 90-30 CPU modules and rack configurations. It communicates via the standard Series 90-30 backplane bus and requires no special CPU firmware.
- Q: Can the IC693ALG390 output current signals (4–20 mA)?
- A: No. The IC693ALG390 is a voltage output module only (0–10 V or ±10 V). For current output applications, GE offers the IC693ALG392 (current output variant). Please contact us if you need assistance selecting the correct module.
- Q: What is the difference between IC693ALG390 and IC693ALG391?
- A: The IC693ALG391 is an enhanced revision of the IC693ALG390 with identical functionality but updated firmware and minor hardware revisions. Both are interchangeable in most applications. We will disclose the exact revision of the unit in stock prior to shipment.
- Q: Do you provide a warranty on this module?
- A: Yes. All modules sold by Konmask.com carry a standard 90-day functional warranty. Extended warranty options are available for volume orders. Please discuss warranty terms with our sales team at the time of quotation.
- Q: Can you supply the IC693ALG390 with a test report?
- A: Yes. A functional test report documenting channel-by-channel output verification is available upon request. This is standard practice for quality-critical procurement and OEM customers.
