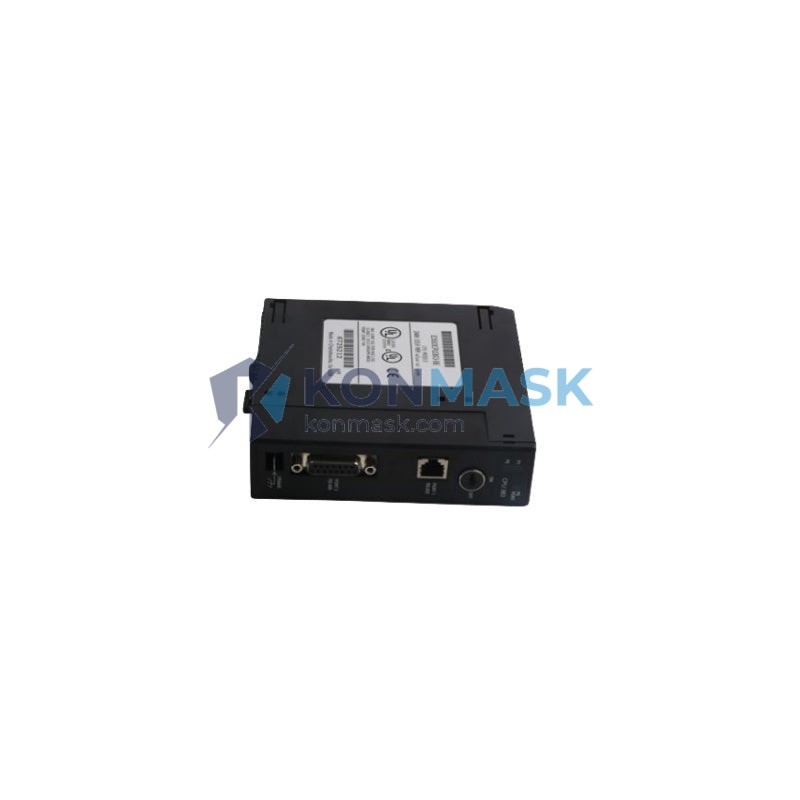

GE IC693CPU363 – High-Performance CPU Module | Series 90-30 PLC Platform
Engineering Background
The GE IC693CPU363 is a central processing unit module designed for the GE Fanuc Series 90-30 programmable logic controller platform — one of the most widely deployed mid-range PLC architectures in industrial automation. Introduced as part of GE’s commitment to scalable, rack-based control systems, the IC693CPU363 delivers enhanced processing throughput and expanded memory capacity compared to earlier 90-30 CPU generations, making it the preferred upgrade path for facilities requiring greater program complexity without platform migration.
Product Positioning
Targeted at procurement engineers and maintenance teams managing Series 90-30 installations, the IC693CPU363 serves as a direct drop-in replacement or capacity upgrade for IC693CPU350/351/352/360/361/362 units. It is stocked at Konmask.com as a verified, tested module with full traceability documentation available upon request.
Complete Technical Specifications
| Part Number | IC693CPU363 |
| Manufacturer | GE Fanuc Automation (now GE Vernova / Emerson) |
| Platform | Series 90-30 PLC |
| Processor Speed | 12 MHz |
| User Memory | 512 KB (program + data) |
| %R Register Memory | 1024 words |
| %AI / %AQ | 512 / 512 words |
| %I / %Q | 2048 / 2048 bits |
| Communication Ports | 1× RS-232 (Port 1), 1× RS-485 (Port 2), 1× Ethernet TCP/IP (Port 3) |
| Ethernet Protocol | SRTP, Modbus TCP, EGD (Ethernet Global Data) |
| Programming Software | Proficy Machine Edition (ME) Logic Developer |
| Backplane Compatibility | IC693CHS391/392/393/397 (5/10-slot baseplate) |
| Power Supply Requirement | IC693PWR321/322/330/331 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H×W×D) | Approx. 230 × 30 × 180 mm (standard 90-30 single-slot form factor) |
| Weight | ~200 g |
| Certifications | UL, CE, cUL |
| RoHS Compliance | Consult datasheet for specific revision |
Proven Application Environments
- Discrete Manufacturing: Automotive assembly lines, stamping presses, conveyor sequencing, and robotic cell coordination requiring deterministic scan-cycle control.
- Process Industries: Chemical batch processing, water/wastewater treatment, and oil & gas wellhead control where Modbus TCP integration with SCADA is mandatory.
- Power Generation & Utilities: Substation automation and generator control panels leveraging EGD peer-to-peer data exchange for low-latency status broadcasting.
- Food & Beverage: Packaging line control and CIP (Clean-in-Place) sequencing in environments demanding high-cycle-count reliability.
- Building Automation: HVAC control, chiller plant management, and energy monitoring systems integrated via Ethernet to BMS platforms.
- MRO / Spare Parts: Direct replacement for aging IC693CPU350–362 units in legacy 90-30 racks without requiring program re-compilation when memory map is preserved.
Engineering Advantages
- Integrated Ethernet Port: Eliminates the need for a separate Ethernet Interface Module (IC693CMM321), reducing rack slot consumption and BOM cost.
- 512 KB User Memory: Supports large ladder/function block programs with extensive data logging, eliminating the memory ceiling constraints of earlier CPU3xx variants.
- Dual Serial Ports: Simultaneous RS-232 (HMI/programming) and RS-485 (field device network) connectivity without external splitters.
- EGD Publisher/Subscriber: Native Ethernet Global Data support enables deterministic, multicast I/O data exchange across distributed 90-30 nodes — critical for synchronized multi-rack architectures.
- Hot-Swap Compatible Backplane: Module can be replaced in powered racks (with appropriate safety precautions) minimizing unplanned downtime during MRO events.
- Backward Program Compatibility: Accepts programs developed on earlier 90-30 CPUs with minimal modification, protecting existing engineering investment.
System Architecture & Signal Flow
The IC693CPU363 occupies Slot 1 of any Series 90-30 baseplate. On each scan cycle, the CPU executes the following sequence:
- Input Scan: Reads all discrete (%I) and analog (%AI) input image table data from I/O modules via the backplane bus.
- Program Execution: Solves the user ladder/FBD/SFC program against the current input image table.
- Output Scan: Writes solved %Q and %AQ values to output modules.
- Communications Window: Services Ethernet (SRTP/Modbus TCP/EGD), RS-232, and RS-485 port requests — configurable window size balances I/O determinism vs. communication throughput.
- Housekeeping: Watchdog timer reset, fault table update, and background diagnostics.
Ethernet Port 3 connects directly to a standard RJ-45 switch port. IP address, subnet mask, and gateway are configured via Proficy ME’s hardware configuration tool and stored in non-volatile flash — no BOOTP/DHCP server required for static deployments.
Sourcing & Quality Verification
All IC693CPU363 units offered through Konmask.com are sourced through verified industrial distribution channels and subject to the following pre-shipment checks:
- Visual inspection: PCB condition, connector integrity, label authenticity, and firmware revision marking.
- Functional power-on test: Module boots to STOP mode with no fault LEDs illuminated.
- Ethernet port connectivity verification: Ping response confirmed at configured IP address.
- Serial port loopback test: RS-232 and RS-485 ports verified for signal integrity.
- Anti-static packaging: ESD-safe bag + foam insert + double-wall carton for international transit.
Certificates of conformance, test reports, and country-of-origin documentation are available upon request for regulated procurement processes.
Procurement Process
- Confirm Part Number: Verify IC693CPU363 against your existing rack configuration and firmware revision requirements (consult GE publication GFK-0356 for CPU compatibility matrix).
- Request Quote: Contact support@konmask.com for volume pricing, lead time confirmation, and export compliance documentation (HS Code: 8537.10).
- Place Order: Purchase directly via this product page or submit a PO to our sales team. Net-30 terms available for qualified industrial accounts.
- Shipping: DHL Express / FedEx International Priority standard. Air freight consolidation available for multi-line PLC orders. Typical transit: 3–7 business days to most destinations.
- Incoming Inspection: We recommend verifying firmware version via Proficy ME Hardware Configuration upon receipt and prior to installation in a live rack.
Technical FAQ
Q: Is the IC693CPU363 compatible with IC693CPU374 (the CPU with built-in Motion)?
A: No. The CPU374 includes integrated motion control coprocessor functionality not present in the CPU363. Programs using motion-specific function blocks will require modification before running on the CPU363.
Q: Can I use the CPU363 with a Series 90-70 backplane?
A: No. The IC693CPU363 is exclusively compatible with Series 90-30 baseplates (IC693CHS3xx series). The 90-70 platform uses a physically and electrically incompatible backplane architecture.
Q: What Proficy ME version is required?
A: Proficy Machine Edition 8.0 or later is recommended. Earlier versions (6.x, 7.x) support the CPU363 but may lack support for newer EGD configuration features.
Q: Does the CPU363 support SNP/SNPX protocol?
A: Yes. SNP (Serial Natural Protocol) is supported on Port 1 (RS-232) for legacy HMI and SCADA connectivity.
Q: What is the battery backup specification?
A: The CPU363 uses a lithium battery (IC693ACC301) to retain user program and data memory during power loss. Typical battery life is 3–5 years. Replace proactively during scheduled maintenance windows.
Q: Is this module available with a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested modules. Extended warranty options are available — contact support for details.
