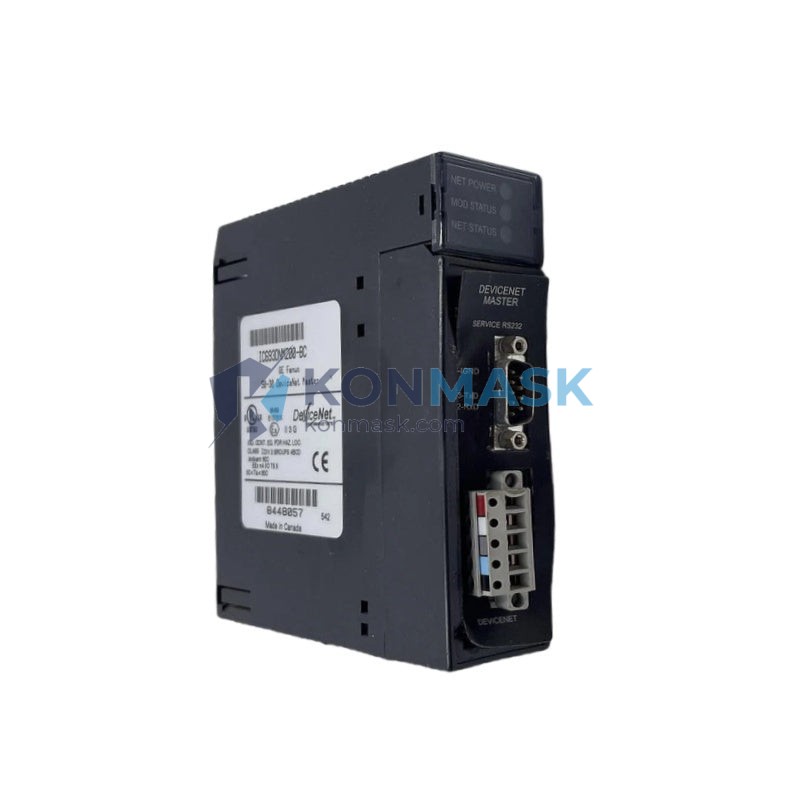

GE IC693DNM200-BC DeviceNet Master Module | Series 90-30 PLC Platform
Engineering Background
The IC693DNM200-BC is a DeviceNet Master communication module designed for integration into GE Fanuc Series 90-30 PLC systems. DeviceNet, based on the CAN (Controller Area Network) protocol, is a widely adopted industrial fieldbus standard for connecting sensors, actuators, drives, and other field devices in manufacturing and process automation environments. This module enables the Series 90-30 CPU to act as a DeviceNet Master, polling and controlling up to 64 slave nodes across a single network segment.
Product Positioning
Targeted at procurement engineers and system integrators managing legacy or active GE Series 90-30 installations, the IC693DNM200-BC provides a cost-effective, specification-verified solution for DeviceNet network expansion, replacement, or system upgrade projects. Konmask.com supplies this module with full traceability documentation and pre-shipment functional verification.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IC693DNM200-BC |
| Manufacturer | GE Fanuc / GE Automation & Controls |
| Platform | Series 90-30 PLC |
| Module Type | DeviceNet Master Communication Module |
| Network Protocol | DeviceNet (CAN-based, IEC 62026-3) |
| Node Capacity | Up to 64 slave nodes (MAC IDs 0–63) |
| I/O Data Memory | 8 KB (input + output combined) |
| Baud Rates | 125 Kbps / 250 Kbps / 500 Kbps |
| Bus Connector | 5-pin open-style DeviceNet connector |
| Power Consumption | Supplied via Series 90-30 backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | 230 g |
| Firmware | Revision BC (factory-loaded) |
| Certifications | UL, CE, ODVA Conformance Tested |
| Form Factor | Single-slot Series 90-30 I/O module |
Proven Application Environments
- Automotive Assembly Lines — DeviceNet coordination of robotic welding stations, conveyor drives, and safety light curtains via Series 90-30 master control.
- Packaging Machinery — High-speed polling of distributed I/O blocks, servo drives, and vision sensors on DeviceNet segments.
- Water & Wastewater Treatment — Reliable fieldbus communication in electrically noisy pump and valve control environments.
- Material Handling Systems — Integration of barcode scanners, RFID readers, and motor starters across multi-node DeviceNet networks.
- Food & Beverage Processing — Washdown-rated field device connectivity managed through Series 90-30 PLC architecture.
- MRO Replacement — Direct drop-in replacement for failed IC693DNM200 modules in existing Series 90-30 installations without CPU reprogramming.
Engineering Advantages
- Native Series 90-30 Integration — Occupies a standard I/O slot; no external power supply or gateway required. Configured via Proficy Machine Edition (PME) software.
- ODVA-Conformant DeviceNet Master — Full compliance with ODVA DeviceNet specification ensures interoperability with all certified slave devices regardless of manufacturer.
- Explicit & Polled I/O Messaging — Supports both polled I/O (cyclic data exchange) and explicit messaging (parameter read/write) for flexible device management.
- Firmware Revision BC — Incorporates stability and compatibility improvements over earlier revisions; recommended for new installations and replacements.

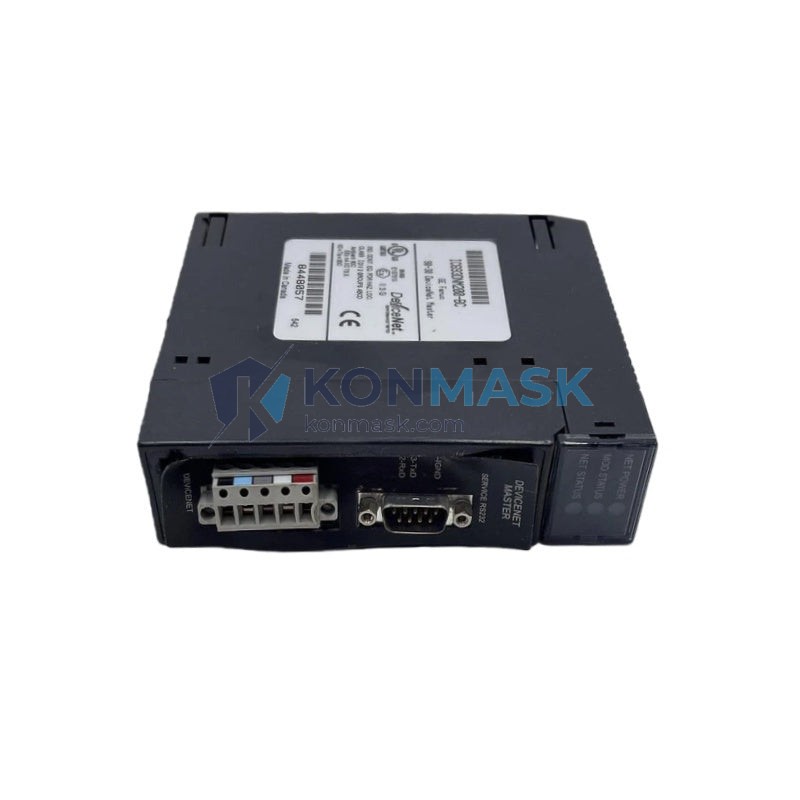

- Diagnostic LED Indicators — Module Status (MS) and Network Status (NS) LEDs provide real-time fault isolation without requiring a programming terminal.
- Hot-Standby Compatible — Supports Series 90-30 redundancy configurations when paired with appropriate CPU and redundancy modules.
System Architecture & Signal Flow
The IC693DNM200-BC resides in any standard Series 90-30 I/O slot (local or remote rack). The Series 90-30 CPU communicates with the module via the backplane bus using the standard I/O scan mechanism. The module maintains an internal I/O image table that maps DeviceNet slave device data to CPU %I/%Q reference addresses. The DeviceNet network connects to the module’s 5-pin connector; the module acts as Bus Master, issuing polled I/O requests to each configured slave node at the programmed scan rate. Explicit messaging is handled asynchronously via ladder logic MSG instructions.
Configuration path: Proficy Machine Edition → Hardware Configuration → Series 90-30 Rack → Slot Assignment → IC693DNM200 → DeviceNet Node Configuration → Slave Device I/O Mapping → Download to CPU.
Sourcing & Quality Verification
- All IC693DNM200-BC units supplied by Konmask.com are sourced from authorized distributors or verified industrial surplus channels with full chain-of-custody documentation.
- Pre-shipment inspection includes: visual inspection for physical damage, firmware revision verification (BC), label authenticity check, and functional power-on test where applicable.

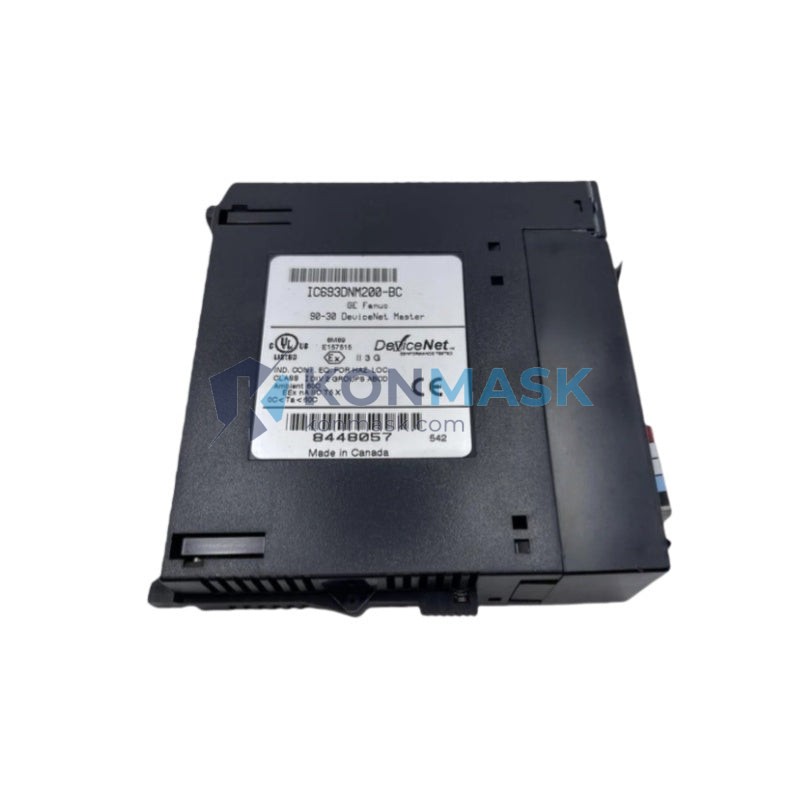

- Counterfeit risk mitigation: part markings, PCB revision codes, and holographic labels are cross-referenced against GE Fanuc OEM specifications before dispatch.
- Packaging: ESD-safe anti-static bag, foam-lined carton, with part number and serial number clearly labeled on outer packaging.
Procurement Process
- Confirm Compatibility — Verify your Series 90-30 CPU firmware version supports IC693DNM200-BC (Revision BC). Consult GE publication GFK-1504 (DeviceNet Master Module User’s Manual).
- Request Quote — Contact Konmask.com via support@konmask.com or +0086 19859288691 for volume pricing, lead time, and availability confirmation.
- Place Order — Purchase directly through this product page or via purchase order (PO) for B2B accounts.
- Shipping — Standard international shipping via DHL/FedEx with tracking. Express options available. Export documentation (commercial invoice, packing list, HS code 8537.10) provided.
- Incoming Inspection — Recommended: verify firmware revision label, inspect connector pins, and perform bench power-on test before installation.
Technical FAQ
Q: Is IC693DNM200-BC compatible with all Series 90-30 CPUs?
A: It is compatible with Series 90-30 CPUs running firmware version 9.0 or later. Verify CPU firmware before installation. Refer to GFK-1504 for full compatibility matrix.
Q: Can this module operate as a DeviceNet Slave?
A: No. The IC693DNM200-BC is a Master-only module. For slave functionality, GE offers separate slave interface modules.
Q: What software is required for configuration?
A: GE Proficy Machine Edition (PME) with the Series 90-30 hardware library. Legacy Logicmaster 90-30 software is not supported for DeviceNet configuration.
Q: What is the maximum cable length for the DeviceNet network?
A: Maximum trunk cable length depends on baud rate: 500m at 125 Kbps, 250m at 250 Kbps, 100m at 500 Kbps (per ODVA DeviceNet specification).
Q: Is a termination resistor required?
A: Yes. A 121Ω, 1% tolerance termination resistor must be installed at both ends of the DeviceNet trunk cable.
Q: What does firmware revision “BC” indicate?
A: “BC” is the factory firmware revision loaded at manufacture. It represents the latest stable release for this module variant and includes all known bug fixes from prior revisions.
