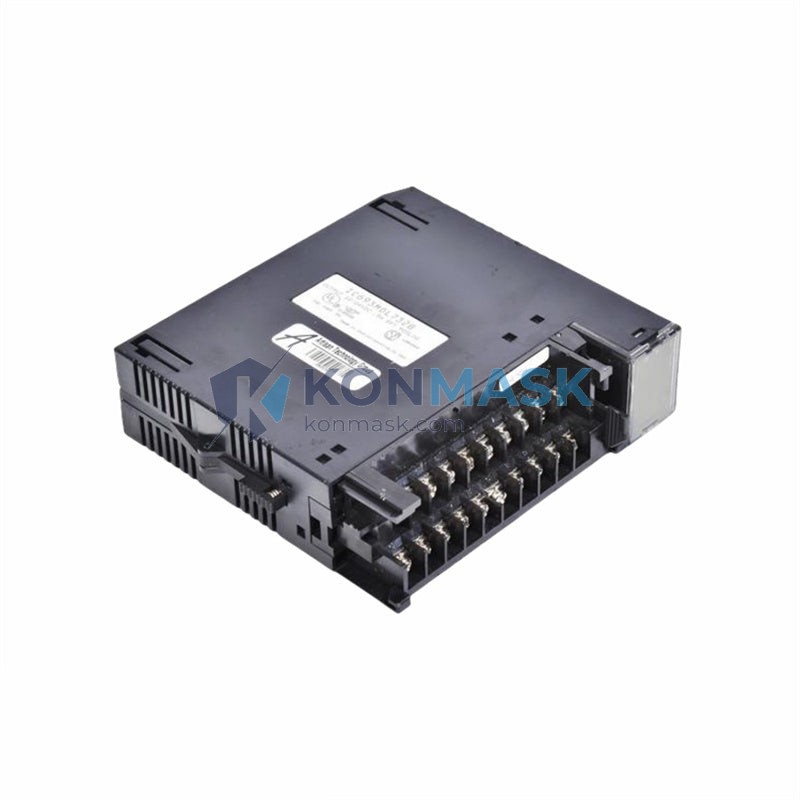

GE IC693MDL732 – 24VDC Discrete Output Module | Series 90-30 PLC

Description

GE IC693MDL732 – 24VDC Discrete Output Module | Series 90-30 PLC Platform

In high-demand discrete control environments — automotive assembly lines, water treatment facilities, packaging machinery — the reliability of every output signal is non-negotiable. The GE IC693MDL732 is a 32-point, 24VDC sourcing discrete output module engineered for the GE Series 90-30 PLC platform, delivering deterministic switching performance in the most demanding industrial cycles.

Product Positioning: The IC693MDL732 serves as the workhorse output interface for Series 90-30 control systems, providing high-density I/O expansion with individual point diagnostics and solid-state switching. It is the preferred choice for procurement engineers replacing aging discrete output cards or expanding existing Series 90-30 racks without controller migration.

Complete Technical Specifications

Part Number: IC693MDL732
Manufacturer: GE (General Electric Automation / now Emerson / Proficy)
Platform: Series 90-30 PLC (IC693 family)
Module Type: Discrete Output Module
Output Points: 32 points (2 groups of 16)
Output Voltage: 24VDC (sourcing / positive logic)
Output Current: 0.5A per point, 4A per group
Output Type: Solid-state transistor (sourcing)
Isolation: Optical isolation between field and backplane
Backplane Current Draw: 5VDC @ 350mA typical
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C
Humidity: 5% to 95% non-condensing
Dimensions: Standard Series 90-30 single-slot module
Weight: Approx. 1,470 g (packaged)
Certifications: UL Listed, CE Marked, cUL
Compatible Racks: IC693CHS391, IC693CHS392, IC693CHS393, IC693CHS398, IC693CHS399
Compatible CPUs: IC693CPU311, IC693CPU313, IC693CPU321, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374

Proven Application Environments

Automotive Manufacturing: Conveyor control, robotic end-effector actuation, fixture clamping solenoids
Water & Wastewater: Pump motor starters, valve actuators, alarm annunciators
Food & Beverage: Filling machine outputs, labeling actuators, reject gate control
Packaging Machinery: Pneumatic cylinder control, sealing element activation, reject diverters
Building Automation: HVAC damper control, lighting relay switching, access control outputs
Oil & Gas: Valve position control, shutdown relay actuation, field device switching

Engineering Advantages

High-Density I/O: 32 output points in a single rack slot — maximizes rack utilization and reduces hardware footprint
Solid-State Reliability: No mechanical contacts to wear; rated for millions of switching cycles
Individual Point Diagnostics: Per-point status LEDs enable rapid field troubleshooting without test equipment
Optical Isolation: Protects backplane and CPU from field-side voltage transients and ground loops
Hot-Swap Compatible: Supports module replacement under power in supported rack configurations (verify with system integrator)
Deterministic Scan: Output updates synchronized with CPU scan cycle for precise timing control

System Architecture & Signal Flow

The IC693MDL732 occupies a single I/O slot in any Series 90-30 rack. The CPU writes output data to the module’s backplane interface each scan cycle. The module’s internal logic latches the output states and drives the solid-state transistor outputs through optical isolators to the field wiring terminals. Each output group shares a common return, with individual fusing recommended at the field terminal block for overcurrent protection. The module reports output status back to the CPU for diagnostic ladder logic.

Wiring Configuration: Field wiring connects to the 40-pin removable terminal block (IC693ACC300 or equivalent). Positive 24VDC supply connects to the group common; individual output terminals switch the load return path (sourcing configuration).

Sourcing & Quality Verification

Source: Authorized distributor stock and verified surplus channels
Inspection: Each unit undergoes visual inspection, label verification, and functional bench test prior to shipment
Authenticity: Counterfeit screening performed — firmware revision and hardware markings verified against GE documentation
Packaging: Anti-static bag, foam-lined carton, humidity indicator card
Warranty: 12-month operational warranty from Konmask.com
Traceability: Lot documentation and test records available upon request for critical applications

Procurement Process

Submit your part number and required quantity via the quote form or email support@konmask.com
Receive availability confirmation and pricing within 1 business day
Review and approve the proforma invoice
Payment processed via T/T, PayPal, or approved credit terms
Module ships within 3–5 business days; expedited options available
Tracking number and test report provided at shipment

Technical FAQ

Q: Is the IC693MDL732 compatible with Series 90-70 racks?
A: No. The IC693 family is exclusively for Series 90-30 racks. Series 90-70 uses the IC697 module family with a different backplane architecture.

Q: Can this module drive 120VAC loads directly?
A: No. The IC693MDL732 is a 24VDC output module. For 120VAC loads, use the IC693MDL740 (relay output) or IC693MDL742 (120VAC solid-state output) instead.

Q: What is the maximum inrush current for capacitive or motor loads?
A: The solid-state outputs can handle brief inrush up to 2A per point for <10ms. For sustained high-inrush loads, interpose a relay rated for the inrush current.

Q: Does the module support individual point forcing from the programmer?
A: Yes. Using Proficy Machine Edition or Logicmaster 90-30, individual output points can be forced ON or OFF for commissioning and troubleshooting.

Q: What is the lead time for new stock?
A: In-stock units ship within 3–5 business days. For large quantities or new production units, lead time is 8–14 weeks. Contact us for current availability.
