Discrete Output Control Solution – GE IC693MDL742C | Series 90-30
Where This Product Is Used

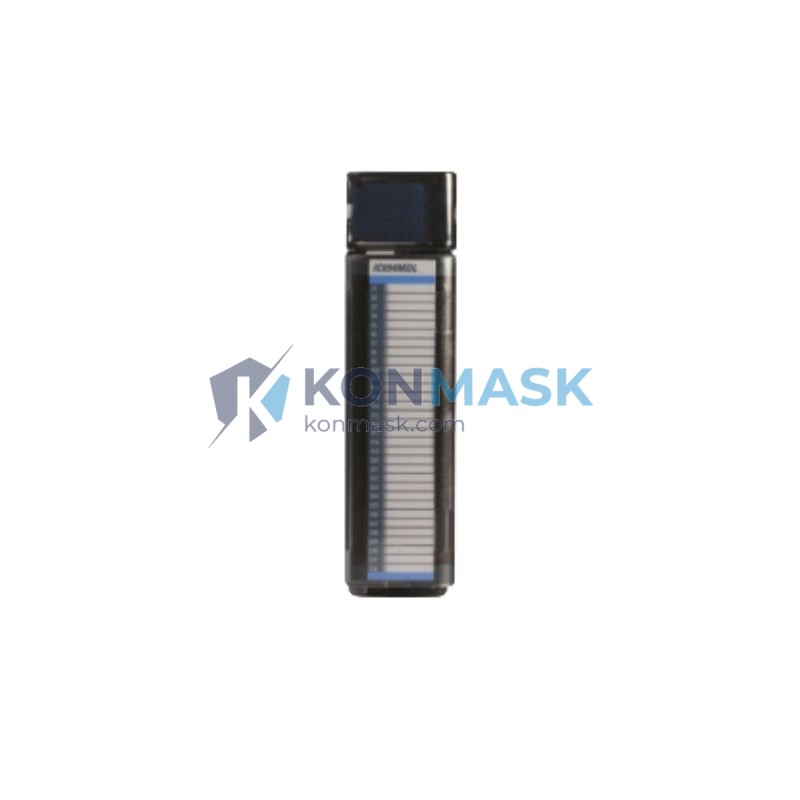

The GE IC693MDL742C is a 32-point, 12/24VDC sourcing discrete output module designed for the GE Fanuc Series 90-30 PLC platform. It is widely deployed across demanding industrial environments where reliable digital output control is critical:
- Automotive Assembly Lines – Controls solenoid valves, actuators, and conveyor drives in body-in-white and powertrain assembly stations.
- Food & Beverage Processing – Drives pneumatic cylinders, filling heads, and packaging machinery in hygienic production environments.
- Water & Wastewater Treatment – Operates pump starters, valve actuators, and blower controls in SCADA-integrated treatment plants.
- Pharmaceutical Manufacturing – Interfaces with cleanroom equipment, sterilization systems, and batch process actuators under GMP compliance.
- Material Handling & Logistics – Controls sorters, diverters, and conveyor zone drives in distribution center automation.
- Oil & Gas Upstream/Midstream – Activates field devices, shutdown valves, and motor starters in remote RTU/PLC panels.
- Building Automation & HVAC – Manages damper actuators, fan starters, and lighting control relays in BMS-integrated facilities.
Technical Specifications
| Part Number | IC693MDL742C |
| Manufacturer | GE Fanuc / GE Automation & Controls |
| Platform | Series 90-30 PLC |
| Module Type | Discrete Output Module |
| Output Points | 32 Points |
| Output Voltage | 12/24 VDC |
| Output Type | Sourcing (PNP) |
| Output Current | 0.5 A per point |
| Total Module Current | 4 A maximum |
| Isolation | Optical isolation between field and logic |
| Backplane Current (5V) | 800 mA |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Form Factor | Single-slot Series 90-30 rack module |
| Connector Type | 40-pin field wiring connector |
| Revision | C (latest production revision) |
Why Engineers Specify This Model
- High Point Density – 32 outputs in a single slot minimizes rack space and reduces system cost versus 16-point alternatives.
- Sourcing (PNP) Architecture – Directly compatible with the majority of modern industrial sensors, solenoids, and actuators without additional interface relays.
- Optical Isolation – Protects the CPU backplane from field-side voltage transients, ground loops, and inductive kickback from inductive loads.
- Proven Series 90-30 Ecosystem – Drop-in compatible with all Series 90-30 base units (IC693CHS391, IC693CHS392, IC693CHS393, IC693CHS397) and CPUs.
- Revision C Reliability – The C suffix denotes the latest production revision incorporating GE field-feedback improvements for enhanced long-term reliability.
- Diagnostic LED Indicators – Per-point output status LEDs enable rapid field troubleshooting without a programmer or HMI.
- Low Heat Dissipation – Efficient solid-state design minimizes thermal load in densely populated control panels.
Complete System Bill of Materials
For a fully operational Series 90-30 discrete output control system, engineers typically specify the following alongside the IC693MDL742C:
- CPU Module – IC693CPU374 / IC693CPU375 / IC693CPU364 (Series 90-30 CPU)
- Power Supply – IC693PWR321 (120/240 VAC input, 30W) or IC693PWR322 (24 VDC input)
- Rack / Baseplate – IC693CHS391 (5-slot) / IC693CHS392 (10-slot) / IC693CHS397 (10-slot, expanded)
- Discrete Input Module – IC693MDL654 (32-point 24VDC input) for paired I/O architecture
- Field Wiring Connector – IC693ACC300 (40-pin connector kit, if not included)
- Programming Software – Proficy Machine Edition (ME) Logic Developer – PLC
- Programming Cable – IC690USB901 (USB-to-Serial SNP adapter) or IC693CBL316
- Surge Protection – Phoenix Contact or Weidmuller DIN-rail surge arrestors for field wiring
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive and EMC Directive
- UL Listed – UL 508 (Industrial Control Equipment)
- RoHS Compliant – Restriction of Hazardous Substances (EU Directive 2011/65/EU)
- IEC 61131-2 – Programmable Controllers – Equipment Requirements and Tests
- NEMA / IEC Enclosure Compatibility – Designed for installation in NEMA 4 / IP54 or better enclosures
- FCC Part 15 Class A – Electromagnetic emissions compliance for industrial environments
Quality Assurance & Sourcing
At Konmask.com, every IC693MDL742C unit is subject to a rigorous multi-stage quality process before shipment:
- Authenticity Verification – All units are sourced from authorized distributors or directly from GE-certified supply chains. Counterfeit screening is performed on every batch.
- Visual & Physical Inspection – Board-level inspection for component integrity, connector condition, and revision marking accuracy.
- Functional Power-On Test – Each module is bench-tested in a live Series 90-30 rack to verify backplane communication and output point operation.
- ESD-Safe Packaging – Shipped in anti-static bags with foam cushioning inside double-wall corrugated cartons.
- Traceability – Lot numbers and inspection records are retained for 3 years post-shipment.
- Warranty – 12-month warranty against manufacturing defects and functional failure under normal operating conditions.
How to Source This Part
- Confirm Revision Requirement – Verify your existing rack accepts Revision C (all Series 90-30 racks are backward compatible).
- Check Quantity & Lead Time – Contact us at support@konmask.com for real-time stock levels and bulk pricing.
- Request a Quotation – Provide your full BOM for consolidated shipping and volume discount evaluation.
- Place Order – Add to cart directly or submit a purchase order via email for NET-30 terms (approved accounts).
- Expedited Shipping Available – DHL Express, FedEx International Priority, and UPS Worldwide available for urgent requirements.
Application-Specific FAQ
Q: Is the IC693MDL742C compatible with all Series 90-30 CPUs?
A: Yes. It is compatible with all Series 90-30 CPUs including IC693CPU311, IC693CPU321, IC693CPU331, IC693CPU341, IC693CPU351, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374, and IC693CPU375.
Q: Can this module drive relay coils directly?
A: Yes, provided the relay coil voltage is 12 or 24 VDC and the coil current does not exceed 0.5 A per point. A flyback diode across the coil is strongly recommended to suppress inductive transients.
Q: What is the difference between IC693MDL742 and IC693MDL742C?
A: The suffix C denotes the current production revision. Revision C incorporates component-level improvements over earlier revisions (A, B) for enhanced reliability. All revisions are functionally interchangeable and rack-compatible.
Q: Can I mix IC693MDL742C with input modules in the same rack?
A: Yes. Series 90-30 racks support mixed I/O configurations. The IC693MDL742C occupies one slot and can be placed in any I/O slot position.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC is available upon request at time of order. Please specify this requirement when placing your order.
Q: What is the lead time for out-of-stock units?
A: Typical lead time for sourced units is 3 to 10 business days. Expedited sourcing is available for critical production downtime situations — contact us immediately at +0086 19859288691.
