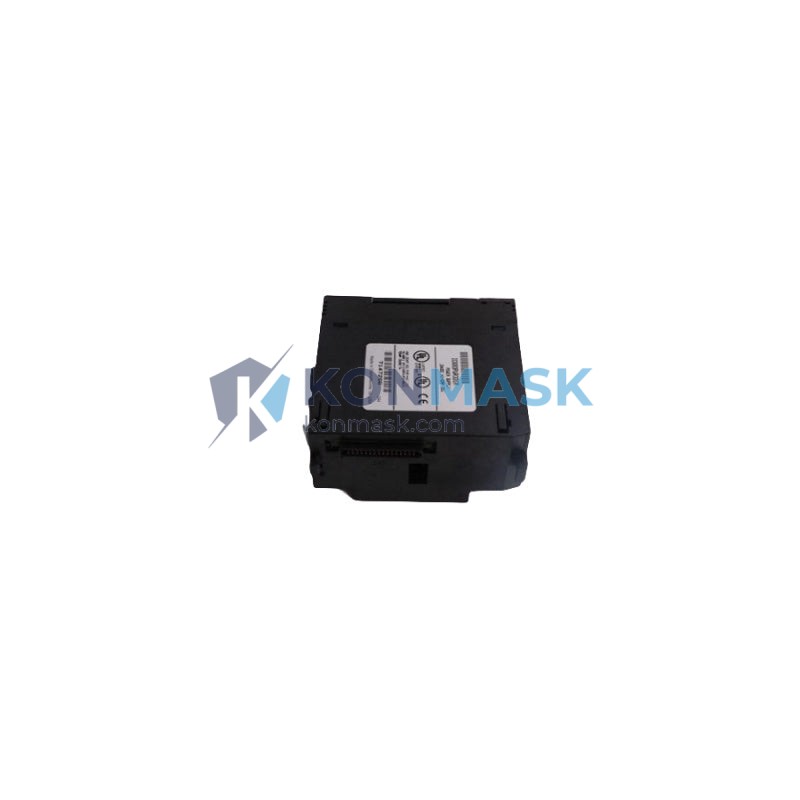

GE IC693PWR322 – Standard Power Supply Module | Series 90-30 PLC Platform
Engineering Background: The GE IC693PWR322 is a standard AC power supply module designed for the GE Fanuc Series 90-30 programmable logic controller (PLC) platform — one of the most widely deployed mid-range PLC families in North American industrial automation. Introduced as part of the IC693 hardware family, this module provides regulated DC bus power to the Series 90-30 CPU and I/O modules mounted in the same baseplate rack.
Product Positioning: Targeted at procurement engineers and MRO buyers sourcing replacement or spare power supplies for existing Series 90-30 installations, the IC693PWR322 is the entry-level standard power supply in the IC693 power supply lineup. It is the correct choice for systems with moderate power budgets that do not require the higher current capacity of the IC693PWR330 or IC693PWR331. Konmask.com supplies this module as a verified OEM unit with full traceability.
Complete Technical Specifications
- Part Number: IC693PWR322
- Manufacturer: GE Fanuc Automation (now GE Vernova / Emerson)
- Series / Platform: Series 90-30 (IC693 family)
- Module Type: Standard AC Power Supply
- Input Voltage: 120 VAC / 240 VAC (auto-ranging or switch-selectable, 47–63 Hz)
- Output Voltage: +5 VDC (logic bus), +24 VDC (field power, limited)
- Output Current (5V bus): 1.7 A (typical rated capacity)
- Power Rating: Standard (lower capacity vs. PWR330/PWR331)
- Backplane Compatibility: IC693CHS391, IC693CHS392, IC693CHS393, IC693CHS398, IC693CHS399 (5-slot, 10-slot baseplates)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Weight: 990 g (approx.)
- Mounting: Snap-in to Series 90-30 baseplate, leftmost slot
- Certifications: UL Listed, CE Marked (original OEM)
- Country of Origin: USA (OEM production)
Proven Application Environments
- Discrete Manufacturing: Assembly lines, conveyor control, machine tool sequencing using Series 90-30 CPUs (IC693CPU311–IC693CPU374)
- Building Automation: HVAC control panels, lighting management, and access control systems built on the 90-30 platform
- Water & Wastewater: Pump station control, level monitoring, and valve sequencing in municipal infrastructure
- Food & Beverage: Packaging line control, batch processing, and conveyor management
- MRO / Spare Parts: Direct replacement for failed or aging IC693PWR322 units in legacy 90-30 systems still in production service
- OEM Machine Builders: Original equipment manufacturers maintaining Series 90-30-based machine designs for long-term customer support
Engineering Advantages
- Platform Longevity: Series 90-30 systems remain operational in thousands of facilities worldwide; the IC693PWR322 ensures continued uptime without full system replacement
- Plug-and-Play Replacement: Direct form-fit-function replacement — no firmware changes, no reconfiguration required when swapping a failed unit
- Regulated DC Output: Stable 5 VDC bus maintains CPU and I/O module logic integrity under varying load conditions
- Compact Footprint: Occupies only the dedicated power supply slot on the baseplate, preserving all I/O expansion slots
- Wide AC Input Range: Compatible with both 120 VAC (North America) and 240 VAC (international) panel wiring
- Proven Reliability: OEM-grade construction with industrial-rated components for 24/7 continuous operation
System Architecture & Signal Flow
The IC693PWR322 mounts in the leftmost dedicated power supply slot of any Series 90-30 baseplate. AC mains power (120 or 240 VAC) is wired directly to the module’s terminal block. The module converts AC input to regulated +5 VDC logic bus power distributed across the backplane to all installed CPU and I/O modules. A secondary +24 VDC output (limited current) is available for field device power where required. The module does not occupy a logical I/O slot — it is transparent to the PLC program and requires no software configuration. LED status indicators on the front face provide visual confirmation of power-good status.
Baseplate Power Budget Note: For systems with high I/O density or modules with elevated 5V current draw (e.g., analog modules, communication modules), verify total 5V load against the IC693PWR322’s 1.7A rating. If the budget is exceeded, upgrade to IC693PWR330 (2.0A) or IC693PWR331 (3.0A).
Sourcing & Quality Verification
- Source: OEM-original GE Fanuc / GE Automation units — no third-party remanufacturing
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on check prior to shipment
- Traceability: Lot and date code documentation available upon request for critical applications
- Packaging: Anti-static bag + foam-lined carton for safe international transit
- Warranty: 12-month Konmask warranty against manufacturing defects
- Counterfeit Risk Mitigation: Sourced exclusively from verified industrial distributors and decommissioned OEM equipment — not gray-market channels
Procurement Process
- Confirm Part Number: Verify IC693PWR322 against your existing module label or GE system documentation
- Check Power Budget: Confirm your baseplate’s total 5V load is within 1.7A; if not, consider IC693PWR330/PWR331
- Request Quote: Contact support@konmask.com with quantity and required delivery timeline
- Order Confirmation: PO accepted via email; proforma invoice issued within 1 business day
- Shipping: DHL / FedEx international express; typical transit 3–7 business days
- Incoming Inspection: Recommended — verify part number label, inspect for physical damage, perform power-on test before installation
Technical FAQ
Q: Is the IC693PWR322 compatible with all Series 90-30 baseplates?
A: Yes — it is compatible with all standard IC693 5-slot and 10-slot baseplates (IC693CHS391/392/393/398/399). It is not compatible with Series 90-70 or Series 90-20 hardware.
Q: Can I replace an IC693PWR322 with an IC693PWR330 or PWR331?
A: Yes. The PWR330 and PWR331 are higher-capacity drop-in replacements. They occupy the same slot and require no software changes — they simply provide more 5V current headroom.
Q: Does this module require any configuration in Proficy Machine Edition (PME)?
A: No. The power supply is not a configurable module in PME. It is automatically recognized by the system as the baseplate power source.
Q: What are the symptoms of a failing IC693PWR322?
A: Common symptoms include intermittent CPU faults, random I/O module dropouts, system restarts under load, and the PWR LED extinguishing or flickering. Replace the power supply as the first diagnostic step.
Q: Do you provide a test report or certificate of conformance?
A: Yes — available upon request for orders requiring documentation. Contact support@konmask.com.
