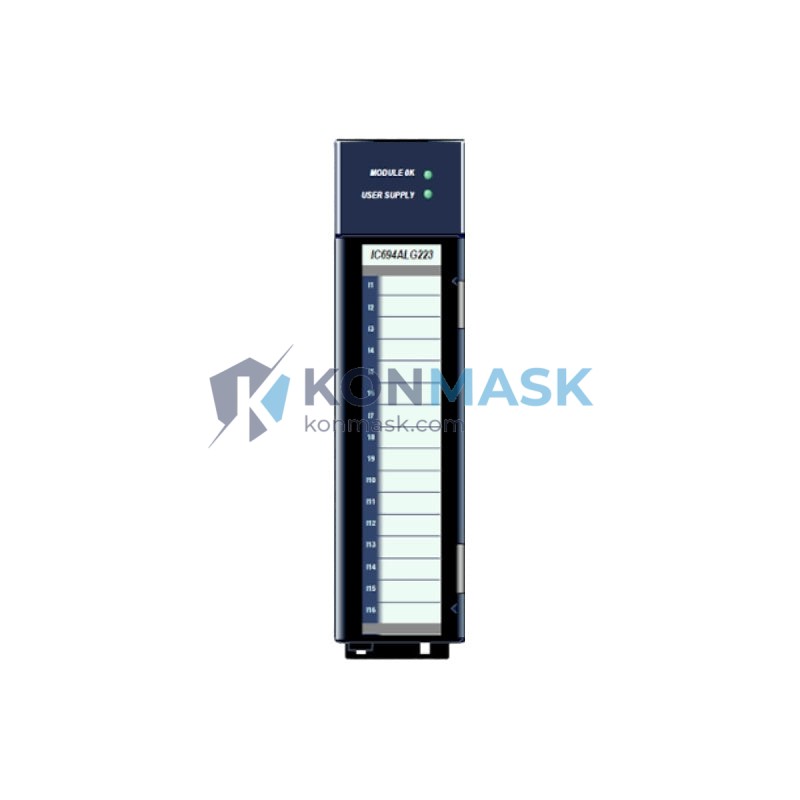

Genuine GE IC694ALG223 Analog Input Module | Series 90-30 PLC – Verified Source
The GE IC694ALG223 is a 4-channel analog input module designed for the GE Fanuc Series 90-30 PLC platform. Sourced directly through verified industrial automation supply channels, every unit sold by Konmask.com undergoes multi-point authenticity and functional inspection before dispatch. Ideal for process control, machine automation, and data acquisition applications requiring reliable analog signal conditioning.
Technical Specifications
- Part Number: IC694ALG223
- Manufacturer: GE Fanuc / GE Automation & Controls
- Series: Series 90-30 PLC
- Module Type: Analog Input
- Number of Channels: 4 (differential)
- Input Range: ±10 V DC / 0–20 mA / 4–20 mA (software selectable)
- Resolution: 12-bit (1 in 4,096)
- Isolation: Channel-to-backplane isolated
- Backplane Current Draw: 250 mA @ +5 V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Weight: Approx. 500 g
- Form Factor: Single-slot Series 90-30 I/O module
- Compliance: CE, UL Listed, RoHS
Our 4-Step Quality Verification Process
Every IC694ALG223 unit shipped from Konmask.com passes through our rigorous 4-step verification protocol:
- Step 1 — Visual Inspection: Physical examination of PCB, connectors, labeling, and housing for signs of counterfeit, damage, or refurbishment without disclosure.
- Step 2 — Firmware & Label Authentication: Cross-reference of firmware revision, date codes, and OEM label markings against GE Fanuc manufacturer records.
- Step 3 — Functional Bench Test: Module is powered and tested on a Series 90-30 rack to confirm analog channel response, calibration accuracy, and backplane communication.
- Step 4 — Packaging & Documentation Review: Unit is repackaged with anti-static protection and accompanied by a Konmask inspection certificate and, where available, original OEM documentation.
Key Features & Benefits
- ✅ Genuine OEM Part — not a clone, not a refurbished unit sold as new without disclosure
- ✅ 4 Differential Analog Input Channels — reduces common-mode noise in industrial environments
- ✅ Software-Selectable Input Range — voltage and current modes configurable via Proficy Machine Edition or Logicmaster 90
- ✅ 12-Bit Resolution — sufficient precision for most process control and SCADA applications
- ✅ Drop-In Replacement — fully backward compatible with existing Series 90-30 racks and CPUs
- ✅ Immediate Availability — in-stock units ready for same-week dispatch
- ✅ Konmask Inspection Certificate — included with every shipment for your procurement records
Typical Applications
- Process temperature and pressure monitoring via 4–20 mA transmitters
- Flow measurement and control in water treatment and chemical plants
- Machine tool feedback loops requiring precise analog signal acquisition
- SCADA and DCS integration for legacy GE Fanuc Series 90-30 installations
- Retrofit and maintenance replacement for aging automation infrastructure
- OEM equipment repair and spare-parts inventory management
Compatible System Components
- CPUs: IC693CPU311, IC693CPU313, IC693CPU323, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374
- Racks: IC693CHS391, IC693CHS392, IC693CHS393, IC693CHS398, IC694CHS392, IC694CHS398
- Power Supplies: IC693PWR321, IC693PWR322, IC693PWR330, IC694PWR321, IC694PWR330, IC694PWR331
- Programming Software: GE Proficy Machine Edition 8.x+, Logicmaster 90-30/20/Micro
- Related Analog Modules: IC694ALG220, IC694ALG221, IC694ALG222, IC694ALG390, IC694ALG391
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist industrial automation parts supplier with global reach. We maintain stock across key automation brands and ship worldwide with full export documentation support.
- Shipping Origins: China (Mainland) — Xiamen / Shenzhen hubs
- Supported Carriers: DHL Express, FedEx International Priority, UPS Worldwide, SF Express International, EMS
- Typical Lead Time: In-stock orders dispatched within 1–3 business days; express delivery 3–7 business days to most destinations
- Export Documentation: Commercial invoice, packing list, certificate of origin, and Konmask inspection certificate provided as standard
- Customs Support: HS Code 8537.10 applicable; we assist with customs declaration documentation upon request
- Minimum Order: 1 unit; volume pricing available for orders of 5+ units — contact us for a quote
Certifications & Compliance Statement
The GE IC694ALG223 is manufactured to the following standards. Konmask.com only sources units that carry valid certification markings:
- CE Marking — Conformity with EU Machinery Directive and EMC Directive
- UL Listed — Underwriters Laboratories industrial control equipment listing
- RoHS Compliant — Restriction of Hazardous Substances (EU Directive 2011/65/EU)
- ISO 9001 Supply Chain — Konmask.com procurement and inspection processes are conducted under ISO 9001-aligned quality management principles
Note: Konmask.com is an independent authorized reseller and spare-parts specialist. We are not an official GE distributor. All trademarks remain the property of their respective owners.
How to Order
- Add to Cart — Click “Add to Cart” or “Buy Now” on this page.
- Request a Quote — For bulk orders (5+ units) or special requirements, email [email protected] with your quantity, destination, and required delivery date.
- Payment Methods — We accept T/T (bank transfer), PayPal, credit card (Visa/Mastercard), and Western Union for international orders.
- Order Confirmation — You will receive an order confirmation and proforma invoice within 1 business day.
- Dispatch & Tracking — Tracking number provided via email upon shipment. Real-time tracking available through the carrier portal.
Authenticity & Trust FAQ
Q: How do I know this is a genuine GE part and not a counterfeit?
A: Every unit passes our 4-step verification process (see above). We provide a Konmask inspection certificate with each order. If you have any concerns upon receipt, contact us within 7 days for a full investigation and replacement or refund.
Q: Is this a new, used, or refurbished unit?
A: We clearly disclose the condition of each unit on the product listing. Unless explicitly stated as “refurbished” or “used — tested”, all units are sold as new or new-surplus (unused, original packaging where available).
Q: Can you provide a datasheet or GE product documentation?
A: Yes. Email [email protected] and we will provide the GE Fanuc IC694ALG223 User Manual and datasheet at no charge.
Q: What is your return policy?
A: We offer a 30-day return policy for units that are DOA (dead on arrival) or not as described. Units must be returned in original condition with the Konmask inspection certificate. See our full Returns Policy for details.
Q: Do you offer a warranty?
A: Yes — all units carry a 90-day Konmask functional warranty. Extended warranty options are available for volume orders.
Q: Can you source other GE Fanuc / GE Automation parts not listed on your site?
A: Absolutely. We specialize in hard-to-find and obsolete automation components. Send your part number to [email protected] and we will respond with availability and pricing within 24 hours.
