GE DS200FCRRG1AKD Firing Circuit Board | Replacement, Equivalent & Selection Guide

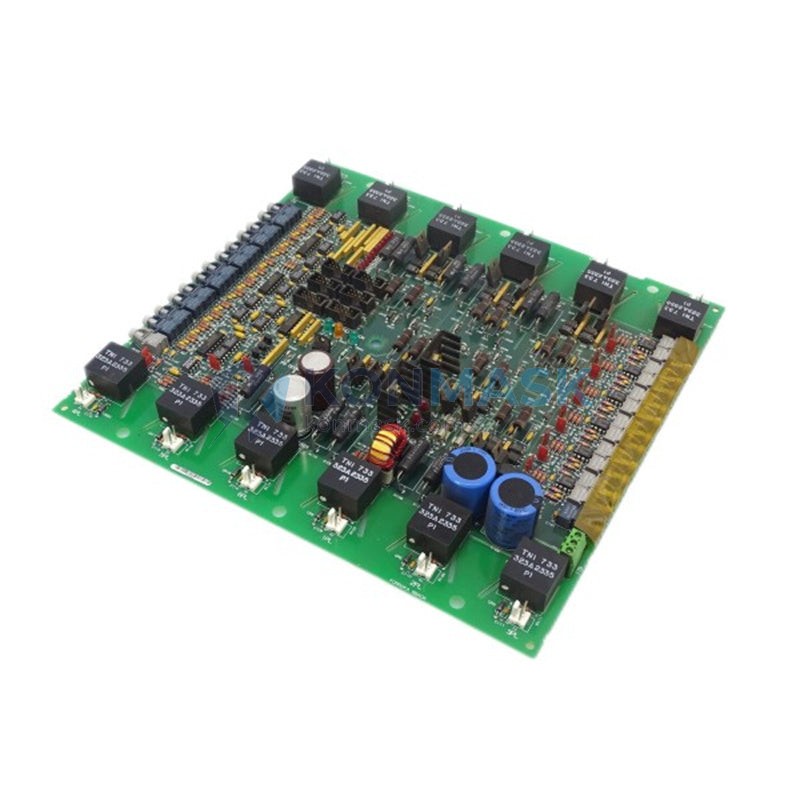

The GE DS200FCRRG1AKD is a Firing Circuit Board designed for use in General Electric Mark V Turbine Control Systems. It serves as the primary interface for firing pulse generation and gate drive signals to power thyristors/IGBTs in excitation and drive applications. This board is a critical component in GE’s LCI (Load Commutated Inverter) and EX2100 excitation platforms.
Selection Background: Why Replacement & Equivalent Models Matter
Industrial buyers sourcing the DS200FCRRG1AKD frequently search for replacement or equivalent options due to OEM lead times, obsolescence risk, or cost optimization. Understanding which models are direct drop-in replacements versus functional equivalents—and which cross-brand alternatives require engineering review—is essential before committing to a substitution. This guide captures the most common DS200FCRRG1AKD replacement, DS200FCRRG1AKD equivalent, and DS200FCRRG1AKD substitute queries to help you make an informed decision.
Technical Specifications
- Part Number: DS200FCRRG1AKD
- Manufacturer: General Electric (GE)
- Board Type: Firing Circuit / Gate Drive Board
- Compatible Platform: GE Mark V Turbine Control, LCI Drive Systems, EX2100 Excitation
- Operating Voltage: 5 VDC logic supply; isolated gate drive outputs
- Firing Channels: Multi-channel thyristor/IGBT gate pulse output
- Communication Interface: Internal backplane bus (Mark V VME-based)
- Form Factor: Single-width VME card
- Weight: ~380 g
- Operating Temperature: 0°C to +60°C
- Certifications: CE, UL (platform-level)
- ⚠️ Key Substitution Parameters: Firing channel count, gate pulse timing, backplane slot assignment, and firmware revision must match when evaluating any replacement.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements — Same form, fit, and function; no engineering change required:
- DS200FCRRG1BKD — Revised hardware revision of the same board; verify firmware compatibility with your Mark V controller revision before swapping.
- DS200FCRRG1AKD1 — Factory-refurbished variant with identical BOM; functionally interchangeable.
2. Functional Equivalents — Same function, minor hardware differences; engineering review recommended:
- DS200FCRRG1AFD — Alternate suffix indicating conformal coating; electrically equivalent but suited for higher-humidity environments.
- DS200FCRPG1A — Earlier-generation firing board used in Mark IV/V transition systems; pin-compatible in most slots but requires firmware validation.
3. Cross-Brand Alternatives — Third-party or aftermarket boards designed to replace DS200FCRRG1AKD; full system integration test required:
- Recon/Aftermarket DS200FCRRG1AKD — Remanufactured boards from certified repair facilities; must include test report and burn-in certification.
- Note: Non-OEM cross-brand alternatives for VME firing boards are not recommended without GE-authorized engineering sign-off due to timing-critical gate pulse requirements.
Why Choose the Original DS200FCRRG1AKD
- Precision Timing: Factory-calibrated gate pulse timing ensures thyristor firing accuracy within OEM tolerances, critical for LCI commutation reliability.
- OEM Certification: Fully certified for GE Mark V platforms; no additional system validation required upon installation.
- Backplane Compatibility: Guaranteed slot and bus compatibility with all Mark V VME chassis configurations.
- Firmware Alignment: Ships with firmware revision matched to current GE Mark V software releases.
- Technical Support: Konmask provides pre-sale compatibility verification and post-sale technical assistance for integration questions.
- Warranty & Traceability: Full traceability documentation and 12-month warranty against manufacturing defects.
Typical Applications
- Power Generation: Gas turbine and steam turbine excitation control in utility and industrial power plants.
- Oil & Gas: Compressor drive systems using GE LCI variable-frequency drives on offshore platforms and refineries.
- Petrochemical: Large motor soft-start and speed control in pump and blower applications.
- Steel & Metals: Rolling mill drive systems requiring precise thyristor firing for torque control.
- Marine: Ship propulsion systems with GE LCI drives requiring reliable gate drive boards.
- Water & Wastewater: High-power pump station variable-speed drives with Mark V control architecture.
System Compatibility
- DS200TCQAG1BHF — Turbine Control I/O Board; interfaces with firing board for sequence control signals.
- DS200SDCCG1AFB — Speed/Dynamics Control Card; provides reference signals to the firing circuit.
- DS200EXPSG1ADA — Power Supply Board; provides regulated 5 VDC and ±15 VDC to the firing board.
- DS200TBQCG1AEB — Terminal Board; external wiring interface for gate drive output connections.
- IS200TTURH1CBB — Turbine Trip Board; interlock signals that inhibit firing pulses on trip conditions.
- Mark V VME Chassis — Standard 6U VME backplane; DS200FCRRG1AKD occupies a dedicated firing slot.
Selection Guide
Answer these three questions before ordering to confirm compatibility:
- Platform Revision: What is your Mark V system software revision (R1x, R2x, R3x)? Firmware on the firing board must align with the controller revision to avoid timing faults.
- Firing Channel Count: How many thyristor/IGBT gate channels does your application require? Confirm the DS200FCRRG1AKD channel count matches your bridge configuration (6-pulse, 12-pulse, etc.).
- Environment Rating: Is your installation in a high-humidity or corrosive environment? If yes, consider the conformal-coated AFD variant instead.
Not sure? Contact Konmask at support@konmask.com or +0086 19859288691 — our engineers will verify compatibility before you order.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources DS200FCRRG1AKD boards through authorized GE distribution channels, certified surplus dealers, and GE-approved repair facilities. All units are traceable to original manufacturing records.
4-Step Inspection Process:
- Visual Inspection: PCB, connectors, and components checked for physical damage, corrosion, and counterfeit indicators.
- Functional Test: Board powered and tested on a Mark V-compatible test bench; all firing channels verified against OEM timing specifications.
- Firmware Verification: Firmware revision confirmed and documented; updated if required to match current GE release.
- Burn-In & Final QC: 48-hour burn-in cycle followed by final parametric check and packaging in ESD-safe materials.
Available Documentation: Test report, firmware revision record, certificate of conformance, and traceability documentation available upon request.
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number (DS200FCRRG1AKD), quantity, and Mark V system revision. Alternatively, call +0086 19859288691.
- Compatibility Verification: Our technical team reviews your system configuration and confirms the correct part or recommends a validated equivalent within 24 hours.
- Order Confirmation & Dispatch: Upon order confirmation, units are inspected, documented, and dispatched with full traceability paperwork. Express shipping available worldwide.
Replacement & Compatibility FAQ
Q1: Can I use DS200FCRRG1BKD as a direct replacement for DS200FCRRG1AKD?
In most cases, yes — the BKD revision is a hardware update to the same board and is considered a direct replacement for DS200FCRRG1AKD. However, you should verify that your Mark V controller firmware revision is compatible with the BKD hardware revision before installation. Contact Konmask for a pre-swap compatibility check.
Q2: Is DS200FCRRG1AKD compatible with both LCI drive systems and EX2100 excitation systems?
The DS200FCRRG1AKD is primarily designed for GE Mark V LCI drive applications. Compatibility with EX2100 excitation systems depends on the specific chassis and slot configuration. We recommend providing your full system BOM to Konmask for confirmation before ordering an equivalent for an EX2100 application.
Q3: Are aftermarket or third-party substitute boards safe to use in place of DS200FCRRG1AKD?
Aftermarket substitute boards exist but carry risk in timing-critical firing applications. Gate pulse timing deviations can cause thyristor commutation failures or system trips. Konmask only supplies OEM-original or GE-certified remanufactured units to eliminate this risk. If you are evaluating a third-party substitute, request a full test report and compare firing timing specifications against GE OEM data before installation.
