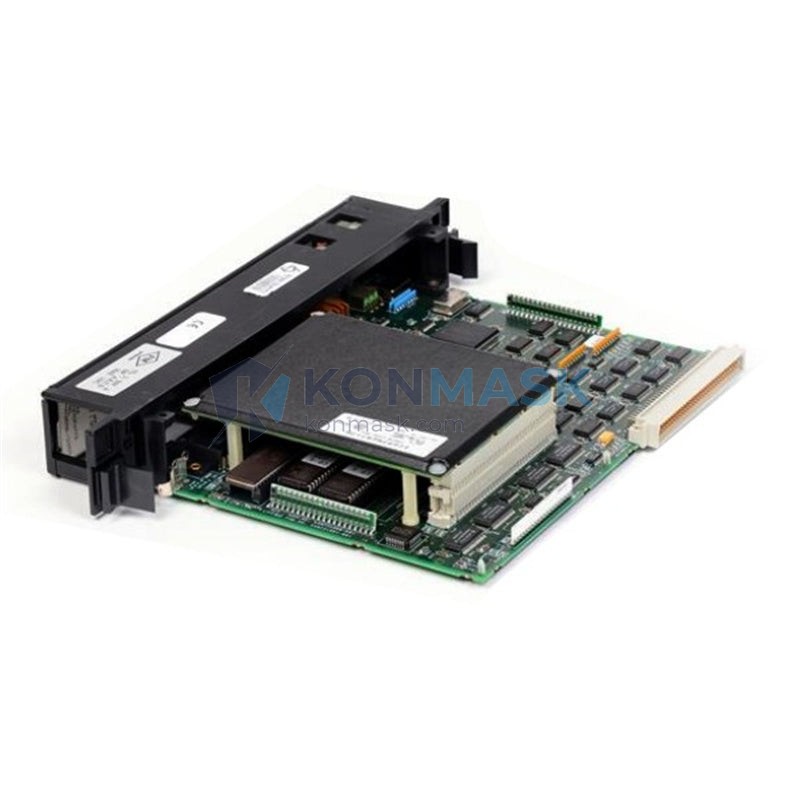

GE IC697CPU772 CPU Module | Series 90-70 PLC

GE IC697CPU772 – High-Performance CPU Module | Series 90-70 PLC Platform

Engineering Background: The GE Series 90-70 (S90-70) is a rack-based programmable logic controller platform that has served as the backbone of large-scale process automation in petrochemical refining, power generation, and municipal water treatment for over three decades. Within the S90-70 architecture, the CPU module is the deterministic execution engine responsible for scan-cycle management, I/O arbitration, and inter-rack communication. The IC697CPU772 occupies the high-performance tier of the S90-70 CPU lineup, delivering the processing headroom required for complex ladder/function-block programs with large I/O point counts and tight scan-time budgets.

Product Positioning: The IC697CPU772 is distinguished from entry-level S90-70 CPUs (IC697CPU731, IC697CPU771) by its expanded user memory (512 KB) and faster execution speed, making it the preferred replacement or upgrade path for plants running dense analog control loops, PID cascades, or multi-rack configurations. It is not a motion-control CPU and does not replace the IC697DSM302 servo module; its boundary condition is deterministic discrete/analog process control up to the rated I/O capacity.

Complete Technical Specifications

Electrical

• CPU Type: 32-bit RISC processor
• User Memory: 512 KB (program + data)
• Battery-Backed RAM: Yes (onboard lithium cell)
• Backplane Bus: VME-based S90-70 proprietary bus
• Power Consumption: 5 VDC @ 2.0 A (from rack power supply)
• Communication Ports: RS-232 serial (programmer port), optional Ethernet via CMM module
• Supported Networks: Genius Bus, Profibus-DP (via adapter), Ethernet TCP/IP (via IC697CMM742)

Mechanical

• Form Factor: Single-slot VME card, S90-70 rack compatible
• Compatible Racks: IC697CHS750, IC697CHS782, IC697CHS790 (5-, 9-, 16-slot)
• Slot Position: Slot 1 (mandatory)
• Weight: ~500 g
• Connector: 96-pin DIN 41612 backplane connector

Environmental

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: −40 °C to +85 °C
• Relative Humidity: 5 % to 95 % non-condensing
• Vibration: IEC 68-2-6, 10–57 Hz, 0.075 mm amplitude
• Shock: IEC 68-2-27, 15 g, 11 ms half-sine

Certifications

• UL Listed (UL 508)
• CE Marked (EMC Directive 2014/30/EU; LVD 2014/35/EU)
• RoHS Compliant
• ATEX: Not rated for Zone 0/1 — install in purged/pressurized enclosure for hazardous areas

Data source: GE Automation & Controls IC697CPU772 Product Data Sheet (GFK-0867); GE Series 90-70 PLC User’s Manual (GFK-0600).

Proven Application Environments

• Petrochemical Refining: Crude distillation unit | DCS/PLC hybrid architecture | Continuous 24/7 scan with 500+ analog I/O points and PID cascade control
• Thermal Power Generation: Boiler combustion management system | Multi-rack S90-70 configuration | Coordinated fuel/air ratio control under variable load conditions
• Municipal Water Treatment: SCADA-integrated pump station | Genius Bus I/O network | Redundant communication to HMI with alarm management for flow and pressure loops
• Chemical Batch Processing: Reactor sequencing system | Multi-step recipe execution | Deterministic scan timing critical for exothermic reaction phase transitions
• Offshore Oil & Gas Platform: Emergency shutdown (ESD) pre-logic | Installed in pressurized control room enclosure | High-vibration marine environment with extended MTBF requirement
• Pulp & Paper Mill: Stock preparation line | Profibus-DP field device integration via adapter | High-humidity environment with corrosive airborne particulates

Engineering Advantages

• For dense analog control applications, this CPU module delivers 512 KB user memory, because larger program and data tables eliminate the memory fragmentation that causes scan overruns in legacy 128 KB CPUs.
• For multi-rack S90-70 installations, this CPU module maintains deterministic I/O arbitration across up to 7 expansion racks, because the VME backplane arbitration logic is implemented in hardware, not firmware polling.
• For plants requiring minimal downtime during CPU replacement, this CPU module retains program and data in battery-backed RAM during power cycling, because the onboard lithium cell maintains SRAM state for up to 6 months without rack power.
• For Genius Bus networks with 32+ field devices, this CPU module sustains bus scan rates without CPU loading penalties, because Genius Bus communication is handled by a dedicated co-processor independent of the main scan cycle.
• For facilities standardized on GE Proficy Machine Edition, this CPU module is fully supported by the current ME 9.x toolchain, because GE preserved backward compatibility across the S90-70 CPU family in the programming environment.
• For procurement engineers sourcing end-of-life hardware, this CPU module is available as a tested, serialized unit with traceable inspection records, because Konmask.com maintains documented incoming inspection and functional verification protocols for all legacy GE modules.

System Architecture & Signal Flow

Signal Flow: Field sensors → I/O modules (IC697MDL series) → S90-70 backplane bus → IC697CPU772 scan cycle (input image table update → program execution → output image table write) → I/O modules → field actuators. For Genius Bus: field devices → Genius Bus Controller (IC697BEM731) → backplane → CPU scan.

Compatible Modules (same rack):

• IC697MDL340 / IC697MDL341 – Discrete input modules (compatible: share same VME backplane addressing)
• IC697MDL740 / IC697MDL741 – Discrete output modules
• IC697ALG230 / IC697ALG320 – Analog I/O modules
• IC697BEM731 – Genius Bus Controller (compatible: CPU manages bus scan via dedicated co-processor)
• IC697CMM742 – Ethernet TCP/IP module (compatible: CPU communicates via backplane message passing)
• IC697PWR710 / IC697PWR724 – Rack power supplies (required: must match rack model)

Substitution Conditions: The IC697CPU772 can substitute for IC697CPU771 (identical pinout, larger memory) and IC697CPU760 (same slot, firmware upgrade required). It cannot substitute for IC697CPU915 (CPX series — different backplane architecture) or any Series 90-30 CPU without rack and I/O module replacement.

Sourcing & Quality Verification

Units are sourced from decommissioned industrial control panels, authorized distributor overstock, and factory-refurbished channels. Each unit undergoes a 4-step incoming inspection before listing:

1. Visual Inspection: PCB examined for corrosion, burnt components, cracked traces, and connector pin integrity under 10× magnification.
2. Functional Power-On Test: Module installed in S90-70 test rack; CPU boot sequence verified; OK/FAULT LED status confirmed.
3. Memory Verification: Battery-backed RAM tested for data retention; program load/verify cycle executed via Proficy Machine Edition.
4. Serial Number & Firmware Logging: Unit serial number, firmware revision, and test date recorded in inspection log.

Documents available upon request: Inspection report with serial number, firmware version record, GE original datasheet (GFK-0867), functional test log, and certificate of conformance.

Procurement Process

1. Inquiry: Submit model number, required quantity, and delivery timeline via email (support@konmask.com) or phone (+0086 19859288691). Include firmware version requirement if applicable.
2. Quotation & Confirmation: A detailed quotation including unit price, inspection status, lead time, and shipping options will be issued within 24 hours on business days. Stock availability is confirmed at time of quotation.
3. Order & Dispatch: Payment confirmation triggers same-day or next-business-day dispatch. Export documentation (commercial invoice, packing list, certificate of origin) provided for international shipments. Technical support available post-delivery for installation verification and compatibility questions.

Technical support types available: Pre-sales compatibility consultation, firmware version guidance, rack configuration review, and post-installation fault diagnosis via email or video call.

Technical FAQ

Q: Is the IC697CPU772 compatible with Series 90-70 racks purchased before 1998?
A: Yes. The IC697CPU772 uses the standard S90-70 VME backplane interface, which has remained electrically unchanged across all rack generations (IC697CHS750, IC697CHS782, IC697CHS790). No rack modification is required.

Q: Can the IC697CPU772 replace an IC697CPU771 without reprogramming?
A: In most cases, yes. Both modules share the same instruction set and backplane pinout. The IC697CPU772 provides more user memory (512 KB vs. 256 KB), so existing programs load without modification. Verify firmware revision compatibility with the programming software version in use; a firmware update may be required for Proficy ME 9.x on older CPU772 units.

Q: Is this module certified for use in SIL-rated safety instrumented systems?
A: The IC697CPU772 is not IEC 61508 / SIL certified as a standalone safety CPU. For SIL 1–3 applications, a dedicated safety PLC (e.g., GE RX3i with IC695CPU320 and safety firmware) is required. The IC697CPU772 may be used in the basic process control system (BPCS) layer alongside a separate SIS, per IEC 61511 layer-of-protection architecture.

---
