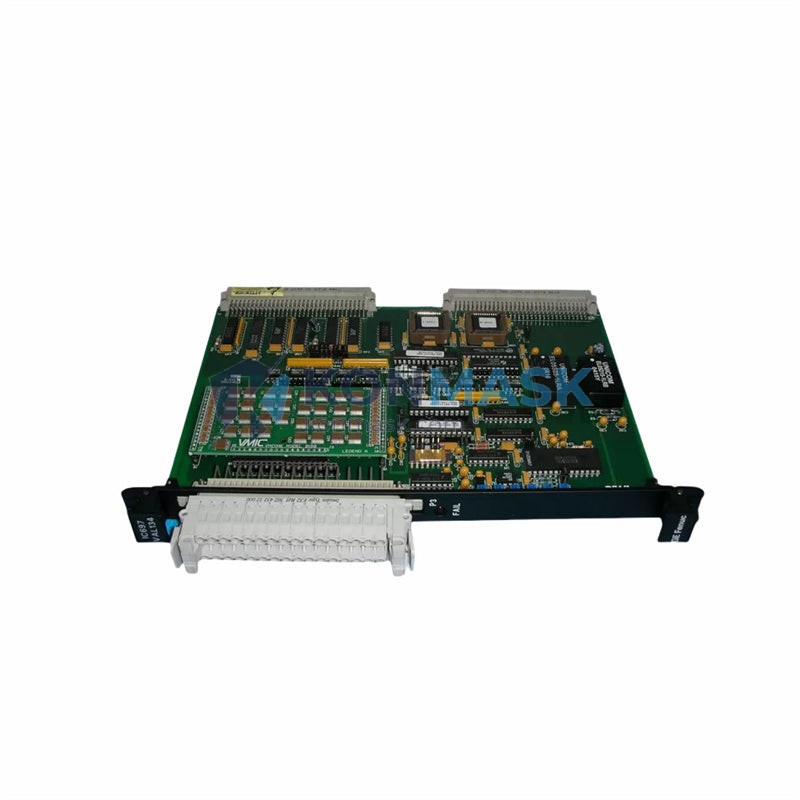

Process Control Solution – GE Fanuc IC697VAL134 | Series 90-70 Analog Output Module
Where This Product Is Used
The GE Fanuc IC697VAL134 is a 16-channel analog output module engineered for the Series 90-70 PLC rack system. It is widely deployed in demanding industrial environments where precise voltage or current signal control is critical:
- Chemical & Petrochemical Plants – Modulating control valves, flow regulators, and dosing pumps via 4–20 mA or 0–10 V signals.
- Power Generation & Utilities – Turbine governor control, excitation systems, and load-dispatch automation.
- Automotive Manufacturing – Paint-line conveyor speed control, robotic arm positioning, and press force regulation.
- Pulp & Paper Mills – Tension control, dryer temperature profiling, and stock flow management.
- Water & Wastewater Treatment – Variable-speed drive (VSD) setpoint commands for pumps and blowers.
- Food & Beverage Processing – Proportional valve control for CIP systems and filling-line flow management.
- Steel & Metals – Rolling mill speed references and furnace atmosphere control.
Technical Specifications
| Part Number | IC697VAL134 / 3801 |
| Series | GE Fanuc Series 90-70 |
| Module Type | Analog Output |
| Number of Channels | 16 Channels |
| Output Resolution | 12-bit (1 in 4,096) |
| Output Ranges | 0–10 V DC / 4–20 mA (software-selectable per channel) |
| Update Rate | ≤ 2 ms per channel (full scan) |
| Load Impedance (Voltage) | ≥ 1 kΩ |
| Load Impedance (Current) | ≤ 500 Ω |
| Isolation | 500 V AC channel-to-backplane |
| Power Consumption | 3.5 W (from 5 V backplane bus) |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Form Factor | Single-slot Series 90-70 rack module |
| Weight | 1,250 g (approx.) |
| Firmware Revision | 3801 |
Why Engineers Specify This Model
- High Channel Density – 16 independent analog outputs in a single rack slot reduce wiring complexity and cabinet footprint versus discrete single-channel modules.
- Dual-Mode Flexibility – Voltage and current output modes are software-configurable, eliminating the need for separate module SKUs for different field devices.
- 12-Bit Resolution – Provides 0.024% full-scale accuracy, meeting the precision demands of PID loops in process industries.
- Hot-Swap Compatible – Supports Series 90-70 hot-standby redundancy configurations, enabling module replacement without process shutdown.
- Proven Longevity – The Series 90-70 platform has a 30+ year installed base; IC697VAL134 is a direct drop-in replacement for aging systems without re-engineering the rack.
- Diagnostics – Built-in open-wire and over-range detection with fault reporting to the CPU for predictive maintenance workflows.
Complete System Bill of Materials
For a fully operational Series 90-70 analog output subsystem, the following components are typically required alongside the IC697VAL134:
- CPU Module – IC697CPX935 / IC697CPU772 (Series 90-70 CPU)
- Rack / Backplane – IC697CHS750 (5-slot) or IC697CHS782 (9-slot)
- Power Supply – IC697PWR711 (120/240 V AC input, 30 W)
- Terminal Block / I/O Cable – IC697ACC724 (field wiring terminal assembly)
- Programming Software – Proficy Machine Edition (Logic Developer – PLC)
- Memory Module (optional) – IC697MEM715 for program backup
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU
- UL Listed – UL 508 (Industrial Control Equipment)
- RoHS Compliant – Directive 2011/65/EU
- IEC 61131-2 – Programmable Controllers: Equipment Requirements & Tests
- NEMA ICS 2 – Industrial Control Devices, Controllers, and Assemblies
Quality Assurance & Sourcing
Every IC697VAL134 unit offered by Konmask.com undergoes a structured inspection protocol before dispatch:
- Visual Inspection – PCB, connectors, and housing checked for physical damage, corrosion, or counterfeit indicators.
- Functional Bench Test – All 16 output channels verified for correct voltage and current output across the full scale.
- Firmware Verification – Revision stamp confirmed against GE Fanuc release records.
- ESD-Safe Packaging – Shipped in anti-static bags with foam cushioning and moisture barrier.
- Traceability – Serial number and test records retained for 5 years.
How to Source This Part
Konmask.com maintains stock of the GE Fanuc IC697VAL134 for immediate dispatch. To place an order or request a formal quotation:
- Online – Add to cart directly on this page and proceed to checkout.
- Email RFQ – Send your BOM or purchase order to [email protected] for volume pricing.
- Phone / WhatsApp – Call or message +0086 19859288691 for urgent requirements.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock lead time is 7–15 business days.
- Export – We ship worldwide with DHL, FedEx, and UPS. Export documentation (commercial invoice, packing list, COO) provided on request.
Application-Specific FAQ
Q: Can the IC697VAL134 replace an IC697VAL132 (8-channel) in an existing rack?
A: Yes. The IC697VAL134 occupies the same single rack slot and is backward-compatible. The additional 8 channels can be left unconfigured or used to expand the system.
Q: Is this module compatible with GE Proficy HMI/SCADA – iFIX?
A: Yes. When paired with a Series 90-70 CPU running the appropriate OPC server (Kepware KEPServerEX with GE Ethernet driver), all 16 analog output tags are accessible in iFIX.
Q: What happens to the analog outputs on a CPU fault or power loss?
A: Outputs default to the configured fault state (hold last value or go to 0 V / 4 mA), as programmed in the CPU’s I/O configuration table.
Q: Can I mix voltage and current channels on the same module?
A: Yes. Each channel is independently configurable for voltage (0–10 V) or current (4–20 mA) output via the Proficy Machine Edition I/O configuration.
Q: Do you provide a warranty?
A: All units carry a 12-month warranty against defects in materials and workmanship from the date of shipment.
