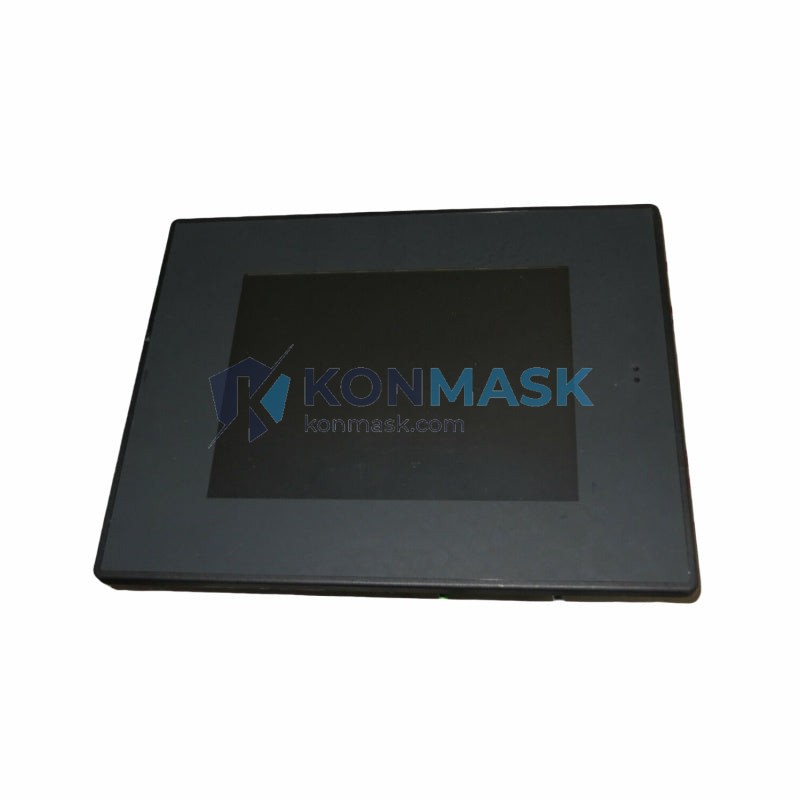

General Electric IC754VBI10MTD-BB – 10″ QuickPanel View Operator Interface | GE Automation & Controls
Engineering Background: The GE IC754VBI10MTD-BB is part of General Electric’s QuickPanel View series — a rugged, high-performance Human-Machine Interface (HMI) platform engineered for demanding industrial automation environments. Designed to integrate seamlessly with GE PACSystems, Series 90, and VersaMax PLC families, this operator interface delivers reliable real-time process visualization and control at the machine level.
Product Positioning: Targeted at OEM machine builders, system integrators, and plant engineers who require a proven, field-hardened HMI with broad protocol compatibility, the IC754VBI10MTD-BB offers a 10-inch color touchscreen display with intuitive operator interaction, making it a preferred choice for process control, discrete manufacturing, and utility automation projects.
Complete Technical Specifications
| Part Number / SKU | IC754VBI10MTD-BB |
| Manufacturer | General Electric (GE Automation & Controls) |
| Series / Platform | QuickPanel View |
| Display Size | 10.4″ Color TFT LCD |
| Display Resolution | 800 × 600 (SVGA) |
| Touchscreen Type | Resistive analog touchscreen |
| Processor | Intel PXA270 (XScale) 520 MHz |
| Operating System | Microsoft Windows CE 5.0 |
| RAM | 128 MB SDRAM |
| Flash Storage | 256 MB internal flash |
| Communication Ports | 2× RS-232/422/485 (COM1/COM2), 1× Ethernet 10/100 Base-T (RJ-45), 1× USB Host, 1× USB Device (programming) |
| Supported Protocols | SRTP, Modbus RTU/TCP, DNP3, EGD, OPC, PROFIBUS (via adapter) |
| Power Supply | 24 VDC nominal (18–30 VDC range) |
| Power Consumption | ≤ 30 W typical |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Rating | IP65 (front panel) |
| Mounting | Panel mount (cutout required) |
| Dimensions (W×H×D) | Approx. 310 × 240 × 60 mm |
| Weight | Approx. 1.8 kg |
| Certifications | CE, UL Listed, cUL |
| HMI Software | Proficy Machine Edition (ME) / QuickPanel Workbench |
| Country of Origin | USA / Mexico (GE manufacturing) |
Proven Application Environments
- Discrete Manufacturing: Assembly line control, conveyor management, robotic cell HMI
- Process Industries: Water/wastewater treatment, chemical dosing, HVAC control panels
- Oil & Gas: Wellhead monitoring, compressor station HMI, pipeline SCADA front-end
- Power & Utilities: Substation automation, generator control, switchgear panels
- Food & Beverage: Batch process control, CIP station interfaces, packaging line HMI
- Building Automation: BMS operator terminals, energy management displays
Engineering Advantages
- Native GE PLC Integration: Direct SRTP communication with PACSystems RX3i/RX7i and Series 90-30/70 without gateway hardware
- IP65 Front Panel: Sealed against dust and water jets — suitable for wash-down and harsh plant environments
- Wide Protocol Support: Modbus RTU/TCP, DNP3, EGD, and OPC enable multi-vendor system integration
- Windows CE 5.0 Platform: Stable, deterministic OS with long-term industrial support lifecycle
- Dual Serial + Ethernet: Simultaneous PLC and network connectivity without additional hardware
- Compact Panel Footprint: Optimized cutout dimensions reduce enclosure size and installation cost
- Proficy ME Compatible: Full tag-based programming with alarm management, trending, and recipe control
System Architecture & Signal Flow
The IC754VBI10MTD-BB operates as the operator-level visualization node within a GE automation architecture:
- Controller Layer: PACSystems RX3i / Series 90-30 PLC ↔ Ethernet SRTP or RS-485 Modbus
- HMI Layer: IC754VBI10MTD-BB (this unit) — real-time tag polling, alarm display, operator input
- Supervisory Layer: Proficy iFIX / SCADA via OPC or Ethernet EGD
- Field Devices: Drives, sensors, and I/O modules communicate upstream through the PLC; HMI reflects live process values
- Programming: USB Device port connects to engineering workstation running Proficy Machine Edition
Sourcing & Quality Verification
- ✅ Genuine OEM hardware — sourced from authorized distributors and verified surplus channels
- ✅ Pre-shipment inspection: Visual inspection, power-on test, and firmware version verification
- ✅ Traceability: Original GE part markings, date codes, and serial numbers intact
- ✅ Packaging: Anti-static ESD bag + foam-padded carton for safe international transit
- ✅ Warranty: 90-day Konmask operational warranty against DOA and manufacturing defects
- ✅ Counterfeit-free guarantee: All units inspected against GE OEM reference standards
Procurement Process
- Inquiry: Submit your RFQ via email or WhatsApp with required quantity and delivery timeline
- Quote: Receive a formal quotation within 4 business hours (HKT)
- Order Confirmation: Purchase order or proforma invoice issued upon agreement
- Payment: T/T bank transfer, PayPal, or trade assurance accepted
- Shipment: DHL / FedEx / UPS express — typical lead time 3–7 business days worldwide
- Documentation: Commercial invoice, packing list, and COO certificate provided
Technical FAQ
Q: Is the IC754VBI10MTD-BB compatible with PACSystems RX3i?
A: Yes. It communicates natively via SRTP over Ethernet or Modbus RTU over RS-485 with all PACSystems and Series 90 controllers.
Q: What HMI software is required to program this unit?
A: Proficy Machine Edition (ME) with the QuickPanel View target is the standard programming environment. Legacy QuickPanel Workbench is also supported.
Q: Can this HMI connect to third-party PLCs (Siemens, Allen-Bradley)?
A: Yes, via Modbus TCP/RTU or OPC server. Direct native drivers for Siemens S7 or AB ControlLogix require a third-party protocol driver or OPC gateway.
Q: What is the display backlight lifespan?
A: Typical CCFL backlight rated at 50,000 hours MTBF under normal operating conditions. Replacement backlights are available.
Q: Do you provide a test report before shipment?
A: Yes. Power-on test confirmation and photo documentation are available upon request at no additional charge.
Q: Is this unit new or refurbished?
A: Units are clearly described as new surplus (unused, original packaging) or tested refurbished. Condition is specified in your quotation.
