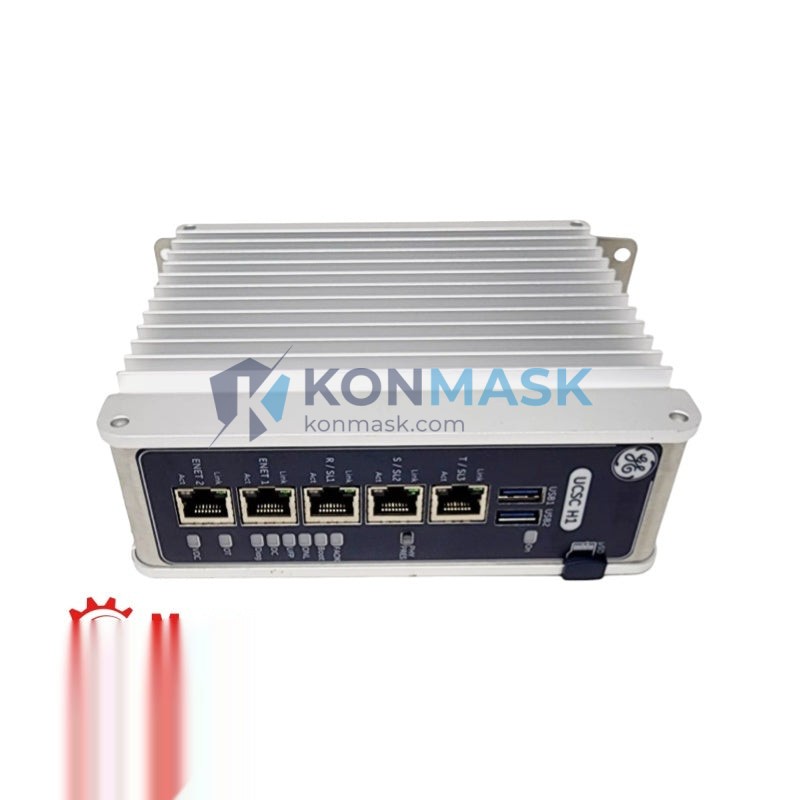

Turbine & Power Plant Control Solution — GE IS420UCSBH1A / IS421UCSBH1A | Mark VI Series
Where This Product Is Used
The GE IS420UCSBH1A and IS421UCSBH1A are high-reliability controller modules engineered for mission-critical industrial environments. Typical deployment sites include:
- Gas & Steam Turbine Control Systems — Core controller in GE Mark VI turbine management panels for speed, temperature, and fuel control loops.
- Combined-Cycle Power Plants (CCPP) — Coordinates sequencing logic between gas turbines, HRSGs, and steam turbines.
- Offshore Oil & Gas Platforms — Manages compressor and pump control in hazardous-area DCS architectures.
- Petrochemical & Refinery Plants — Handles continuous process control for reactors, distillation columns, and heat exchangers.
- Pulp & Paper Mills — Deployed in distributed control loops for dryer sections and chemical dosing systems.
- Water Treatment Facilities — Supervisory control for pump stations and filtration process automation.
Technical Specifications
- Part Numbers: IS420UCSBH1A / IS421UCSBH1A
- Series: GE Mark VI DCS Controller
- Manufacturer: GE (General Electric) — Energy Controls Division
- Module Type: Universal Controller / Sequence Controller Board
- Communication: IONet Ethernet (Mark VI proprietary), supports redundant I/O bus
- Processor: Embedded real-time processor with deterministic scan cycle
- I/O Interface: Compatible with Mark VI I/O terminal boards (VCMI, VTUR, VDYN series)
- Power Supply: 28 VDC nominal (from Mark VI power distribution)
- Operating Temperature: 0°C to 60°C
- Form Factor: Standard Mark VI card cage module
- Weight: Approx. 400 g
- Firmware: Compatible with GE Toolbox configuration software
- Redundancy: Supports TMR (Triple Modular Redundancy) and Simplex configurations
Why Engineers Specify This Model
- Drop-in Replacement: IS420UCSBH1A and IS421UCSBH1A are functionally interchangeable in most Mark VI panel configurations, simplifying spare-parts management.
- Proven Field Reliability: Deployed globally in GE Frame 6B, 7E, 7F, and 9E turbine control panels with documented MTBF exceeding 100,000 hours.
- TMR Architecture Support: Enables fault-tolerant control without process shutdown — critical for continuous-operation facilities.
- Toolbox-Compatible: Fully programmable via GE Mark VI Toolbox, preserving existing logic without re-engineering.
- Long Service Life: Designed for 20+ year operational cycles typical in power generation infrastructure.
Complete System Bill of Materials
For a complete Mark VI controller rack, engineers typically specify the following alongside this module:
- GE IS200VCMIH2C — VME Communication Module
- GE IS200VTURH1BEC — Turbine I/O Terminal Board
- GE IS200VPWRH1ADB — Mark VI Power Supply Module
- GE IS200VDYNAH1B — Dynamic I/O Board
- GE IS200TREGH1A — Voltage Regulator Module
- GE IS200ECTBG1A — Excitation Control Terminal Board
Contact us to source complete rack assemblies or individual replacement modules.
Compliance & Industry Standards
- Designed and manufactured to IEC 61511 functional safety requirements (SIL-capable configurations)
- Compliant with IEEE 1613 environmental and testing requirements for communications networking devices in electric power substations
- Meets NEMA ICS 2 industrial control device standards
- RoHS-compliant manufacturing process
- CE marked for European market deployment
Quality Assurance & Sourcing
- Inspection Protocol: Every unit undergoes visual inspection, board-level continuity testing, and functional power-on verification before shipment.
- Condition: New surplus, refurbished (tested), or used serviceable — clearly stated per listing.
- Traceability: Serial number and revision level documented; OEM labels intact.
- Packaging: Anti-static ESD bag + foam-lined carton; humidity indicator card included.
- Warranty: 12-month replacement warranty against manufacturing defects.
How to Source This Part
Konmask.com maintains inventory of GE Mark VI modules for immediate dispatch. To place an order or request a quote:
- Online: Add to cart and complete checkout at konmask.com
- Email RFQ: support@konmask.com — include your part number, quantity, and required delivery date.
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; DHL / FedEx international express available.
- Export: We ship worldwide with full commercial invoice and packing list documentation for customs clearance.
Application-Specific FAQ
Q: What is the difference between IS420UCSBH1A and IS421UCSBH1A?
A: The IS421UCSBH1A is a later hardware revision of the IS420UCSBH1A with minor PCB improvements. Both are functionally equivalent and cross-compatible within the same Mark VI panel generation.
Q: Can this module be used in a TMR (Triple Modular Redundancy) configuration?
A: Yes. The UCSB controller supports TMR architecture when installed in sets of three with appropriate Mark VI voting logic configured in GE Toolbox.
Q: Is GE Toolbox software required for replacement?
A: Yes. After physical installation, the replacement module must be configured and downloaded via GE Mark VI Toolbox to load the application logic from the existing controller or backup file.
Q: Do you provide a test report with the module?
A: Yes. A functional test record is available upon request. Contact us before ordering if this is required for your maintenance documentation.
Q: Can you supply multiple units for a full TMR rack replacement?
A: Yes. We can supply matched sets of 3 units. Contact us for volume pricing and availability confirmation.
