GE SR489 / 489-P5-HI-A20 Generator Management Relay | Replacement, Equivalent & Selection Guide

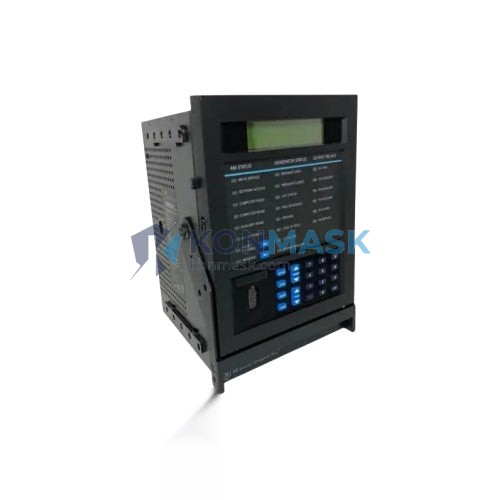

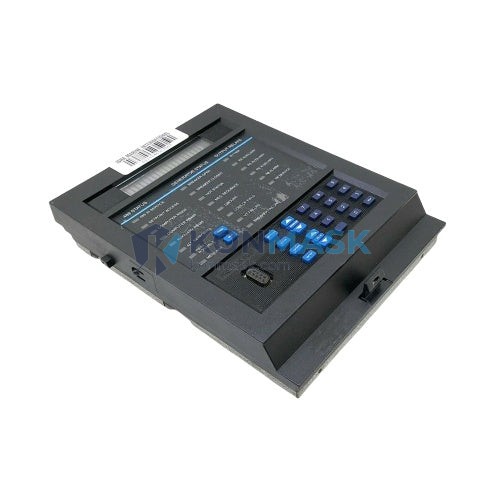

The GE SR489-CASE / 489-P5-HI-A20 is a comprehensive Generator Management Relay from GE Grid Solutions (formerly GE Multilin). Designed for medium-voltage generator protection and control, it integrates multi-function protection, metering, and communication in a single compact unit — making it a cornerstone of modern power generation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SR489-CASE / 489-P5-HI-A20 |
| Manufacturer | GE Grid Solutions (GE Multilin) |
| Function | Generator Management Relay |
| Voltage Input | Up to 600 V AC (direct) / higher via VT |
| Current Input | 1 A or 5 A CT secondary |
| Frequency | 50 / 60 Hz |
| Power Supply | HI range: 110–250 V AC/DC |
| Communication | RS-485 (Modbus RTU / DNP3) |
| Outputs | Multiple trip & alarm relay outputs |
| Mounting | Panel / rack mount (CASE chassis) |
| Protection Functions | Over/under voltage, over/under frequency, differential, overcurrent, loss of excitation, reverse power, and more |
| Metering | V, A, W, VAR, PF, Hz, kWh |
| Operating Temperature | -20°C to +60°C |
| Standards | IEC 60255, IEEE C37.102 |
Compatible Replacement & Equivalent Models
When the GE SR489 is unavailable or end-of-life, the following models are commonly evaluated as replacements or equivalents. Always verify electrical and functional compatibility before substitution:
- GE 489-P5-HI-A20-E — Enhanced firmware variant; direct functional equivalent
- GE 489-P5-LO-A20 — Low-range power supply variant (24–125 V DC); same protection suite
- GE G60 Generator Protection System — Next-generation UR-series upgrade; expanded I/O and IEC 61850
- SEL-300G Generator Relay — SEL equivalent; compatible protection functions, different wiring
- Beckwith M-3425A — Third-party equivalent for generator protection applications
- ABB REG670 — High-end equivalent for large generator installations
- Siemens 7UM62 — European-standard equivalent; IEC-native
Note: Replacement requires review of CT/VT ratios, I/O count, communication protocol, and firmware version. Contact Konmask for a compatibility assessment.
Why Choose the Original Model
- Proven field reliability — Widely deployed in power plants, industrial generators, and utilities worldwide
- Integrated protection suite — 40+ protection elements eliminate the need for multiple discrete relays
- Native Modbus/DNP3 — Seamless integration with existing SCADA and DCS infrastructure
- Exact form-factor fit — Drop-in replacement for existing SR489 panel cutouts; no re-engineering required
- GE Multilin ecosystem — Compatible with EnerVista software for configuration, monitoring, and event analysis
Typical Applications
- Synchronous generator protection in power plants and co-generation facilities
- Standby and emergency diesel generator sets in hospitals, data centers, and industrial plants
- Hydro and gas turbine generator protection
- Utility interconnection protection (anti-islanding, loss-of-mains)
- Industrial MV generator panels in oil & gas, mining, and petrochemical sectors
System Compatibility
- SCADA/DCS: Modbus RTU, DNP3 Level 2 — compatible with Wonderware, Ignition, ABB 800xA, Siemens PCS 7
- Configuration Software: GE EnerVista 489 Setup (Windows-based, free download from GE Grid Solutions)
- CT Secondary: 1 A or 5 A — confirm with existing CT nameplate
- VT Secondary: Up to 600 V direct; higher voltages via external VT
- Panel Cutout: Standard SR489 CASE chassis dimensions — verify with existing panel drawings
Selection Guide
Use the following criteria to confirm the 489-P5-HI-A20 is the correct variant for your application:
- P5 — Standard protection feature set (includes differential, overcurrent, voltage, frequency)
- HI — High-range auxiliary power supply (110–250 V AC/DC); choose LO for 24–125 V DC systems
- A20 — Firmware/hardware revision; confirm compatibility with your EnerVista software version
- CASE — Chassis/case included; order without CASE suffix if replacing a module only
If your application requires IEC 61850, expanded I/O, or cybersecurity compliance (NERC CIP), consider upgrading to the GE G60. Contact Konmask for a free selection consultation.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment inspection: visual, label verification, and functional power-on test where applicable
- Original manufacturer packaging preserved where available
- Traceability documentation provided upon request (COC, test reports)
- Warranty: 12 months from date of shipment against manufacturing defects
How to Order
- Confirm the exact part number: SR489-CASE / 489-P5-HI-A20
- Specify quantity and required delivery timeline
- Submit your inquiry via support@konmask.com or add to cart directly
- Our team will confirm availability, lead time, and issue a proforma invoice within 24 hours
- Payment: T/T, PayPal, or credit card (contact us for terms on large orders)
Replacement & Compatibility FAQ
Q: Can the GE G60 directly replace the SR489?
A: Functionally yes, but the G60 uses a different form factor and wiring. A panel modification and re-commissioning will be required. Konmask can assist with migration planning.
Q: Is the 489-P5-HI-A20 compatible with 50 Hz systems?
A: Yes. The SR489 supports both 50 Hz and 60 Hz systems, configurable via EnerVista software.
Q: What is the difference between HI and LO power supply variants?
A: HI = 110–250 V AC/DC auxiliary supply. LO = 24–125 V DC. Match to your panel’s control voltage.
Q: Do you supply the EnerVista configuration cable and software?
A: EnerVista 489 Setup software is freely available from GE. We can supply the RS-232/USB configuration cable — please request when ordering.
Q: Can I get a test report or certificate of conformance?
A: Yes. Traceability documentation is available upon request for all units.
