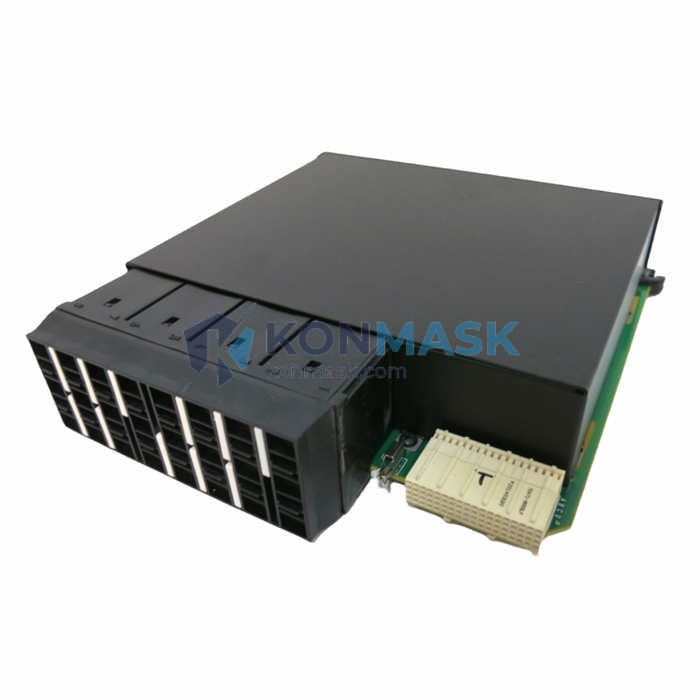

GE UR 67H MODULE – Directional Overcurrent Protection Module | UR Series Platform
Engineering Background
The GE UR 67H is a high-performance directional overcurrent protection module engineered within GE Grid Solutions’ Universal Relay (UR) platform — one of the most widely deployed protection relay architectures in global power systems. Designed to IEC and ANSI/IEEE protection standards, the UR 67H delivers precise fault discrimination in complex network topologies where non-directional overcurrent elements are insufficient.
Product Positioning
Targeted at protection engineers and system integrators operating in transmission substations, industrial power distribution, and generation interconnection applications, the UR 67H module slots into the UR chassis ecosystem, enabling modular, scalable protection schemes without full relay replacement. It is the preferred choice for facilities standardized on GE UR infrastructure seeking to extend directional protection capability.
Complete Technical Specifications
| Model | UR 67H |
| Manufacturer | GE Grid Solutions (General Electric) |
| Platform | Universal Relay (UR) Series |
| Function | Directional Overcurrent Protection (ANSI 67) |
| Protection Standard | IEC 60255 / ANSI/IEEE C37.90 |
| Mounting | UR Chassis Module Slot (plug-in) |
| Communication | Compatible with UR platform IEC 61850, DNP3, Modbus |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | 2,000 g (approx.) |
| SKU | UR 67H |
| Condition | New / Surplus New / Refurbished (specify at inquiry) |
Note: Full electrical ratings (CT input, burden, pickup range, time-dial settings) are available in the GE UR 67H Instruction Manual. Contact Konmask for the latest datasheet.
Proven Application Environments
- Transmission & Distribution Substations — Directional feeder protection in ring-bus and breaker-and-a-half configurations
- Industrial Power Distribution — Plant MV/HV switchgear with parallel source feeds requiring directional discrimination
- Generation Interconnection — Anti-islanding and reverse power protection at generator step-up transformers
- Renewable Energy Facilities — Wind and solar farm collector system protection with bidirectional power flow
- Petrochemical & Refinery Plants — Hazardous-area power systems demanding high-reliability protection modules
- Data Center & Critical Infrastructure — Utility tie protection with directional overcurrent backup
Engineering Advantages
- Modular UR Architecture — Hot-swappable module design minimizes downtime; no full relay replacement required
- Directional Discrimination — Accurately identifies fault direction using voltage polarization, enabling selective tripping in meshed networks
- IEC 61850 Native — Seamless integration into digital substation automation systems via GOOSE messaging and MMS reporting
- Wide Setting Range — Flexible pickup and time-dial settings accommodate diverse network impedance profiles
- Proven Field Reliability — GE UR platform deployed in thousands of substations globally across 40+ years of protection engineering
- Cybersecurity Compliance — Supports NERC CIP-compliant access control within UR platform firmware
System Architecture & Signal Flow
The UR 67H module operates within the GE UR chassis backplane, receiving analog current and voltage signals from the chassis CT/VT input modules. The directional element computes the phase angle between measured current and a polarizing voltage reference to determine fault direction. A trip output is issued to the chassis output module when both magnitude threshold and directional criteria are satisfied simultaneously. All settings, event records, and oscillography data are accessible via the UR platform’s EnerVista UR Setup software over Ethernet or serial communication ports.
Sourcing & Quality Verification
- Authorized Surplus Channel — Konmask sources UR 67H modules from decommissioned utility projects, OEM overstock, and certified industrial surplus dealers
- Pre-shipment Inspection — Each unit undergoes visual inspection, firmware version verification, and functional continuity check before dispatch
- Traceability Documentation — Country of origin documentation, test reports, and prior installation records provided upon request
- Anti-Counterfeit Measures — GE holographic labels, PCB markings, and serial number cross-referencing verified against GE’s product database
- Warranty — 90-day Konmask operational warranty on all tested units; extended warranty available on request
Procurement Process
- Submit Inquiry — Email support@konmask.com with required quantity, acceptable condition grade, and delivery timeline
- Quotation & Lead Time — Konmask responds within 1 business day with pricing, stock status, and estimated ship date
- Order Confirmation — Pro-forma invoice issued; payment via T/T bank transfer or approved credit terms
- Quality Hold & Dispatch — Unit reserved, final inspection completed, and shipped via DHL / FedEx with full tracking
- Post-Delivery Support — Technical documentation, commissioning guidance, and warranty claim processing available through Konmask support
Technical FAQ
Q: Is the UR 67H compatible with all GE UR chassis models?
A: The UR 67H is designed for the GE UR modular chassis platform. Compatibility depends on chassis generation and firmware version. Please provide your chassis model number when inquiring so Konmask can confirm slot compatibility.
Q: Can Konmask supply the EnerVista UR Setup software license?
A: EnerVista UR Setup is available as a free download from GE Grid Solutions. Konmask can assist with version matching to your firmware. Licensed feature upgrades are subject to GE’s software licensing terms.
Q: What is the lead time for the UR 67H?
A: In-stock units typically ship within 3–5 business days. For sourced or refurbished units, lead time is 2–4 weeks. Contact us for real-time availability.
Q: Do you provide IEC 61850 configuration files (ICD/CID)?
A: ICD files are generated by EnerVista UR Setup based on your module configuration. Konmask can provide guidance on IEC 61850 configuration as part of post-sale technical support.
Q: Can this module be used as a standalone relay?
A: No. The UR 67H is a plug-in module for the GE UR chassis platform and requires the chassis for power, I/O, and communication. It is not a standalone device.
