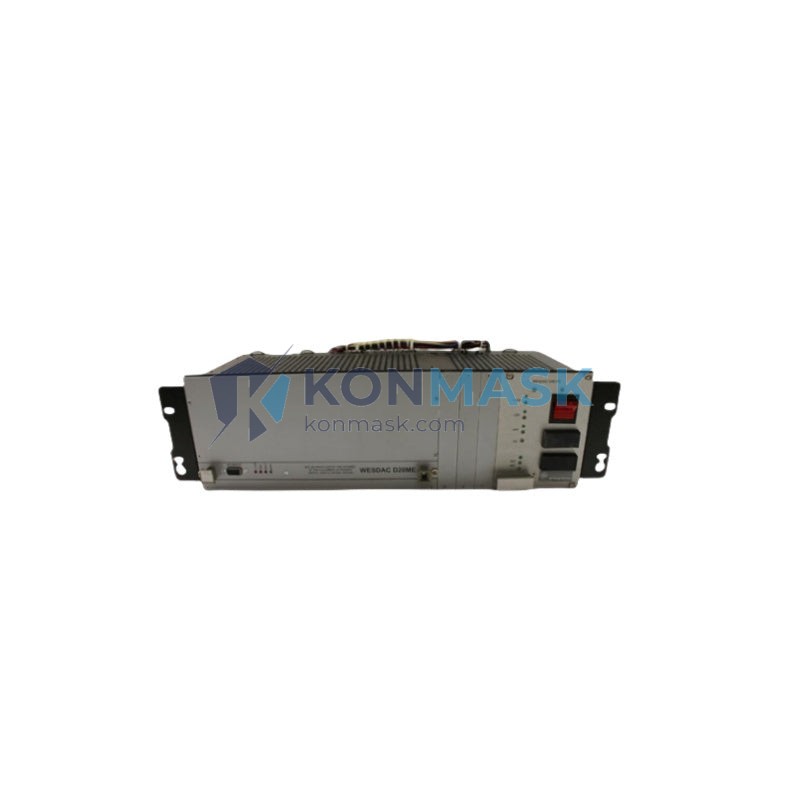

GE Harris WESDAC D20ME 820-0468/00 – Substation RTU Controller | D20 Series Platform
Engineering Background: Modern power utilities depend on millisecond-accurate data acquisition and reliable remote control to maintain grid stability. When a substation RTU fails or reaches end-of-life, the consequences extend far beyond the substation itself — SCADA visibility is lost, protection relay coordination becomes blind, and grid operators lose the situational awareness needed to prevent cascading outages. In high-voltage transmission and distribution substations, an unplanned RTU outage can trigger regulatory non-compliance events and expose utilities to significant liability. The GE Harris WESDAC D20ME is the purpose-built solution that eliminates this risk.
Product Positioning: The GE Harris WESDAC D20ME (part number 820-0468/00) is a main processor and communications module within the D20 Series Remote Terminal Unit (RTU) platform — one of the most widely deployed substation automation architectures in North American and international power utilities. The D20 Series was engineered by GE Harris (formerly Harris Controls, now part of GE Grid Solutions) specifically for the demanding electrical environment of high-voltage substations, combining IEC 60870-5 and DNP3 protocol support with a modular I/O architecture that scales from small distribution substations to large transmission switching stations. The D20ME variant represents a key evolution in the D20 family, offering enhanced memory capacity and communication flexibility compared to earlier D20 modules.
Complete Technical Specifications
- Part Number: 820-0468/00
- Model: WESDAC D20ME
- Series: GE Harris D20 RTU Platform
- Manufacturer: GE Harris (GE Grid Solutions)
- Module Type: Main Processor / Communications Module
- Country of Origin: United States
- Weight: Approx. 2,000 g
- Condition Available: New / Refurbished / Tested (specify on inquiry)
- Warranty: 12 months from date of shipment
Note: Detailed electrical ratings (supply voltage, I/O counts, communication port specifications) are available upon request. We do not publish unverified parameters. Please provide your system configuration for a complete compatibility assessment.
Proven Application Environments
- Transmission Substations: 115 kV–500 kV switching stations requiring high-reliability SCADA integration and protection relay interfacing.
- Distribution Automation: Medium-voltage feeder automation, fault location, isolation, and service restoration (FLISR) schemes.
- Hydroelectric & Thermal Generation: Plant-level RTU functions for generation monitoring and AGC (Automatic Generation Control) interfaces.
- Pipeline & Water Utilities: Remote monitoring of pumping stations and pressure regulation points using DNP3 over serial or IP networks.
- Railway Traction Power: Substation control for electrified rail systems requiring deterministic scan rates and time-stamped event logging.
Engineering Advantages
- DNP3 & IEC 60870-5 Native Support: Communicates directly with utility-grade SCADA masters without protocol conversion gateways, reducing latency and single points of failure.
- Modular D20 Architecture: The D20ME slots into the existing D20 chassis backplane, enabling in-place upgrades without rewiring field I/O — critical for live substation environments.
- Enhanced Memory (ME Variant): The “ME” designation indicates expanded memory resources compared to base D20 modules, supporting larger configuration databases and more extensive event logs.
- Time-Stamped Event Recording: Millisecond-resolution event logging synchronized via IRIG-B or GPS time sources — essential for post-fault analysis and regulatory reporting.
- Proven Field Reliability: The D20 platform has accumulated decades of operational history in utility environments across North America, Europe, and Asia-Pacific.
- Long-Term Parts Availability: As a widely deployed legacy platform, D20 modules remain in active demand for MRO (Maintenance, Repair & Overhaul) programs at utilities with long asset replacement cycles.
System Architecture & Signal Flow
The WESDAC D20ME functions as the central intelligence of the D20 RTU chassis. In a typical substation deployment, the signal flow is as follows:
- Field Inputs → D20 I/O modules (digital status, analog measurements, pulse accumulators) collect data from protection relays, transducers, and switchgear auxiliary contacts.
- Backplane Bus → I/O data is transferred to the D20ME main processor via the D20 chassis backplane at deterministic scan rates.
- D20ME Processing → The main processor executes the RTU database, applies scaling and quality flags, manages event queuing, and handles communication protocol stacks.
- SCADA Communications → Processed data is transmitted upstream to the Energy Management System (EMS) or SCADA master via DNP3, IEC 60870-5-101/104, or legacy WESDAC protocols over serial (RS-232/RS-485) or Ethernet links.
- Control Outputs → Operator commands from SCADA are received by the D20ME and executed via D20 digital output modules to operate circuit breakers, disconnect switches, and tap changers.
When replacing the D20ME module, verify compatibility with your specific D20 chassis revision, firmware version, and I/O module complement. Contact our technical team with your system’s configuration file or hardware list for a pre-shipment compatibility review.
Sourcing & Quality Verification
- Controlled Source Chain: Units sourced from decommissioned utility assets, authorized distributors, or OEM surplus — never from unverified secondary markets.
- Physical Inspection: Board-level inspection for corrosion, damaged connectors, capacitor condition, and component integrity.
- Functional Verification: Where test fixtures are available, modules are powered and communication ports verified prior to shipment.
- Configuration Backup: If a configuration file is present on the module, it is documented and provided to the buyer upon request.
- ESD-Safe Packaging: Anti-static bags, foam cushioning, and moisture-barrier outer packaging for international air and sea freight.
Procurement Process
- Submit an RFQ via the Contact / Inquiry form on this page.
- Provide your D20 chassis model, current firmware version, and any existing configuration file reference — this allows our engineers to confirm exact compatibility.
- Receive a formal quotation with unit condition, lead time, and shipping options within 24 business hours.
- Confirm order and receive a proforma invoice for payment processing (T/T, L/C, or approved credit terms).
- Module ships with inspection report, packing list, and full export documentation.
Technical FAQ
Q: What does the “ME” suffix mean in WESDAC D20ME?
A: The “ME” designation indicates an enhanced memory variant of the D20 main processor module, providing expanded database capacity and event log storage compared to the base D20M module. This is important when migrating configurations from older D20 units with larger point databases.
Q: Is the 820-0468/00 part number the same as the WESDAC D20ME model number?
A: Yes. 820-0468/00 is the GE Harris factory part number (catalog number) for the WESDAC D20ME module. Both designations refer to the same hardware. The “/00” suffix typically indicates the base revision of the part.
Q: Can the D20ME be used as a direct replacement for an older D20M module?
A: In most cases, yes — the D20ME is designed for backward compatibility within the D20 chassis platform. However, firmware and configuration file compatibility must be verified for your specific installation. Our engineers can assist with this assessment.
Q: Do you supply the GE WESDAC configuration software (D20 Config)?
A: We supply hardware only. GE Grid Solutions (the current IP holder) manages software licensing. We can advise on how to obtain software support through official GE channels.
Q: What communication protocols does the D20ME support?
A: The D20 platform natively supports DNP3 (Level 2 and above), IEC 60870-5-101, IEC 60870-5-104, and the proprietary WESDAC protocol. Specific protocol support depends on the firmware version loaded on the module.
Q: Can you ship to my country?
A: Yes. We ship globally with full export documentation including commercial invoice, packing list, and certificate of origin. Shipping costs and lead times are confirmed at the quotation stage.
