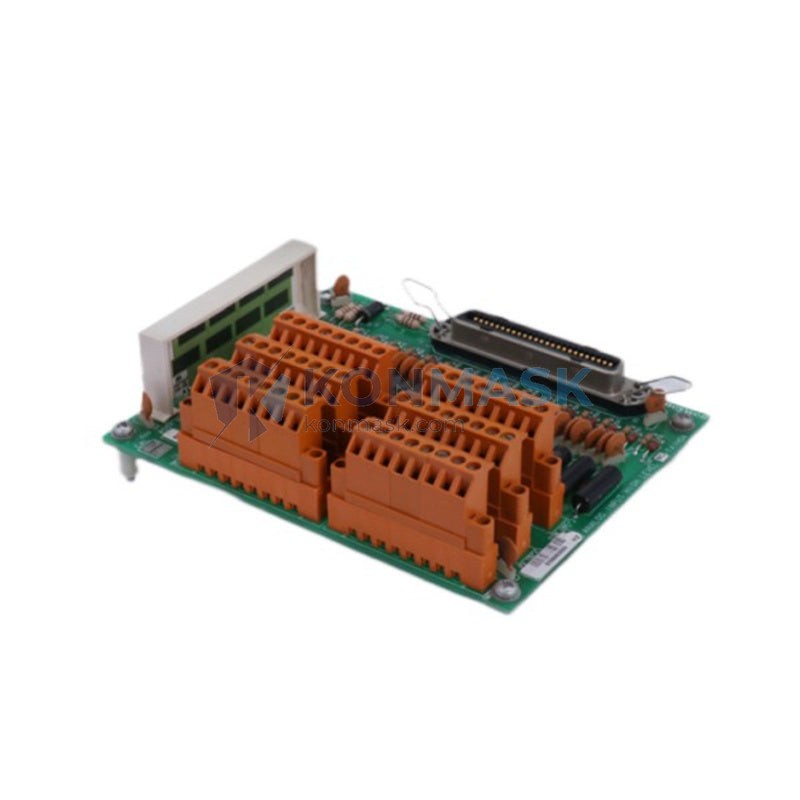

HONEYWELL MC-TAIH04 51305900-175 – High-Level Analog Input Module | Experion PKS / TDC 3000 Series
Engineering Background: Honeywell’s Experion PKS (Process Knowledge System) and its predecessor TDC 3000 platform represent one of the most widely deployed DCS architectures in continuous-process industries globally. The MC-TAIH04 sits at the field-interface layer of this architecture, serving as the primary signal conditioning and digitization point for high-level analog process variables. In a typical Experion PKS node, this module bridges field transmitters directly to the C300 Controller or equivalent processing node, making signal integrity at this stage critical to loop accuracy, alarm fidelity, and safety function performance across the entire control strategy.
Product Positioning: The MC-TAIH04 (P/N 51305900-175) is a 4-channel high-level analog input module, distinguished from the MC-TAIC02 (2-channel) and MC-TAIX series (low-level thermocouple/RTD inputs) by its optimized handling of 4–20 mA and 1–5 V DC process signals with integrated HART pass-through. It is the correct selection when the application requires a higher channel density than the 2-channel variant, and when all input signals are transmitter-sourced high-level signals rather than direct sensor connections. It is not a substitute for low-level input modules in thermocouple or RTD applications.
Complete Technical Specifications
Electrical
- Input Channels: 4 (isolated, individually configurable)
- Input Signal Range: 4–20 mA (current) / 1–5 V DC (voltage), software-selectable per channel
- Input Impedance: <250 Ω (current mode); >1 MΩ (voltage mode)
- Resolution: 16-bit ADC
- Accuracy: ±0.1% of full scale at 25°C
- HART Communication: Pass-through supported (HART 5/6/7 compatible)
- Isolation: Channel-to-channel and channel-to-backplane isolation, 500 V DC
- Power Consumption: Approx. 3.5 W (from backplane, 24 V DC)
- Backplane Connector: Honeywell IOTA-compatible, keyed
Mechanical
- Form Factor: Single-slot Experion PKS I/O module
- Dimensions: Approx. 25 mm × 200 mm × 230 mm (W × H × D)
- Weight: ~800 g
- Mounting: Slide-in to Honeywell I/O Link chassis (IOTA base required)
- Connector Type: Screw-terminal field wiring via IOTA base
- LED Indicators: Per-channel status + module health
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 compliant
- Shock: IEC 60068-2-27 compliant
- Protection Class: IP20 (installed in cabinet)
Certifications
- CE Marking: EMC Directive 2014/30/EU
- UL/cUL Listed
- FM Approved (Class I, Div 2 when installed per Honeywell guidelines)
- SIL 2 capable (as part of Honeywell Safety Manager architecture, per IEC 61508)
- RoHS Compliant
Data source: Honeywell Experion PKS I/O Module Specification Sheet, P/N 51-52-25-109; Honeywell TDC 3000 I/O Compatibility Matrix Rev. 12. Specifications subject to revision — confirm against current Honeywell documentation for safety-critical applications.
Proven Application Environments
- Petroleum Refining | Crude Distillation Unit | Continuous Operation: Monitoring column tray temperatures and differential pressures via 4–20 mA transmitters under sustained high-temperature ambient conditions in the control room marshalling cabinet.
- Petrochemical | Ethylene Cracker | High-Vibration Environment: Acquiring feed flow and furnace pressure signals from smart HART transmitters, with HART pass-through enabling online diagnostics without process interruption.
- Power Generation | Combined-Cycle Gas Turbine | Safety-Instrumented Loop: Serving as the process input interface in a SIL 2 rated loop for turbine exhaust temperature monitoring, integrated with Honeywell Safety Manager.
- Municipal Water Treatment | Filtration Control | 24/7 Unmanned Operation: Acquiring flow, turbidity, and chlorine residual signals from field transmitters, with module health LEDs enabling rapid fault identification during periodic inspections.
- Pulp & Paper | Recovery Boiler | Corrosive Atmosphere: Installed in sealed NEMA 4X enclosures, processing black liquor flow and combustion air pressure signals with high channel-to-channel isolation preventing ground loop interference.
- LNG Terminal | Cryogenic Storage | Hazardous Area Interface: Receiving 4–20 mA signals from Zener barrier-isolated transmitters in Zone 1 classified areas, operating reliably across the full −40°C to +60°C ambient range.
Engineering Advantages
- For high-density marshalling cabinets with limited rack space, this analog input module delivers 4 isolated channels in a single slot, because the MC-TAIH04 doubles the channel density of the 2-channel MC-TAIC02 without requiring additional chassis slots or power budget.
- For applications requiring online transmitter diagnostics, this module supports HART pass-through on all four channels simultaneously, because the integrated HART multiplexer allows asset management software (e.g., Honeywell FDM) to communicate with field devices without signal interruption.
- For safety-instrumented systems requiring IEC 61508 compliance, this module is SIL 2 capable within the Honeywell Safety Manager architecture, because its hardware design and firmware have been independently assessed to meet the systematic capability requirements of IEC 61508 Part 2.
- For plants operating in electrically noisy environments, this module provides 500 V DC channel-to-channel and channel-to-backplane isolation, because galvanic isolation eliminates ground loop currents that would otherwise introduce measurement errors in 4–20 mA loops.
- For maintenance teams requiring rapid fault isolation, this module provides per-channel LED status indication visible without removing the module, because the front-panel diagnostics allow technicians to identify a failed channel in seconds during a plant walkdown.
- For procurement teams managing lifecycle risk, this module carries a Honeywell part number (51305900-175) that has remained consistent across multiple Experion PKS software revisions, because Honeywell’s backward-compatible I/O architecture protects installed base investments during DCS upgrades.
System Architecture & Signal Flow
Signal Flow: Field transmitter (4–20 mA / HART) → Field terminal block (IOTA base, screw terminals) → MC-TAIH04 signal conditioning & 16-bit ADC → Backplane I/O Link → C300 Controller (or equivalent) → Experion PKS Server → Operator Workstation / Historian.
Compatible Hardware:
- IOTA Base: MC-TAIH04 requires the corresponding IOTA termination assembly (verify P/N against Honeywell I/O compatibility matrix for specific chassis generation).
- Controllers: Compatible with C300, C200E, and legacy LCN/UCN node architectures via appropriate I/O Link interface.
- Chassis: Honeywell I/O Link chassis, 4-slot and 8-slot variants.
- Asset Management: Honeywell Field Device Manager (FDM) for HART device configuration via pass-through.
Substitution Conditions: The MC-TAIH04 can replace a failed MC-TAIC02 only if the application requires no more than 4 channels and the IOTA base is compatible. It cannot substitute for MC-TAIX series modules (low-level thermocouple/RTD inputs) due to fundamental differences in input conditioning circuitry. Always verify IOTA base compatibility before substitution.
Sourcing & Quality Verification
All modules listed on Konmask.com are sourced through established industrial surplus and authorized distribution channels, with full traceability documentation available upon request. The following 4-step verification process is applied to every unit prior to listing:
- Visual Inspection: Examination of PCB, connector pins, label integrity, and housing for signs of counterfeit manufacture, rework, or physical damage.
- Label & Firmware Verification: Confirmation of Honeywell part number (51305900-175), date code, and firmware revision against Honeywell’s published compatibility matrix.
- Functional Bench Test: Power-on test with backplane simulation to verify module health LED sequence and communication handshake.
- Packaging & ESD Protection: Modules are repackaged in anti-static bags with desiccant and foam cushioning prior to shipment.
Documentation available upon request: Test report, photos of actual unit (all four sides), firmware label close-up, certificate of conformance (where available from original source).
Procurement Process
- Confirm Compatibility: Verify the IOTA base P/N and chassis generation against Honeywell’s I/O compatibility matrix. Contact the technical team at [email protected] with the existing IOTA P/N if confirmation is needed before purchase.
- Place Order: Submit order via the product page. Stock is allocated on a first-confirmed basis. For urgent plant shutdowns or emergency replacements, note the required delivery date in the order comments.
- Receive & Commission: Each shipment includes a packing list with unit serial/date code. Technical support is available for installation guidance, IOTA base wiring verification, and Experion PKS configuration parameter reference.
Response Commitment: All technical inquiries receive a response within 24 business hours. Support types available: compatibility confirmation, substitution assessment, wiring diagram reference, and Experion PKS configuration guidance.
Technical FAQ
-
Q: Is the MC-TAIH04 compatible with both Experion PKS R400 and R500 software releases?
A: Yes. The MC-TAIH04 hardware is compatible across Experion PKS R400 through R500 series releases. Firmware revision on the module should be verified against the specific release compatibility matrix available from Honeywell’s MyProcess portal. Contact the technical team with the target software release for confirmation. -
Q: Can the MC-TAIH04 directly replace an MC-TAIC02 in an existing installation?
A: A direct slot-for-slot replacement is possible only if the IOTA base P/N is identical and the application uses no more than 4 channels. The MC-TAIH04 is not pin-compatible with all MC-TAIC02 IOTA variants — IOTA base compatibility must be confirmed before substitution. An incorrect IOTA base will prevent proper backplane communication. -
Q: Is this module certified for use in SIL 2 safety loops, and what additional components are required?
A: The MC-TAIH04 is SIL 2 capable per IEC 61508 when used as part of a validated Honeywell Safety Manager architecture. SIL 2 certification applies to the system-level design, not the module in isolation. A Safety Requirements Specification (SRS) and proof-test procedure compliant with IEC 61511 are required for the complete safety instrumented function. Consult the Honeywell Safety Manager System Engineering Guide for validated configurations.
