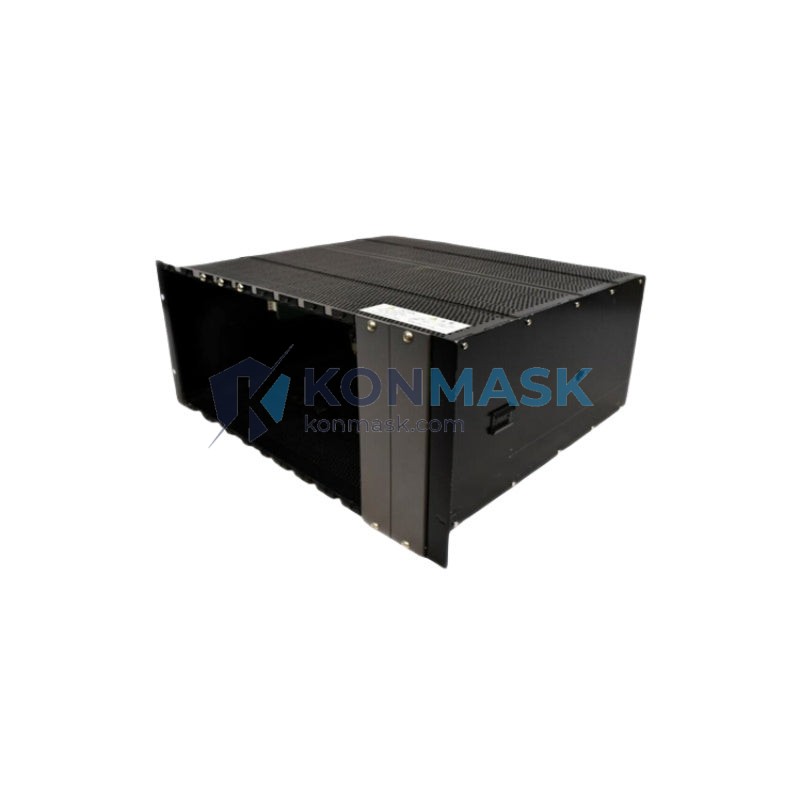

GE VM-5H3 Instrument Rack – Integrated Vibration Monitoring Rack | GE VM-5 Series Platform
Engineering Background: The GE VM-5H3 is a purpose-built instrument rack designed for continuous machinery protection and vibration monitoring in critical industrial environments. As part of GE’s VM-5 Series platform, it integrates seamlessly with the VM-5Z power supply module and VM-5K vibration monitor card, delivering a compact, self-contained monitoring solution trusted by rotating machinery engineers worldwide.
Product Positioning: The VM-5H3 rack serves as the structural and electrical backbone of a VM-5 Series monitoring system. It is engineered for OEM panel builders, plant maintenance engineers, and system integrators who require a pre-configured, rack-mount chassis that eliminates field wiring complexity while maintaining full compatibility with GE’s modular vibration monitoring ecosystem.
Complete Technical Specifications
- Model: VM-5H3
- Manufacturer: GE (General Electric)
- Series: VM-5 Vibration Monitoring Platform
- Form Factor: Instrument Rack / Chassis
- Built-in Modules: VM-5Z Power Supply Module + VM-5K Vibration Monitor Card
- Power Supply Module (VM-5Z): Dedicated internal DC power regulation for VM-5 series cards
- Monitor Module (VM-5K): Vibration signal conditioning and monitoring channel card
- Mounting: Panel / rack-mount configuration
- Signal Compatibility: Compatible with eddy-current, velocity, and accelerometer transducer inputs (per VM-5K card spec)
- Output: 4–20 mA analog output and relay alarm outputs (per VM-5K card)
- Operating Temperature: 0°C to +60°C (typical industrial grade)
- Weight: Approx. 100 g (chassis only; subject to installed module configuration)
- Compliance: Designed for industrial automation environments per GE VM-5 Series standards
Proven Application Environments
- Steam and gas turbine vibration monitoring systems
- Centrifugal compressor and pump protection panels
- Rotating machinery health monitoring in petrochemical plants
- Power generation facilities requiring continuous shaft vibration surveillance
- OEM control panel integration for turbomachinery OEMs
- Retrofit and upgrade projects replacing legacy Bently Nevada 3300/7200 series racks
- Marine propulsion and offshore platform machinery monitoring
Engineering Advantages
- Integrated Design: Factory-assembled rack with VM-5Z and VM-5K pre-installed eliminates field integration errors and reduces commissioning time.
- Modular Expandability: VM-5 Series architecture supports additional monitor cards within the same rack backplane for multi-channel expansion.
- Reliable Power Architecture: The VM-5Z internal power supply provides regulated, isolated DC power, protecting sensitive signal conditioning circuits from plant power fluctuations.
- Compact Footprint: Rack-mount form factor minimizes panel space while housing a complete monitoring channel.
- Direct Replacement Capability: Dimensionally and electrically compatible with legacy GE VM-5 series installations, enabling drop-in replacement without panel redesign.
- Long-term Parts Availability: Konmask maintains sourced inventory of VM-5H3 units to support long-lifecycle plant maintenance programs.
System Architecture & Signal Flow
The VM-5H3 rack operates as a complete single-channel vibration monitoring node:
- Transducer Input → Field-mounted vibration sensor (eddy-current probe, velocity transducer, or accelerometer) connects to the VM-5K card input terminals on the rack front/rear panel.
- Signal Conditioning → VM-5K card amplifies, filters, and converts the raw transducer signal into calibrated vibration amplitude (µm pk-pk, mm/s, or g).
- Power Distribution → VM-5Z power supply module converts plant AC/DC input to regulated internal voltages powering the VM-5K card and transducer excitation circuits.
- Analog Output → 4–20 mA proportional output transmitted to DCS/PLC/SCADA for continuous trending and historian logging.
- Relay Alarm Output → Configurable Alert and Danger relay contacts for hardwired interlock or annunciator panel integration.
Sourcing & Quality Verification
- All VM-5H3 units sourced by Konmask are inspected for physical integrity, module seating, and label authenticity prior to dispatch.
- Units are supplied with original GE part markings and traceable documentation where available.
- Functional bench testing available upon request for critical plant applications.
- Konmask specializes in sourcing discontinued and long-lead GE automation components for plant maintenance and emergency replacement scenarios.
- Export documentation, country-of-origin certificates, and customs HS code support provided for international orders.
Procurement Process
- Inquiry: Submit your model number, required quantity, and delivery timeline to support@konmask.com or via the product page inquiry form.
- Quotation: Konmask will respond within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Purchase order or proforma invoice issued; payment terms confirmed.
- Quality Inspection: Unit inspected and photographed pre-shipment; inspection report shared upon request.
- Shipping: Worldwide DHL/FedEx/UPS express or sea freight; export documentation included.
- After-sales Support: Technical support available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is the VM-5H3 compatible with Bently Nevada transducers?
A: The VM-5K monitor card within the VM-5H3 rack is designed for GE VM-5 series transducer inputs. Compatibility with Bently Nevada probes depends on the specific transducer type and sensitivity; consult Konmask technical support for cross-compatibility confirmation.
Q: Can the VM-5H3 rack accept additional monitor cards beyond the built-in VM-5K?
A: The VM-5H3 chassis supports the VM-5 Series modular architecture. Slot availability for additional cards depends on the specific rack variant. Contact Konmask with your expansion requirements.
Q: What is the difference between VM-5H3 and other VM-5 rack variants?
A: The VM-5H3 designation indicates a specific rack configuration with the VM-5Z power supply and VM-5K monitor card pre-installed. Other VM-5H variants may differ in the number of card slots or included modules.
Q: Is this a new or refurbished unit?
A: Konmask supplies both new-old-stock (NOS) and professionally refurbished units depending on availability. Unit condition is clearly stated in the quotation. All units pass pre-shipment inspection.
Q: What is the lead time for VM-5H3?
A: Standard lead time is 3–7 business days for in-stock units. For sourced units, lead time is typically 2–4 weeks. Contact us for current stock status.
